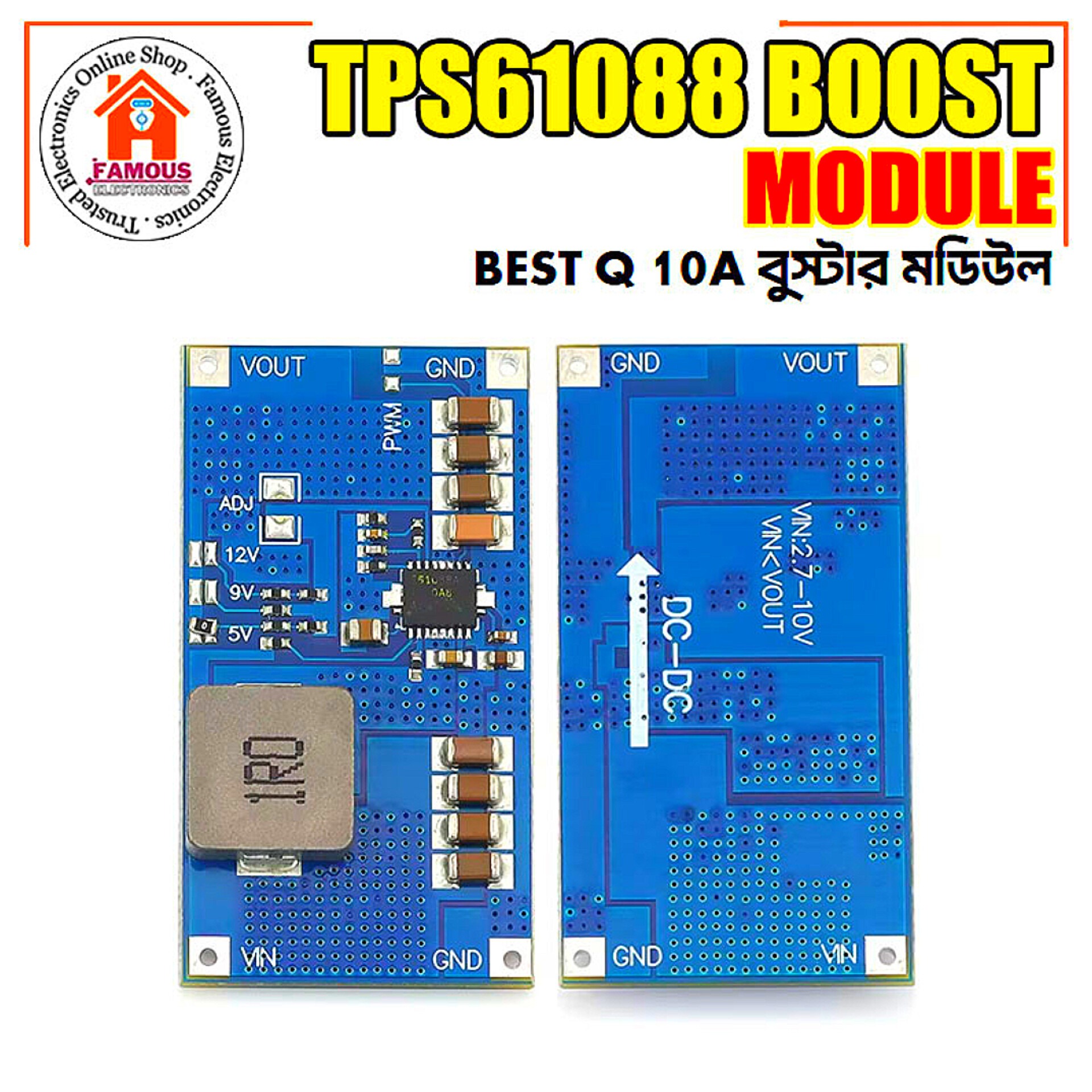

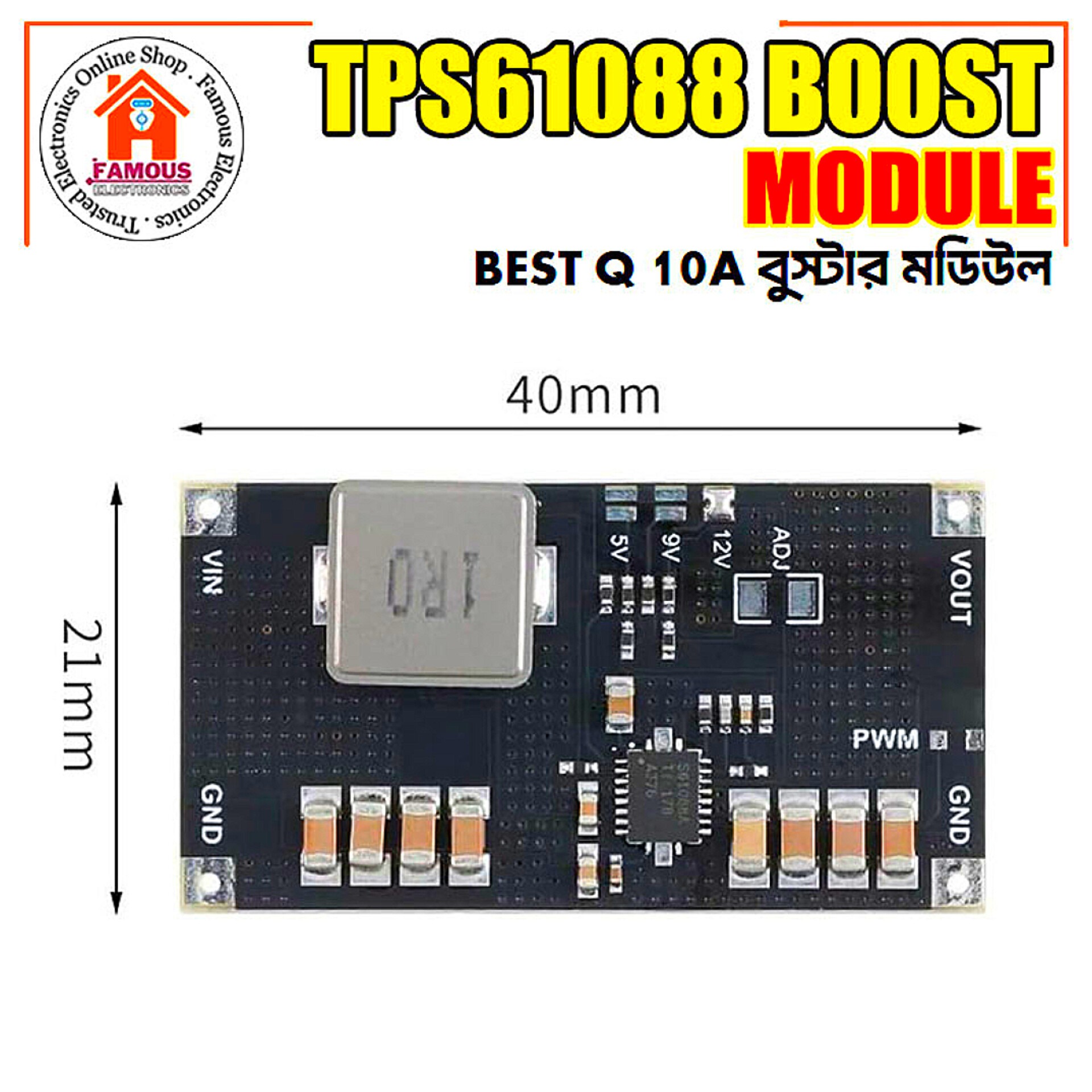

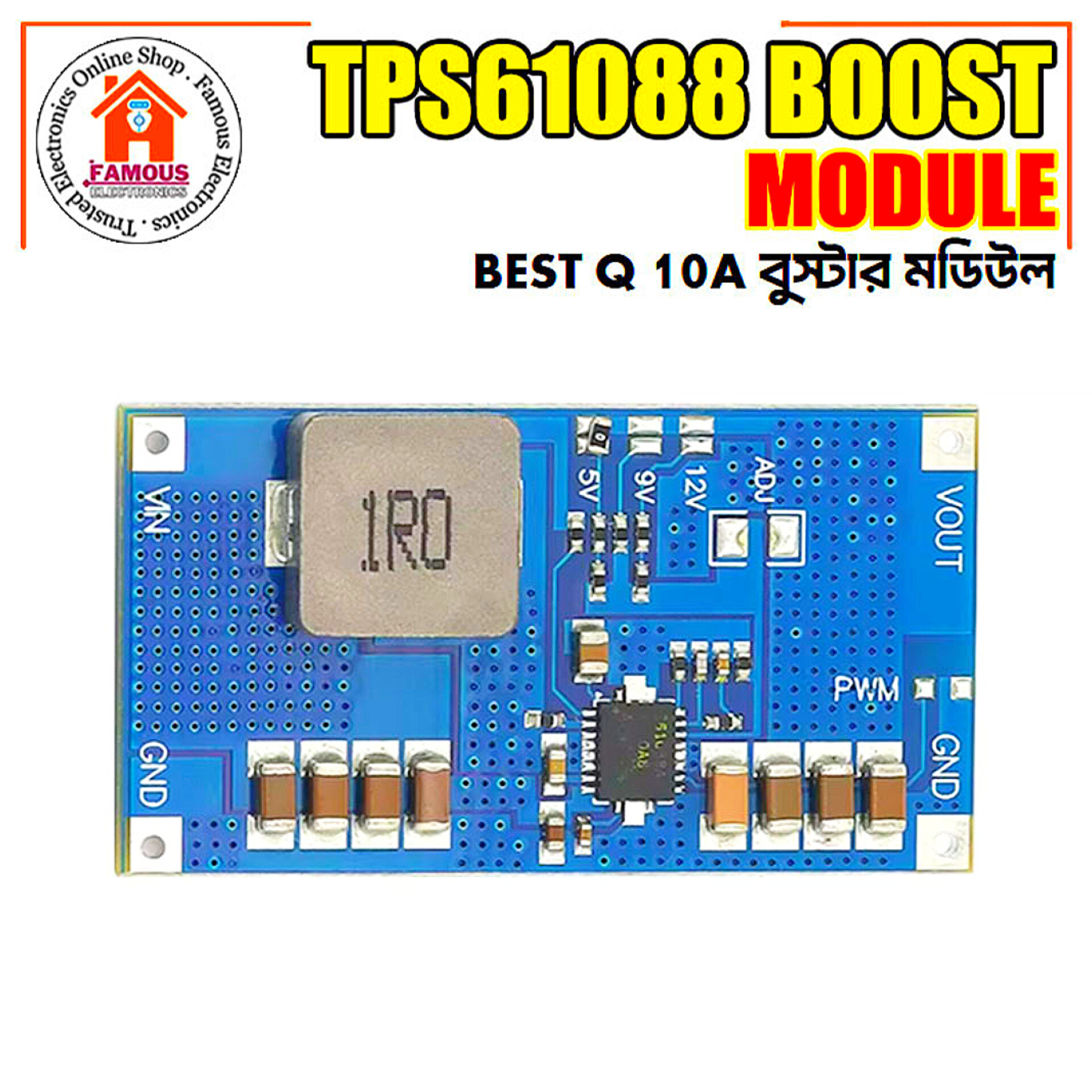

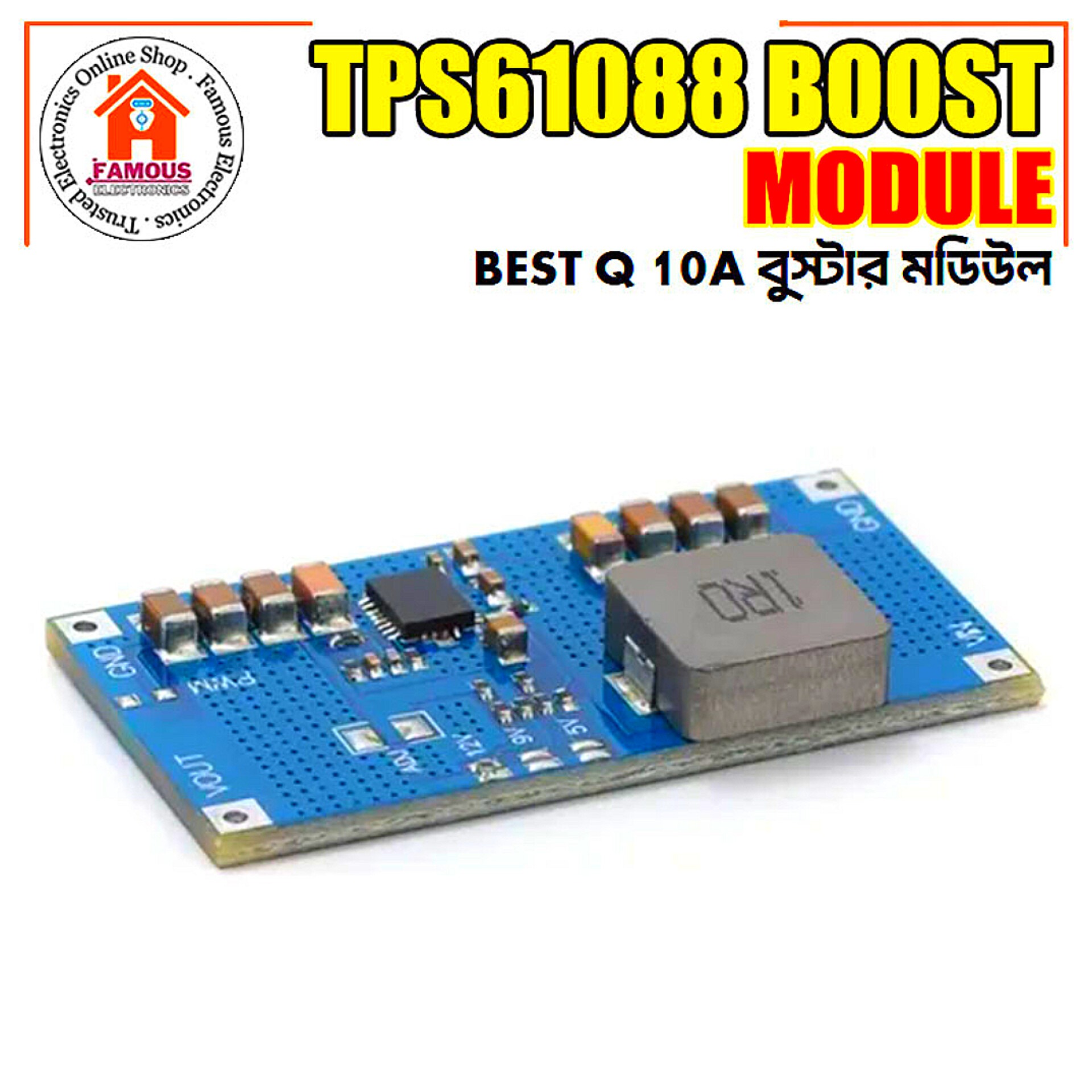

TPS61088 High-Power Best Q Boost Module 5V/9V/12V 10A Blue
বিস্তারিত:
- SKU
- TPS61088 10A Boost Module Blue
বিবরণ
Product Description:
✨ Controller IC: Texas Instruments (TI) TPS61088 fully-integrated converter.
⛔ Input Voltage Range: DC 2.7V to 12V (Highly ideal for single-cell 3.7V / 4.2V Lithium batteries).
✨ Output Voltage Range: Adjustable / Selectable from 4.5V to 12.6V (Typically pre-set or bridged for 5V, 9V, and 12V).
⛔ Input Current Limit: 9A to 10A Maximum.
✨ Peak Output Current: Up to 10A maximum (Depending on the output voltage and heat dissipation).
⛔ Maximum Output Power: Up to 30W (Requires an attached heatsink if running continuously over 20W).
✨ Conversion Efficiency: Up to 95% – 96% high-efficiency design.
⛔ Switching Frequency: Fixed at 1MHz (Enables minimal output ripple voltage).
✨ Working Modes: Supports both PWM (Pulse Width Modulation) for stable continuous loads and PFM (Pulse Frequency Modulation) for efficient light-load operations
