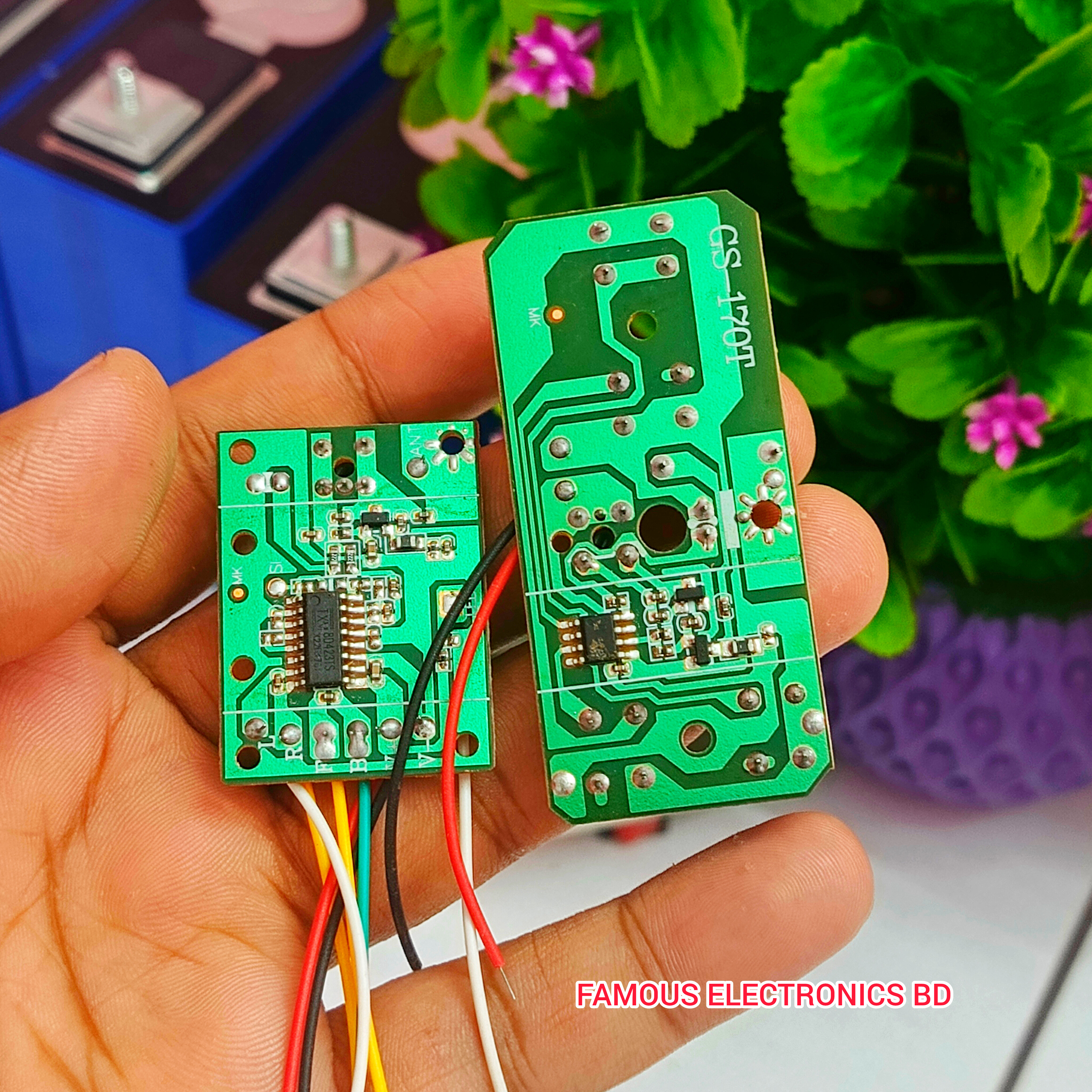

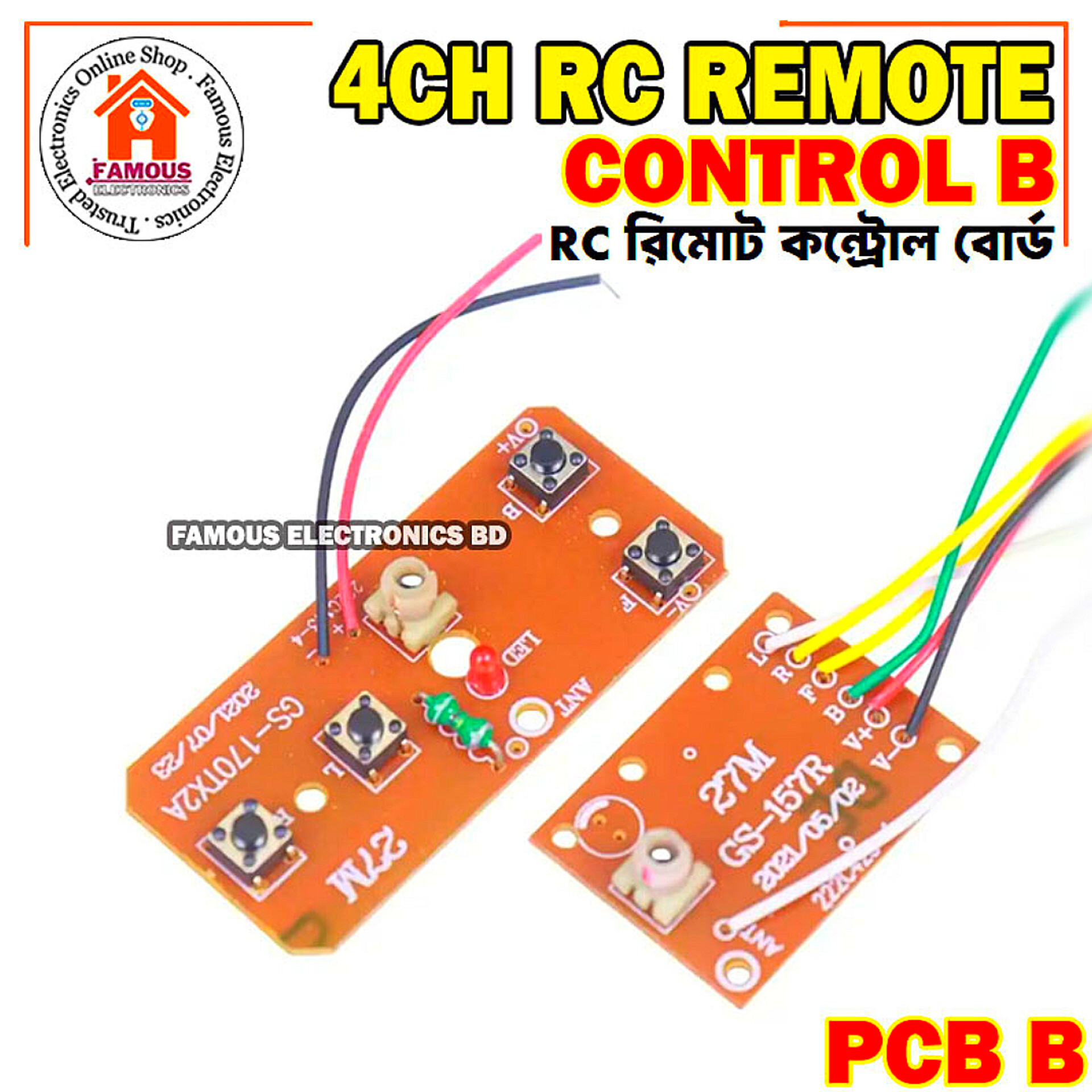

The 4CH RC Remote Control Circuit PCB Transmitter Receiver Board is a versatile and reliable wireless remote control system designed for controlling various RC (Radio-Controlled) models such as cars, robots, or other remote-operated devices. This circuit board allows for four-channel control, enabling the user to independently control multiple aspects of the device simultaneously.
Key Features:
4-Channel Control: This system supports four separate channels for controlling up to four different functions on your RC model, such as forward, backward, left, right, and additional custom controls.

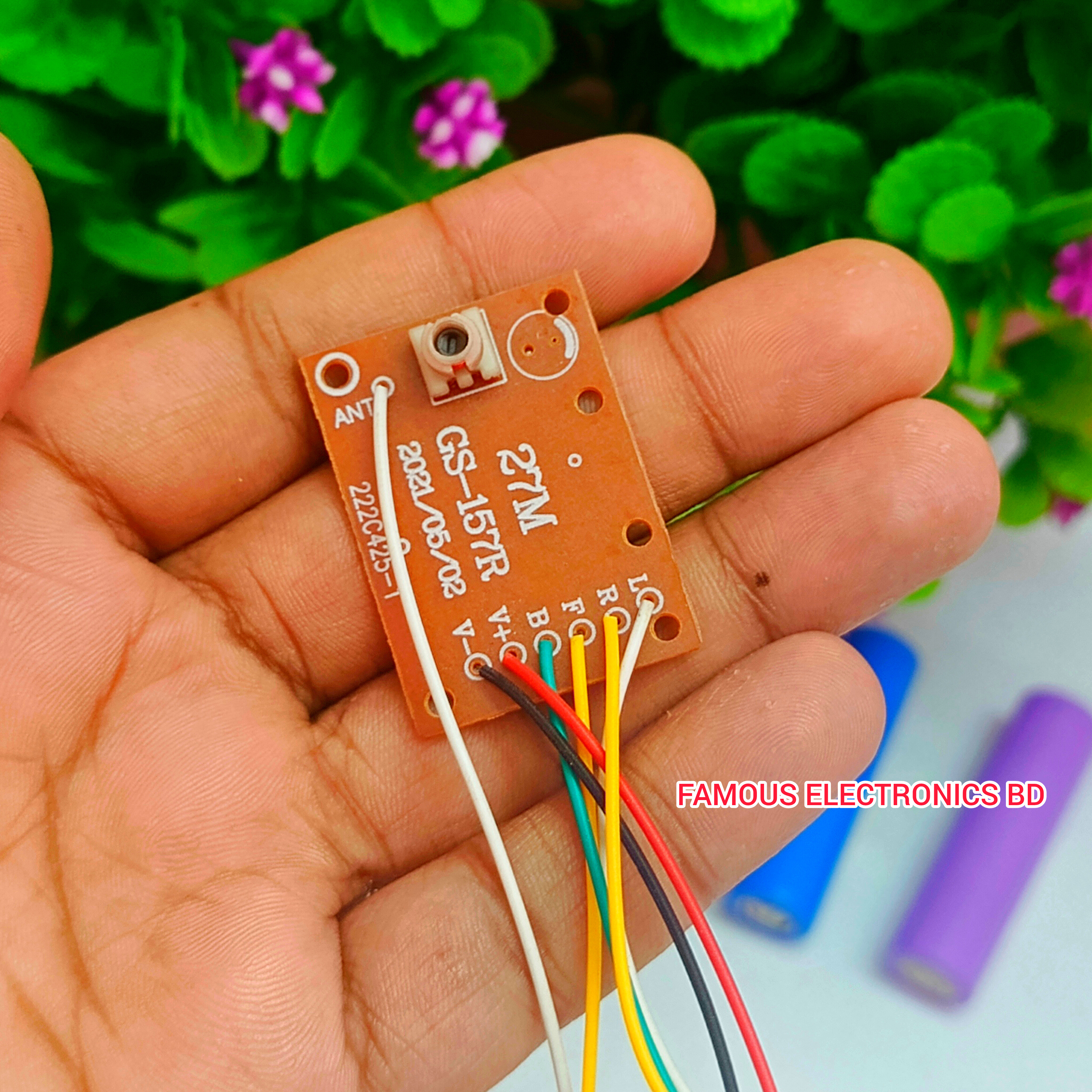

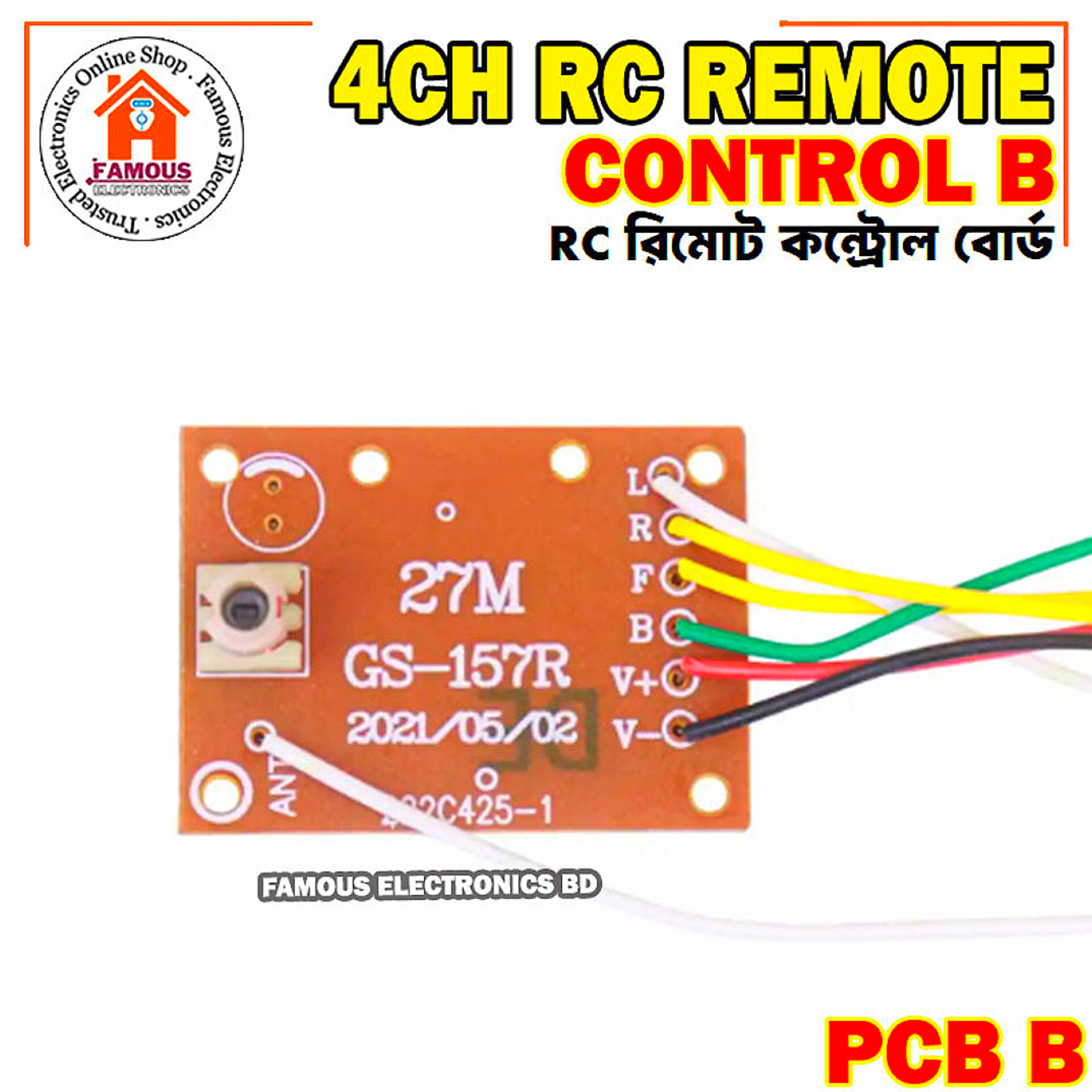

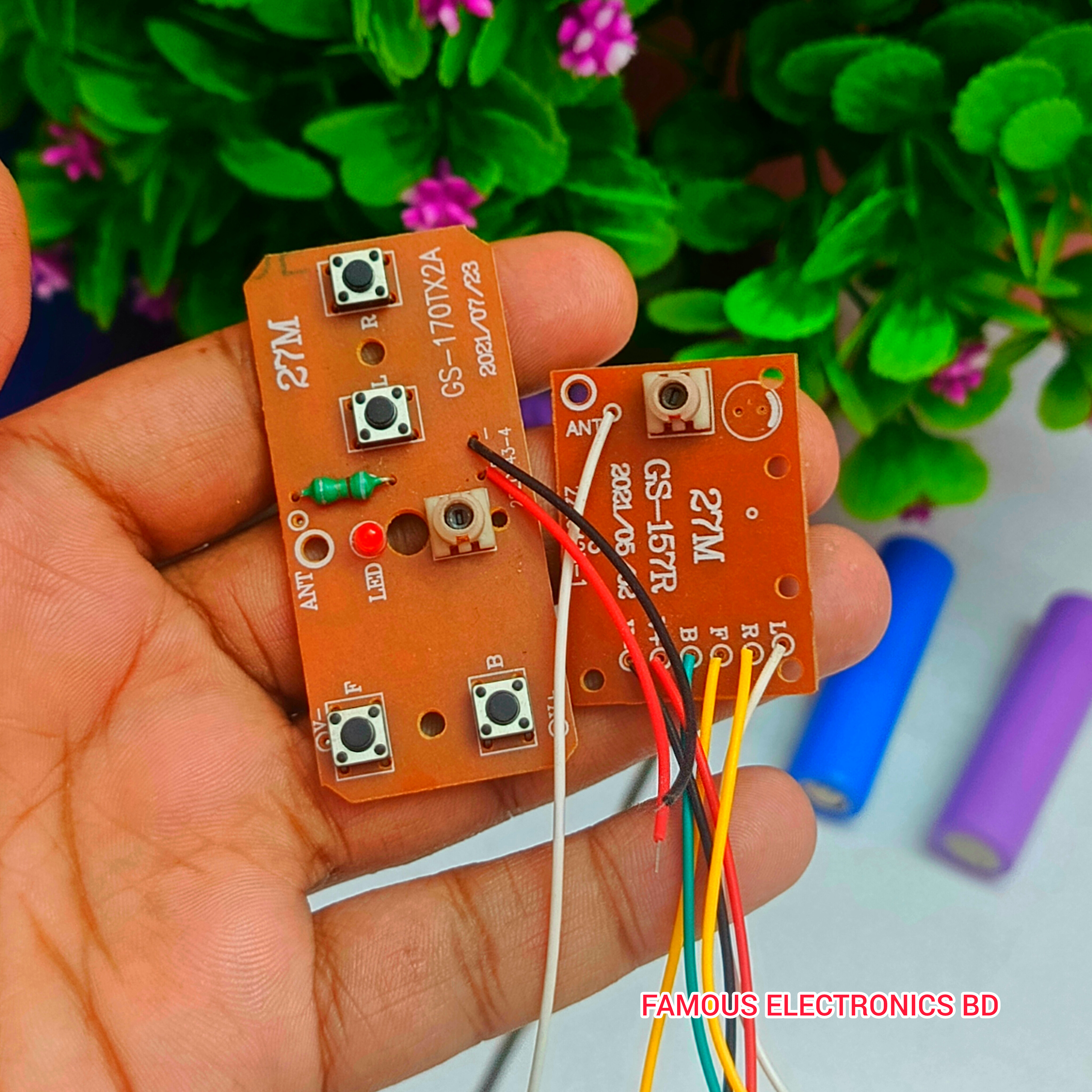

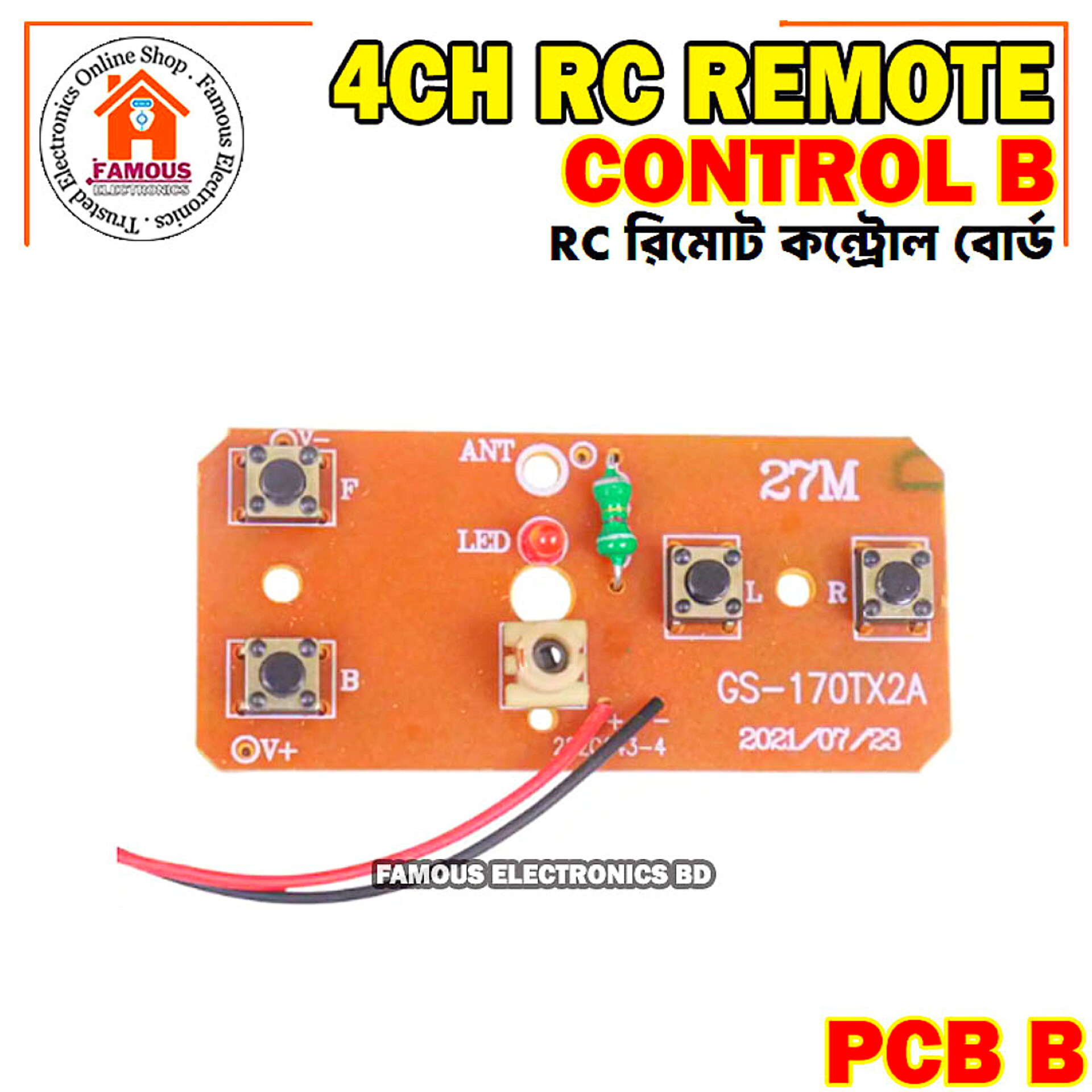

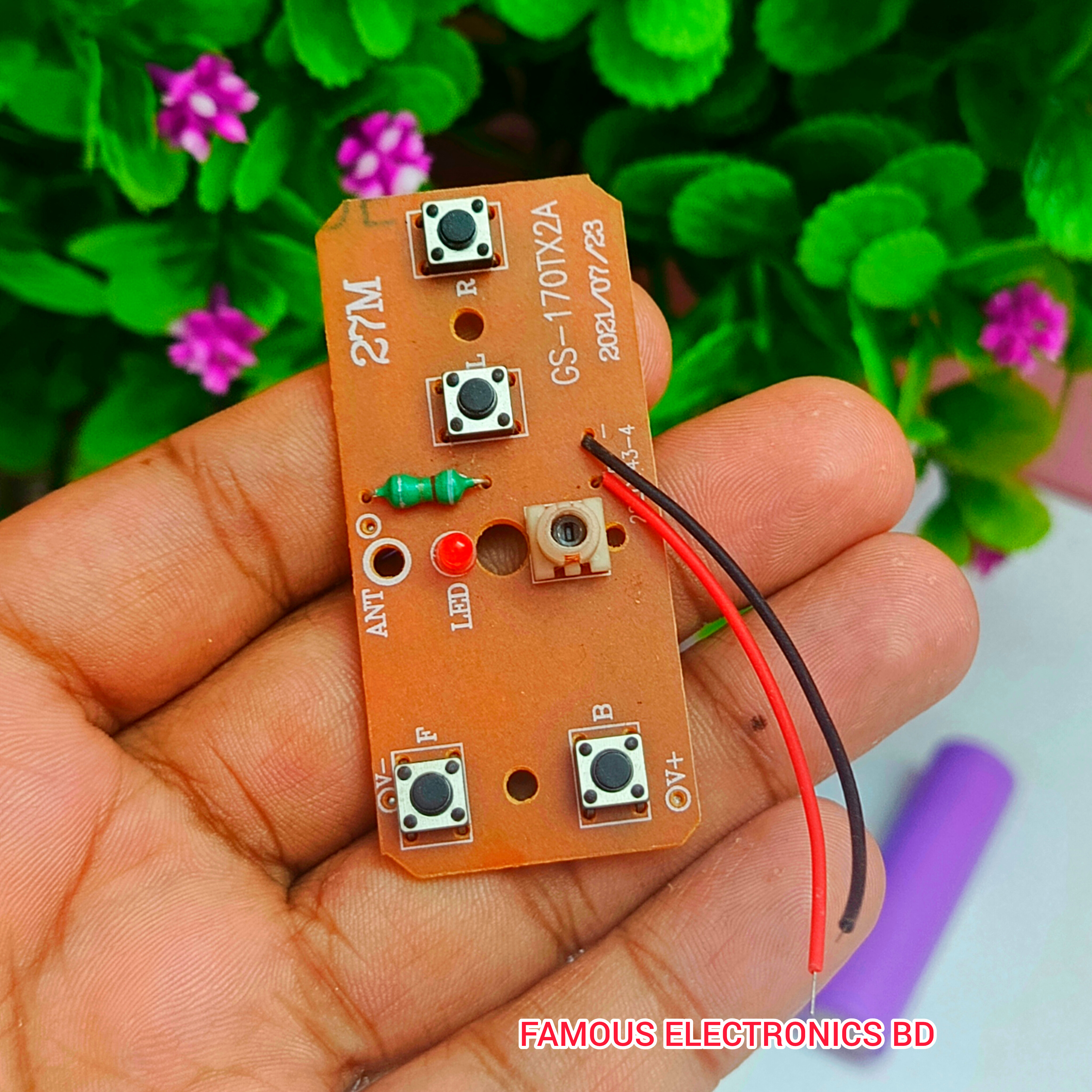

Transmitter & Receiver Board: The system includes both the transmitter board (which sends signals to the receiver) and the receiver board (which receives signals and controls the RC device).
Wireless Communication: Utilizes RF (Radio Frequency) technology to provide stable communication between the transmitter and the receiver, allowing for a long-range remote control operation.
Simple Integration: The PCB boards are designed for easy integration into your RC model, with clearly marked pins and a straightforward setup process.
Compatibility: Suitable for various types of RC vehicles, including RC cars, boats, and airplanes, as well as other DIY electronics projects.
Low Power Consumption: Designed to operate on low power, making it suitable for battery-powered devices and increasing overall efficiency.
Compact Design: The small size and light weight of the board make it ideal for use in space-constrained RC models.
Specifications:
Feature
Details
Channels
4 Channels
Control Type
Wireless RF (Radio Frequency)
Frequency
433 MHz or 315 MHz (dependent on version)
Power Supply
5V DC
Transmitter Power
Low Power
Receiver Output
4 independent outputs for channel control
Range
Up to 100 meters (depending on environment)
Module Type
Transmitter and Receiver
Operating Temperature
0°C to 50°C
Applications:
RC Cars: Perfect for controlling RC cars with multiple functionalities, such as speed control, turning, and additional features like lights or horn.
DIY Robots: Ideal for robotic projects that require remote control for various movement and operation tasks.
RC Boats & Aircraft: Suitable for RC boats and aircraft where multiple control channels are needed for various movements or operations.
Home Automation & IoT Projects: Can be adapted for home automation systems and IoT (Internet of Things) projects requiring wireless control.
Usage Tips:
Antennas: Ensure that the transmitter and receiver have proper antennas for optimal communication range.
Battery Consideration: Use rechargeable batteries for both the transmitter and receiver to save cost and ensure consistent performance.
Signal Interference: If you experience signal interference, try adjusting the frequency or relocating the receiver to a less obstructed location for better reception.
Wiring & Soldering: If you need to solder the circuit, ensure all connections are secure and well-insulated to prevent short circuits or signal loss.
The 4CH RC Remote Control Circuit PCB Transmitter Receiver Board is a comprehensive solution for building or enhancing RC models or DIY projects with multiple control features. Its reliable performance, low power consumption, and easy integration make it a must-have accessory for any RC enthusiast or electronics hobbyist.
