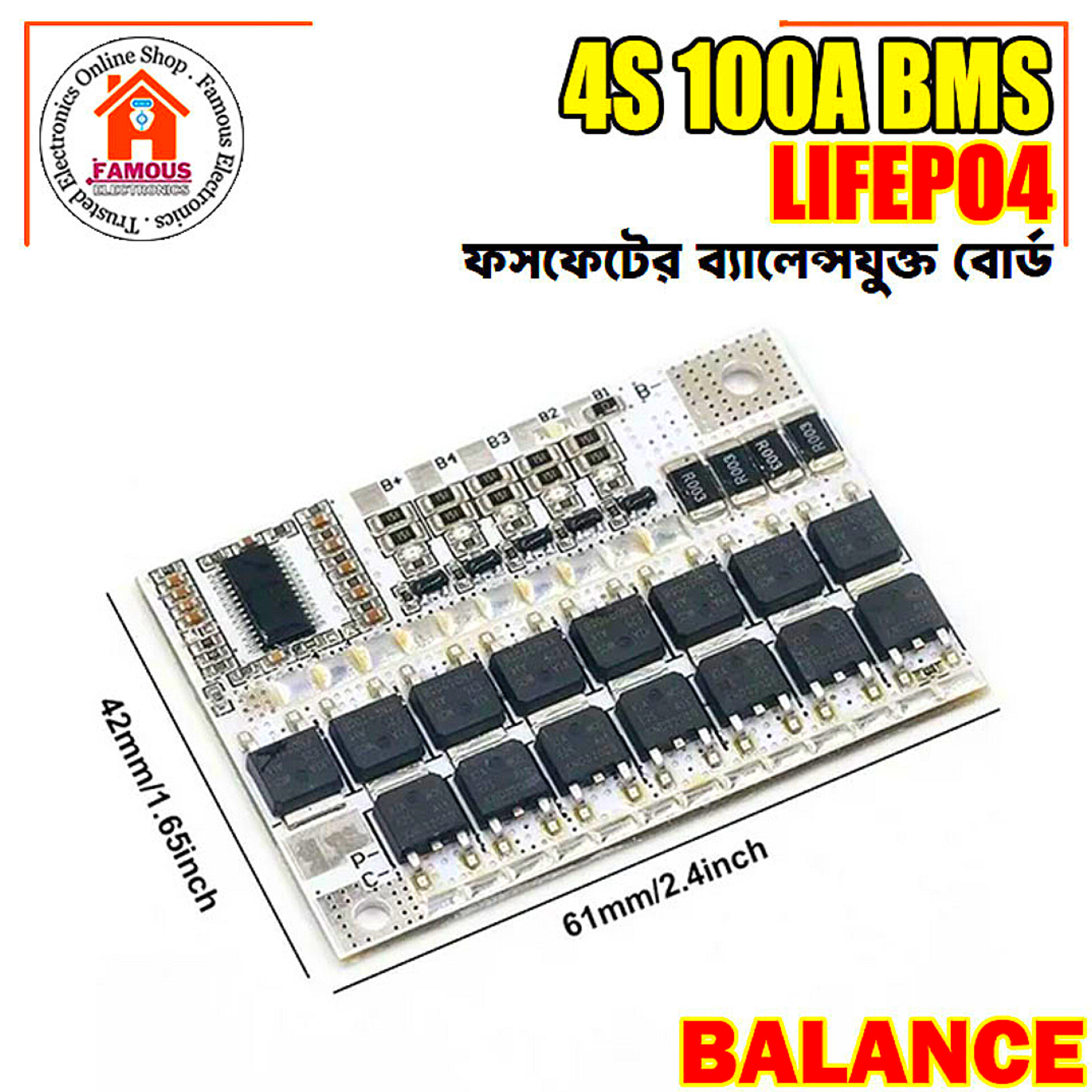

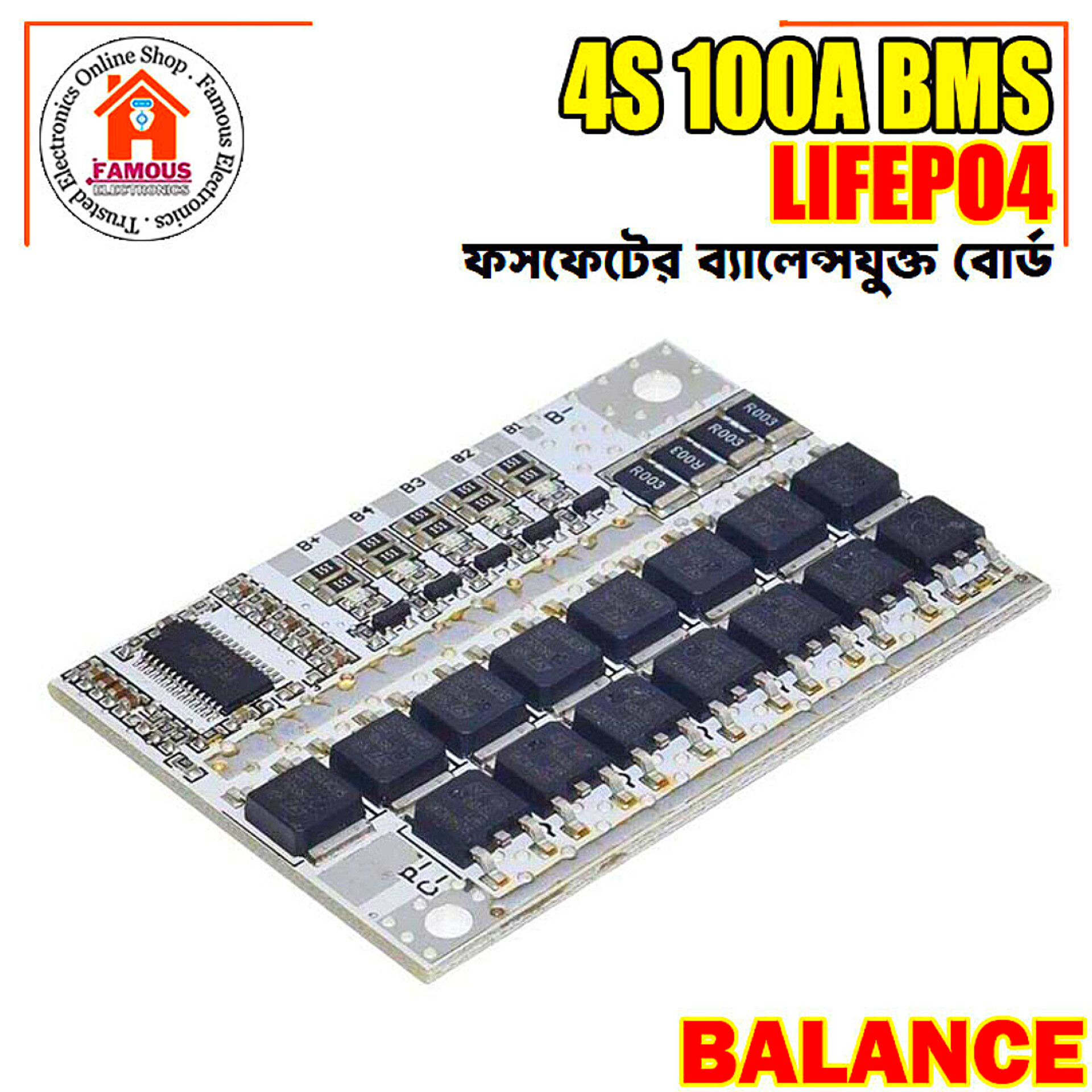

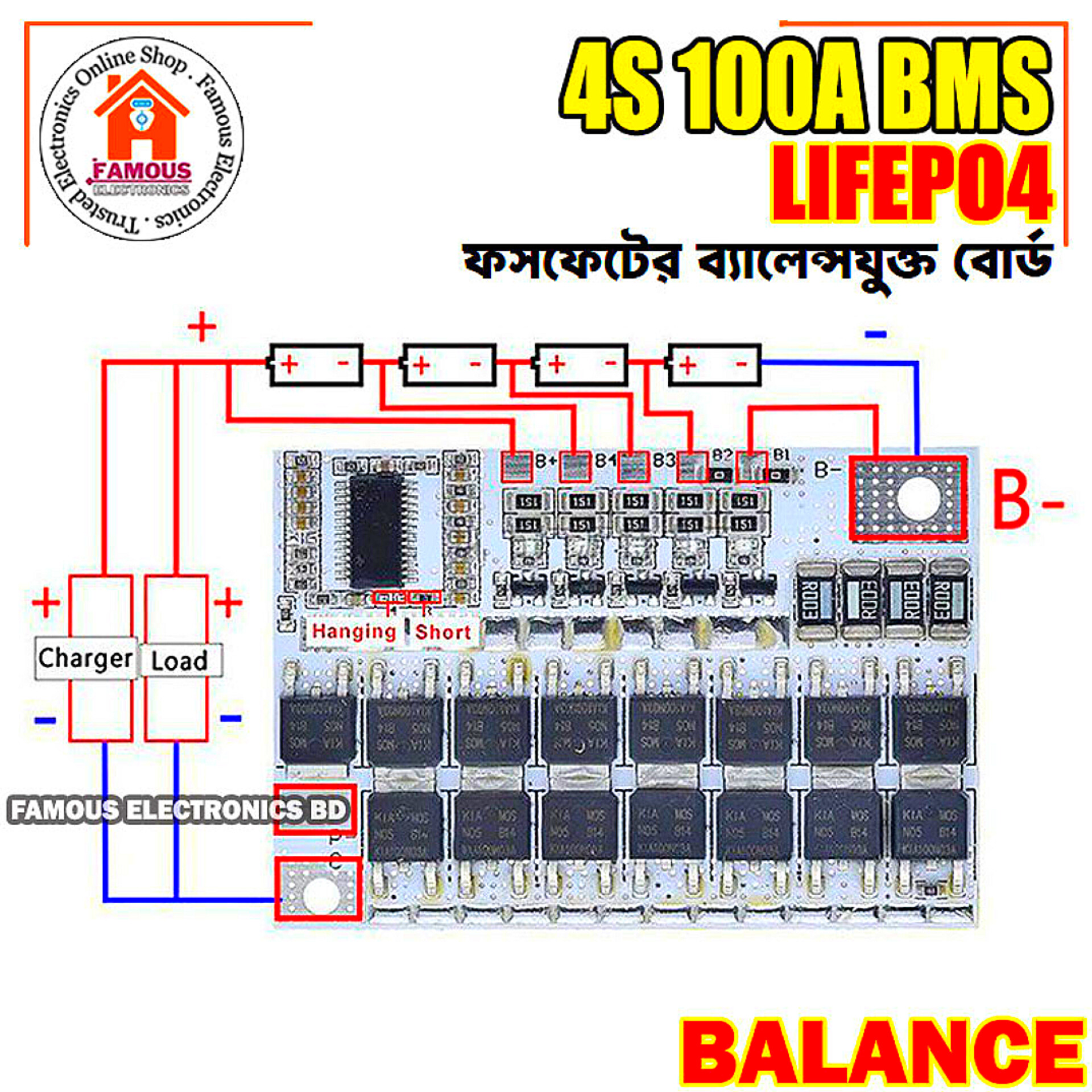

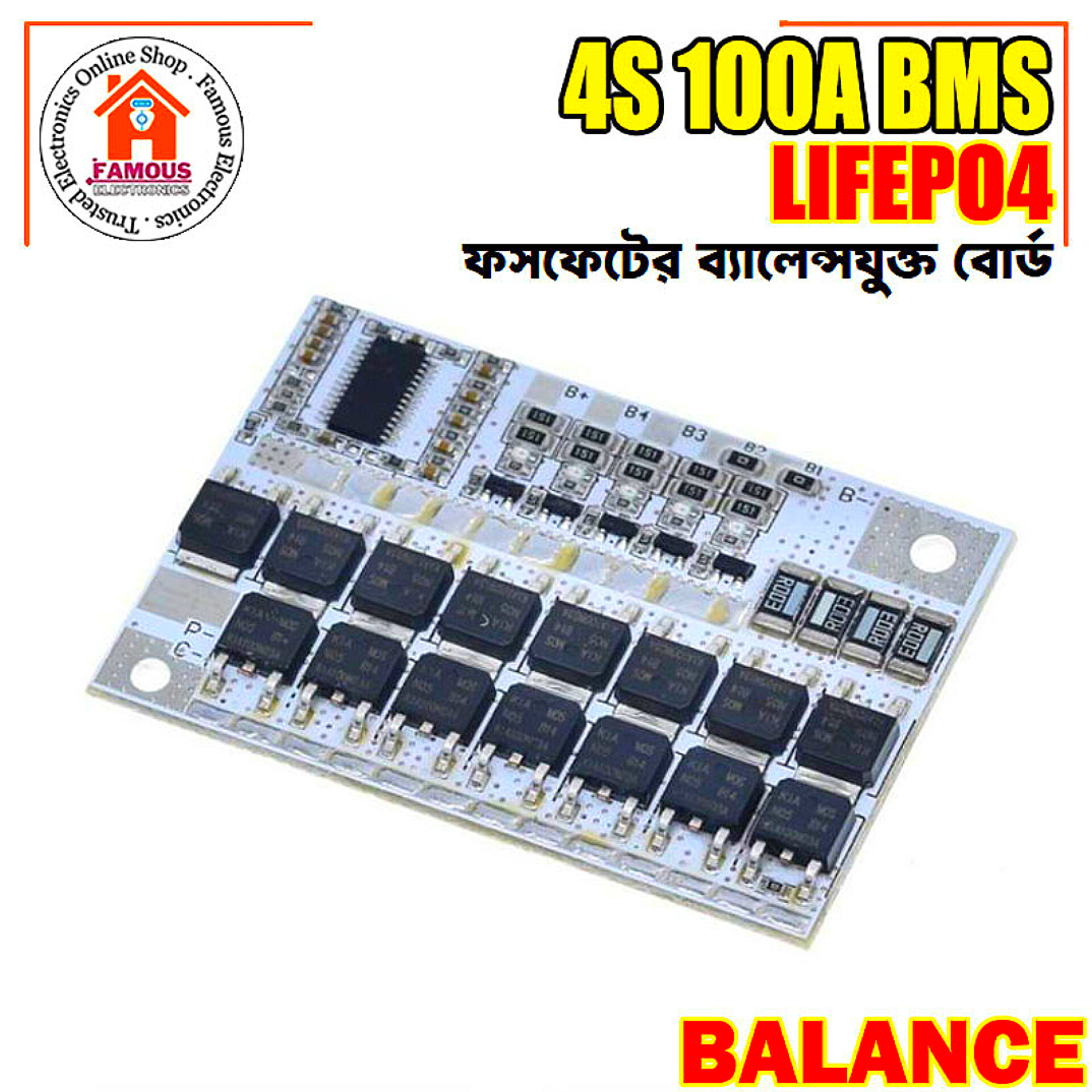

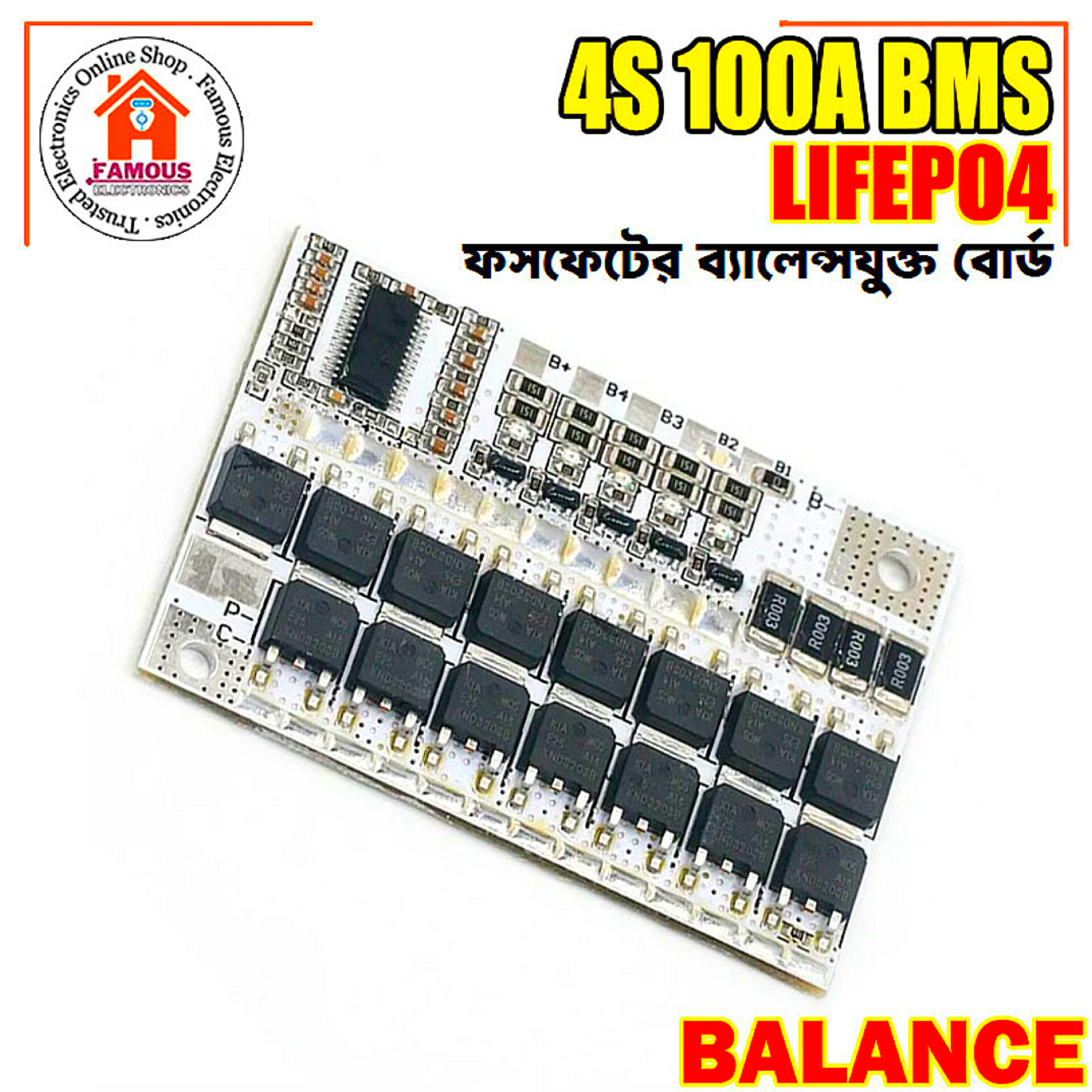

4S/5S 100A BMS 14.6V / 18.2V LiFePO4 & Ternary Lithium Battery Protection Circuit Board With Balancing
375 BDT515 BDTSave 140 BDT
Total sold : 42
Specification:
Battery Support: 4S (14.6V) & 5S (18.2V)
Battery Type: LiFePO4 / Ternary Lithium (Li-ion, Li-Poly)
Continuous Discharge Current: 100A
Charging Voltage:
14.6V (for 4S LiFePO4)
18.2V (for 5S LiFePO4)
Balancing Function: Yes (active balancing between cells)
Protection Features:
Overcharge protection
Over-discharge protection
Overcurrent protection
Short circuit protection
Temperature protection
Dimensions: Approx. 65 × 45 × 10 mm
Weight: Approx. 35g
Description:
This 100A high-power BMS protection board is designed for both 4S and 5S LiFePO4 or lithium battery packs. It ensures your battery is charged and discharged safely with built-in balancing circuitry. Perfect for high-load applications like inverters, solar systems, e-bikes, and energy storage setups.
Application:
12V / 16V LiFePO4 battery packs
Solar energy storage systems
Electric bicycles, scooters
Inverters and UPS systems
DIY lithium battery banks
