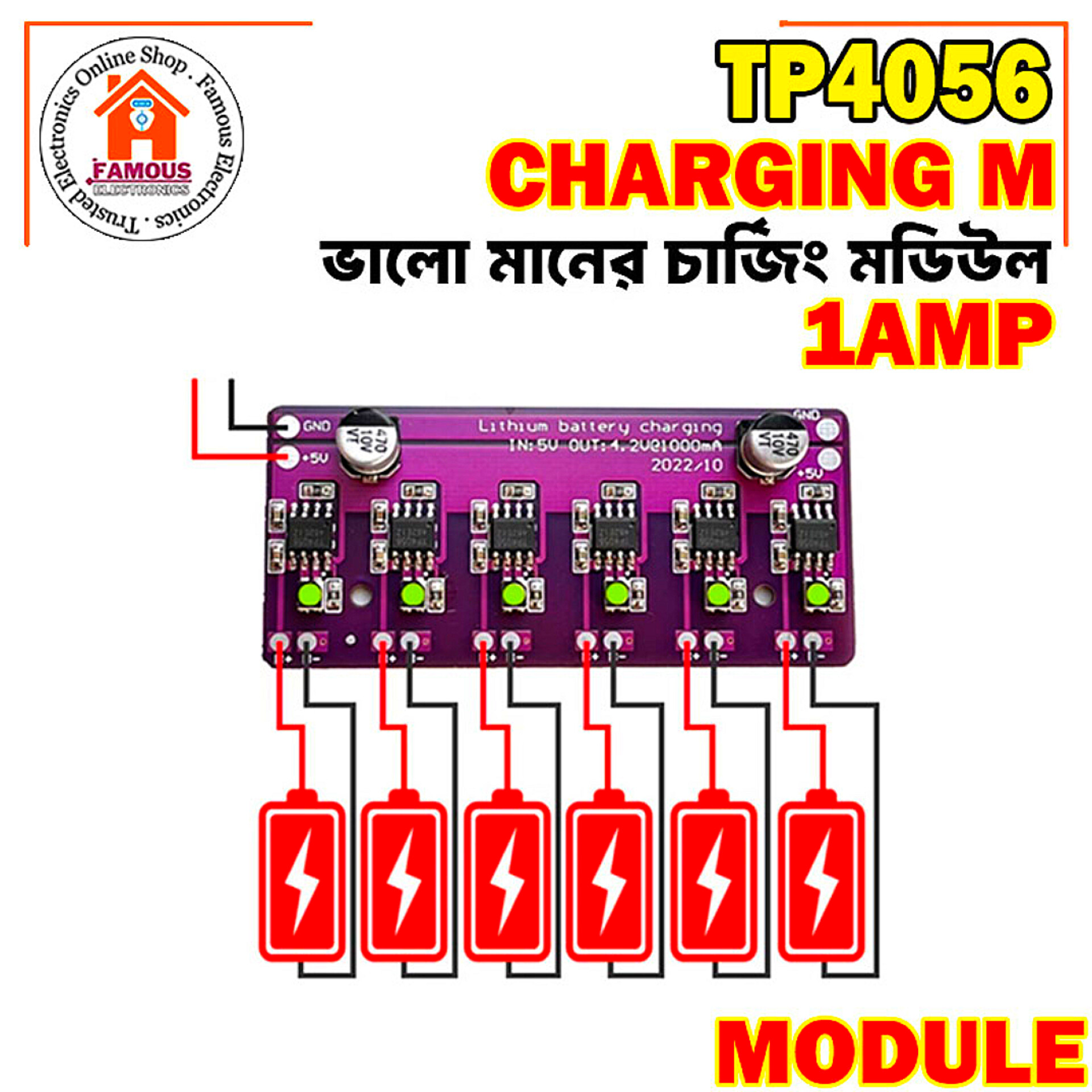

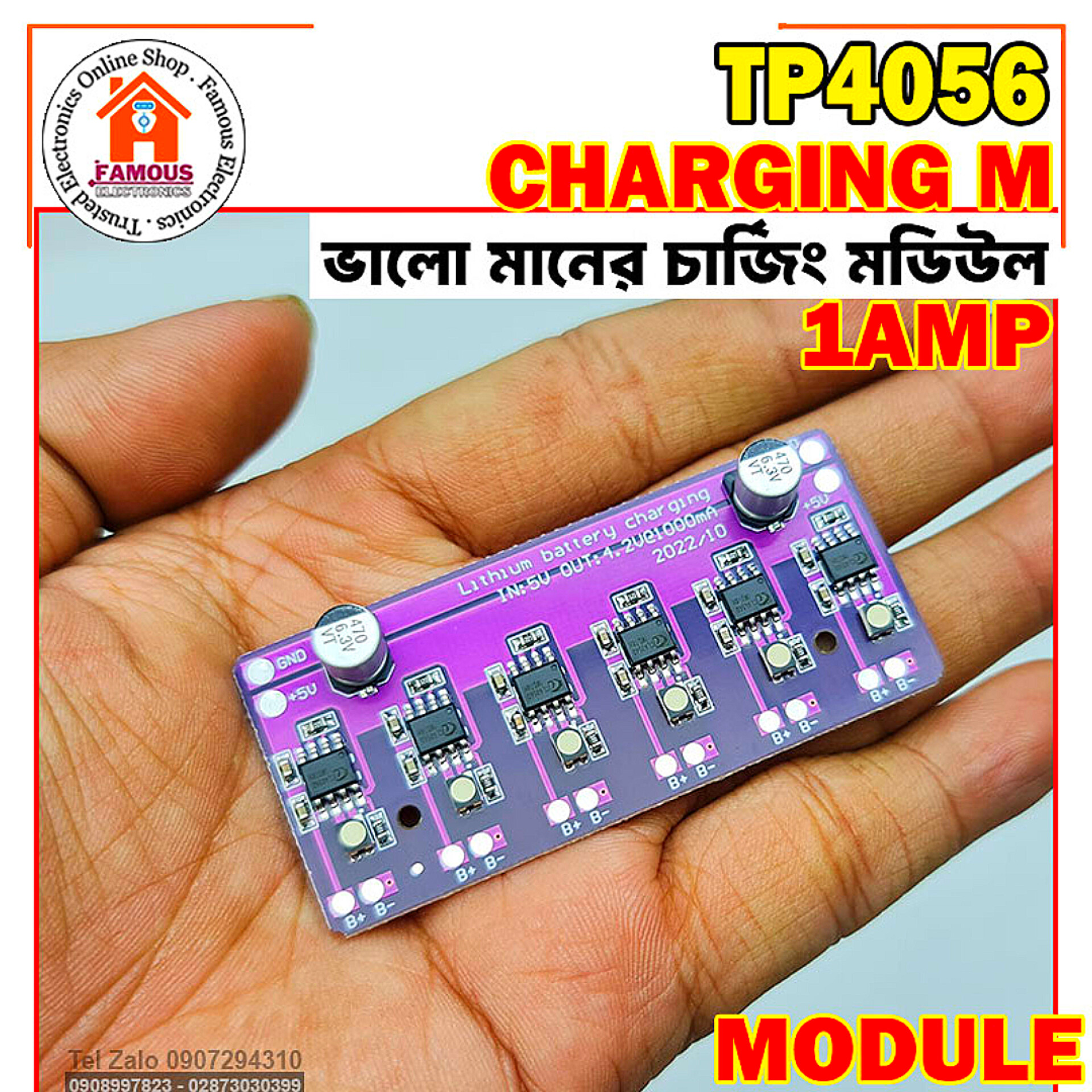

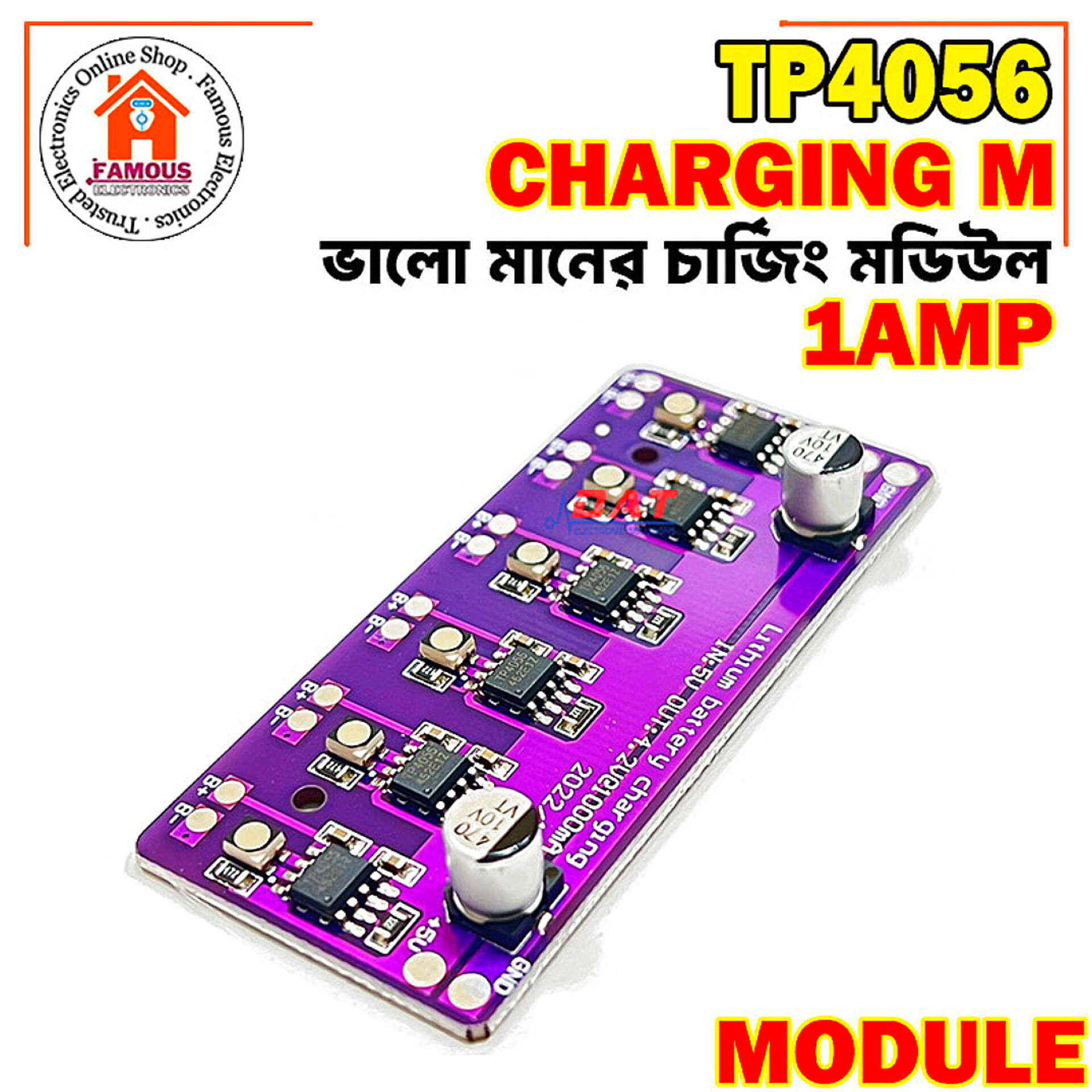

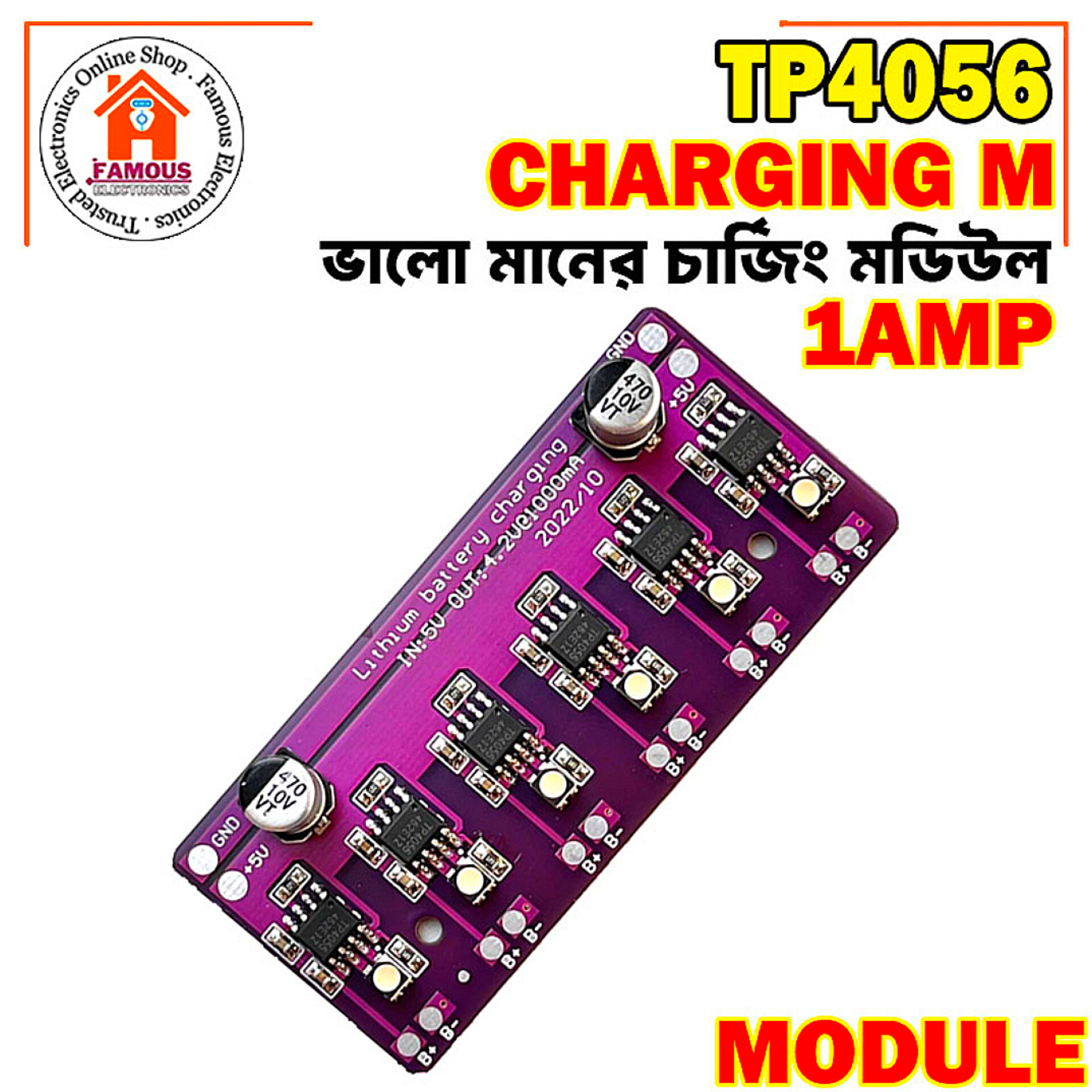

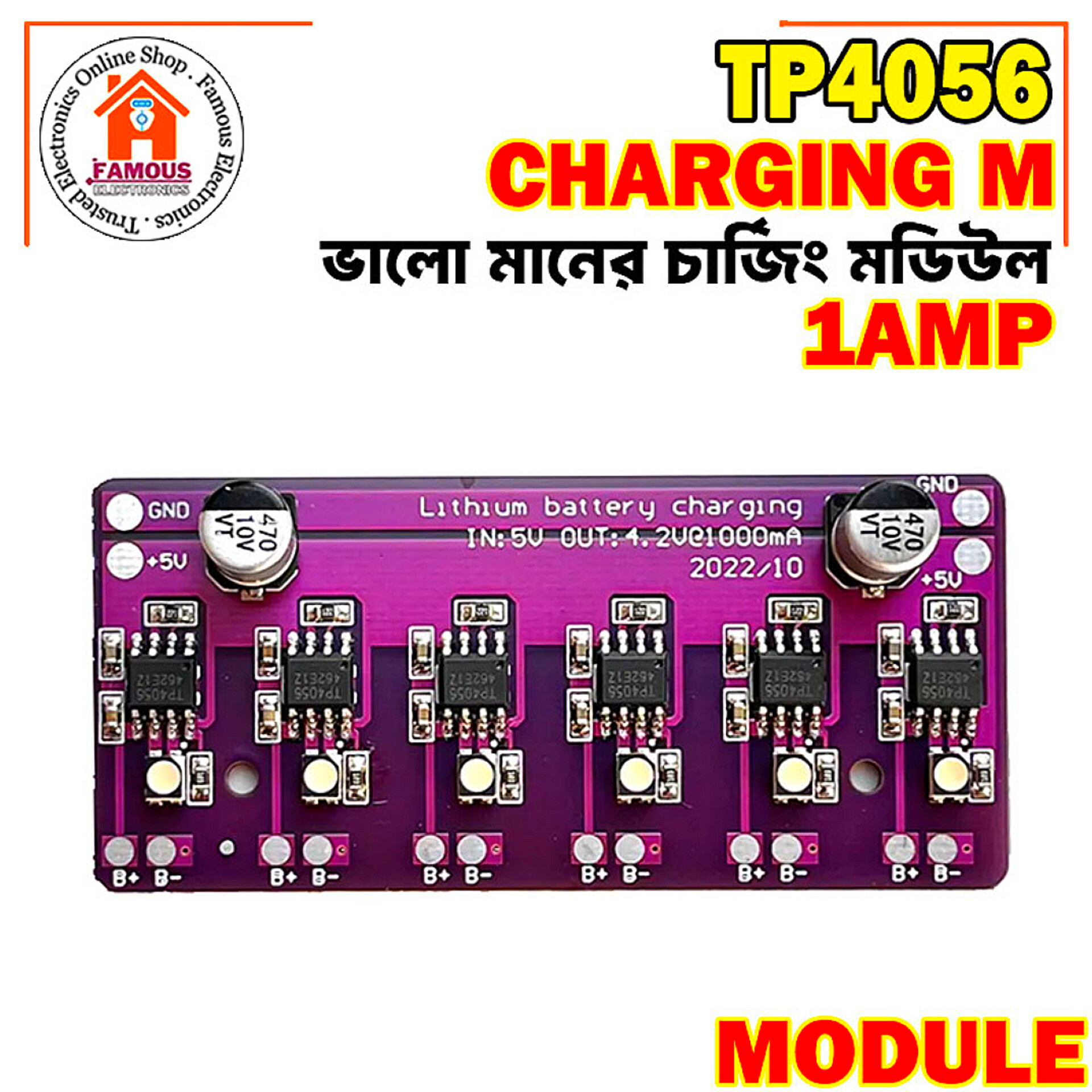

5V 1A Charging Module 4056 18650 Lithium Battery Charge Discharge Integrated PCB Board Supports Six Independent Battery Groups
Features: 1.6 * 1A can be output in parallel to increase current 2.Lithium battery charging module 4056 is independent of 6 groups in parallel, with each group outputting 1000ma 3.Supports charging 6 batteries together for 5V input circuit 4.The output shares the same ground and can be connected in parallel to increase the output current 5.With status indicator light, more convenient to useParameters: Input voltage: 5V-6V (exceeding the voltage can cause damage) Output voltage: 4.2V (± 1%) Output current: 1A Status indicator: LED charging red light, fully charged to green (hanging green light always on or flashing green light) Body size: 40MM * 67MM * T10MMInstructions for use: 1.The input cannot be reversed or overpressure, and the output cannot be reversed to the battery, otherwise it will cause chip damage. 2.The output is common to the ground, and multiple parallel connections can be used to increase the output current, but the battery cannot be charged in series. 3.This product does not include a transformer, and the customer comes with a 5V 6A power transformer.
FAMOUS ELECTRONICS BD
Category List
All products
HandTools
Module
Robotics
Battery
Motor
BatteryPack
Soldering Tools
Amplifier
PowerBank and Accessories
Charger and Adaptor
Features:
1.6 * 1A can be output in parallel to increase current
2.Lithium battery charging module 4056 is independent of 6 groups in parallel, with each group outputting 1000ma
3.Supports charging 6 batteries together for 5V input circuit
4.The output shares the same ground and can be connected in parallel to increase the output current
5.With status indicator light, more convenient to use

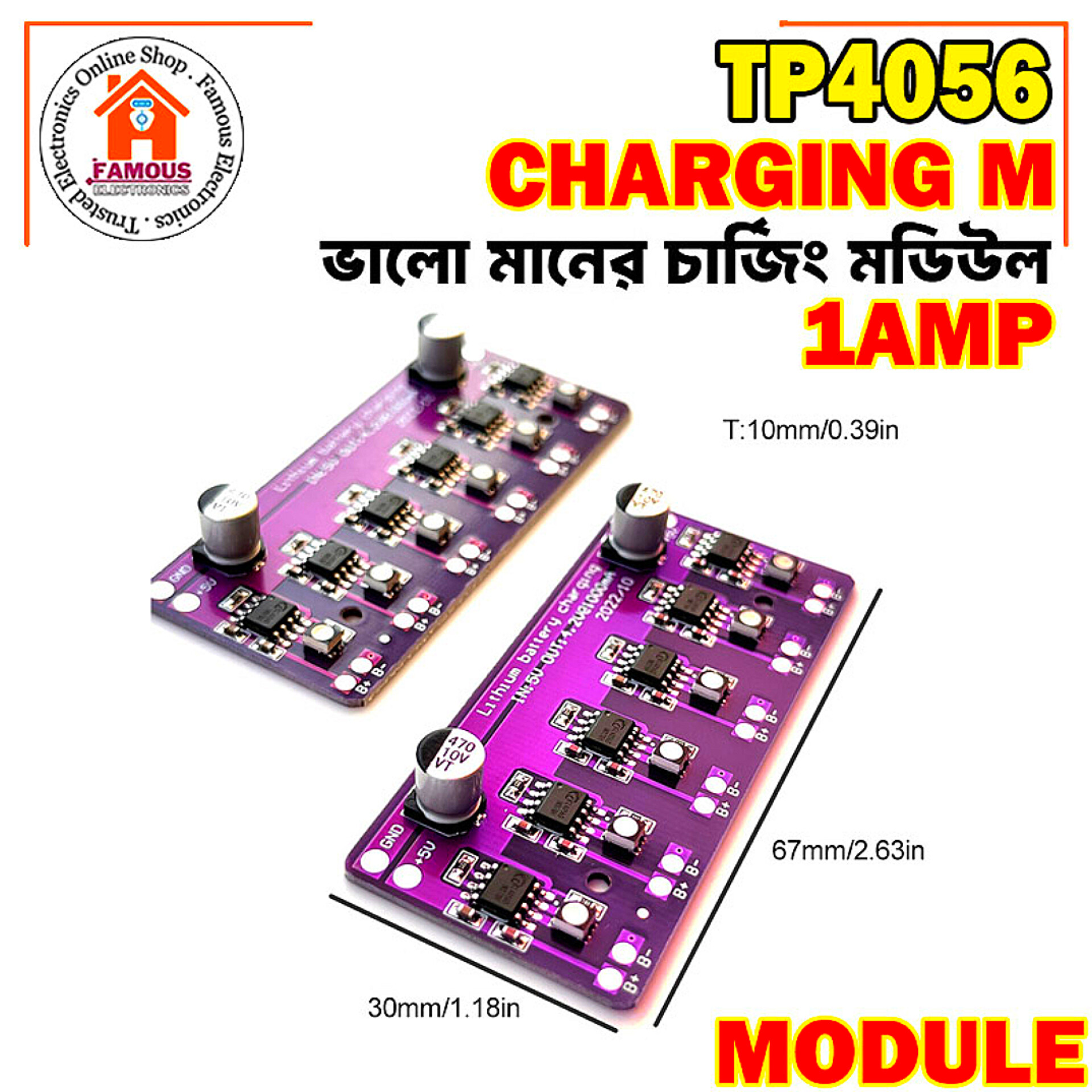

Parameters: Input voltage: 5V-6V (exceeding the voltage can cause damage) Output voltage: 4.2V (± 1%) Output current: 1A Status indicator: LED charging red light, fully charged to green (hanging green light always on or flashing green light) Body size: 40MM * 67MM * T10MM
Instructions for use:
1.The input cannot be reversed or overpressure, and the output cannot be reversed to the battery, otherwise it will cause chip damage.
2.The output is common to the ground, and multiple parallel connections can be used to increase the output current, but the battery cannot be charged in series.
3.This product does not include a transformer, and the customer comes with a 5V 6A power transformer.
1.6 * 1A can be output in parallel to increase current
2.Lithium battery charging module 4056 is independent of 6 groups in parallel, with each group outputting 1000ma
3.Supports charging 6 batteries together for 5V input circuit
4.The output shares the same ground and can be connected in parallel to increase the output current
5.With status indicator light, more convenient to use
Parameters: Input voltage: 5V-6V (exceeding the voltage can cause damage) Output voltage: 4.2V (± 1%) Output current: 1A Status indicator: LED charging red light, fully charged to green (hanging green light always on or flashing green light) Body size: 40MM * 67MM * T10MM
Instructions for use:
1.The input cannot be reversed or overpressure, and the output cannot be reversed to the battery, otherwise it will cause chip damage.
2.The output is common to the ground, and multiple parallel connections can be used to increase the output current, but the battery cannot be charged in series.
3.This product does not include a transformer, and the customer comes with a 5V 6A power transformer.
5V 1A Charging Module 4056 18650 Lithium Battery Charge Discharge Integrated PCB Board Supports Six Independent Battery Groups
265 BDT575 BDTSave 310 BDT
Total sold : 5
Features:
1.6 * 1A can be output in parallel to increase current
2.Lithium battery charging module 4056 is independent of 6 groups in parallel, with each group outputting 1000ma
3.Supports charging 6 batteries together for 5V input circuit
4.The output shares the same ground and can be connected in parallel to increase the output current
5.With status indicator light, more convenient to use
Parameters: Input voltage: 5V-6V (exceeding the voltage can cause damage) Output voltage: 4.2V (± 1%) Output current: 1A Status indicator: LED charging red light, fully charged to green (hanging green light always on or flashing green light) Body size: 40MM * 67MM * T10MM
Instructions for use:
1.The input cannot be reversed or overpressure, and the output cannot be reversed to the battery, otherwise it will cause chip damage.
2.The output is common to the ground, and multiple parallel connections can be used to increase the output current, but the battery cannot be charged in series.
3.This product does not include a transformer, and the customer comes with a 5V 6A power transformer.
1.6 * 1A can be output in parallel to increase current
2.Lithium battery charging module 4056 is independent of 6 groups in parallel, with each group outputting 1000ma
3.Supports charging 6 batteries together for 5V input circuit
4.The output shares the same ground and can be connected in parallel to increase the output current
5.With status indicator light, more convenient to use
Parameters: Input voltage: 5V-6V (exceeding the voltage can cause damage) Output voltage: 4.2V (± 1%) Output current: 1A Status indicator: LED charging red light, fully charged to green (hanging green light always on or flashing green light) Body size: 40MM * 67MM * T10MM
Instructions for use:
1.The input cannot be reversed or overpressure, and the output cannot be reversed to the battery, otherwise it will cause chip damage.
2.The output is common to the ground, and multiple parallel connections can be used to increase the output current, but the battery cannot be charged in series.
3.This product does not include a transformer, and the customer comes with a 5V 6A power transformer.
