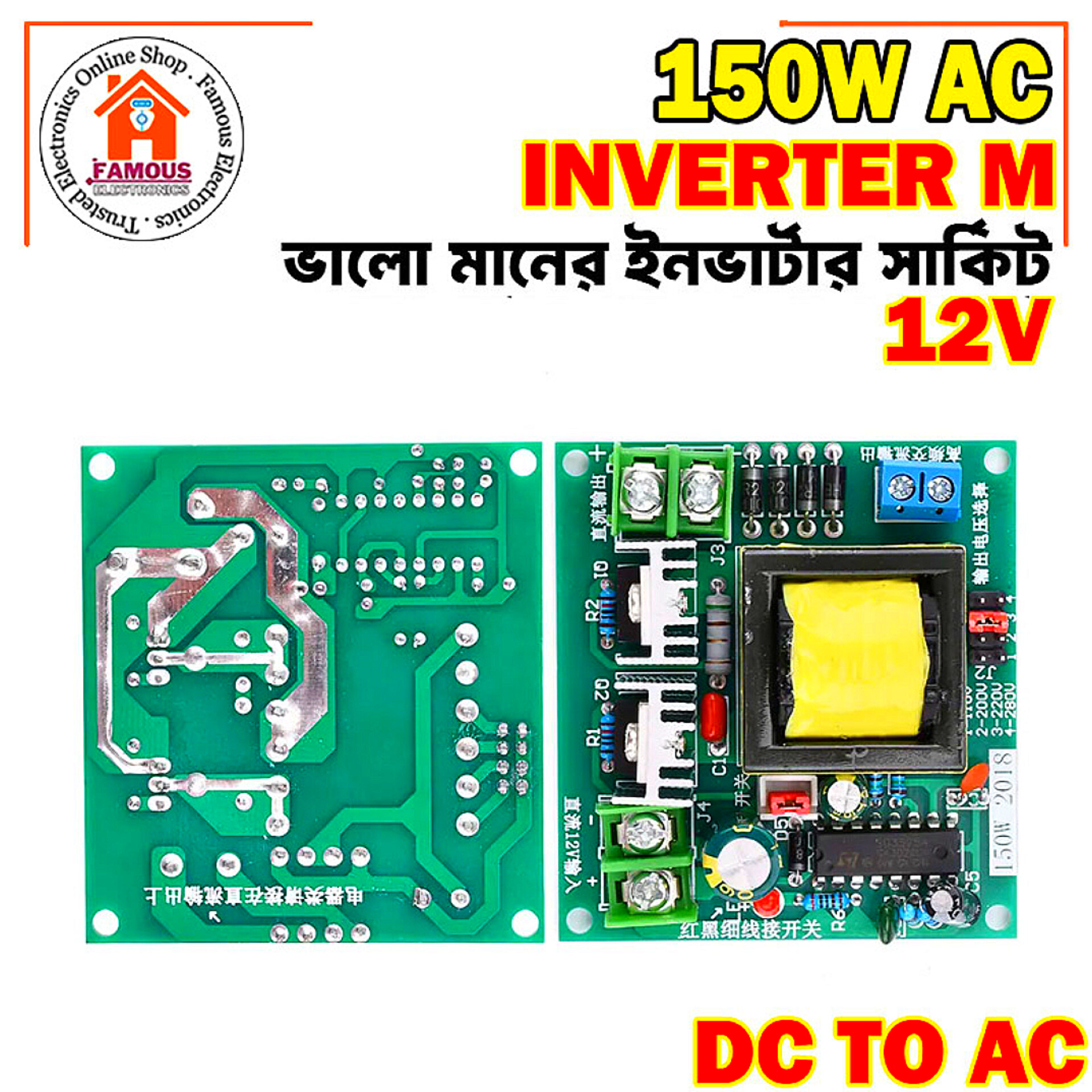

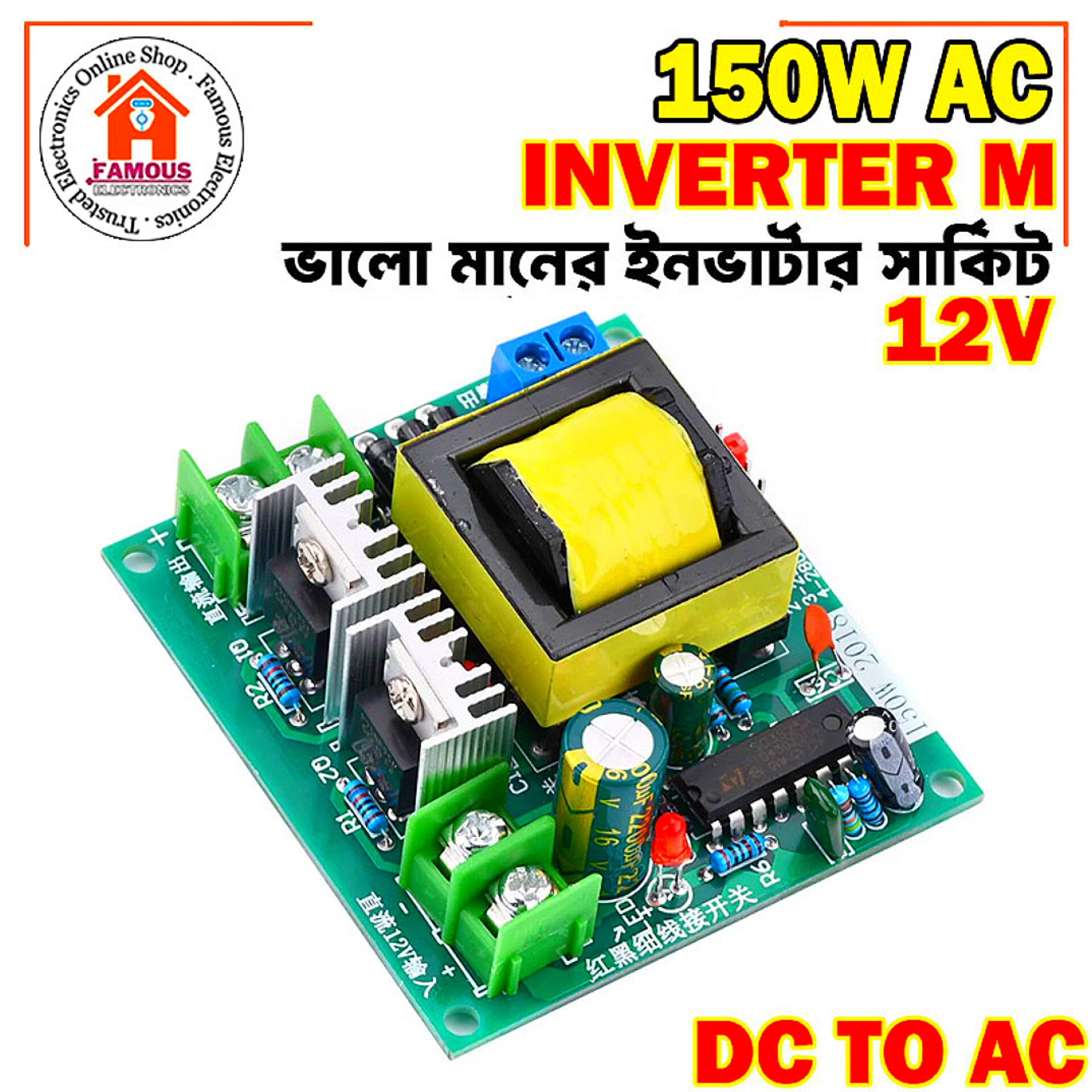

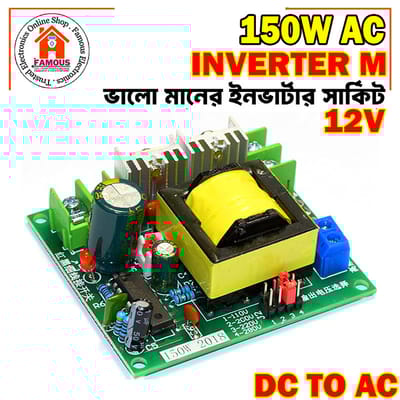

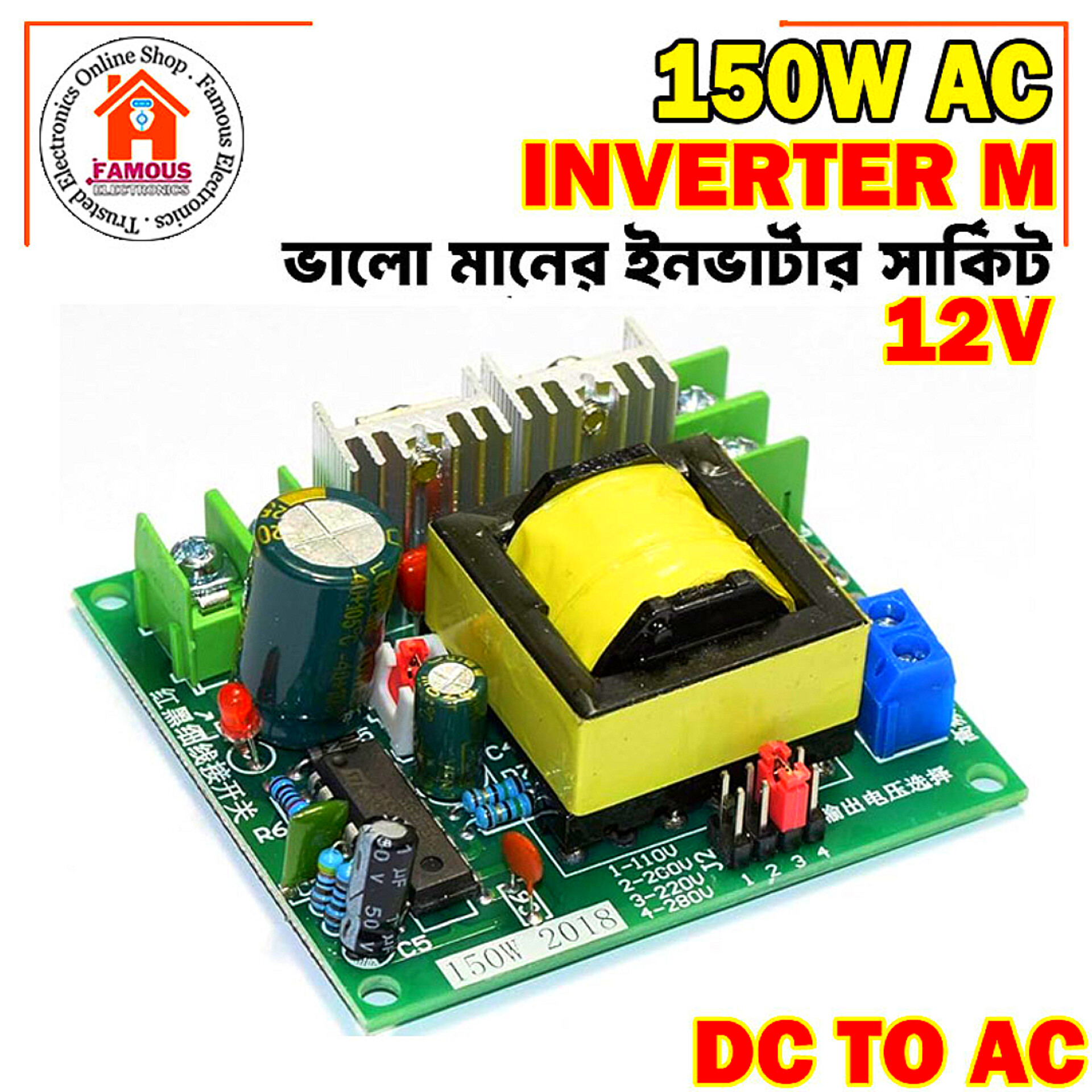

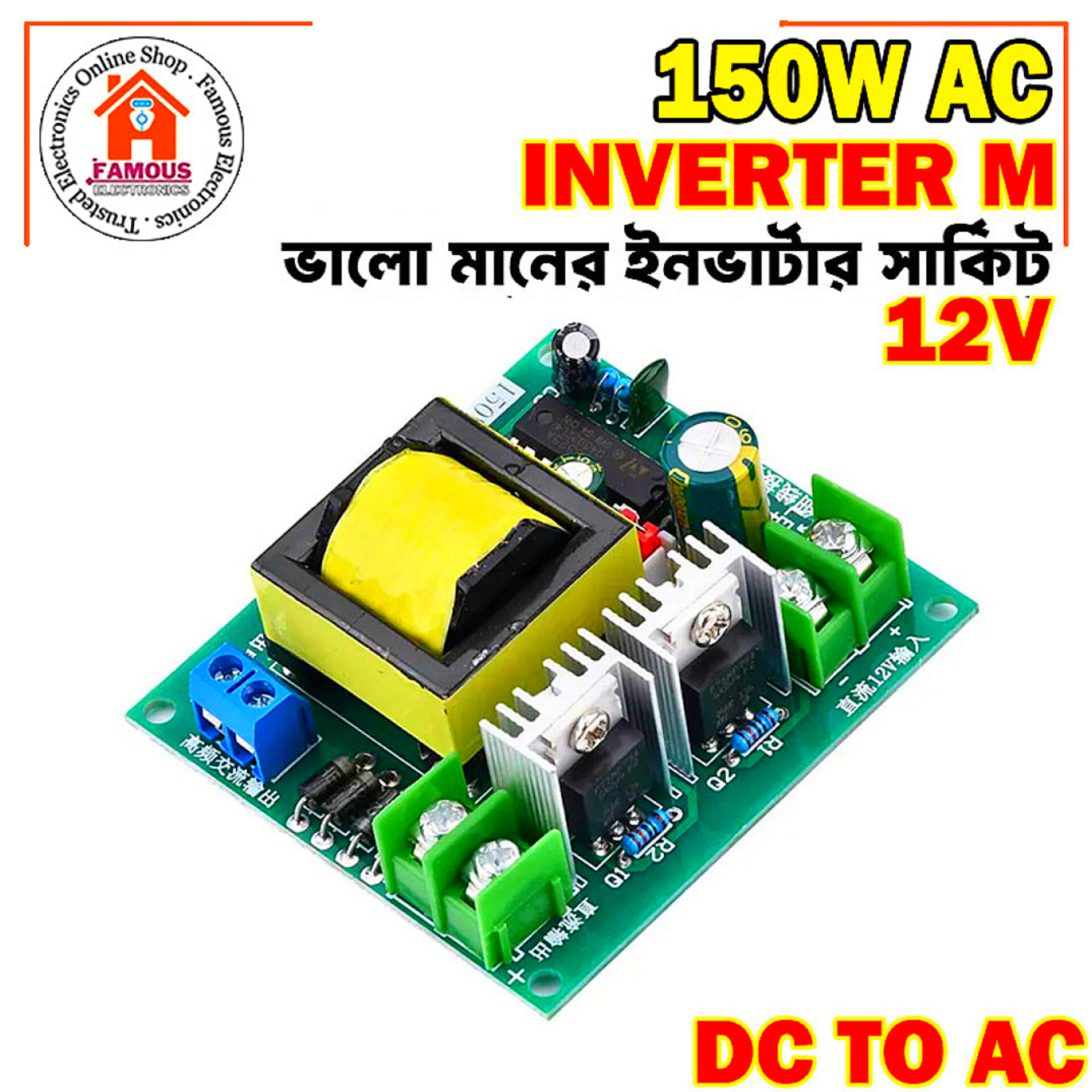

Name: 150W DC-AC Converter Module 12V To 110V 200V 220V 280V 150W Inverter Boost Board Transformer Household Battery Inverter
Brand: FAMOUS ELECTRONICS BD
Price: 545 BDT
Availability: OutOfStock

FAMOUS ELECTRONICS BD

Product details of 150W DC To AC Boost Inverter 12V to 220Vavailable), resistive load. 150W inverter battery DC12V step-up to AC220V step-up transformer power conversion circuit board.Switch: The red line black line on the board is the switch, used to control the presence or absence of high voltage output.Input voltage: 12V, limited low input voltage 8V, limited high input voltage 14.8V. as this board does not have input fuse, please add your own fuse, recommended to add 15A fuse (lithium battery power supply and switching power supply, DC power supply class power supply, this type of power supply will lead to tube overheating burned), the output is not regulated, the input to ensure sufficient power (current), otherwise it is easy to burn out The output voltage is not regulated.Output voltage: 110V 200V 220V 280VOutput waveform: high frequency square wave or DC (unfiltered)Output power: 150W (more than 100W please add fan cooling)No-load 12V terminal current: 250mAOperating frequency: 27KHZProtection: No protection, please add your own fuse for useFeatures: no welding, input terminals using 7.62 terminals, high frequency AC output using blue 301 terminals, DC output 7.62 terminals (directly loosen the terminal screw at the top, insert the wire, tighten the screw can be)Voltage can be selected at will, through jumper caps, no soldering requiredOutput power is large, if there is a fan cooling, this board can output 200W power using double-sided circuit board.AC output: can be connected to multiplier rectifier, or pure resistive loadOutput voltage: already marked on the circuit board

FAMOUS ELECTRONICS BD

150W DC-AC Converter Module 12V To 110V 200V 220V 280V 150W Inverter Boost Board Transformer Household Battery Inverter

Out of stock

545 BDT810 BDTSave 265 BDT

Total sold : 28

No more items remaining!

Product details of 150W DC To AC Boost Inverter 12V to 220V

available), resistive load. 150W inverter battery DC12V step-up to AC220V step-up transformer power conversion circuit board.

Switch: The red line black line on the board is the switch, used to control the presence or absence of high voltage output.

Input voltage: 12V, limited low input voltage 8V, limited high input voltage 14.8V. as this board does not have input fuse, please add your own fuse, recommended to add 15A fuse (lithium battery power supply and switching power supply, DC power supply class power supply, this type of power supply will lead to tube overheating burned), the output is not regulated, the input to ensure sufficient power (current), otherwise it is easy to burn out The output voltage is not regulated.

Output voltage: 110V 200V 220V 280V

Output waveform: high frequency square wave or DC (unfiltered)

Output power: 150W (more than 100W please add fan cooling)

No-load 12V terminal current: 250mA

Operating frequency: 27KHZ

Protection: No protection, please add your own fuse for use

Features: no welding, input terminals using 7.62 terminals, high frequency AC output using blue 301 terminals, DC output 7.62 terminals (directly loosen the terminal screw at the top, insert the wire, tighten the screw can be)

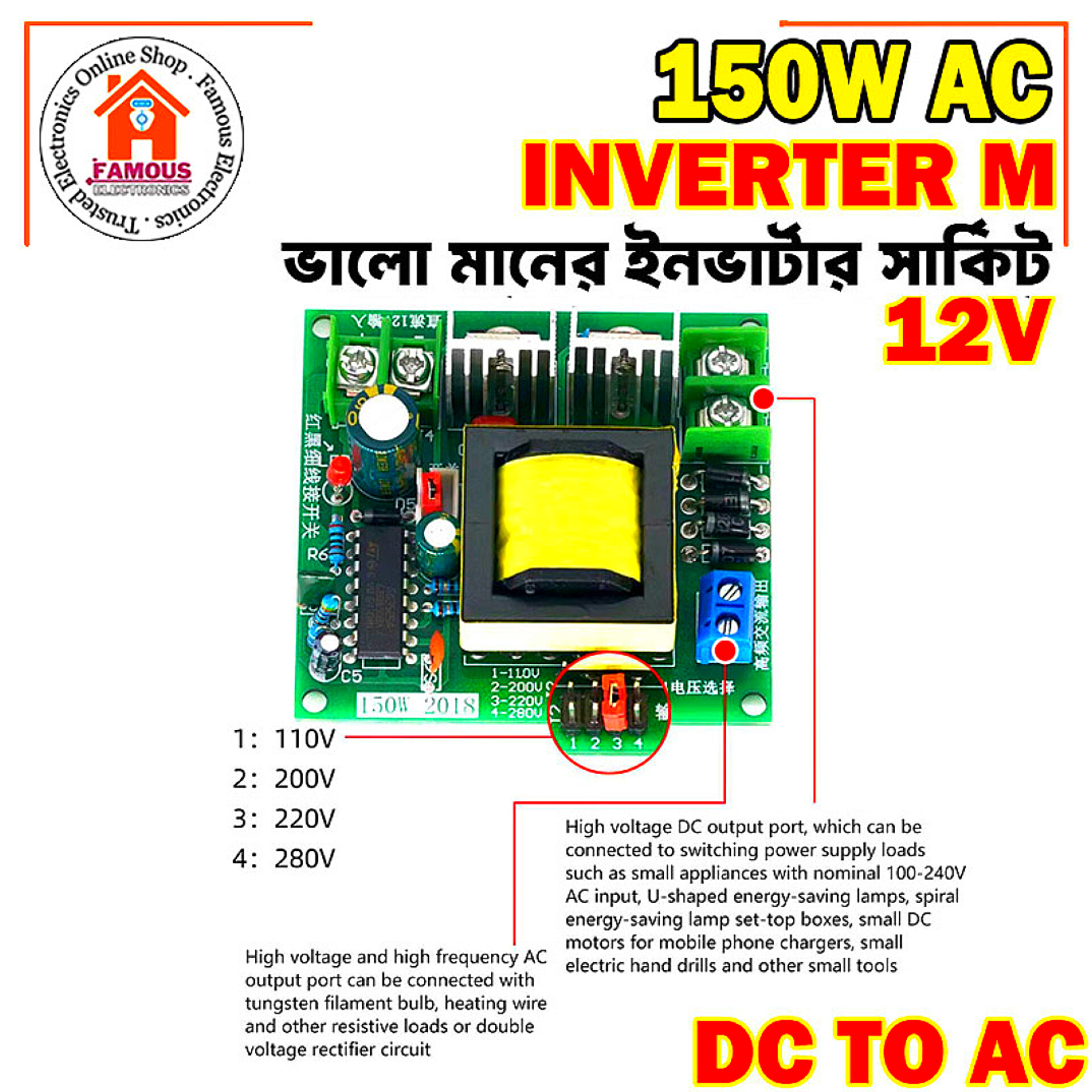

Voltage can be selected at will, through jumper caps, no soldering required

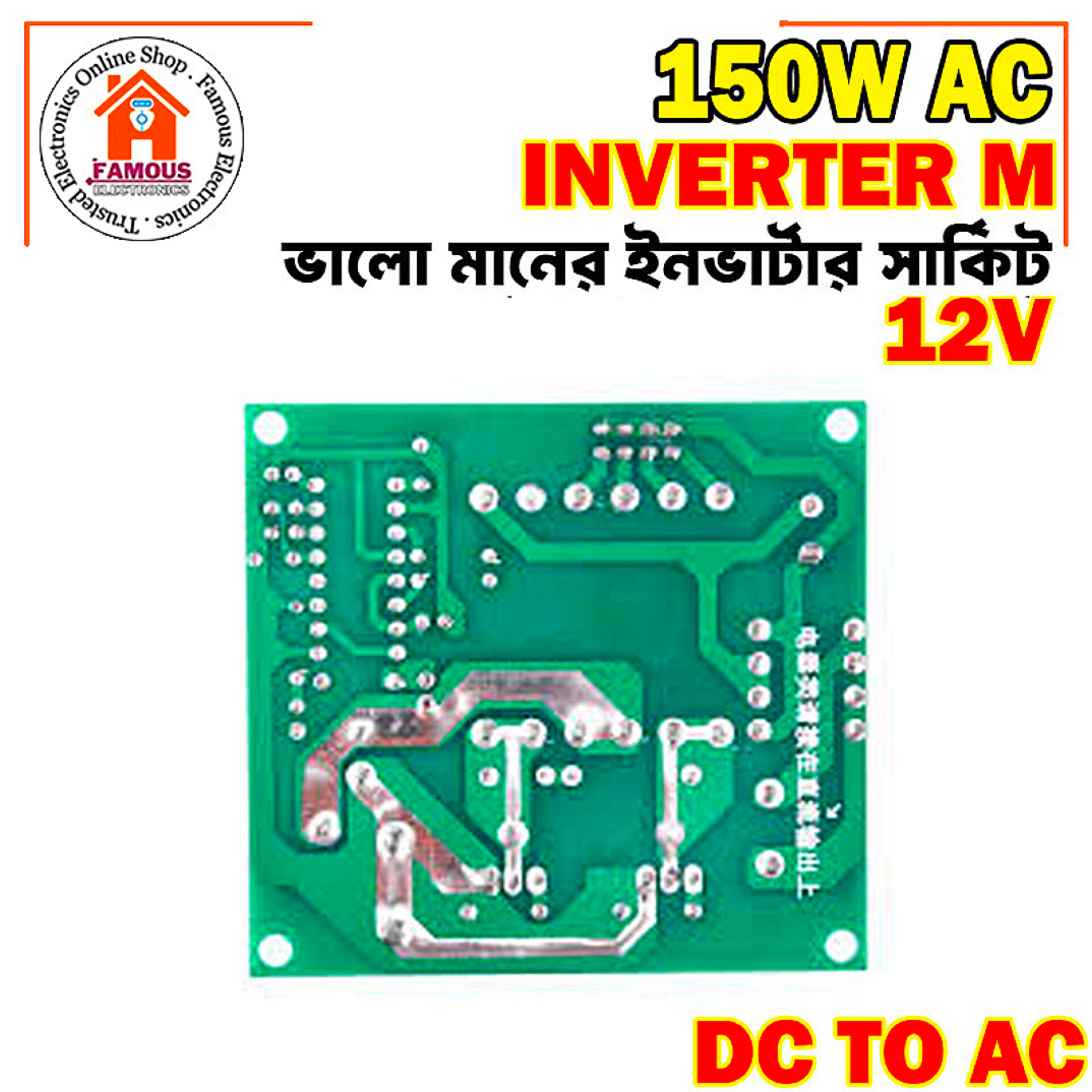

Output power is large, if there is a fan cooling, this board can output 200W power using double-sided circuit board.

AC output: can be connected to multiplier rectifier, or pure resistive load

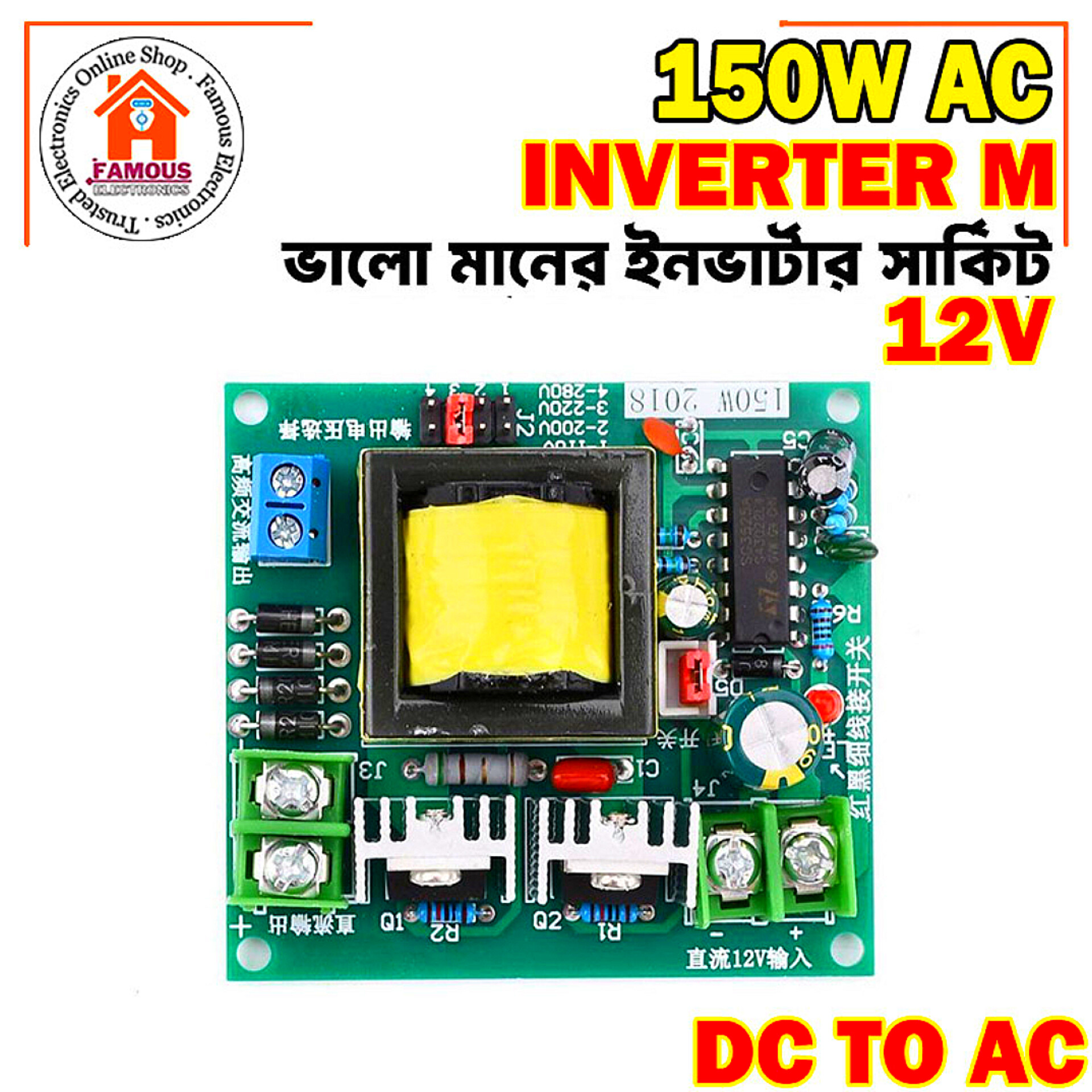

Output voltage: already marked on the circuit board
