BMS 4S 12.8V 30A LiFePO4 Battery Charge Protection Board With Balance

245 BDT535 BDTSave 290 BDT

Total sold : 107

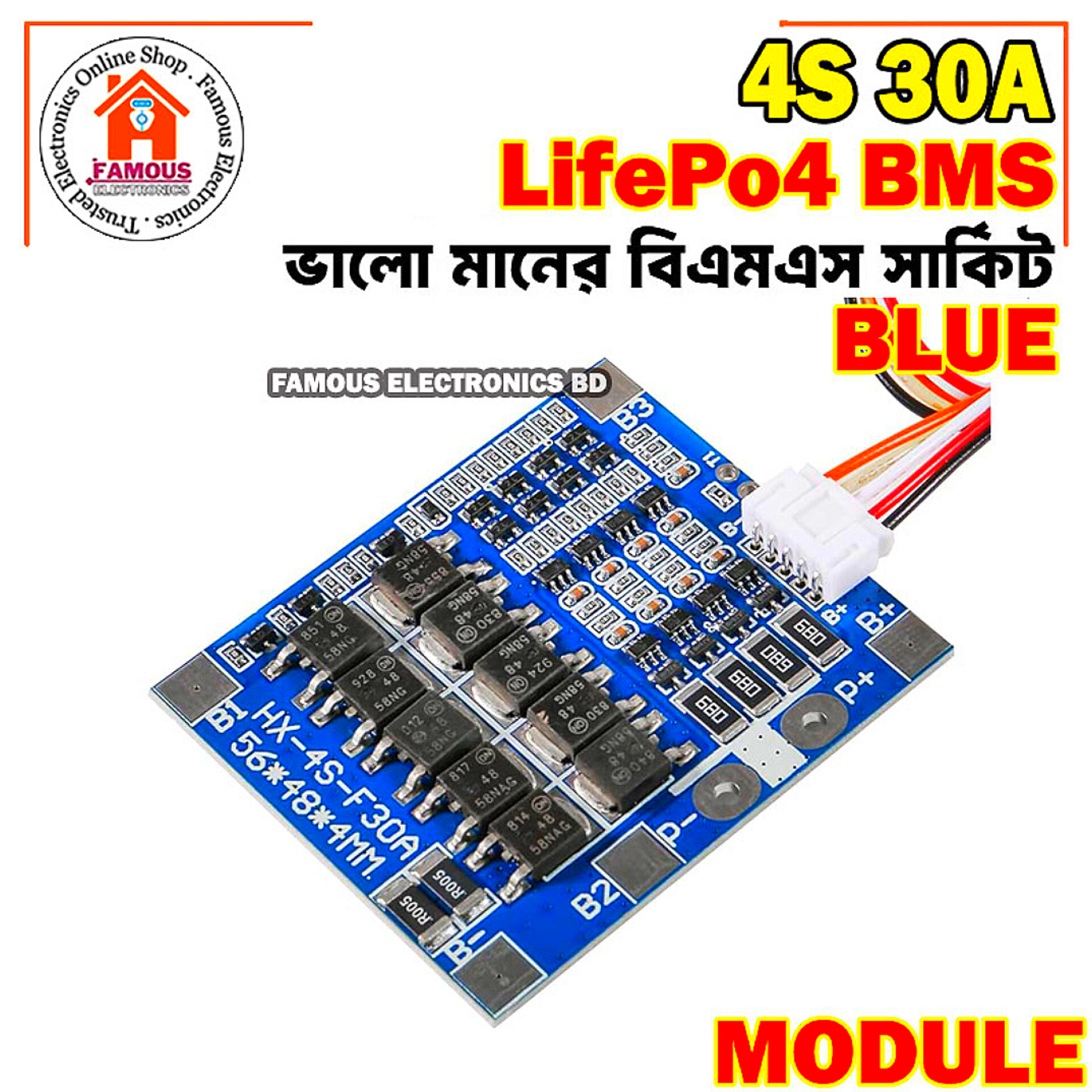

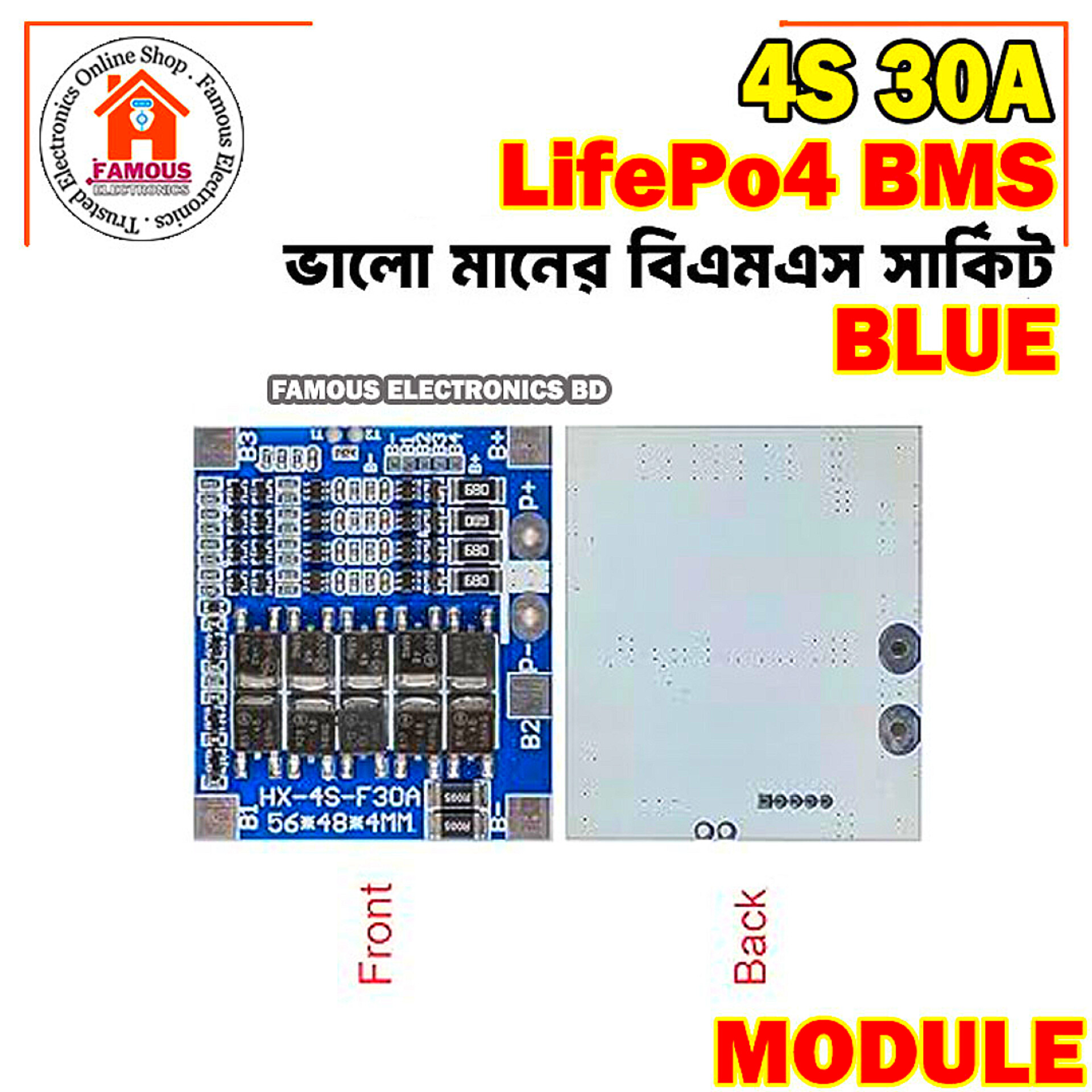

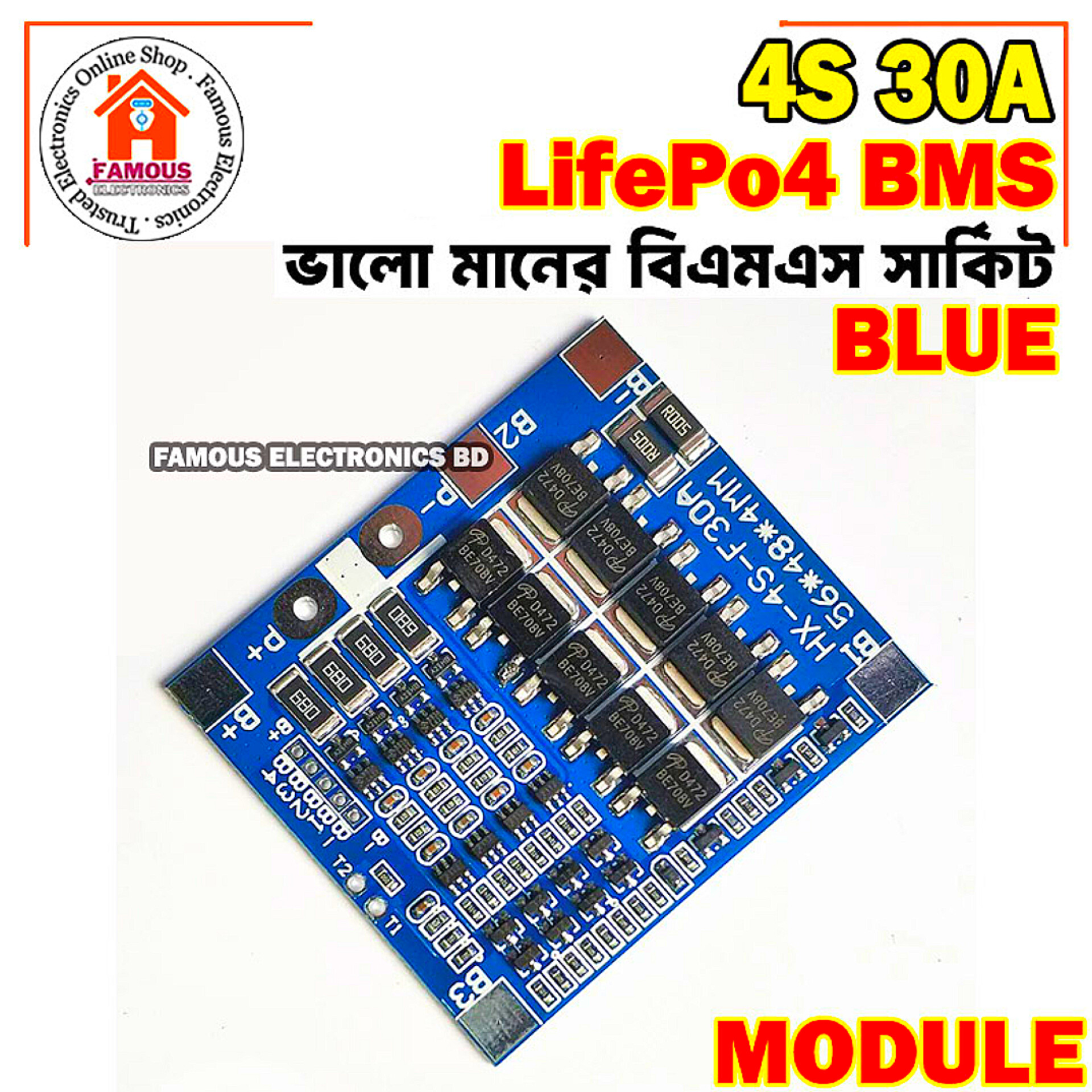

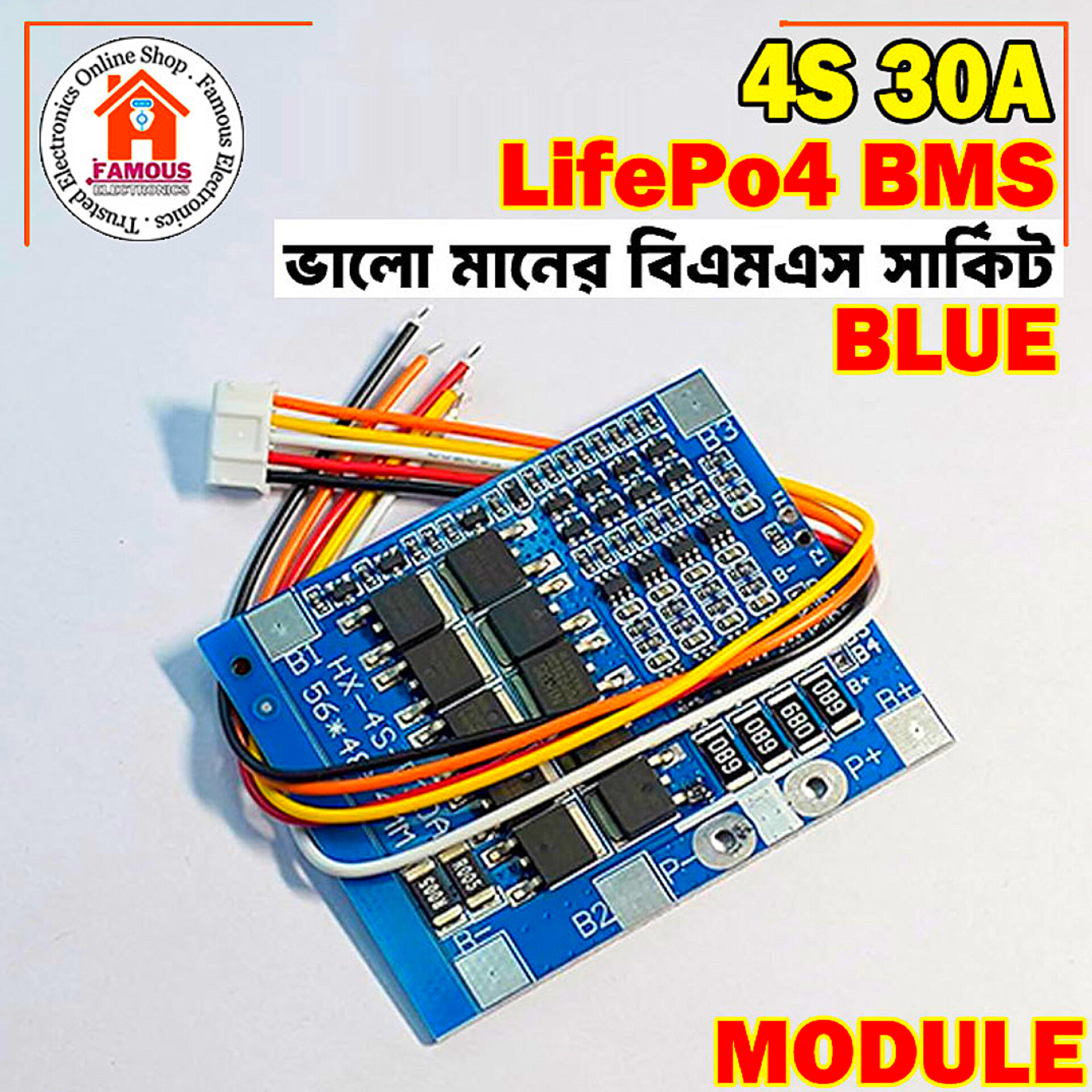

BMS 4S 12.8V 30A LiFePO4 Battery Charge Protection Board With Balance

Features:

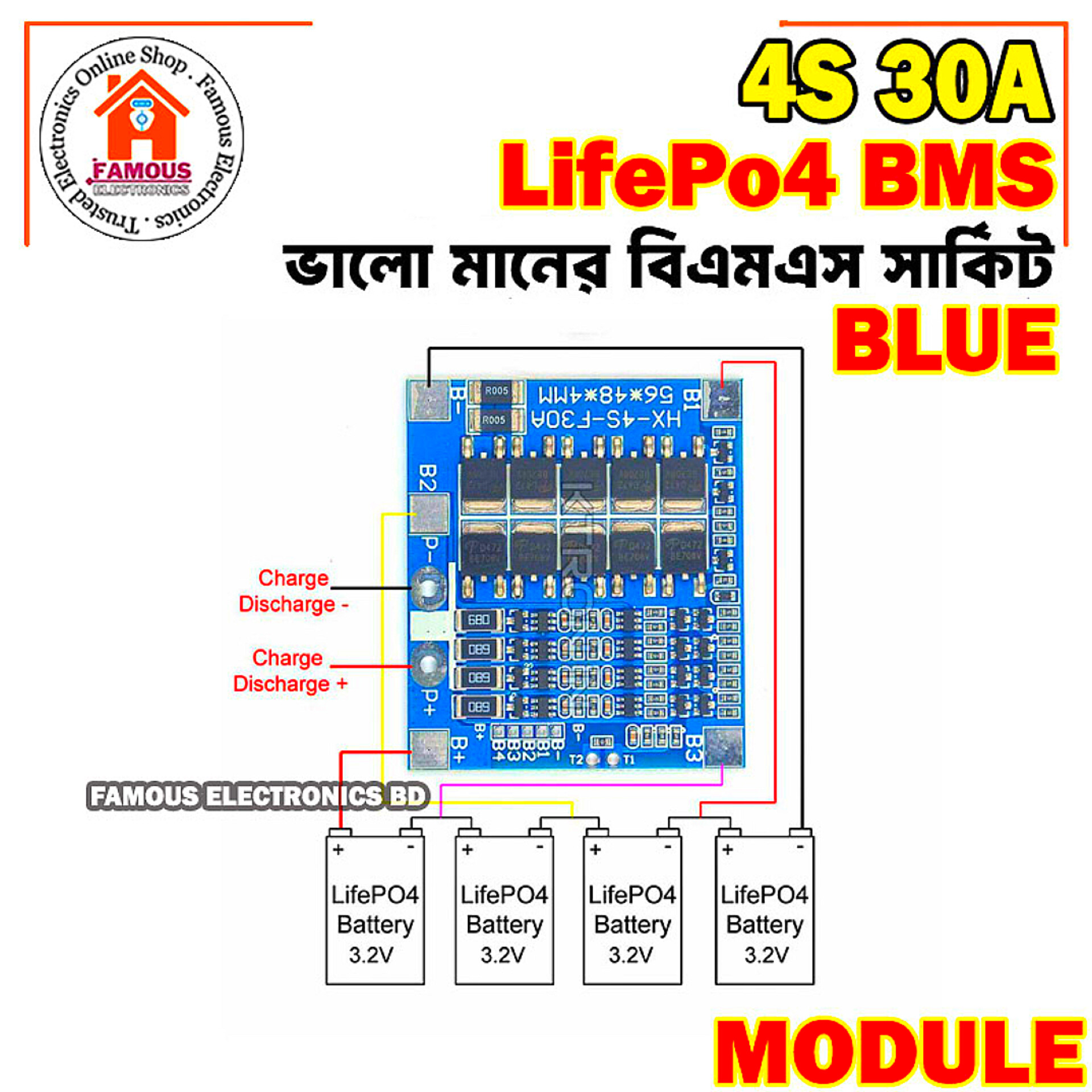

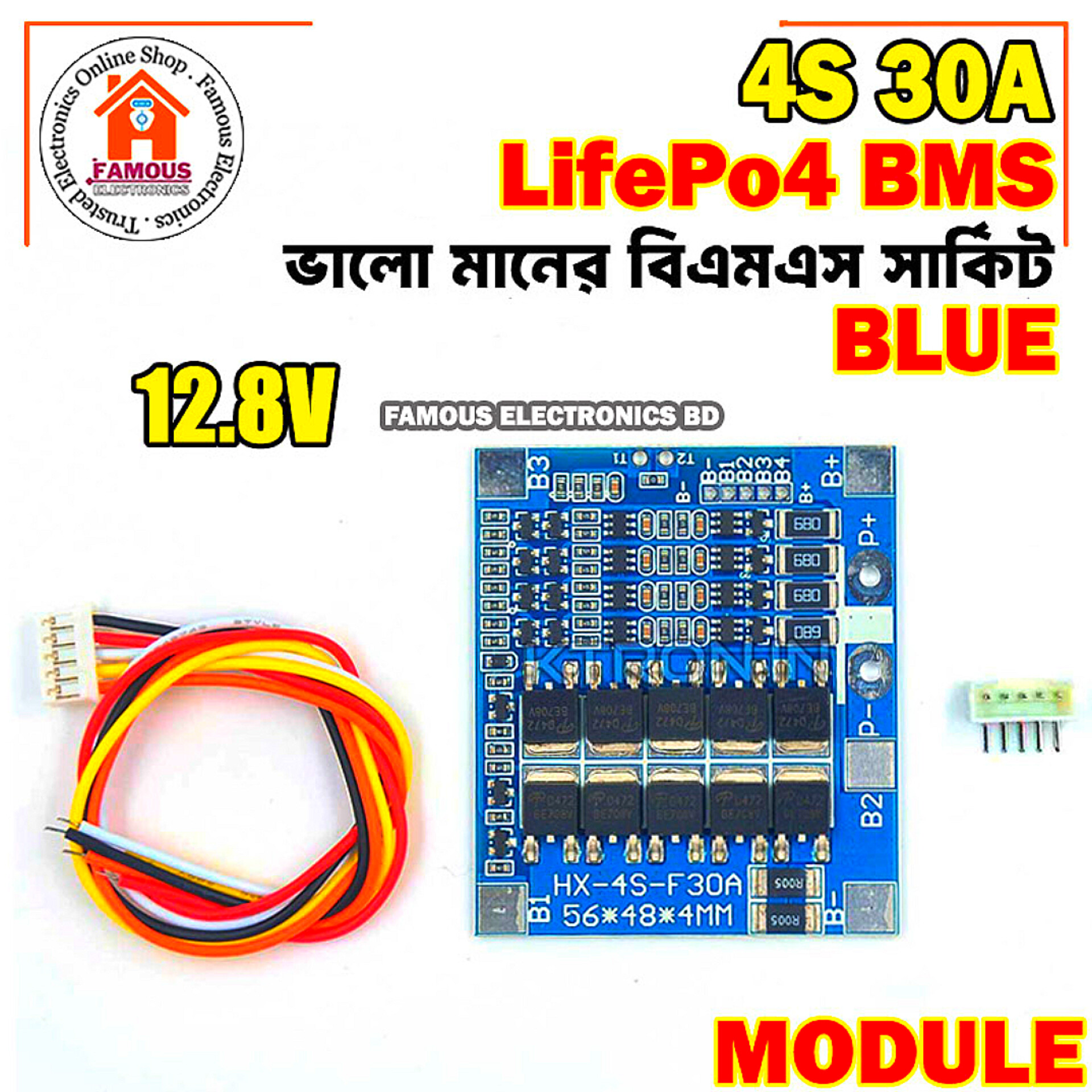

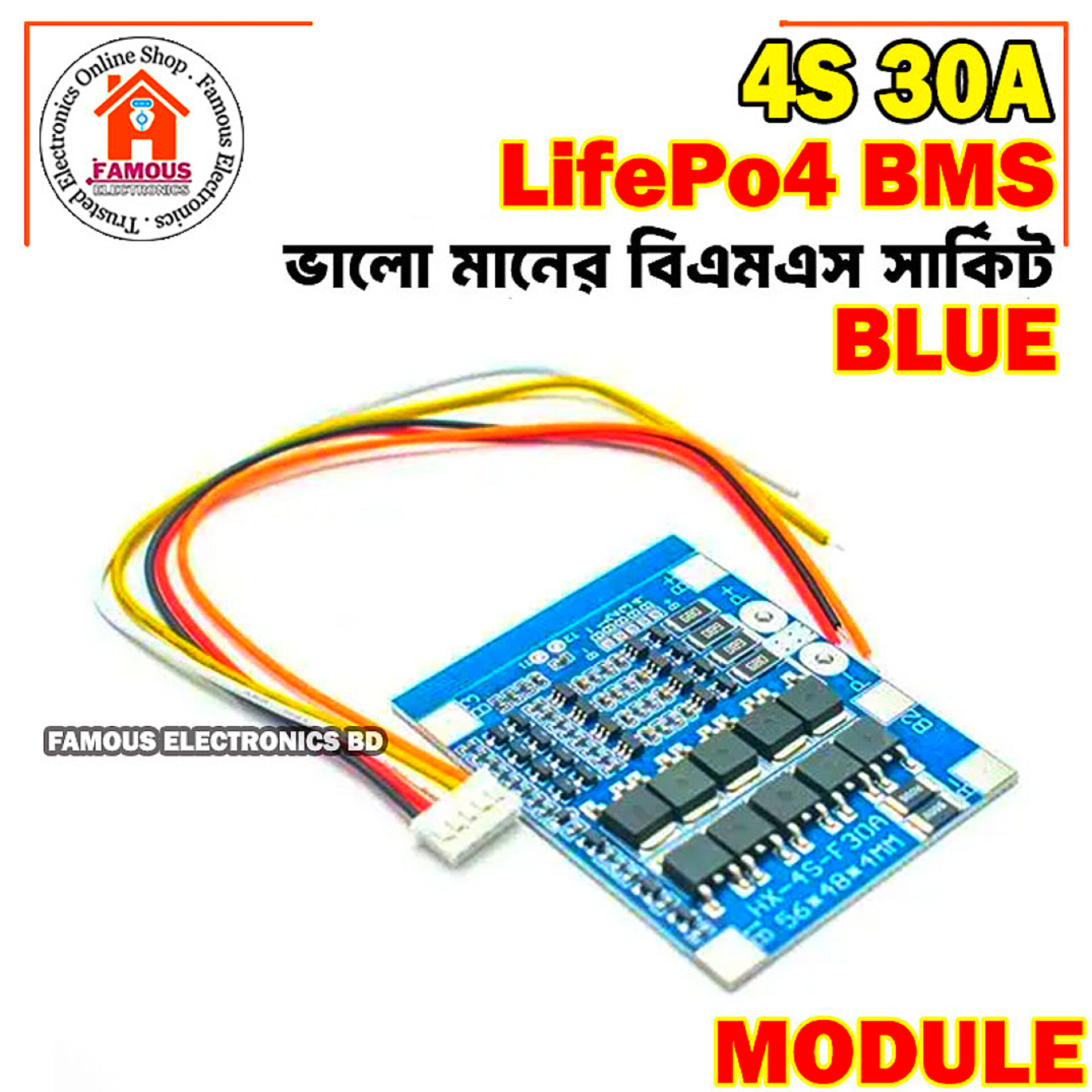

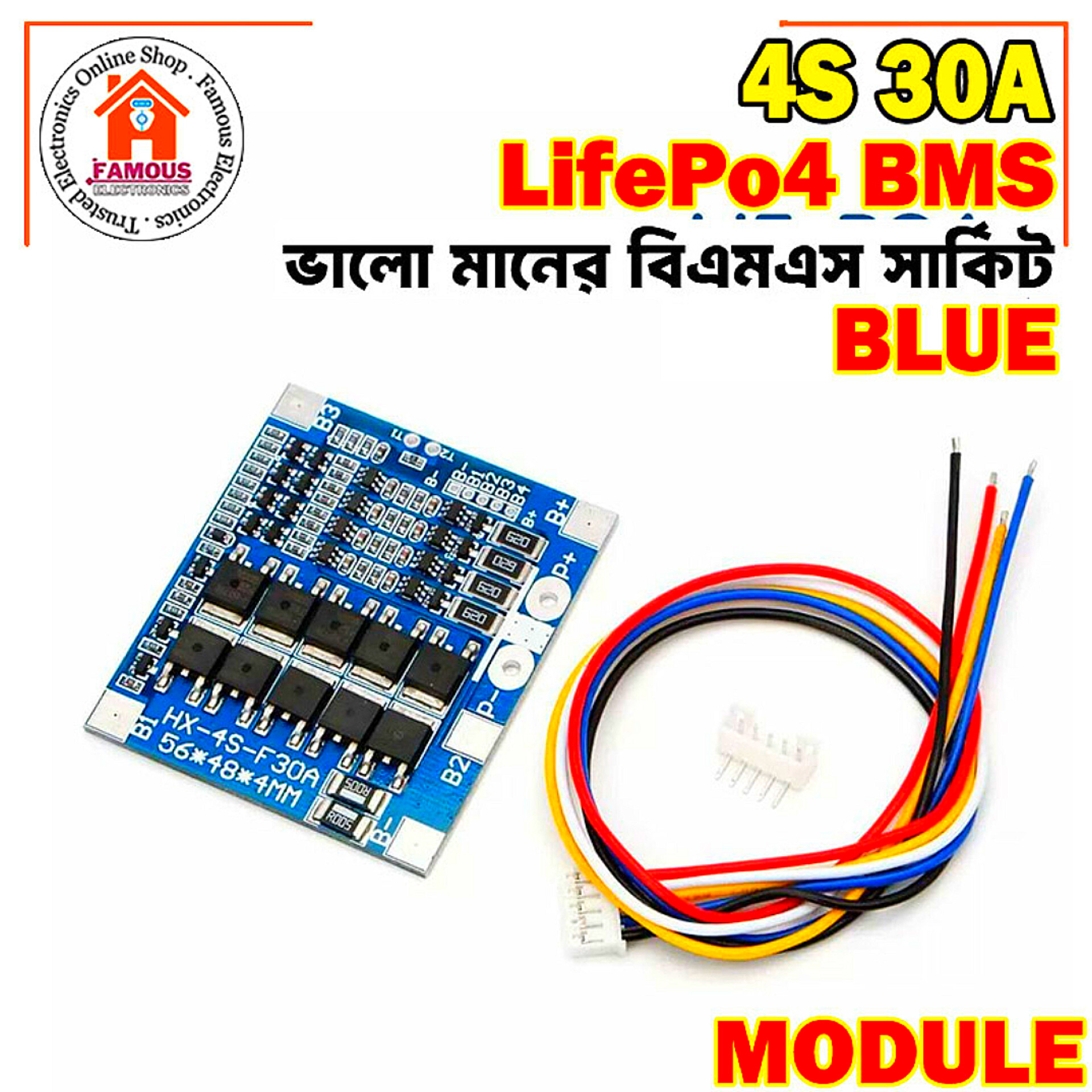

This board is 4 string 3.2V lithium Phosphate battery for protection board High current for protection board, continuous 30A current, with balance circuit The board comes with cable.

Specifications:

Discharge: Continuous Discharging Current: 30A(MAX) Instantaneous Discharge Current: 56A

Charge: Charging Current: 20A (MAX) Overcharge Protect: Over-charge Detect: 3.75±0.05V Protect Delay: 1300MS Over-charge Release: 3.60±0.05V

Balance: Detect Voltage: 3.60±0.05V Release Voltage: 3.59±0.05V Balance Current: 58mA

Over-discharge Protect: Over-discharge Detect: 2.1±0.08V Over-discharge Detect delay: 145S Release Voltage: 2.3±0.1V

Over-current Protect: Detect Voltage: 200mV Detect Delay: 20mS Current Detect: 56±10A Release Condition: Cut Load Inner Resistance: ≤20mΩ

Self-Consumption: Working Current: ≤30uA Sleep Current (when Over-discharge): ≤20uA

Working Temperature Range: -30+80℃ PCB Board Size: 56x47mm/2.2x1.85" Quantity: 1 Pc

Note: Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
