DC 3V-6V Mini Micro Submersible Water Pump Low Noise Motor Pump 120L/H 1.1M Micro Brushless Magnetic Driving Pump - Submersible Water Pump
DC Voltage: 2.5-6VWorking current: 130-220mAPower: 0.4-1.5WMaximum lift: 40-110cm / 15.75"-43.4"Flow rate: 80-120L/HOutside diameter of water outlet: approx. 7.5mm / 0.3"Inside diameter of water outlet: approx. 4.7mm / 0.18"Diameter: approx. 24mm / 0.95"Length: approx. 45mm / 1.8"Height: approx. 33mm / 1.30"Wire length: about 15-20cm (red: " + ", black(white): " - ")Material: engineering plasticDriving mode: brushless DC design, magnetic drivingContinuous working life of 500 hoursThis is a low cost, small size Submersible Pump Motor which can be operated from a 2.5 ~ 6V power supply. It can take up to 120 liters per hour with very low current consumption of 220mA. Just connect tube pipe to the motor outlet, submerge it in water and power it. Make sure that the water level is always higher than the motor. Dry run may damage the motor due to heating and it will also produce noise.
FAMOUS ELECTRONICS BD
Category List
All products
HandTools
Module
Robotics
Battery
Motor
BatteryPack
Soldering Tools
Amplifier
PowerBank and Accessories
Charger and Adaptor
- DC Voltage: 2.5-6V
- Working current: 130-220mA
- Power: 0.4-1.5W
- Maximum lift: 40-110cm / 15.75"-43.4"
- Flow rate: 80-120L/H

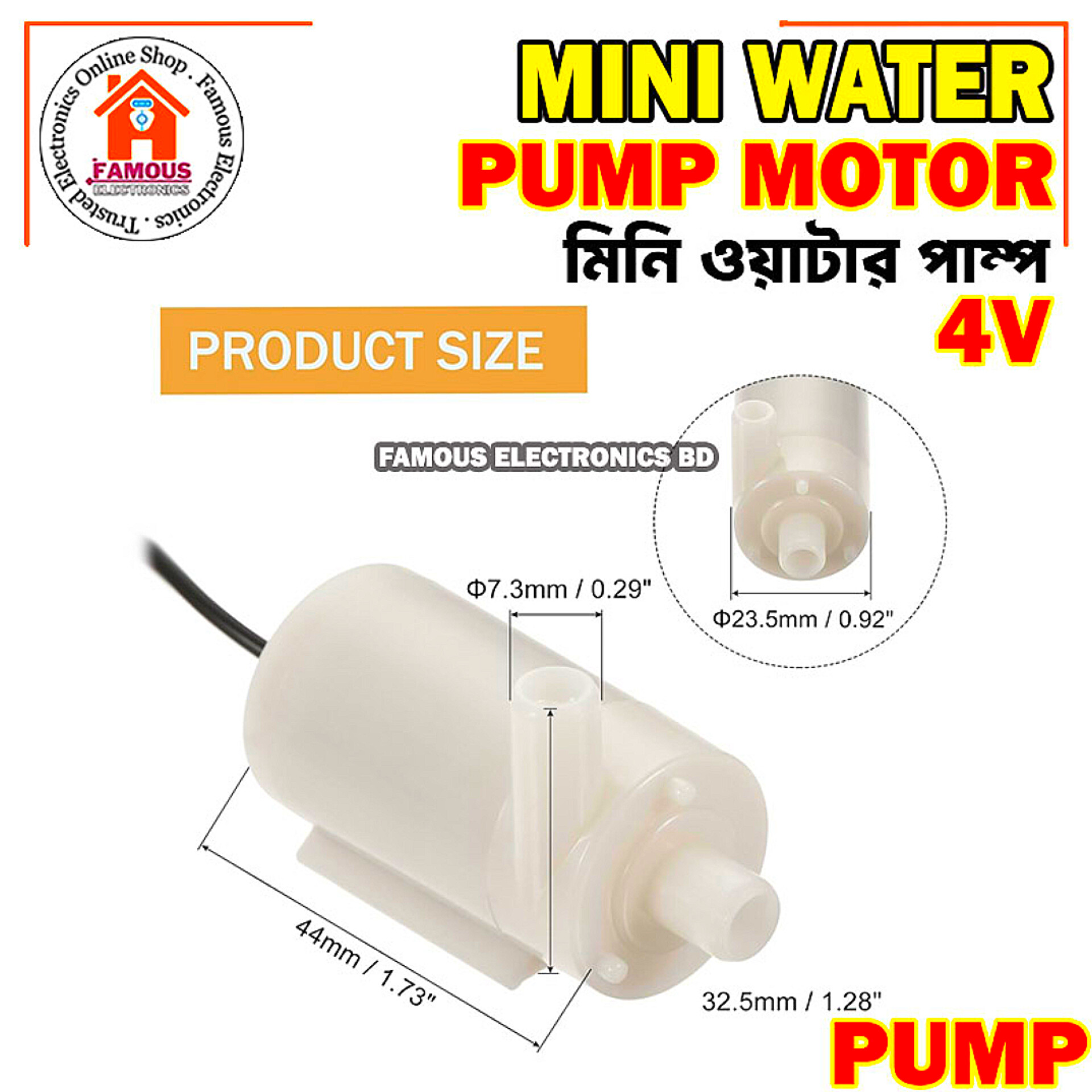

- Outside diameter of water outlet: approx. 7.5mm / 0.3"
- Inside diameter of water outlet: approx. 4.7mm / 0.18"
- Diameter: approx. 24mm / 0.95"
- Length: approx. 45mm / 1.8"
- Height: approx. 33mm / 1.30"
- Wire length: about 15-20cm (red: " + ", black(white): " - ")
- Material: engineering plastic
- Driving mode: brushless DC design, magnetic driving
- Continuous working life of 500 hours
- This is a low cost, small size Submersible Pump Motor which can be operated from a 2.5 ~ 6V power supply. It can take up to 120 liters per hour with very low current consumption of 220mA. Just connect tube pipe to the motor outlet, submerge it in water and power it. Make sure that the water level is always higher than the motor. Dry run may damage the motor due to heating and it will also produce noise.
DC 3V-6V Mini Micro Submersible Water Pump Low Noise Motor Pump 120L/H 1.1M Micro Brushless Magnetic Driving Pump - Submersible Water Pump
68 BDT120 BDTSave 52 BDT
Total sold : 37
- DC Voltage: 2.5-6V
- Working current: 130-220mA
- Power: 0.4-1.5W
- Maximum lift: 40-110cm / 15.75"-43.4"
- Flow rate: 80-120L/H
- Outside diameter of water outlet: approx. 7.5mm / 0.3"
- Inside diameter of water outlet: approx. 4.7mm / 0.18"
- Diameter: approx. 24mm / 0.95"
- Length: approx. 45mm / 1.8"
- Height: approx. 33mm / 1.30"
- Wire length: about 15-20cm (red: " + ", black(white): " - ")
- Material: engineering plastic
- Driving mode: brushless DC design, magnetic driving
- Continuous working life of 500 hours
- This is a low cost, small size Submersible Pump Motor which can be operated from a 2.5 ~ 6V power supply. It can take up to 120 liters per hour with very low current consumption of 220mA. Just connect tube pipe to the motor outlet, submerge it in water and power it. Make sure that the water level is always higher than the motor. Dry run may damage the motor due to heating and it will also produce noise.
