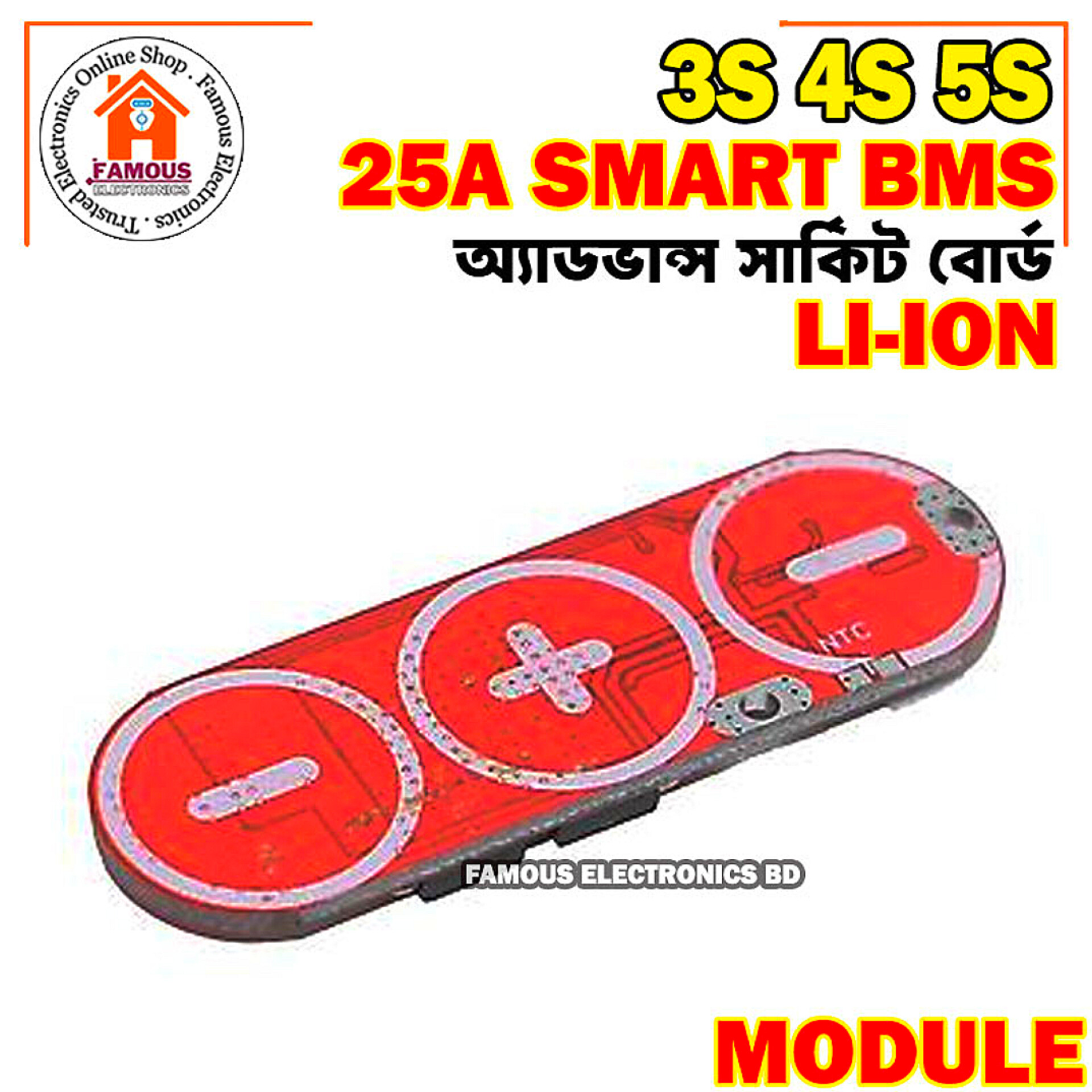

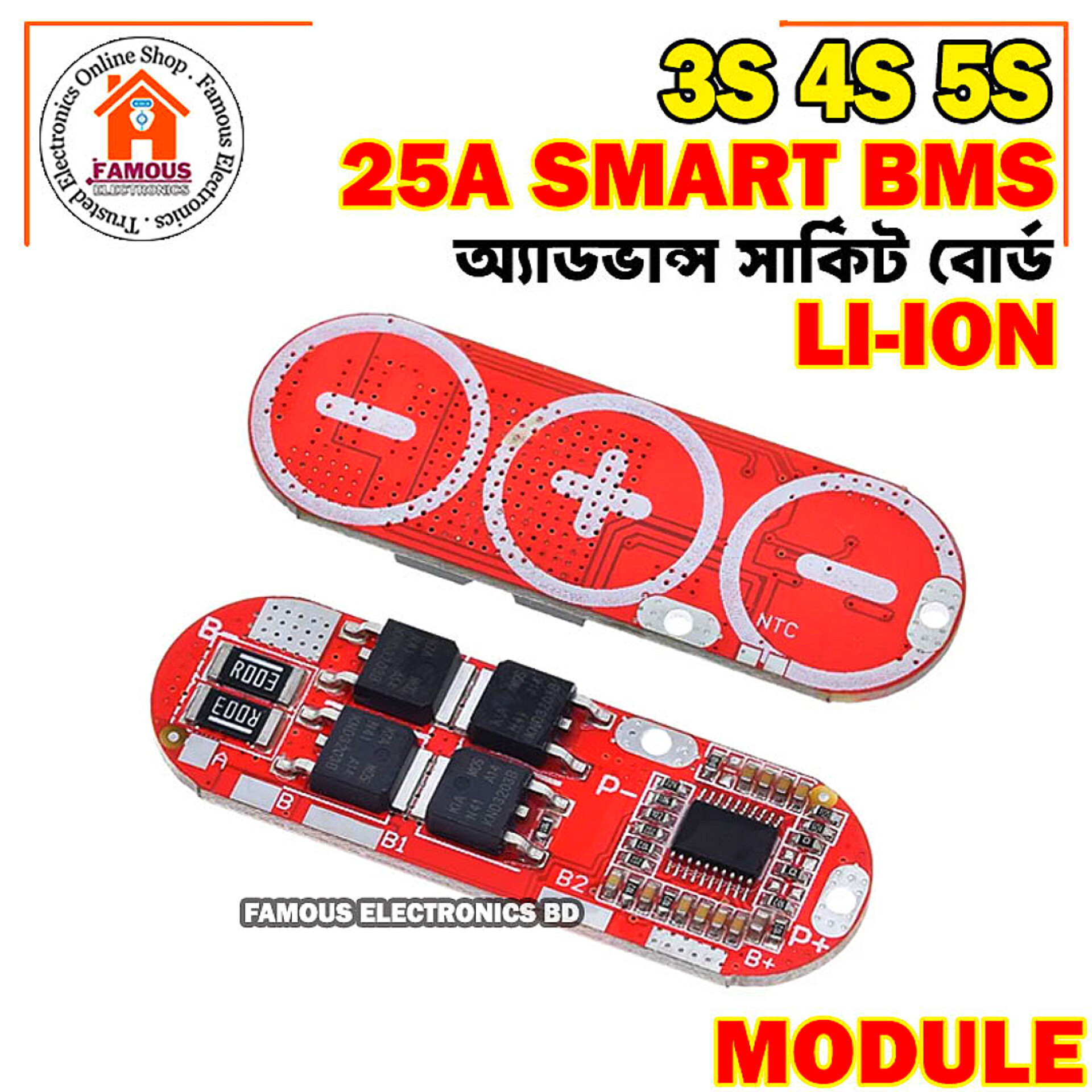

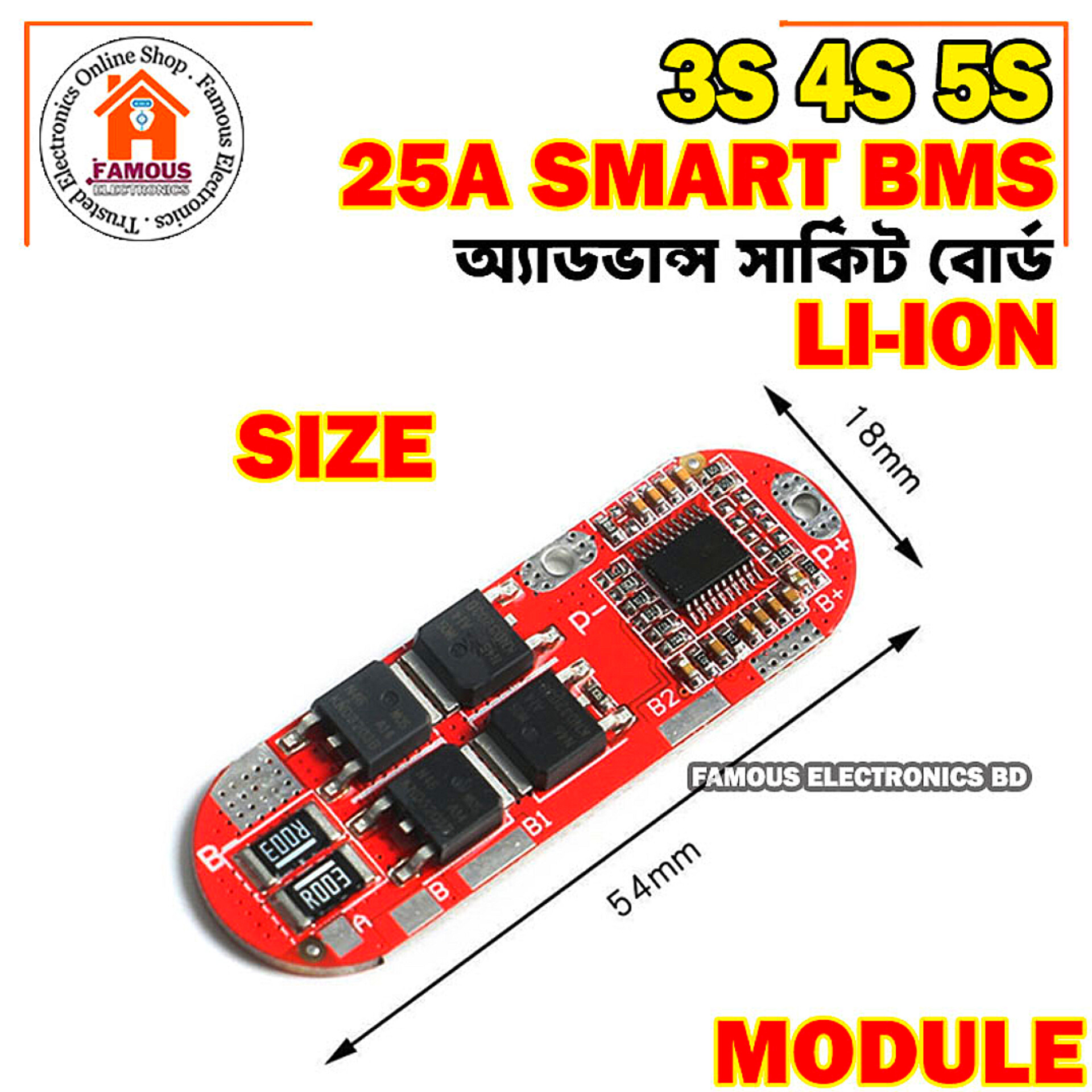

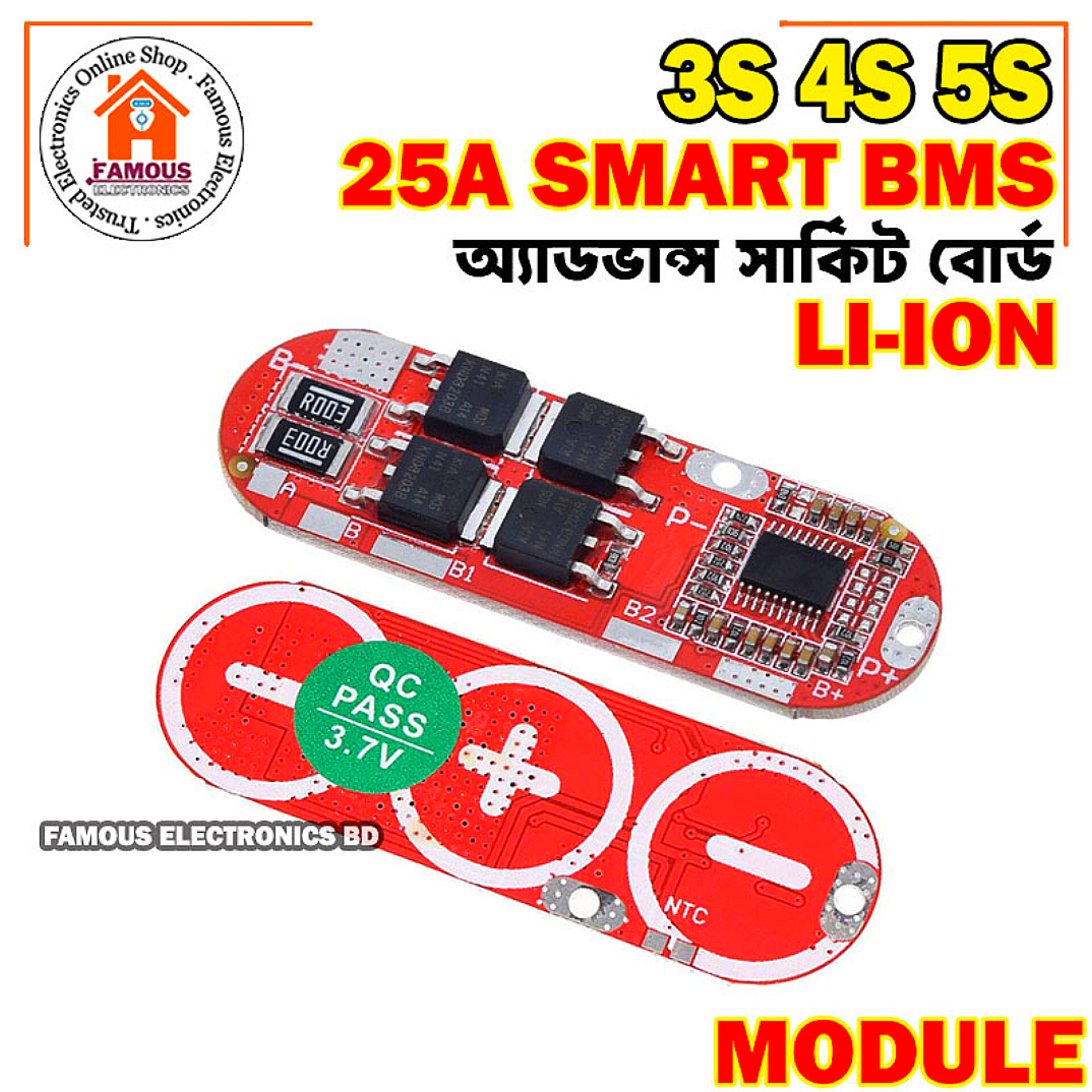

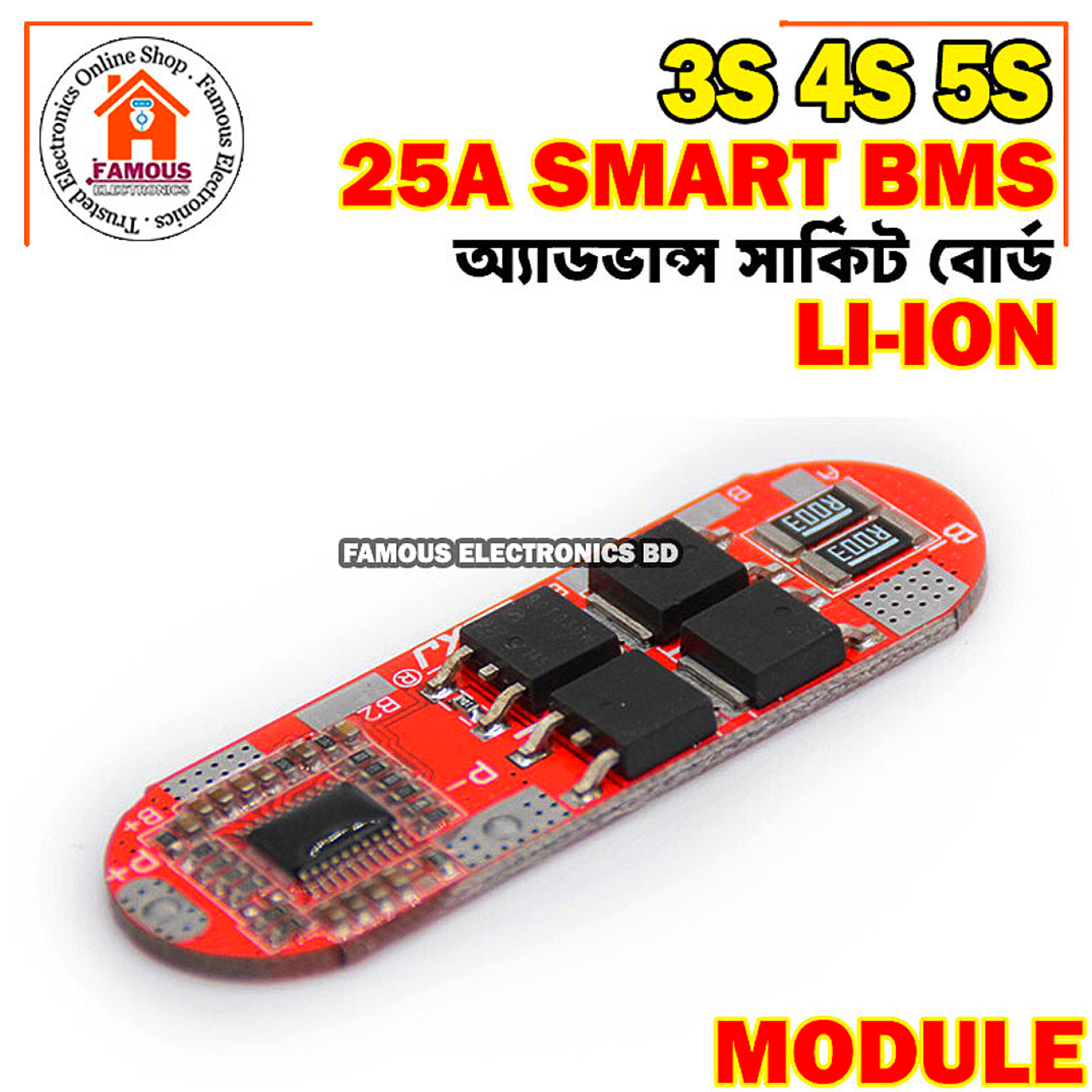

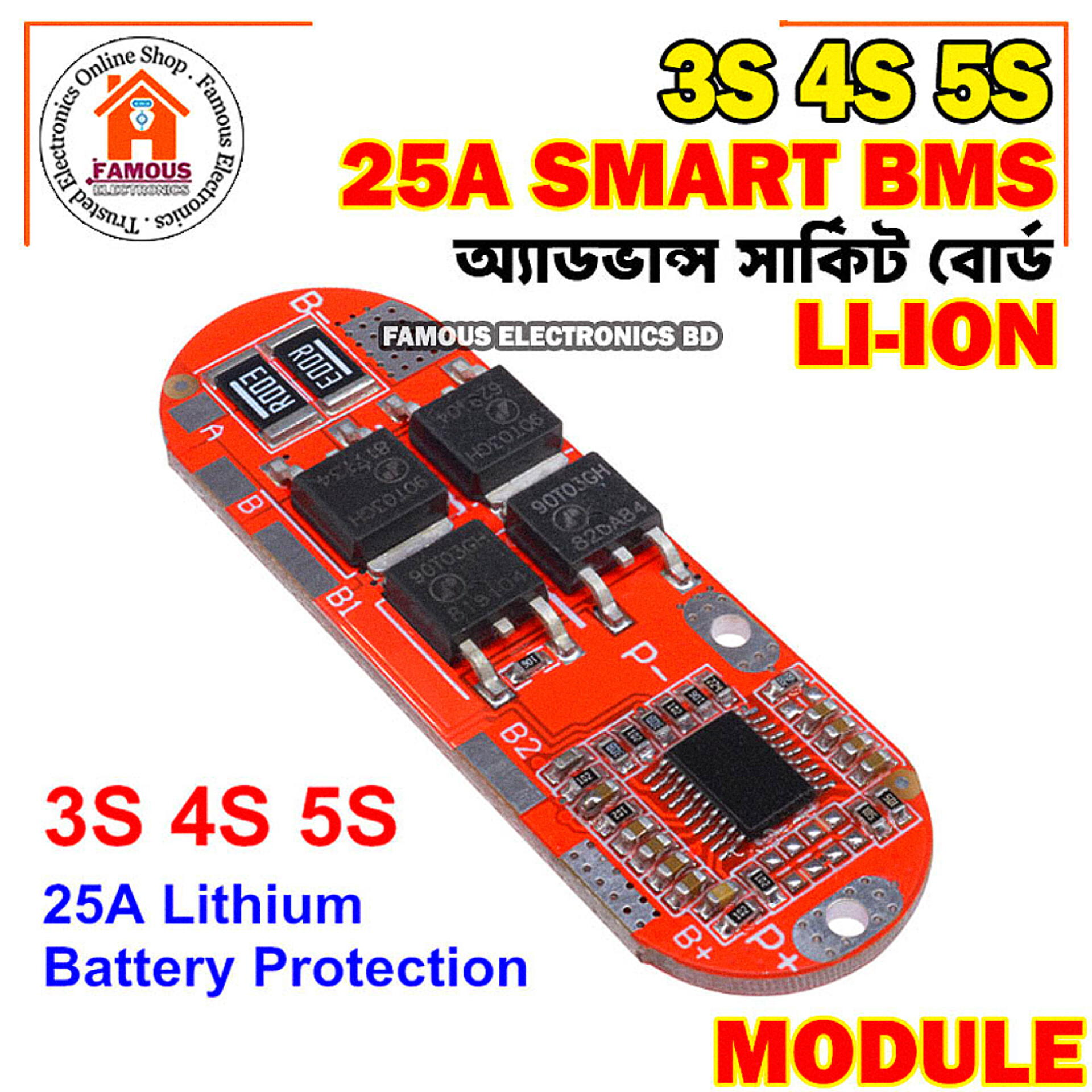

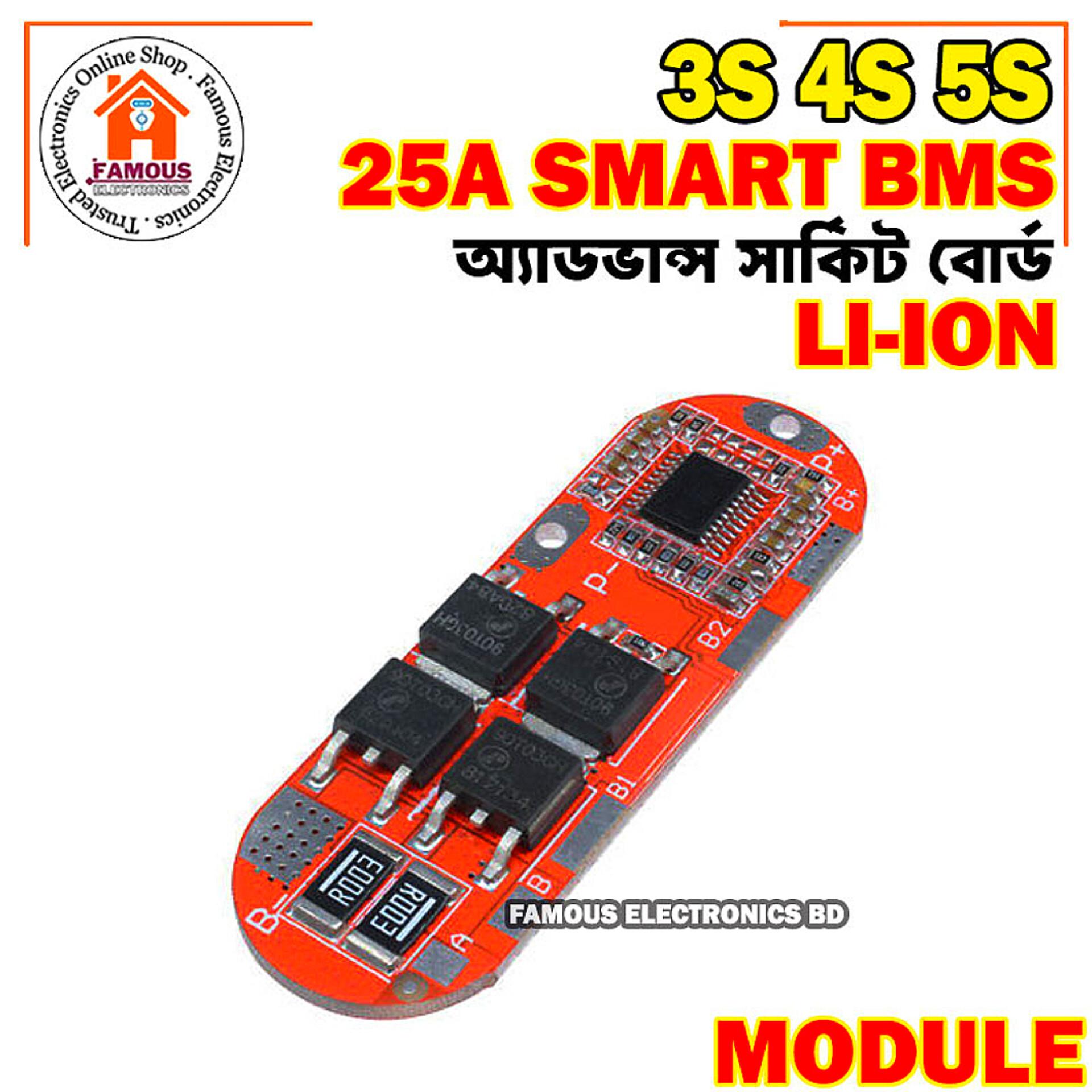

BMS 25A 3S 12.6V 4S 16.8V 5S 21V 18650 Li-ion Lithium Battery Protection Circuit Charging Board Module PCM Polymer Lipo Cell PCB
100% Brand new and high quality 18650 lithium battery charging Module FOR Li-POLYMER LiMnO Protect Parameter(3.6V/3.7V) Single Cell overcharge protect voltage: 4.23 - 4.28V Single Cell overcharge rotect recover voltage: 4.08 - 4.18 overcharge protect delay: 0.5 - 1.5S Single Cell over-discharge protect voltage: 2.72 - 2.88V Single Cell over-discharge rotect recover voltage: 2.9 - 3.1V overcharge protect current: 60A over-discharge protect current: 60A over-discharge protectdelay: 0.5 - 1.5Stemperature protect: YESdisconnect protect: YESshortage protect: YES shortage delay: 100 - 600μSshortage protect recover: YESCharging current: 25Adischarging current: 25Acharging voltage : 12.6V for 3S , 16.8V for 4S, 21V for 5S BMS boardthe video in this page is demonstrated for BMS 5S
FAMOUS ELECTRONICS BD
Category List
All products
- 100% Brand new and high quality 18650 lithium battery charging Module
- FOR Li-POLYMER LiMnO Protect Parameter(3.6V/3.7V)
- Single Cell overcharge protect voltage: 4.23 - 4.28V
- Single Cell overcharge rotect recover voltage: 4.08 - 4.18
- overcharge protect delay: 0.5 - 1.5S
- Single Cell over-discharge protect voltage: 2.72 - 2.88V
- Single Cell over-discharge rotect recover voltage: 2.9 - 3.1V
- overcharge protect current: 60A
- over-discharge protect current: 60A
- over-discharge protectdelay: 0.5 - 1.5S
- temperature protect: YES
- disconnect protect: YES
- shortage protect: YES
- shortage delay: 100 - 600μS
- shortage protect recover: YES
- Charging current: 25A
- discharging current: 25A

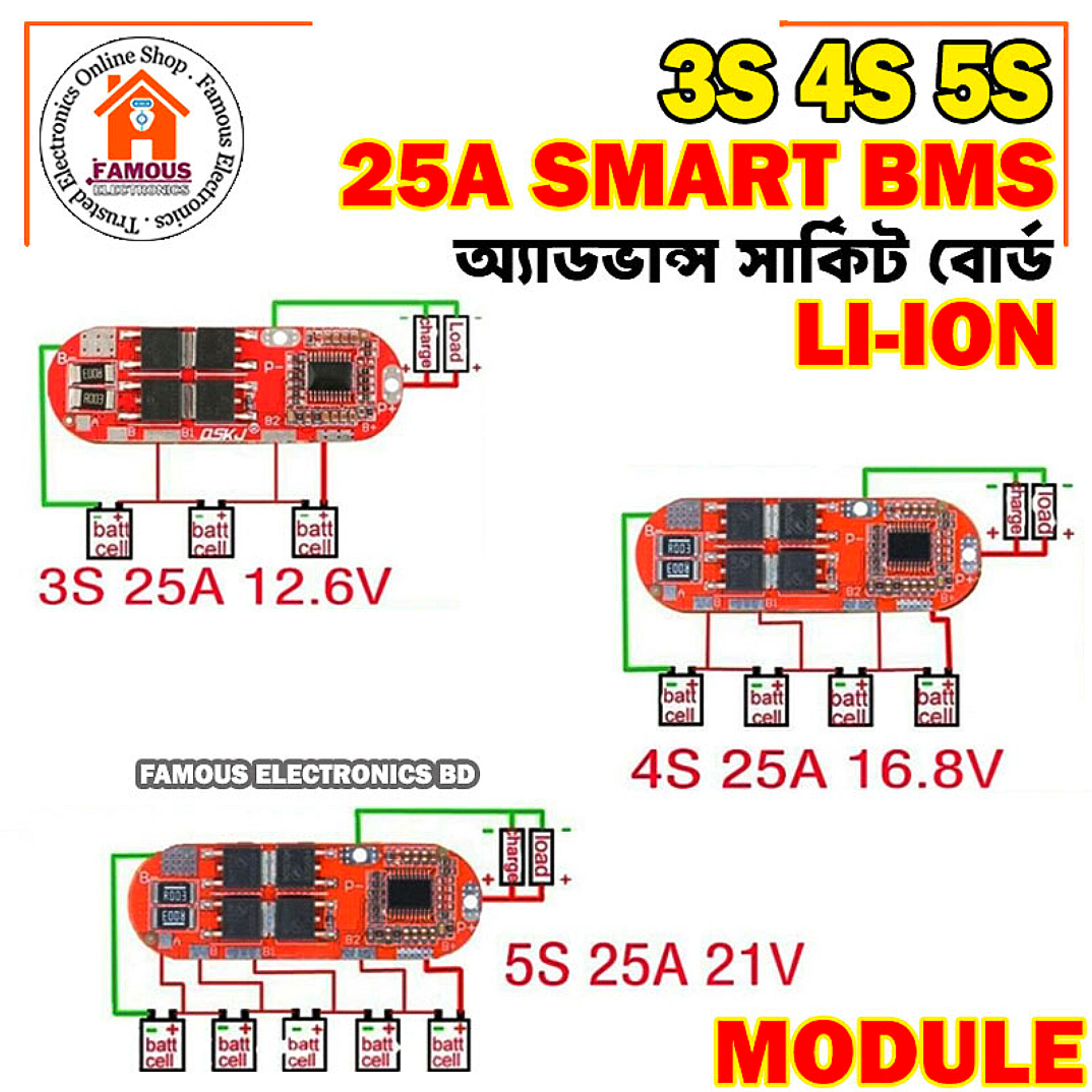

- charging voltage : 12.6V for 3S , 16.8V for 4S, 21V for 5S BMS board

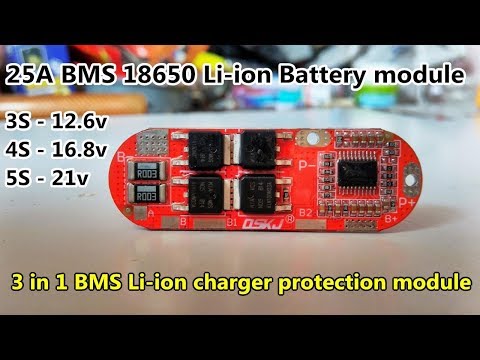

- the video in this page is demonstrated for BMS 5S
BMS 25A 3S 12.6V 4S 16.8V 5S 21V 18650 Li-Ion Lithium Battery Protection Circuit Charging Board Module PCM Polymer Lipo Cell PCB
175 BDT310 BDTSave 135 BDT
Total sold : 26
- 100% Brand new and high quality 18650 lithium battery charging Module
- FOR Li-POLYMER LiMnO Protect Parameter(3.6V/3.7V)
- Single Cell overcharge protect voltage: 4.23 - 4.28V
- Single Cell overcharge rotect recover voltage: 4.08 - 4.18
- overcharge protect delay: 0.5 - 1.5S
- Single Cell over-discharge protect voltage: 2.72 - 2.88V
- Single Cell over-discharge rotect recover voltage: 2.9 - 3.1V
- overcharge protect current: 60A
- over-discharge protect current: 60A
- over-discharge protectdelay: 0.5 - 1.5S
- temperature protect: YES
- disconnect protect: YES
- shortage protect: YES
- shortage delay: 100 - 600μS
- shortage protect recover: YES
- Charging current: 25A
- discharging current: 25A
- charging voltage : 12.6V for 3S , 16.8V for 4S, 21V for 5S BMS board
- the video in this page is demonstrated for BMS 5S
