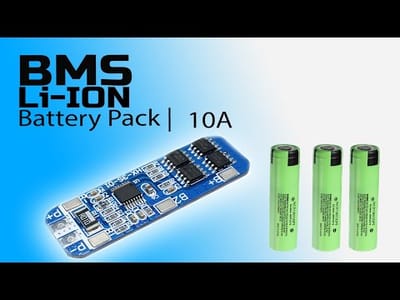

3S 10A 12V Lithium Battery Charger Protection Board BMS Module for 3 Piece 18650 Li-ion Battery Cell Charging 11.1V 12.6V Balance
Model: HX-3S-01Overload voltage range: 4.25-4.35 v ? 0.05 vOverpressure voltage range: 2.3-3.0 v ? 0.05 vSize: 50 * 16 * 1.0mmMaximum operating current: 5-8A Operating temperature: -40 — 50 & # 8451;Maximum instantaneous current: 9-10A Storage conditions: -40- 80 & # 8451;Model: HX-3S-01Overload voltage range: 4.25-4.35 v ? 0.05 vOverpressure voltage range: 2.3-3.0 v ? 0.05 vSize: 50 * 16 * 1.0mmMaximum operating current: 5-8A Operating temperature: -40 — 50 & # 8451;Maximum instantaneous current: 9-10A Storage conditions: -40- 80 & # 8451;Current at rest: less than 6uA useful life: more than 30,000 hoursInternal resistance: less than 60m? short circuit protection: protection, self-recovery delay.the size of the protection board and description of the device;The size protection board is 50 * 16 * 1.0mm;?components for the Seiko S-8254AA protection chip and genuine FDS 4435A * 4;note:The protection board cannot be used for polymer battery iron, battery hand drill, electric fish battery machine, electric bicycle battery, 2 and then in series 24 V use, 775 (4A) above of the motor, 1 W fish eye LED light.described in the power range for the following products:vacuum cleaner battery massager, LED light backup power supply, 12V electronic products, solar battery street lamp, backup power supply monitor, and other products.Explanation description:3 string (for 3 18650 lithium polymer batteries or batteries combination in series)10.8 V (nominal voltage of lithium polymers)11.1 V (18650 or 3.7 V lithium battery voltage)12.6 V (lithium battery is fully charged after voltage)10A discharge (referring to the maximum discharge current limit)lithium battery protection plateComes with: overload, over discharge, over current, short circuit protection18650 lithium battery should!Supplier: FAMOUS ELECTRONICS BD
FAMOUS ELECTRONICS BD
Category List
All products
HandTools
Module
Robotics
Battery
Motor
BatteryPack
Soldering Tools
Amplifier
PowerBank and Accessories
Charger and Adaptor

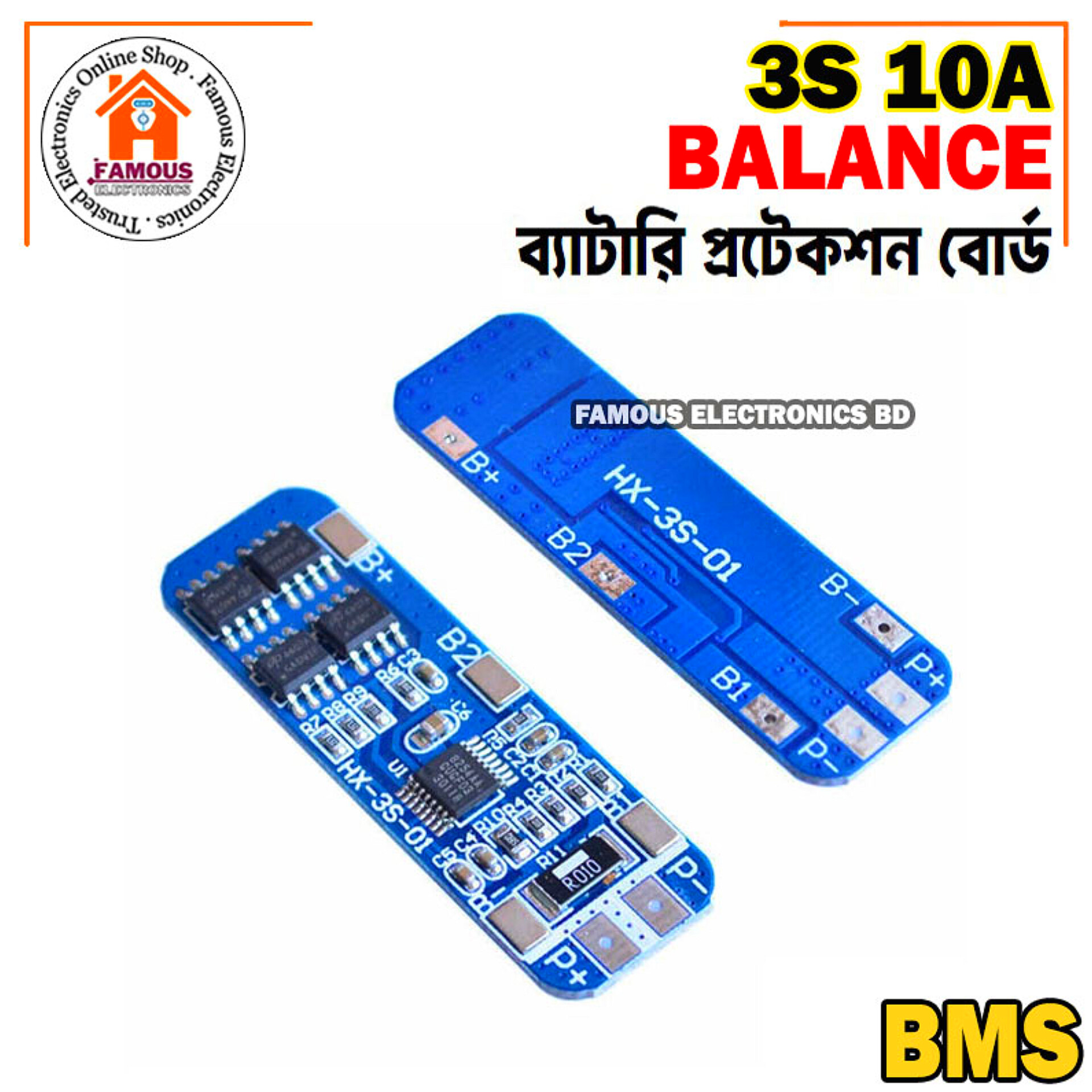

- Model: HX-3S-01
- Overload voltage range: 4.25-4.35 v ? 0.05 v
- Overpressure voltage range: 2.3-3.0 v ? 0.05 v

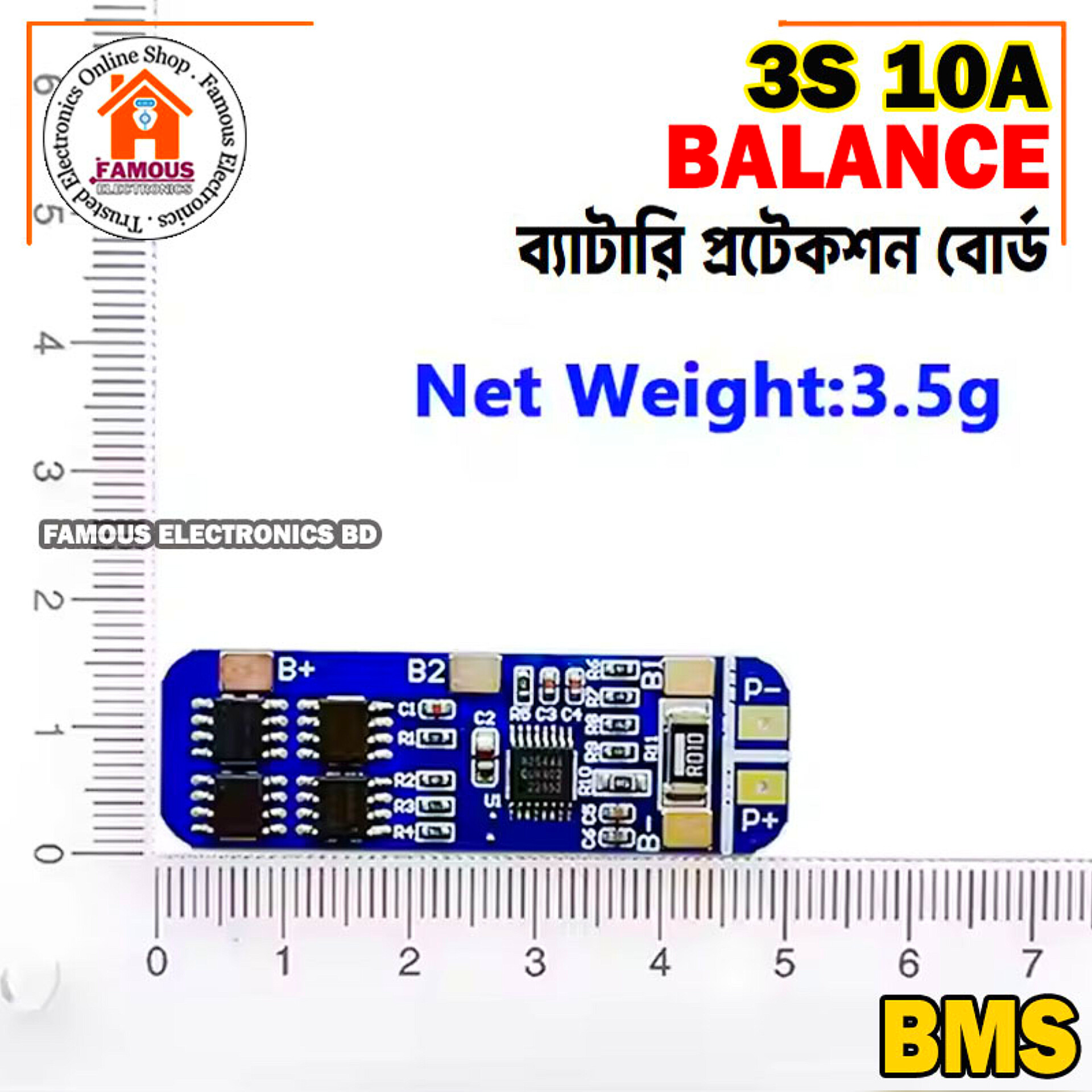

- Size: 50 * 16 * 1.0mm
- Maximum operating current: 5-8A Operating temperature: -40 — 50 & # 8451;
- Maximum instantaneous current: 9-10A Storage conditions: -40- 80 & # 8451;
- Model: HX-3S-01
- Overload voltage range: 4.25-4.35 v ? 0.05 v
- Overpressure voltage range: 2.3-3.0 v ? 0.05 v
- Size: 50 * 16 * 1.0mm
- Maximum operating current: 5-8A Operating temperature: -40 — 50 & # 8451;
- Maximum instantaneous current: 9-10A Storage conditions: -40- 80 & # 8451;
- Current at rest: less than 6uA useful life: more than 30,000 hours
- Internal resistance: less than 60m? short circuit protection: protection, self-recovery delay.

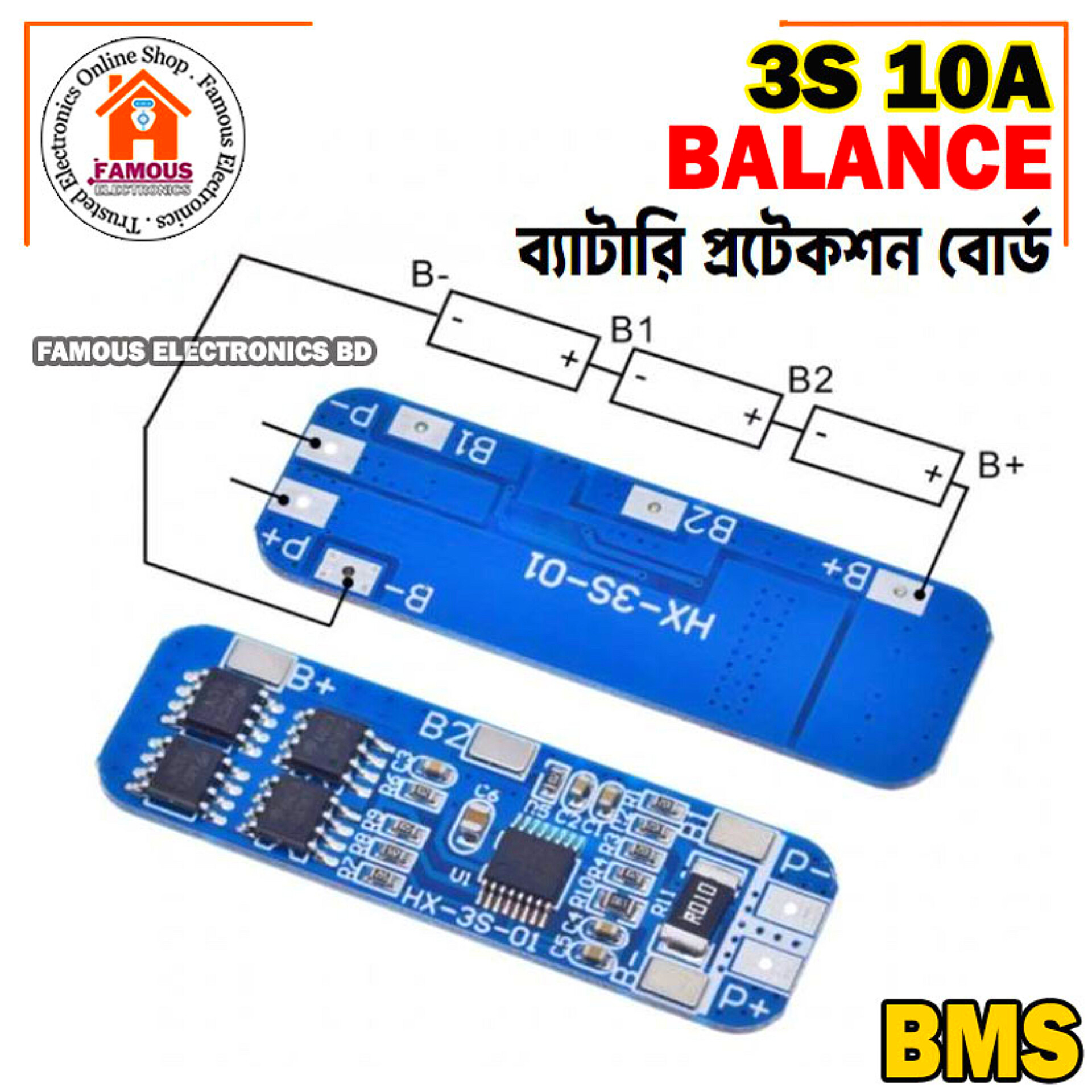

- the size of the protection board and description of the device;

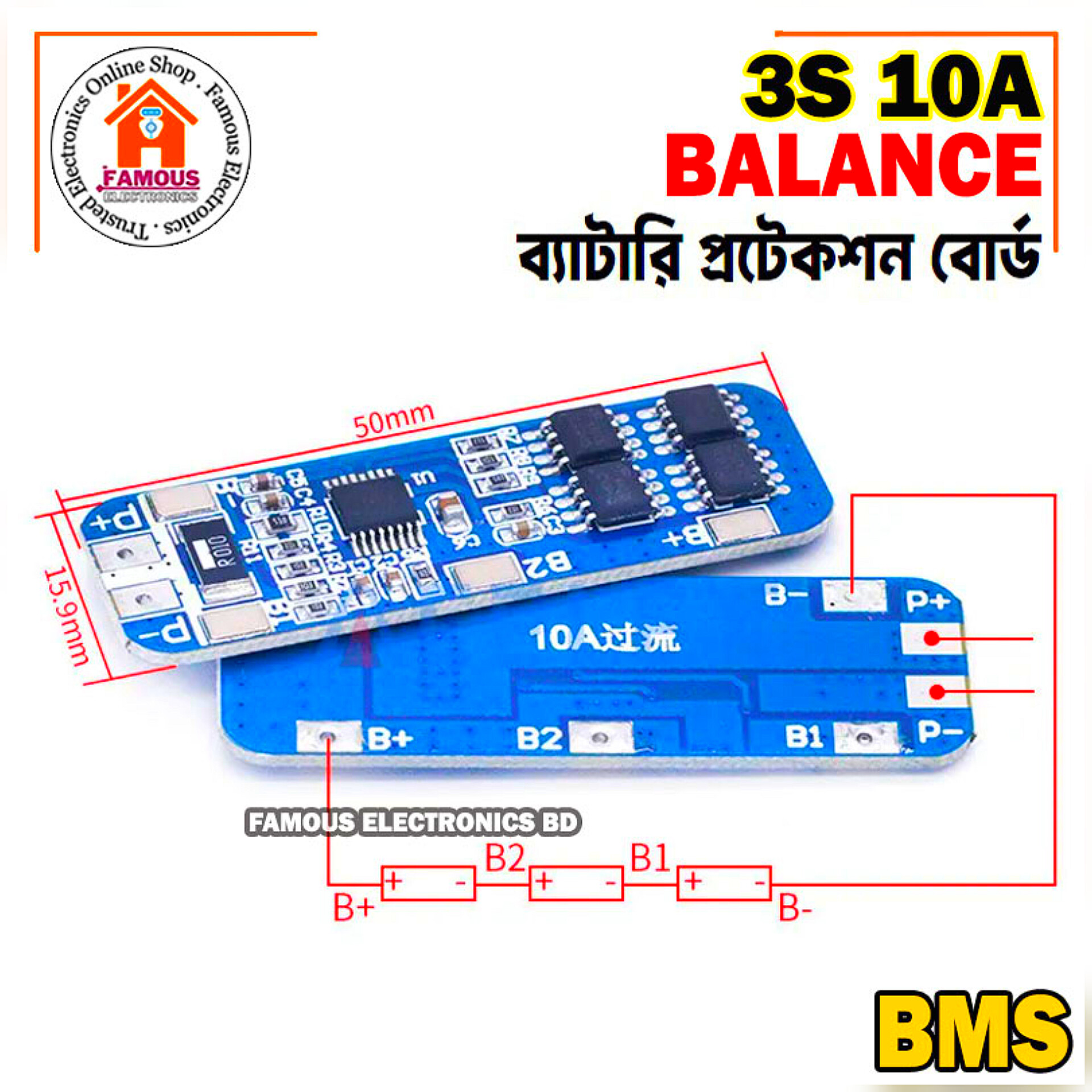

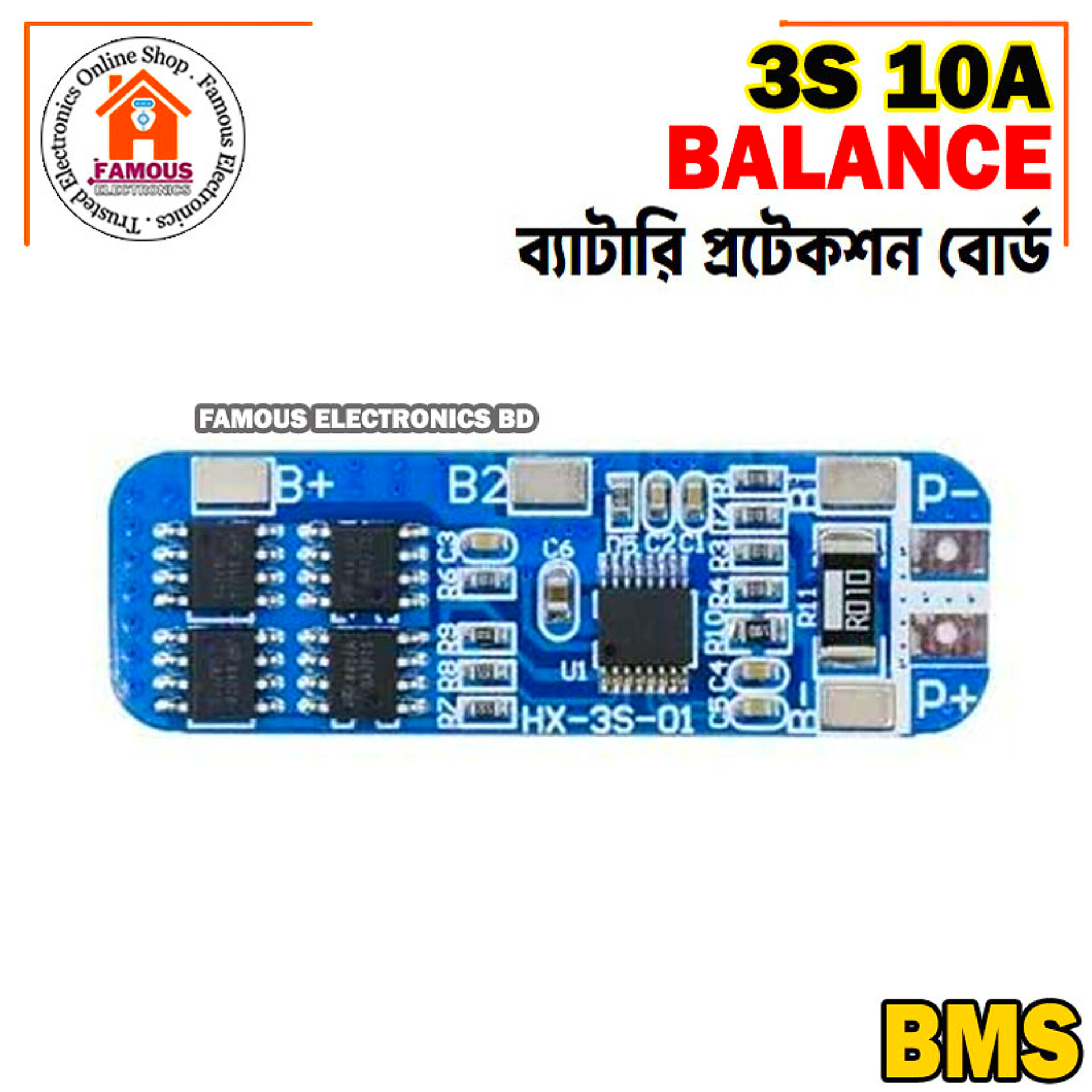

- The size protection board is 50 * 16 * 1.0mm;?components for the Seiko S-8254AA protection chip and genuine FDS 4435A * 4;
- note:
- The protection board cannot be used for polymer battery iron, battery hand drill, electric fish battery machine, electric bicycle battery, 2 and then in series 24 V use, 775 (4A) above of the motor, 1 W fish eye LED light.
- described in the power range for the following products:
- vacuum cleaner battery massager, LED light backup power supply, 12V electronic products, solar battery street lamp, backup power supply monitor, and other products.
- Explanation description:
- 3 string (for 3 18650 lithium polymer batteries or batteries combination in series)
- 10.8 V (nominal voltage of lithium polymers)
- 11.1 V (18650 or 3.7 V lithium battery voltage)
- 12.6 V (lithium battery is fully charged after voltage)
- 10A discharge (referring to the maximum discharge current limit)
- lithium battery protection plate
- Comes with: overload, over discharge, over current, short circuit protection
- 18650 lithium battery should!
- Supplier: FAMOUS ELECTRONICS BD
3S 10A 12V Lithium Battery Charger Protection Board BMS Module For 3 Piece 18650 Li-Ion Battery Cell Charging 11.1V 12.6V Balance
Out of stock105 BDT225 BDTSave 120 BDT
Total sold : 4
No more items remaining!
