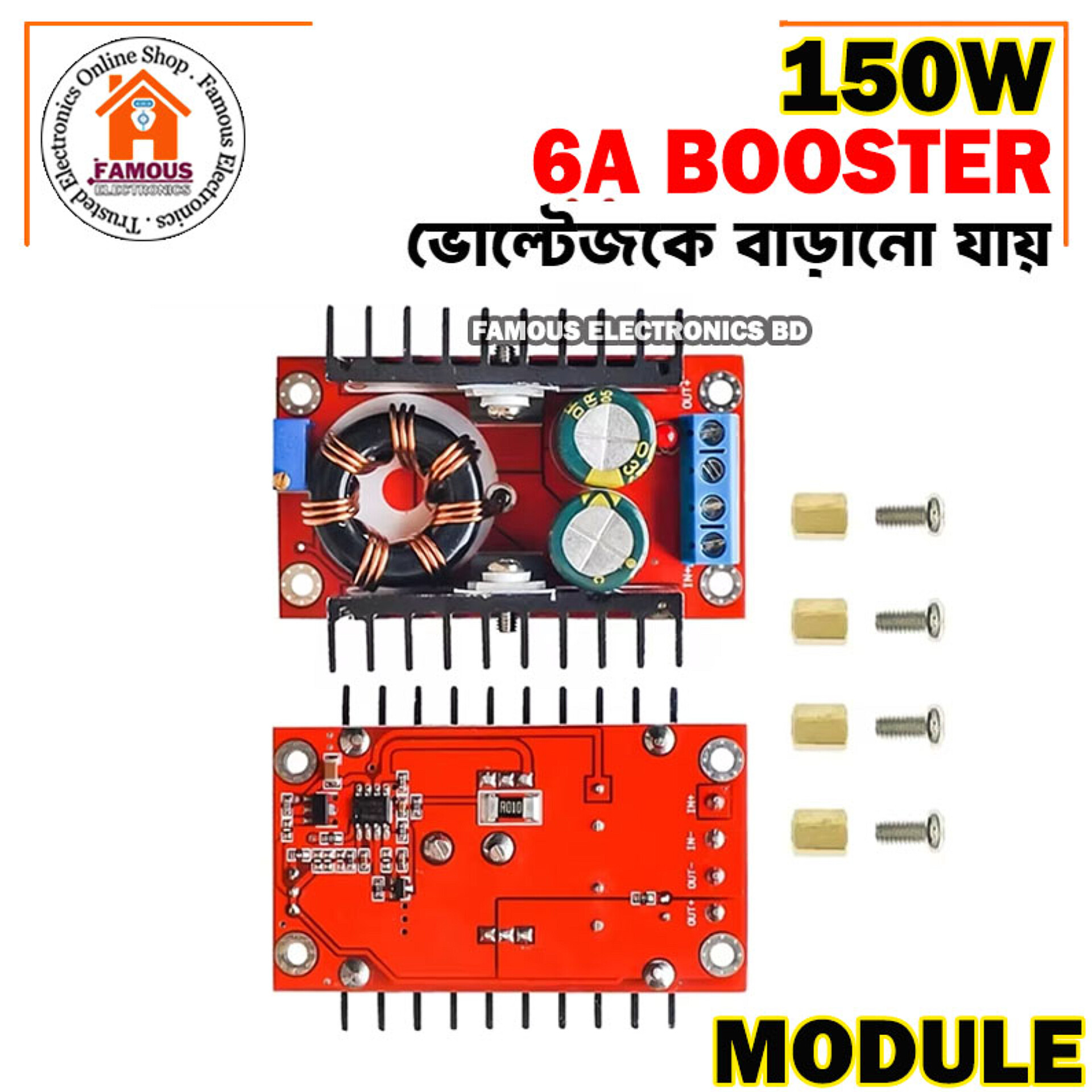

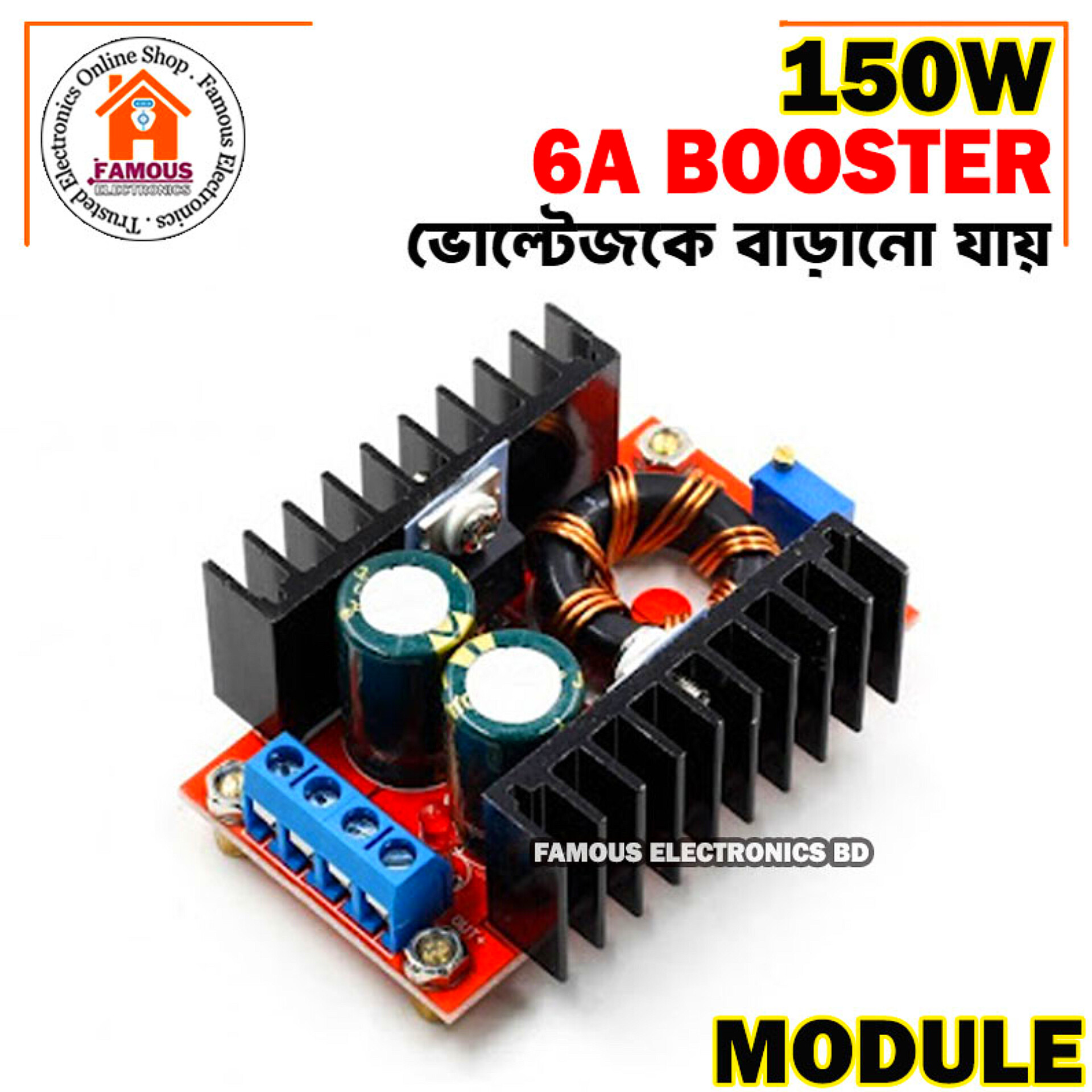

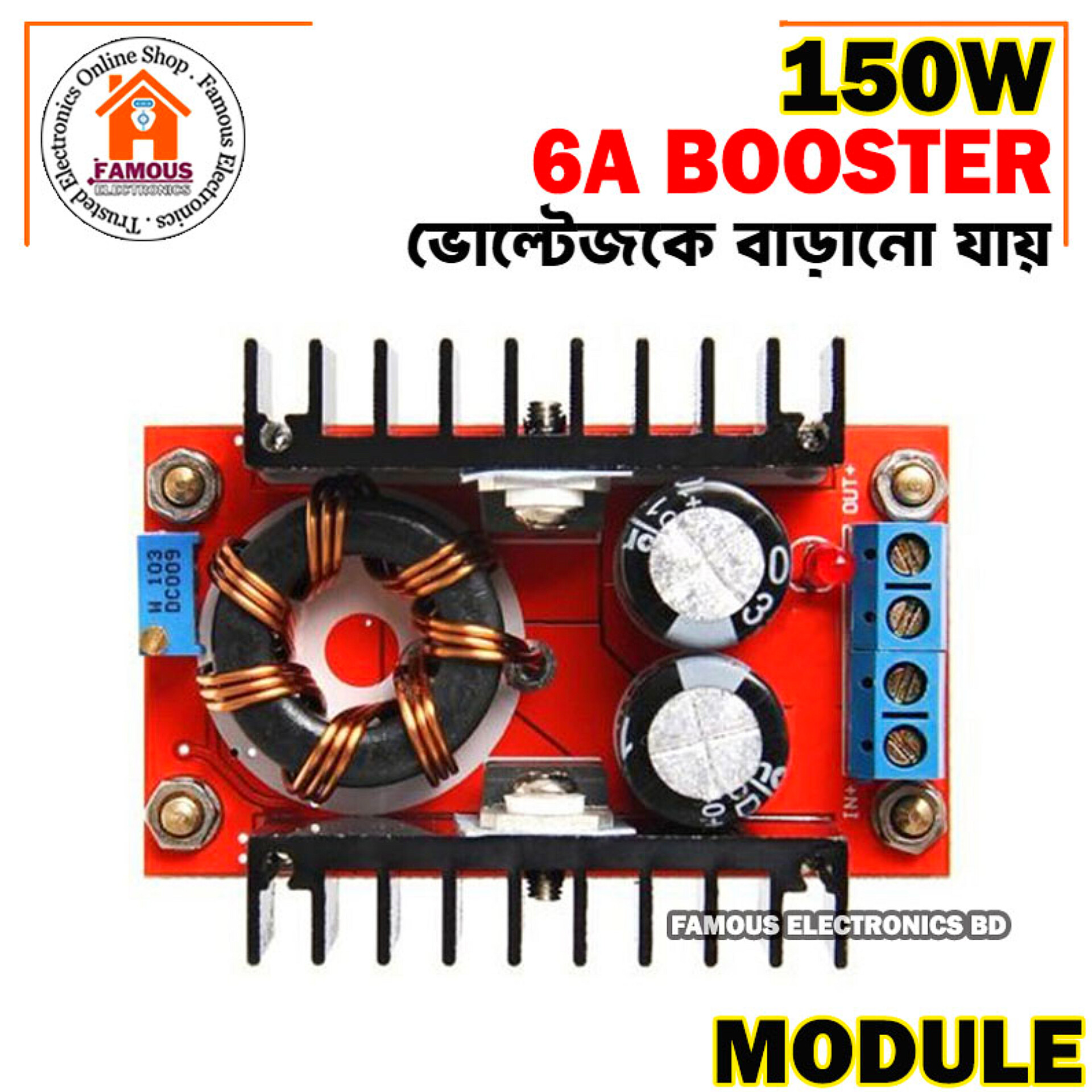

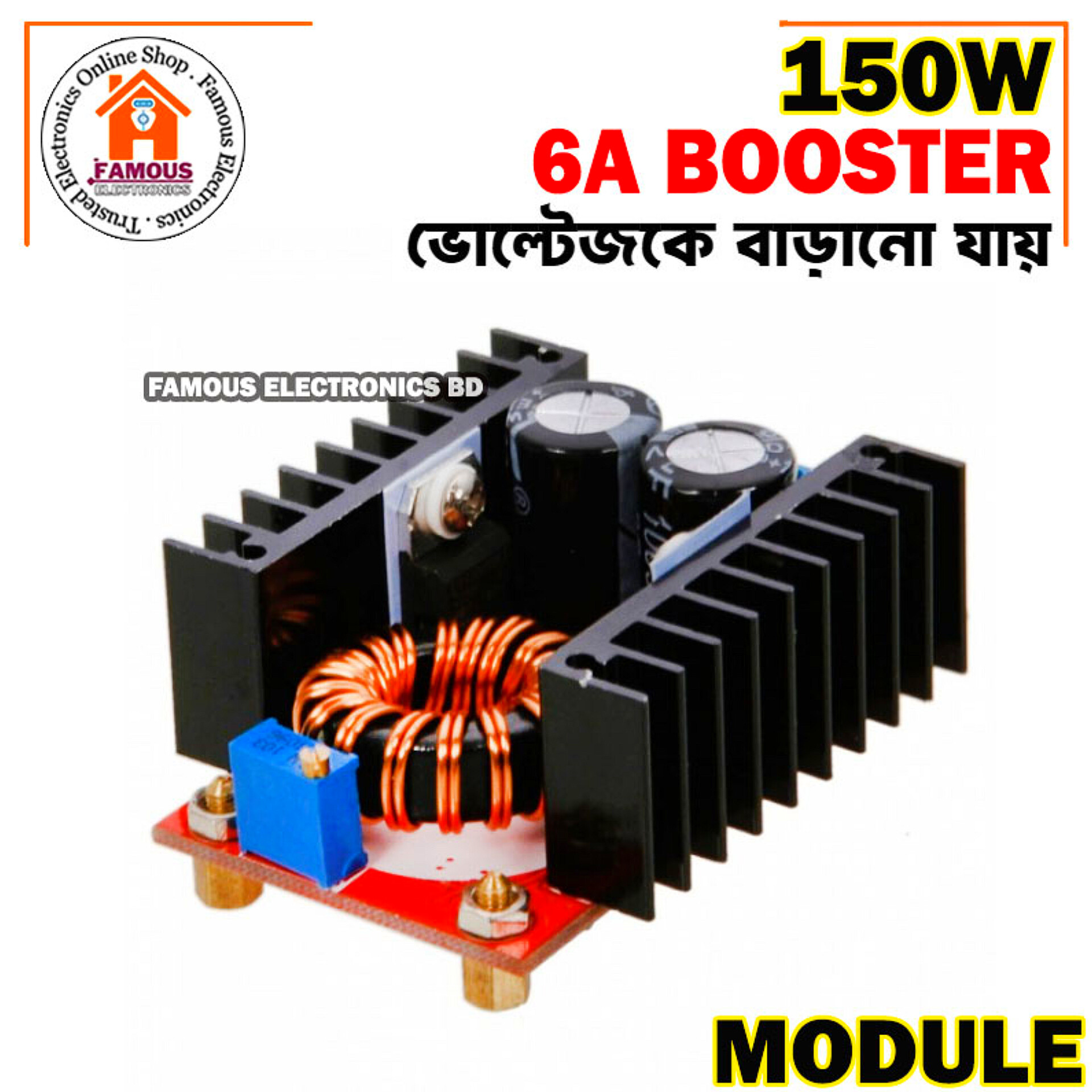

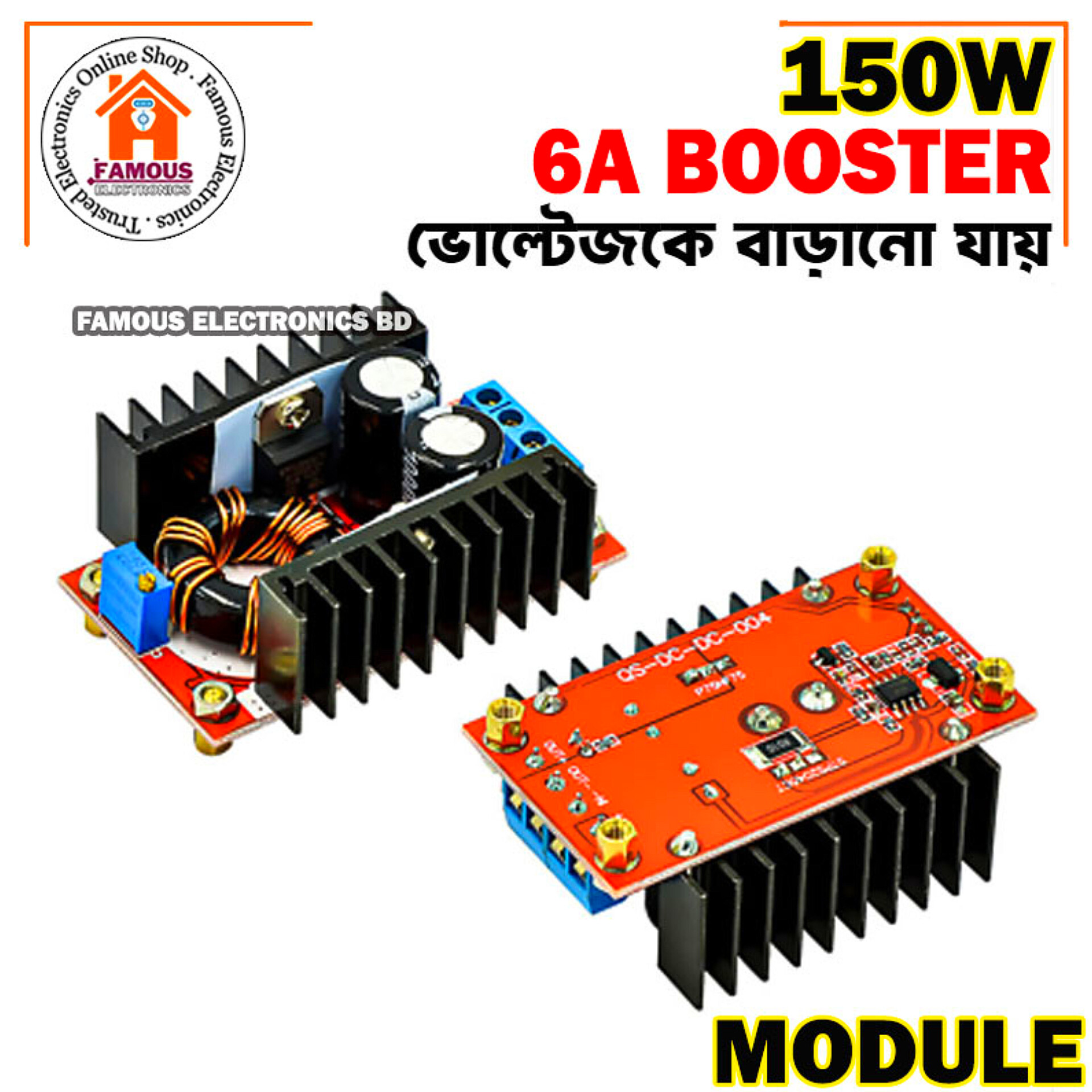

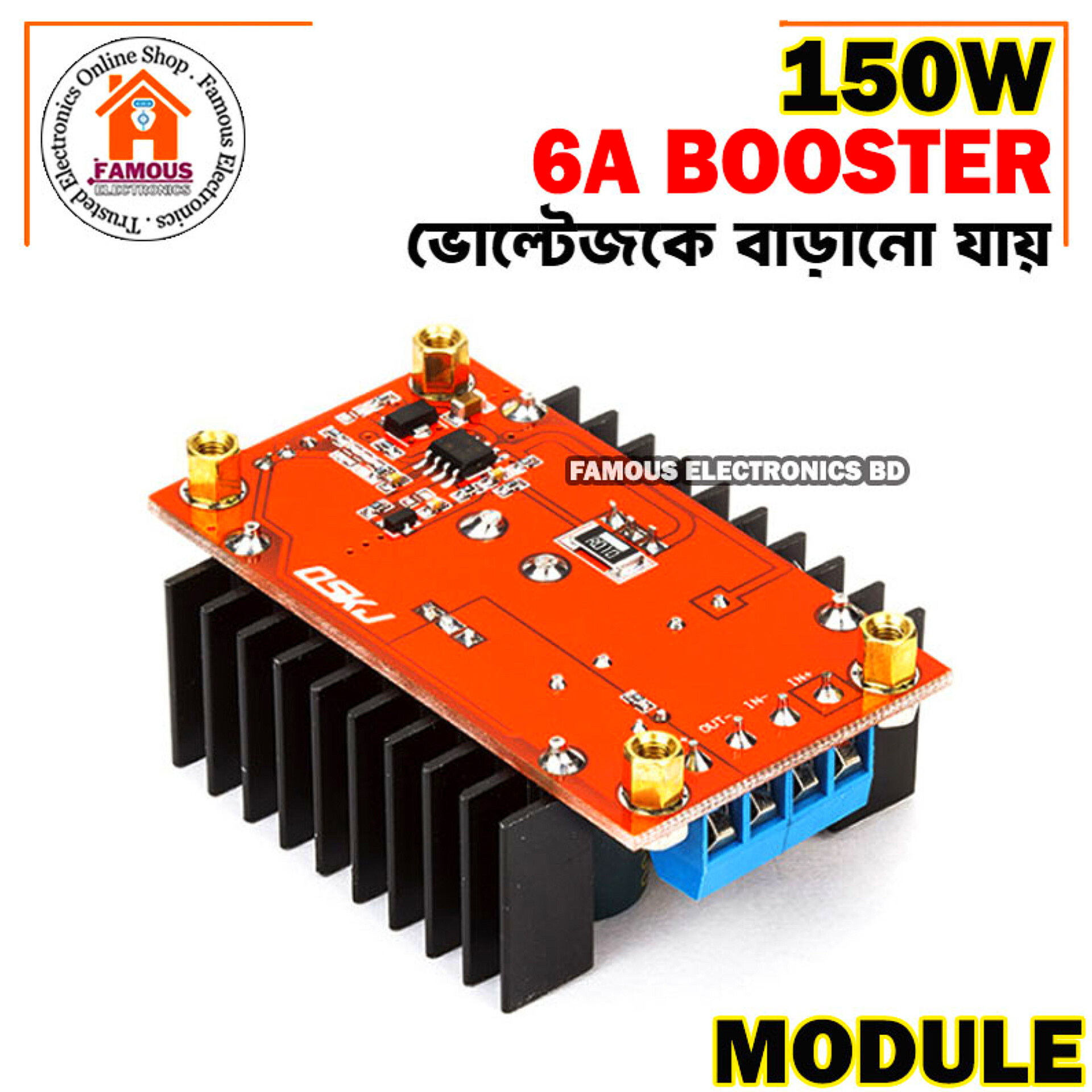

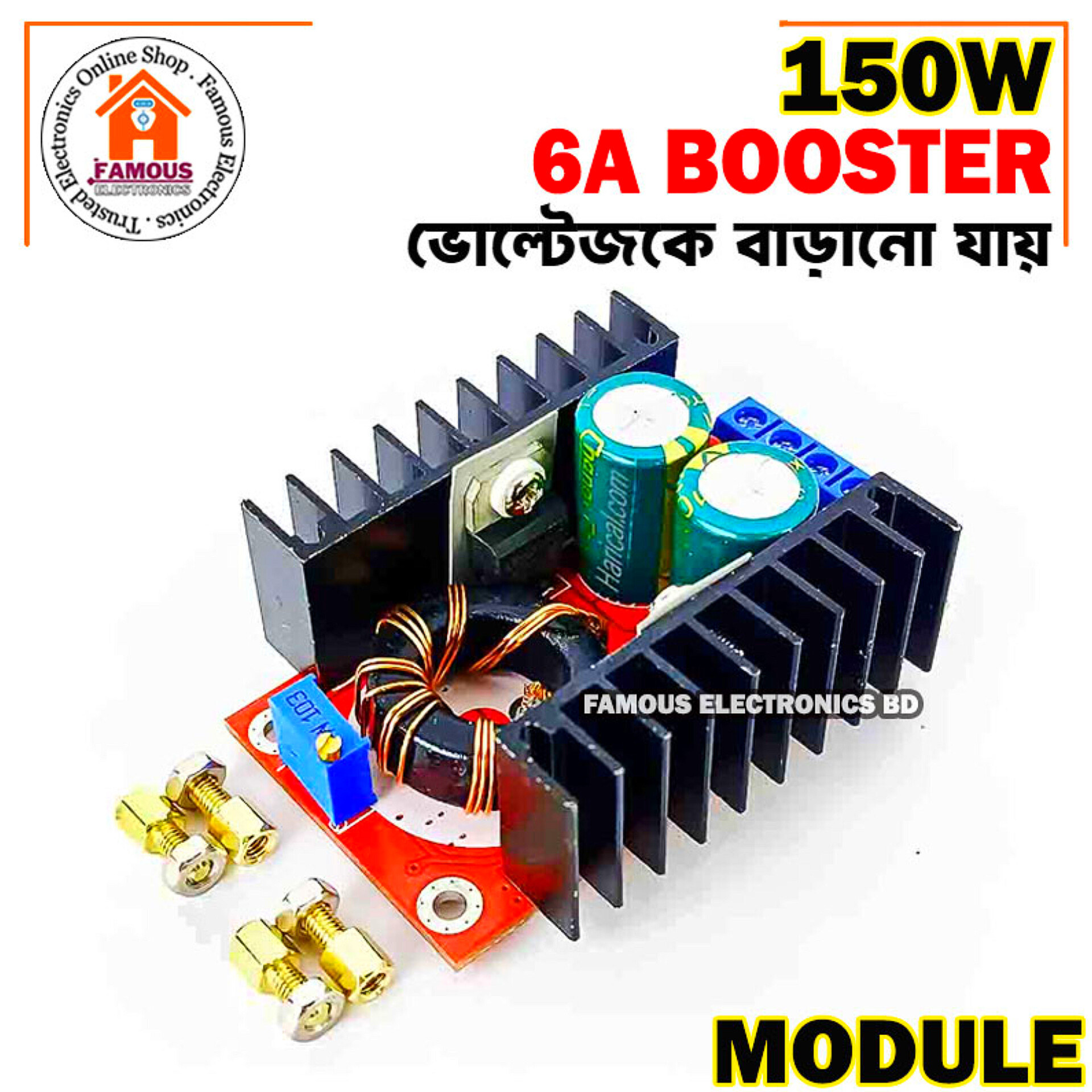

150 Watt 6 Amp Dc To Dc Step Up Boost Converter Power Module (10-32V To 12-35V) Booster
150W DC-DC Boost Converter 10-32V To 12-35V 6A Step UPPowerModule is a DC-to-DC power converter that steps up voltage is a class of switched-mode power supply Power for the boost converter can come from any suitable DC sources, such as batteries, solar panels, rectifiers and DC generators. A process that changes one DC voltage to a different DC voltage is called DC to DC conversion. A boost converter is a DC to DC converter with an output voltage greater than the source voltage. A boost converter is sometimes called a step-up converter since it "steps up" the source voltage.Input voltage :10-32VOutput voltage: 12-35V (adjustable)Output Current: 6A (MAX)Input Current: 10A (MAX) (Please enhance heat dissipation if more than 10A)Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)Easy to drive 65W 90W dual-core notebook.Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45cConversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)Output Ripple: 2% (MAX) 20M-bandwidthOperating Temperature: Industrial (-40c to +85c) (ambient temperature exceeds 40c, lower power use, or to enhance heat dissipation)Full load temperature rise: 45cNo-load current: 25mA typicalVoltage regulation: 0.5%Dynamic response speed: 5% 200uSShort circuit protection: None (Please Install fuses and protection circuits at Input port.)Supplier: FAMOUS ELECTRONICS BD
FAMOUS ELECTRONICS BD
Category List
All products
HandTools
Module
Robotics
Battery
Motor
BatteryPack
Soldering Tools
Amplifier
PowerBank and Accessories
Charger and Adaptor
- 150W DC-DC Boost Converter 10-32V To 12-35V 6A Step UPPowerModule is a DC-to-DC power converter that steps up voltage is a class of switched-mode power supply Power for the boost converter can come from any suitable DC sources, such as batteries, solar panels, rectifiers and DC generators. A process that changes one DC voltage to a different DC voltage is called DC to DC conversion. A boost converter is a DC to DC converter with an output voltage greater than the source voltage. A boost converter is sometimes called a step-up converter since it "steps up" the source voltage.
- Input voltage :10-32V

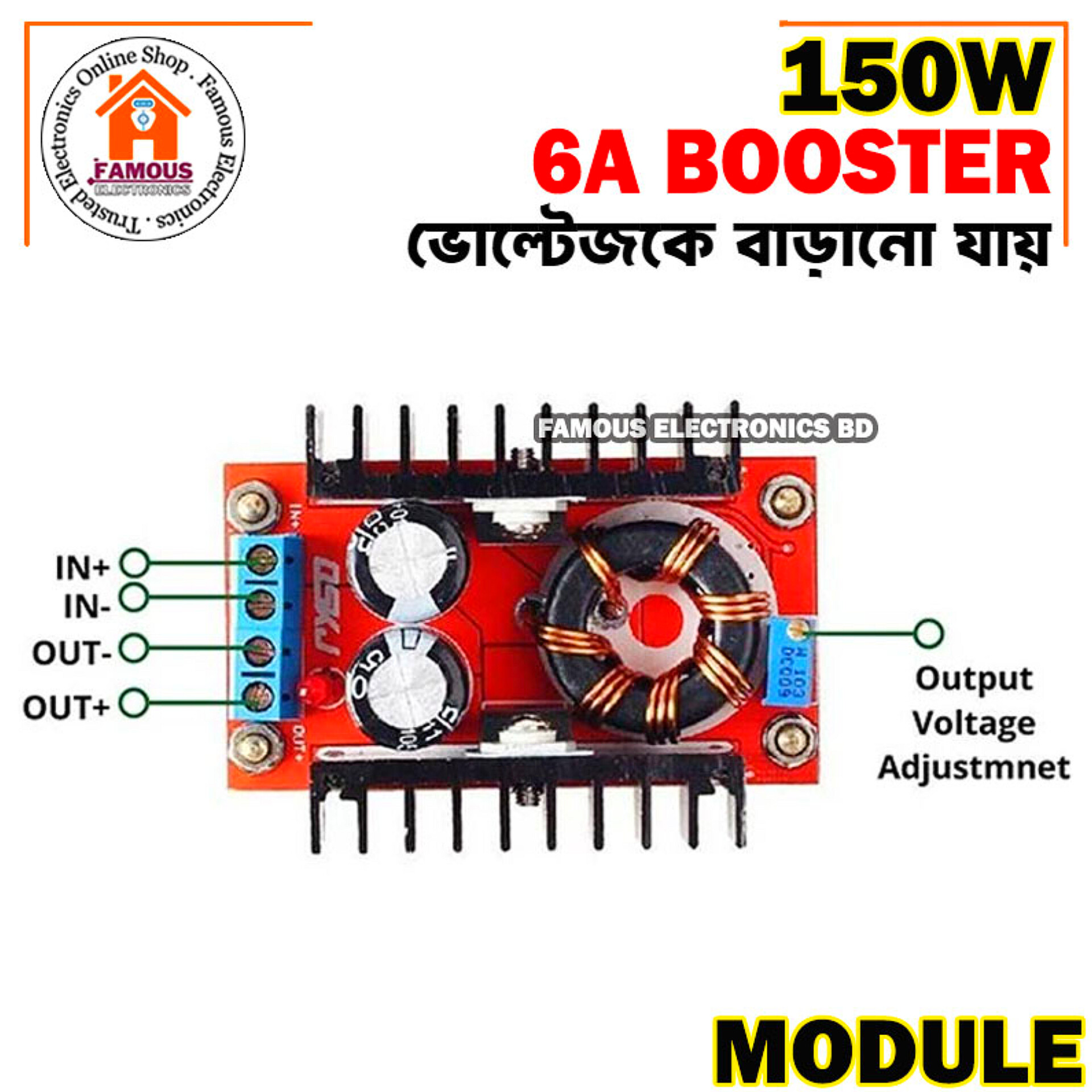

- Output voltage: 12-35V (adjustable)
- Output Current: 6A (MAX)
- Input Current: 10A (MAX) (Please enhance heat dissipation if more than 10A)
- Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)
- Easy to drive 65W 90W dual-core notebook.
- Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45c
- Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)
- Output Ripple: 2% (MAX) 20M-bandwidth
- Operating Temperature: Industrial (-40c to +85c) (ambient temperature exceeds 40c, lower power use, or to enhance heat dissipation)
- Full load temperature rise: 45c
- No-load current: 25mA typical
- Voltage regulation: 0.5%
- Dynamic response speed: 5% 200uS
- Short circuit protection: None (Please Install fuses and protection circuits at Input port.)
- Supplier: FAMOUS ELECTRONICS BD
150 Watt 6 Amp Dc To Dc Step Up Boost Converter Power Module (10-32V To 12-35V) Booster
305 BDT575 BDTSave 270 BDT
Total sold : 6
- 150W DC-DC Boost Converter 10-32V To 12-35V 6A Step UPPowerModule is a DC-to-DC power converter that steps up voltage is a class of switched-mode power supply Power for the boost converter can come from any suitable DC sources, such as batteries, solar panels, rectifiers and DC generators. A process that changes one DC voltage to a different DC voltage is called DC to DC conversion. A boost converter is a DC to DC converter with an output voltage greater than the source voltage. A boost converter is sometimes called a step-up converter since it "steps up" the source voltage.
- Input voltage :10-32V
- Output voltage: 12-35V (adjustable)
- Output Current: 6A (MAX)
- Input Current: 10A (MAX) (Please enhance heat dissipation if more than 10A)
- Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)
- Easy to drive 65W 90W dual-core notebook.
- Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45c
- Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)
- Output Ripple: 2% (MAX) 20M-bandwidth
- Operating Temperature: Industrial (-40c to +85c) (ambient temperature exceeds 40c, lower power use, or to enhance heat dissipation)
- Full load temperature rise: 45c
- No-load current: 25mA typical
- Voltage regulation: 0.5%
- Dynamic response speed: 5% 200uS
- Short circuit protection: None (Please Install fuses and protection circuits at Input port.)
- Supplier: FAMOUS ELECTRONICS BD
