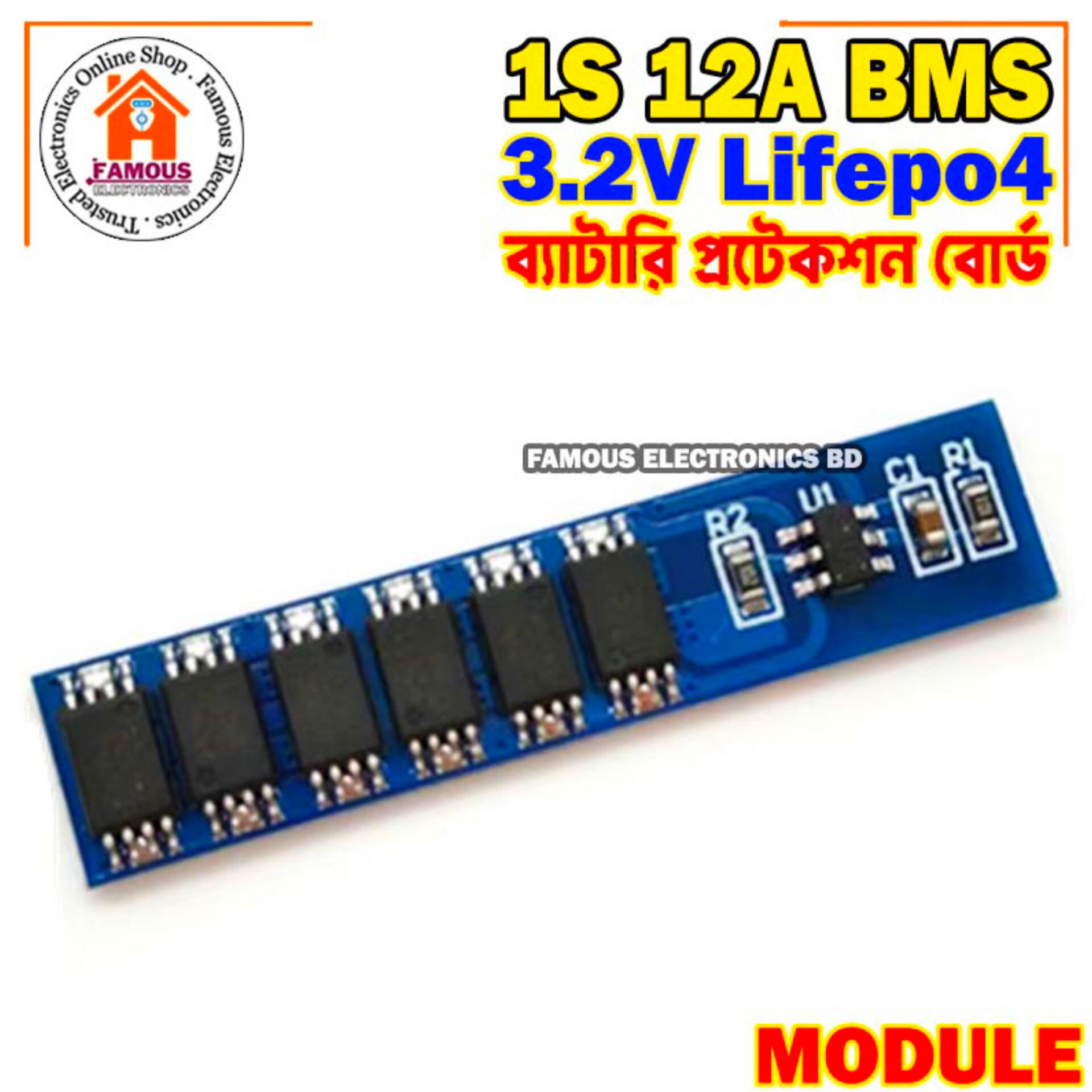

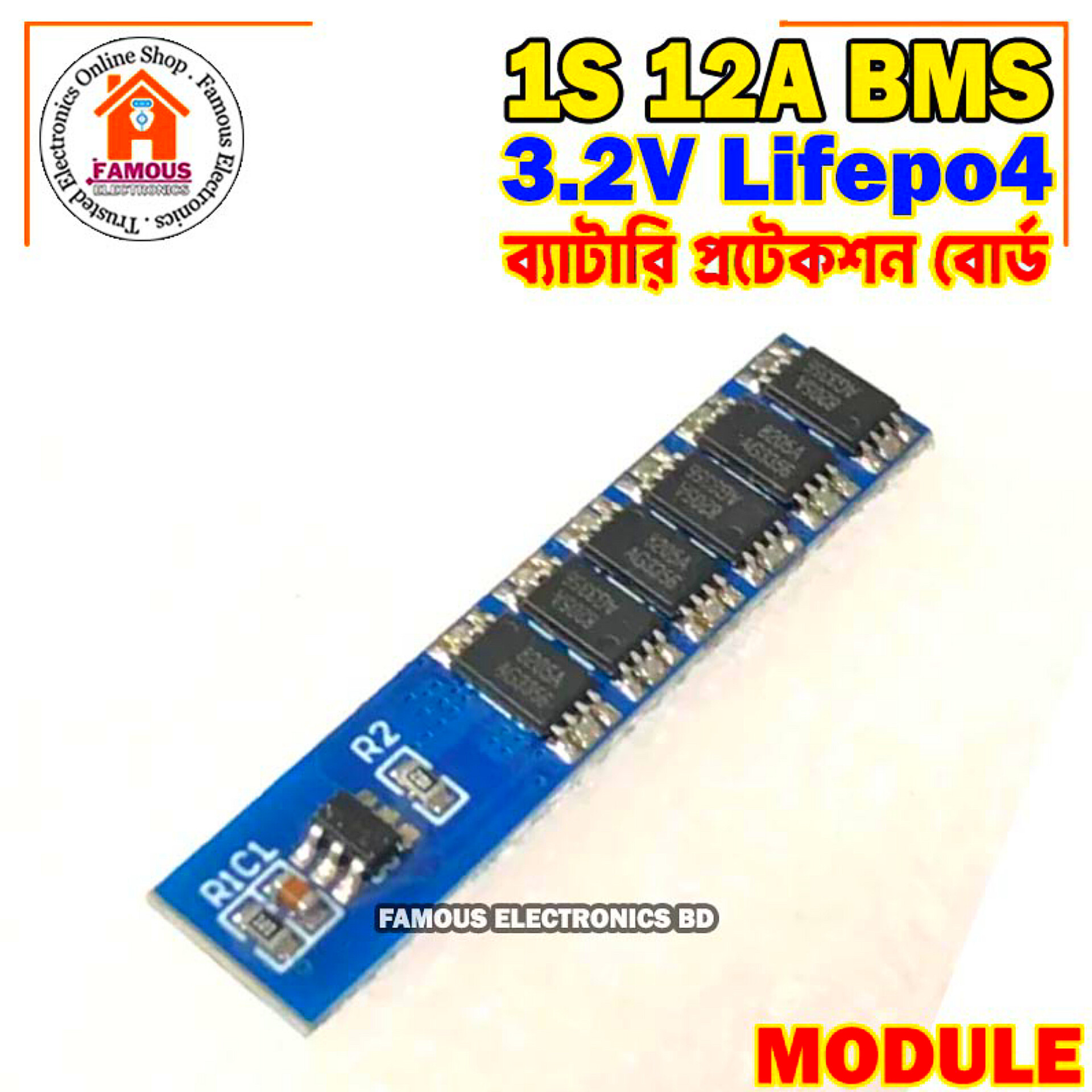

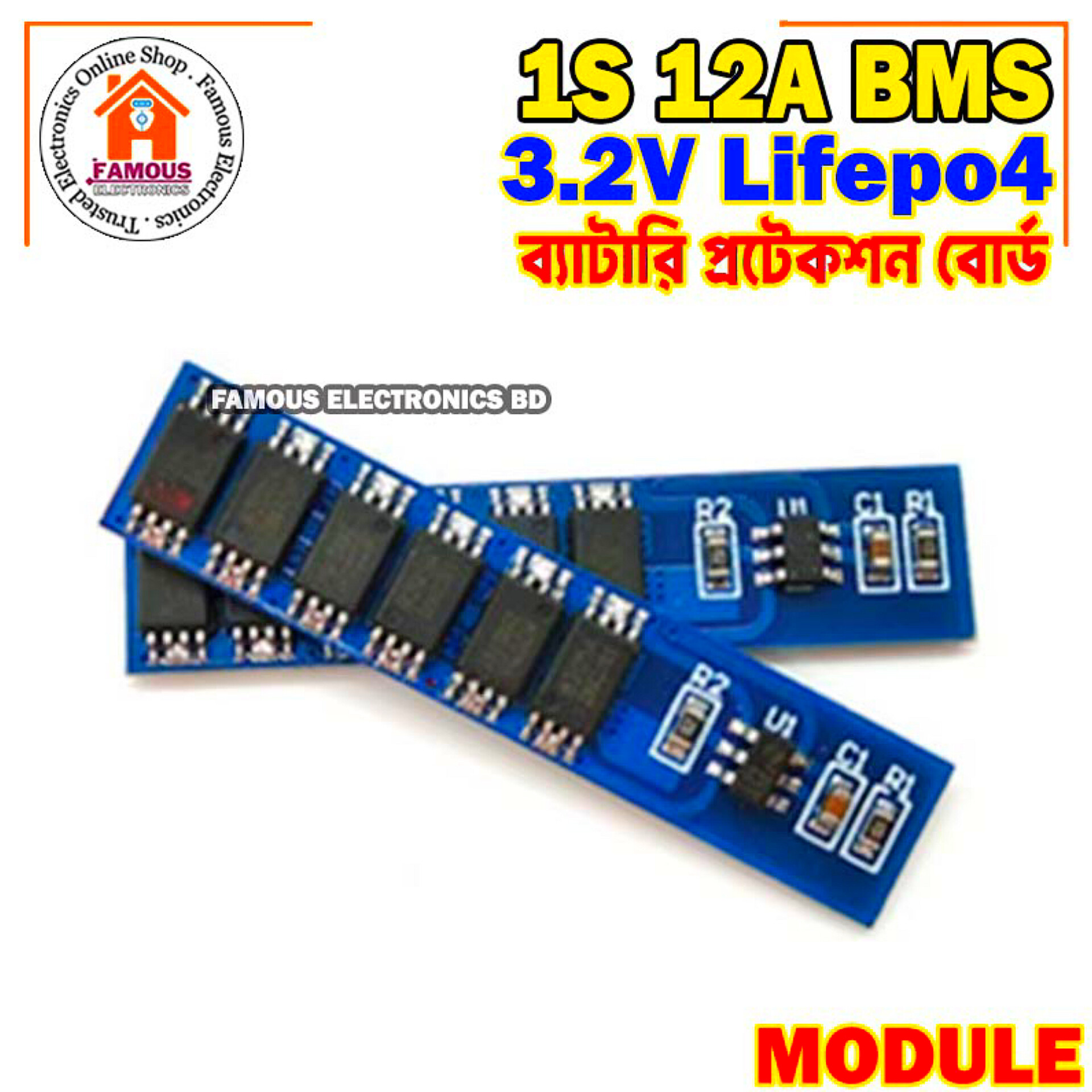

Lifepo4 1S 12A 3.2V BMS Charge Protection Circuit Board
Features Overcharge protection over discharge protection short circuit protection over current protection MOS: 6 MOS Transistor
FAMOUS ELECTRONICS BD
Category List
All products
HandTools
Module
Robotics
Battery
Motor
BatteryPack
Soldering Tools
Amplifier
PowerBank and Accessories
Charger and Adaptor
- Features
- Overcharge protection
- over discharge protection
- short circuit protection
- over current protection
- MOS: 6 MOS Transistor
- Specifications:
- Overcharge detection voltage: 3.75V ± 0.25V
- Overcharge release voltage: 3.6V ± 0.25V
- Over discharge detection voltage: 2.1±0.05V
- Upper limit continuous current: 12A
- Over current detection current: 15A
- Charging voltage: 3.6V

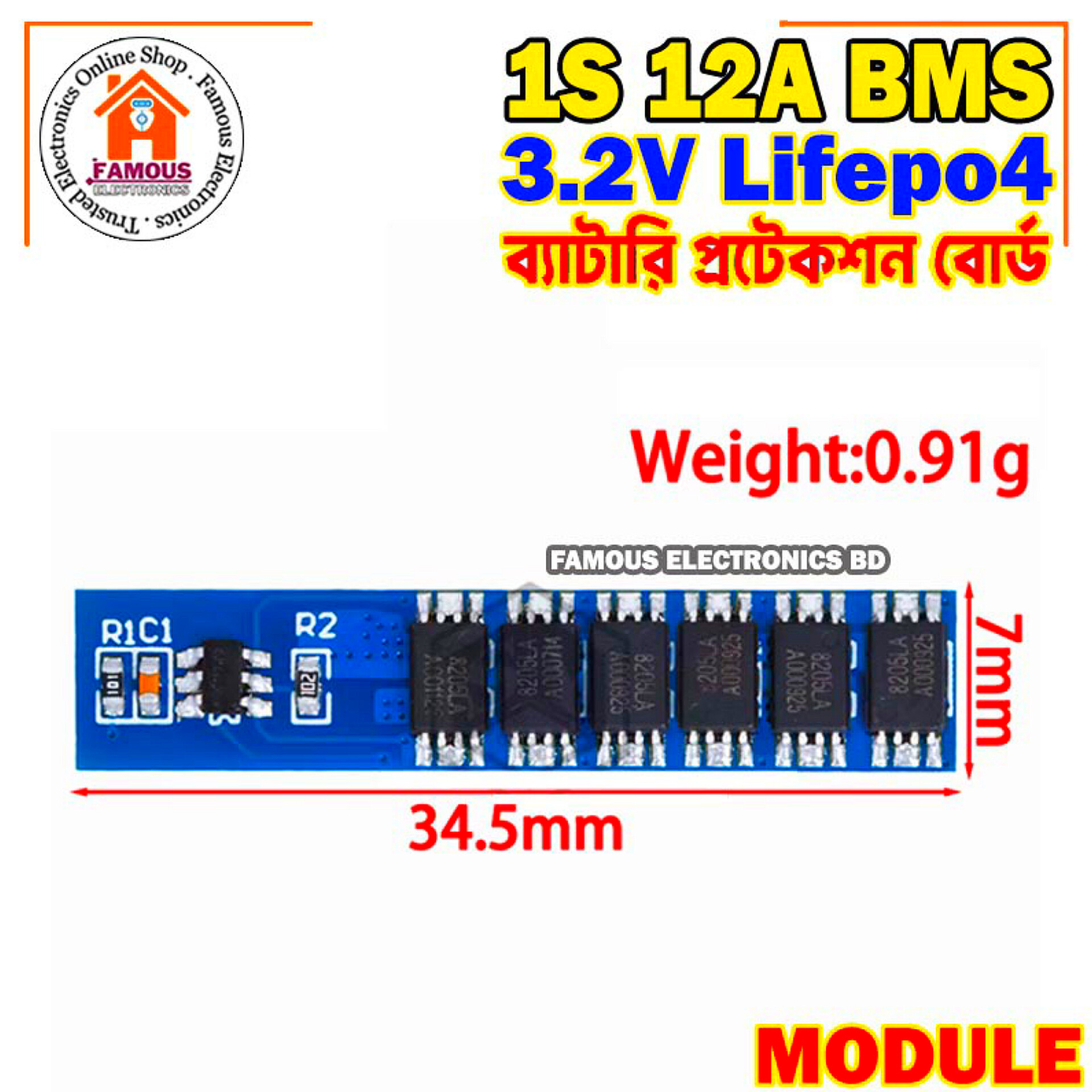

- Product size: 35x7.6x2.2MM

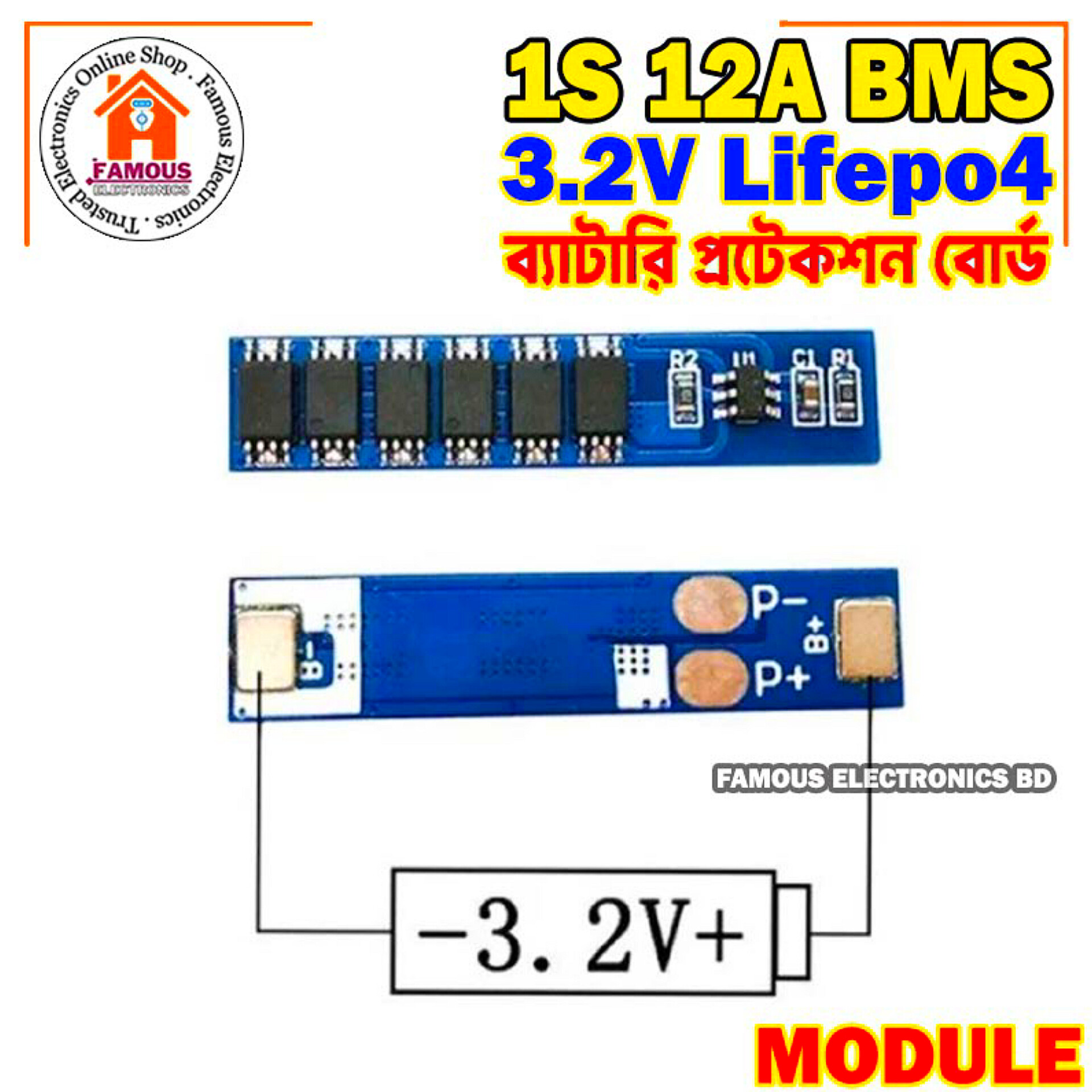

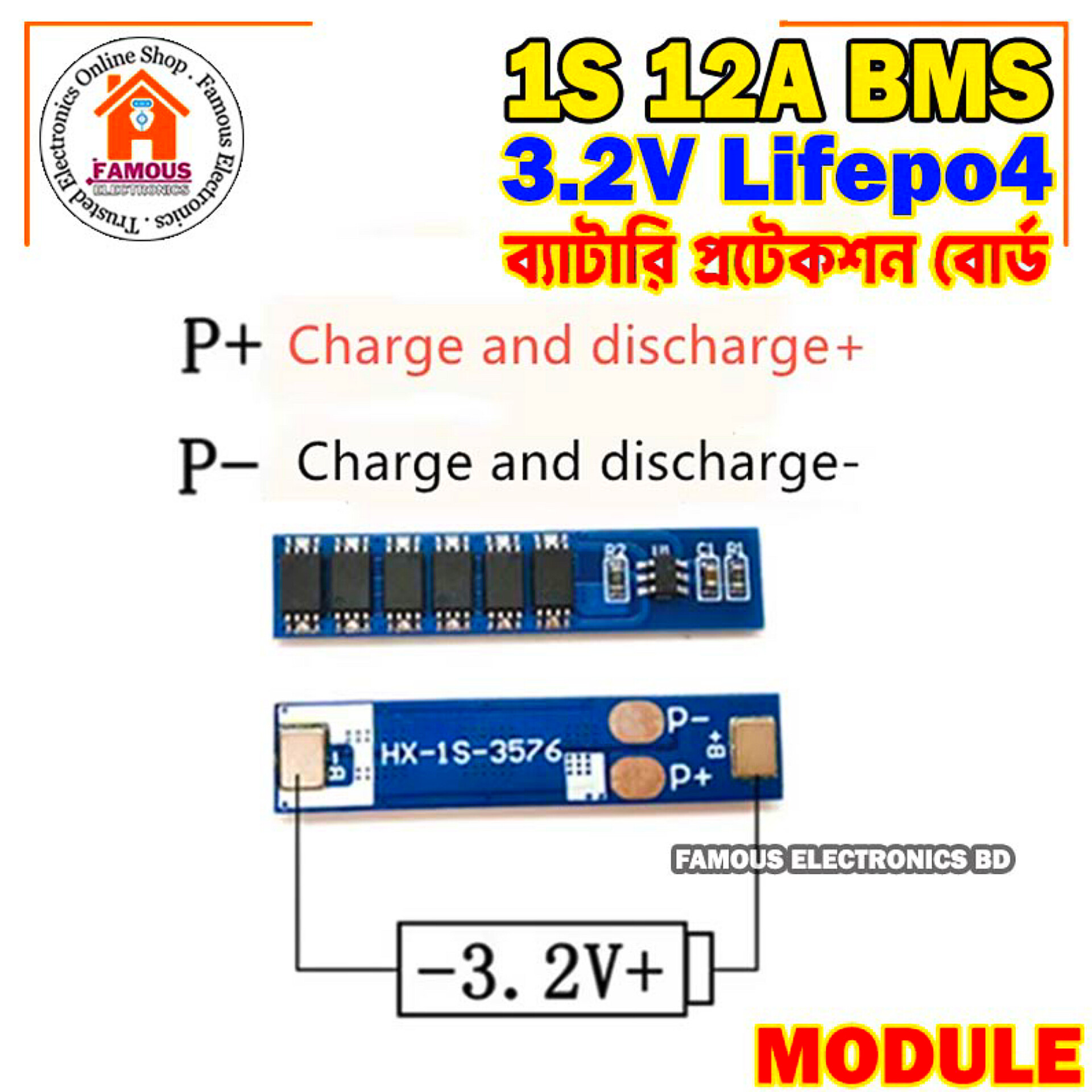

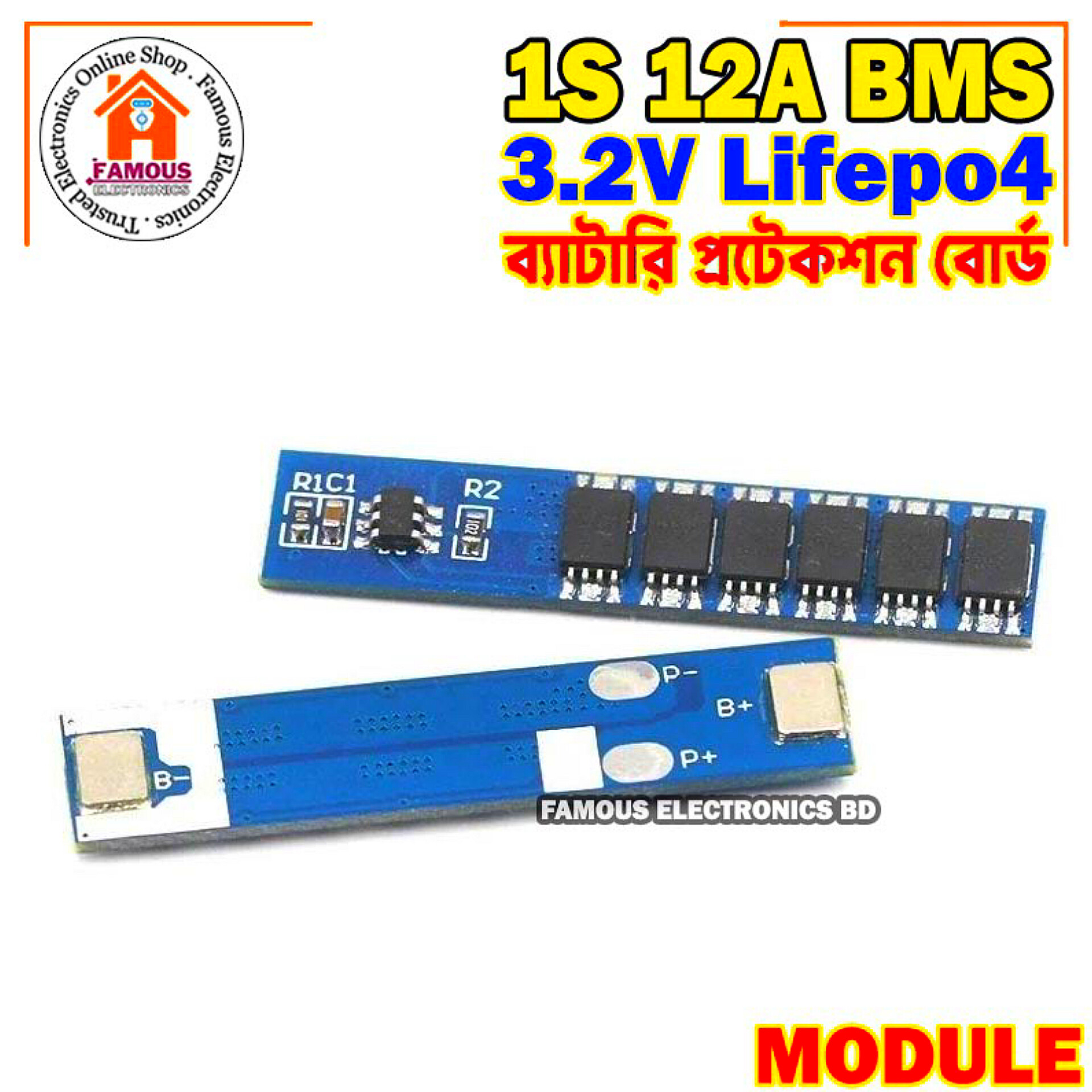

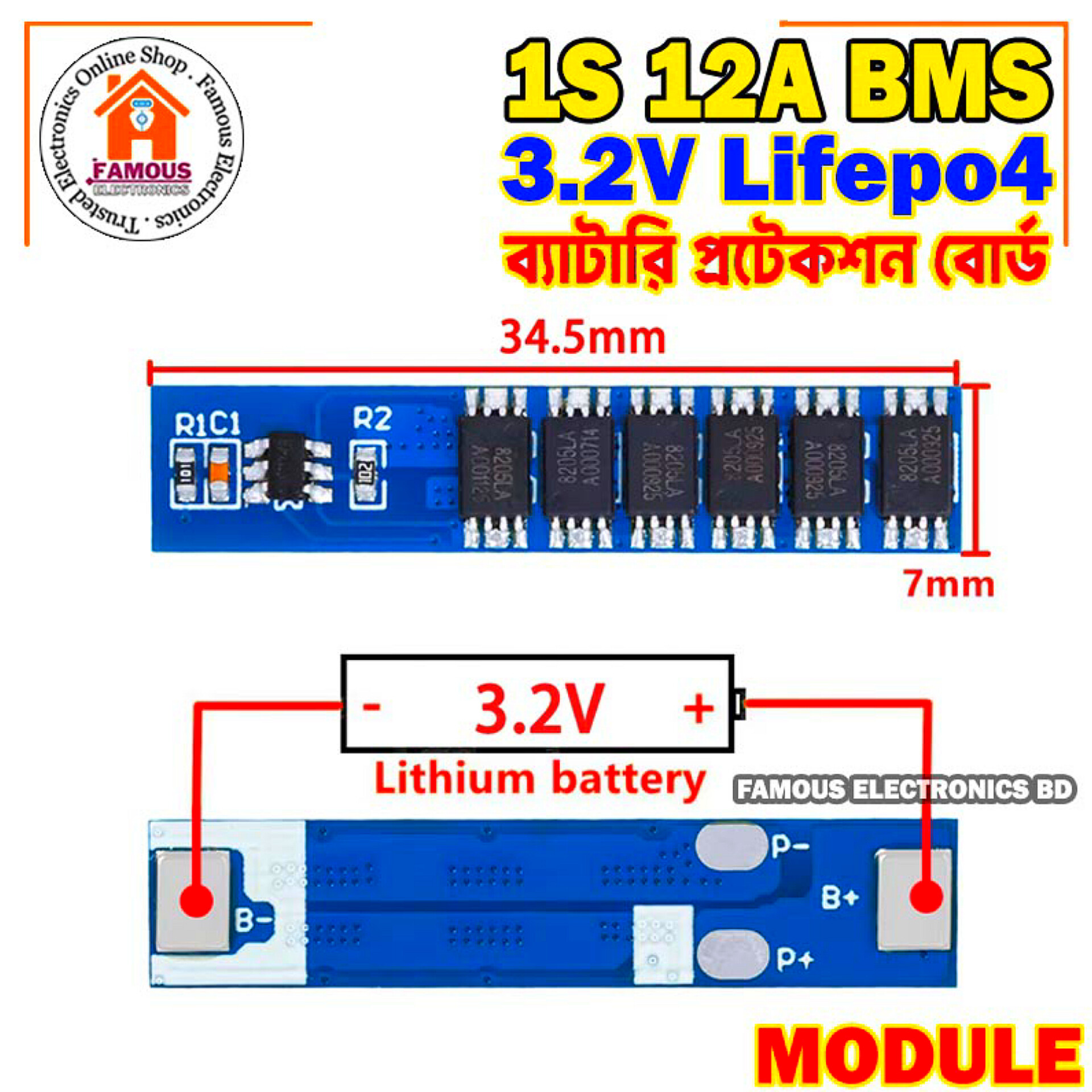

- Wiring instructions:
- B+ is connected to the positive battery.
- B-connect the battery negative.
- P+ is the positive input of the battery pack output
- P- is the negative input of the battery pack output
- Precautions:
- Please pay attention to the conditions of input and output voltage and load current, so that the power consumption in the protection board does not exceed the allowable power consumption of the electrical parameters.
- The load current cannot be operated for a long time between the upper limit continuous working current and the overcurrent protection current.
- When the battery is connected, there is a possibility that it will not discharge. In this case, the charger can be restored to normal operation.
- Although the protection board has built-in anti-static protection circuit, please do not touch the board by hand when the protection board is working, so as to avoid static damage to the protection board.
Lifepo4 1S 12A 3.2V BMS Charge Protection Circuit Board
65 BDT155 BDTSave 90 BDT
Total sold : 47
- Features
- Overcharge protection
- over discharge protection
- short circuit protection
- over current protection
- MOS: 6 MOS Transistor
- Specifications:
- Overcharge detection voltage: 3.75V ± 0.25V
- Overcharge release voltage: 3.6V ± 0.25V
- Over discharge detection voltage: 2.1±0.05V
- Upper limit continuous current: 12A
- Over current detection current: 15A
- Charging voltage: 3.6V
- Product size: 35x7.6x2.2MM
- Wiring instructions:
- B+ is connected to the positive battery.
- B-connect the battery negative.
- P+ is the positive input of the battery pack output
- P- is the negative input of the battery pack output
- Precautions:
- Please pay attention to the conditions of input and output voltage and load current, so that the power consumption in the protection board does not exceed the allowable power consumption of the electrical parameters.
- The load current cannot be operated for a long time between the upper limit continuous working current and the overcurrent protection current.
- When the battery is connected, there is a possibility that it will not discharge. In this case, the charger can be restored to normal operation.
- Although the protection board has built-in anti-static protection circuit, please do not touch the board by hand when the protection board is working, so as to avoid static damage to the protection board.
