Name: J5019 TYPE-C Li-ion 3.7/4.2 Volt Battery Charger Board + DC-DC Step Up and Down Boost Module
Brand: FAMOUS ELECTRONICS BD
Price: 65 BDT
Availability: InStock

FAMOUS ELECTRONICS BD

Input Voltage (USB) : 5 Volts Input Voltage (IN) : 4 - 8 Volts Battery Type : LiPo 3.7 Volts Default Charging Current : 1000 mA Output Voltage : 4.5 - 24 Volts Max Output Current : 1 Ampere Dimensions : 33 x 24mm Weight : 6 G Supplier: FAMOUS ELECTRONICS

FAMOUS ELECTRONICS BD

Categories

Category List

All products

HandTools

Module

Robotics

Battery

Motor

BatteryPack

Soldering Tools

Amplifier

PowerBank and Accessories

Charger and Adaptor

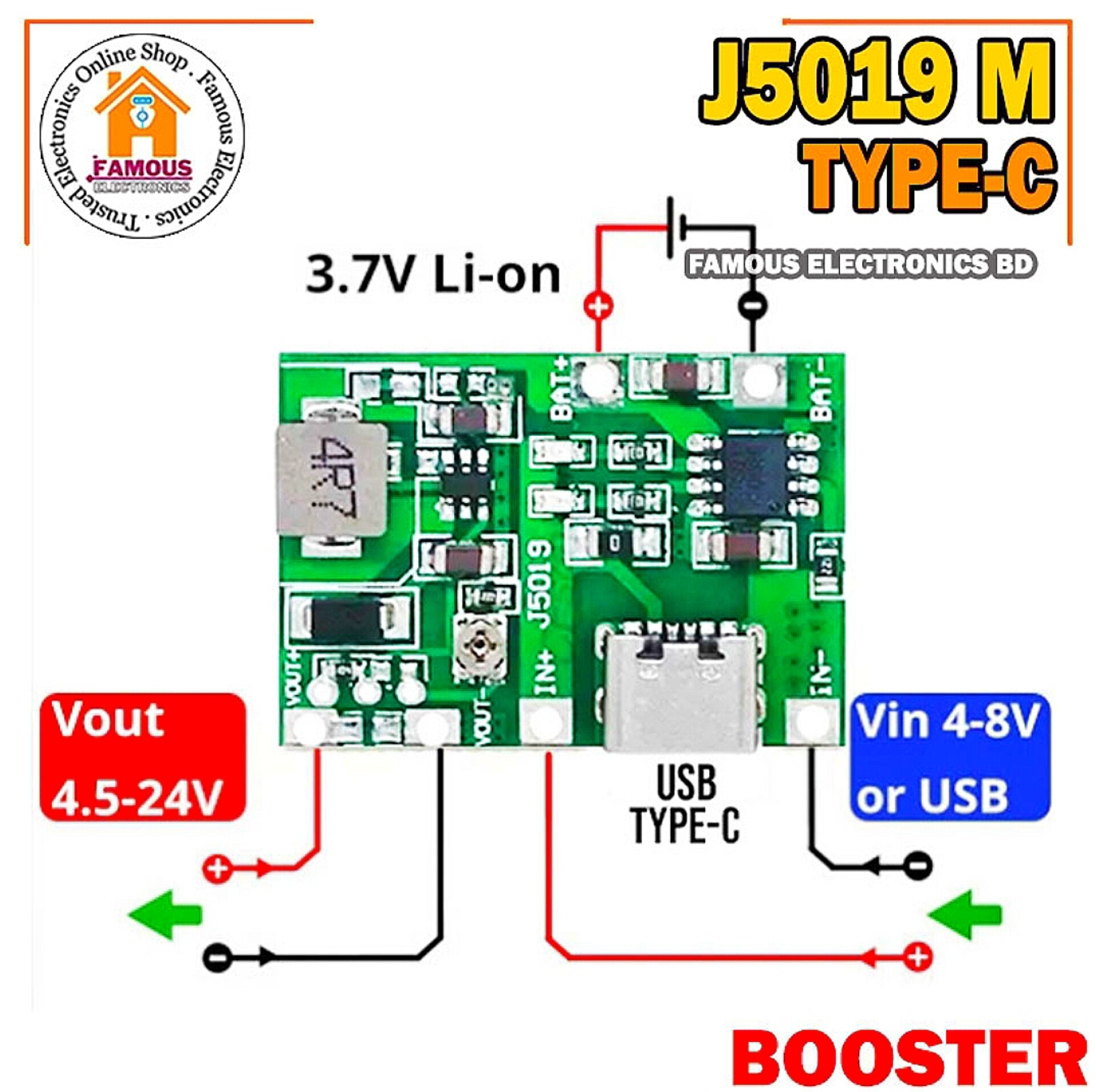

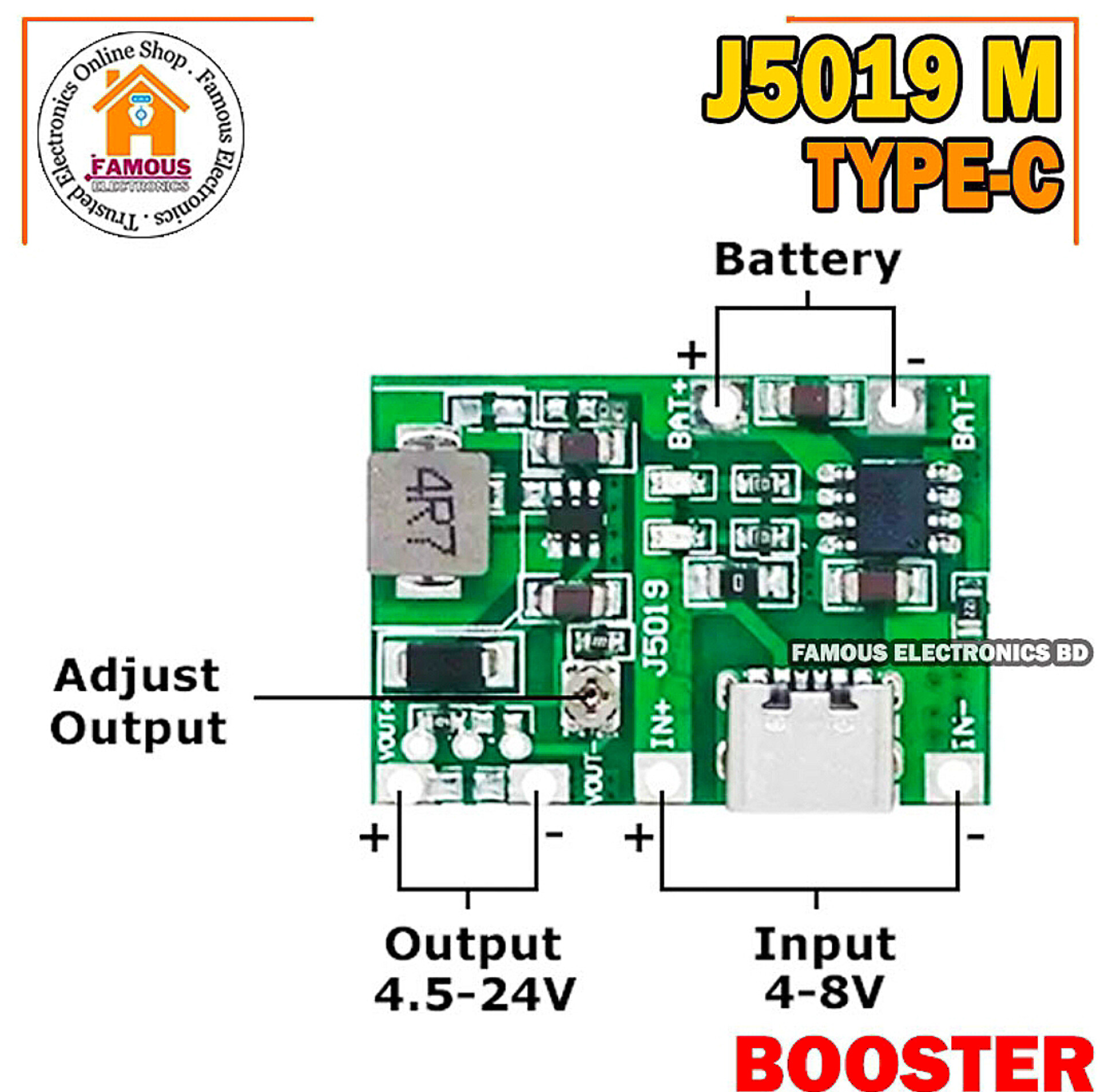

Lithium Li-ion 18650 3.7 Volts 4.2 Volts Battery Charger Board with DC-DC Step Up Boost Module J5019 module is a small single cell lithium battery charging module which also includes a 1 Ampere step-up (boost) converter for powering a large range of applications. The module will charge most types of single cell (3.7 V) LiPo batteries from either 4 to 8 Volts power supply input, or from a standard 5 Volts USB port/adapter. A battery charge and standby LED is also included for visual indication. Besides battery charging capabilities this module also includes an adjustable boost converter which is capable of stepping up the attached battery voltage from 4.5 to 24 Volts with a maximum supply current of 1 Ampere.

Input Voltage (USB) : 5 Volts

Input Voltage (IN) : 4 - 8 Volts

Battery Type : LiPo 3.7 Volts

Default Charging Current : 1000 mA

Output Voltage : 4.5 - 24 Volts

Max Output Current : 1 Ampere

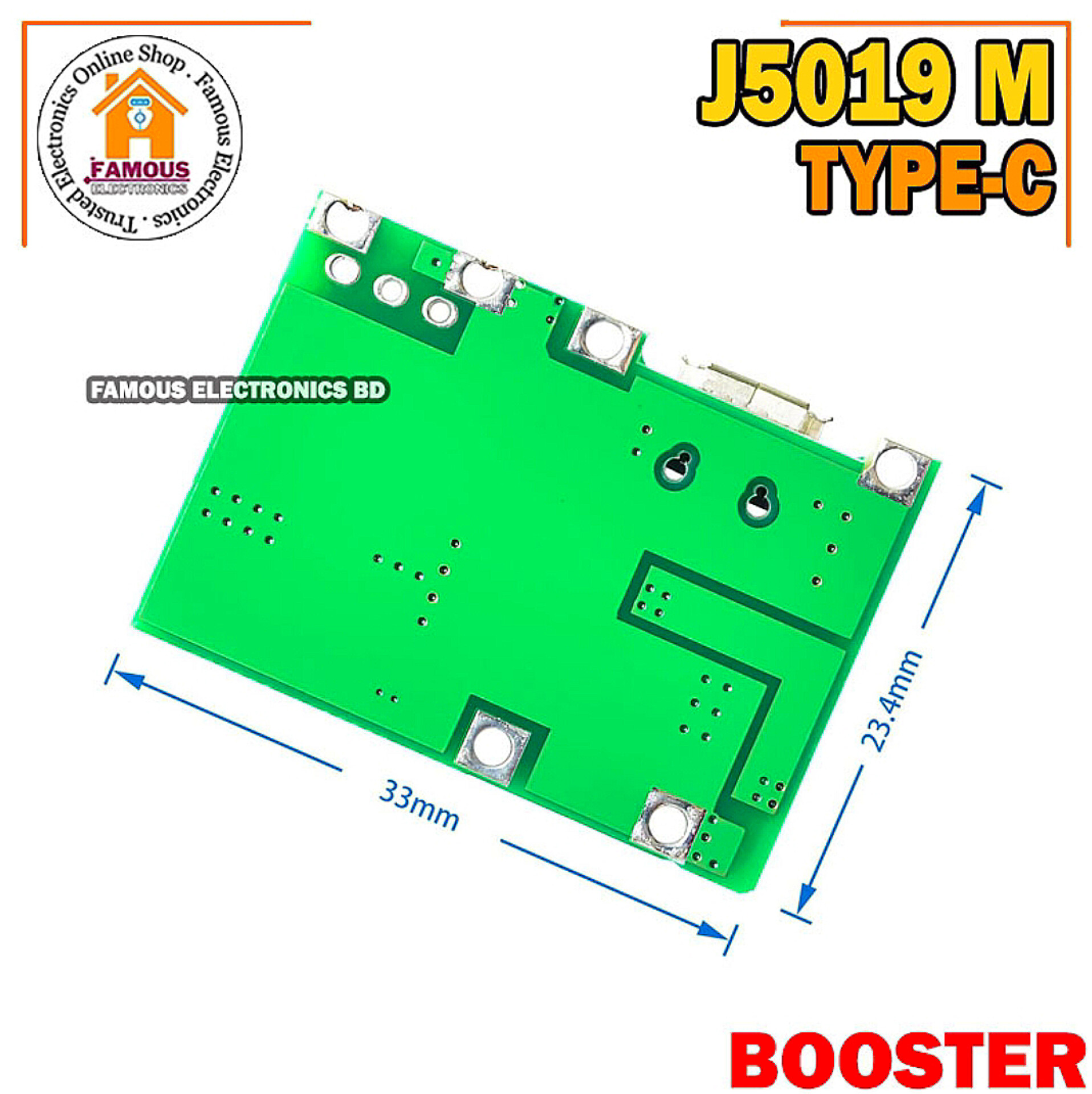

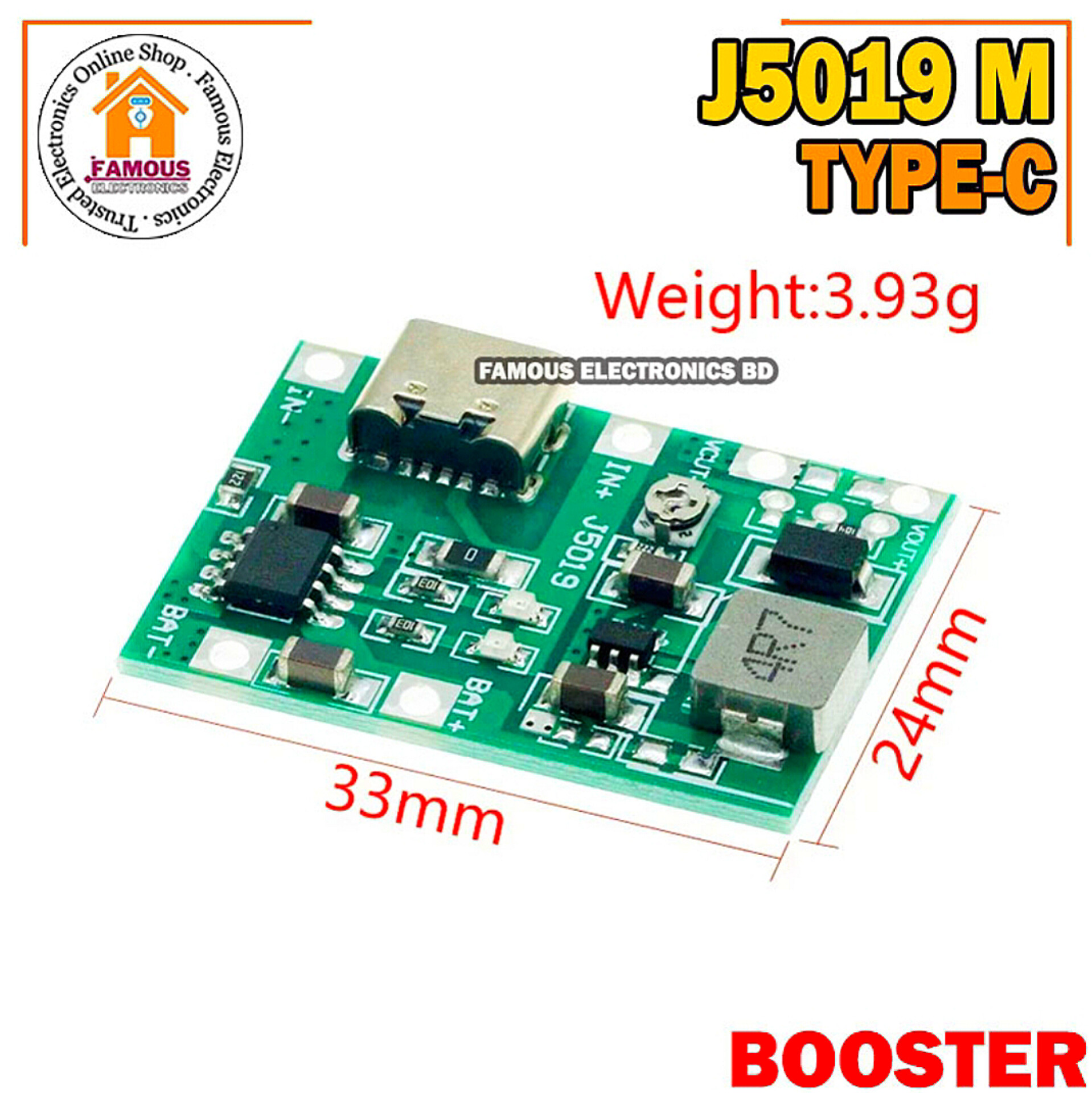

Dimensions : 33 x 24mm

Weight : 6 G

Supplier: FAMOUS ELECTRONICS BD

J5019 TYPE-C Li-Ion 3.7/4.2 Volt Battery Charger Board + DC-DC Step Up And Down Boost Module

65 BDT178 BDTSave 113 BDT

Total sold : 98

Lithium Li-ion 18650 3.7 Volts 4.2 Volts Battery Charger Board with DC-DC Step Up Boost Module J5019 module is a small single cell lithium battery charging module which also includes a 1 Ampere step-up (boost) converter for powering a large range of applications. The module will charge most types of single cell (3.7 V) LiPo batteries from either 4 to 8 Volts power supply input, or from a standard 5 Volts USB port/adapter. A battery charge and standby LED is also included for visual indication. Besides battery charging capabilities this module also includes an adjustable boost converter which is capable of stepping up the attached battery voltage from 4.5 to 24 Volts with a maximum supply current of 1 Ampere.

Input Voltage (USB) : 5 Volts

Input Voltage (IN) : 4 - 8 Volts

Battery Type : LiPo 3.7 Volts

Default Charging Current : 1000 mA

Output Voltage : 4.5 - 24 Volts

Max Output Current : 1 Ampere

Dimensions : 33 x 24mm

Weight : 6 G

Supplier: FAMOUS ELECTRONICS BD
