•2S 20A 7.4V 8.4V 18650 Lithium battery protection board/BMS board Standard/Balance NOTE: after batteries connected to BMS please connect charging voltage for short time to the BMS to activate it.
•Applicable scope: Suitable for lithium batteries with nominal voltage of 3.7V and full voltage of 4.2V (including 18650, 26650, polymer lithium batteries, without limitation on the dimensions)

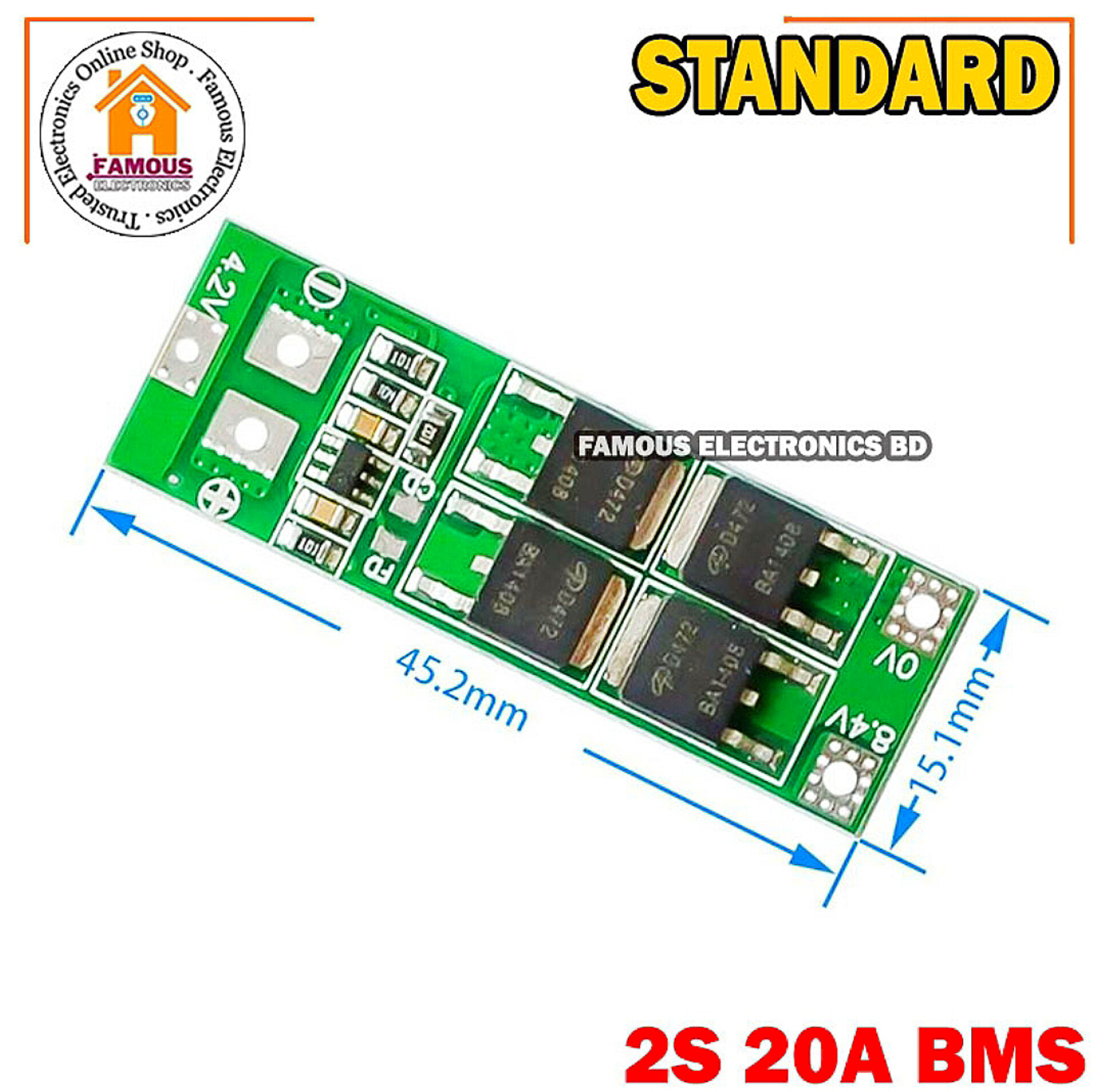

•Product Size: 45*15*3.4mm (Standard), 48*20*3.4mm (Balancing)
•Charging voltage: 8.4V - 9.0V
•Continuous discharge current (upper limit): 20A (If the cooling environment is not good, reduce the load current use)
•Continuous charge current (upper limit): 10A
•Standard Edition: Suitable for starting drills with currents up to 25A below 50W, or resistive loads below 168W.
•Balanced version: Suitable for starting currents below 25A and below 50W power drills, or resistive loads below 168W, with balanced charging function. Note 1: The successful start of power drill requires two 10C-20C power batteries, or four 5C-10C power batteries (ordinary 18650 can not start drill! ! !); 0V and 8.4V cable, use 2 square mm Above copper wire (cannot use nickel plate!!!)

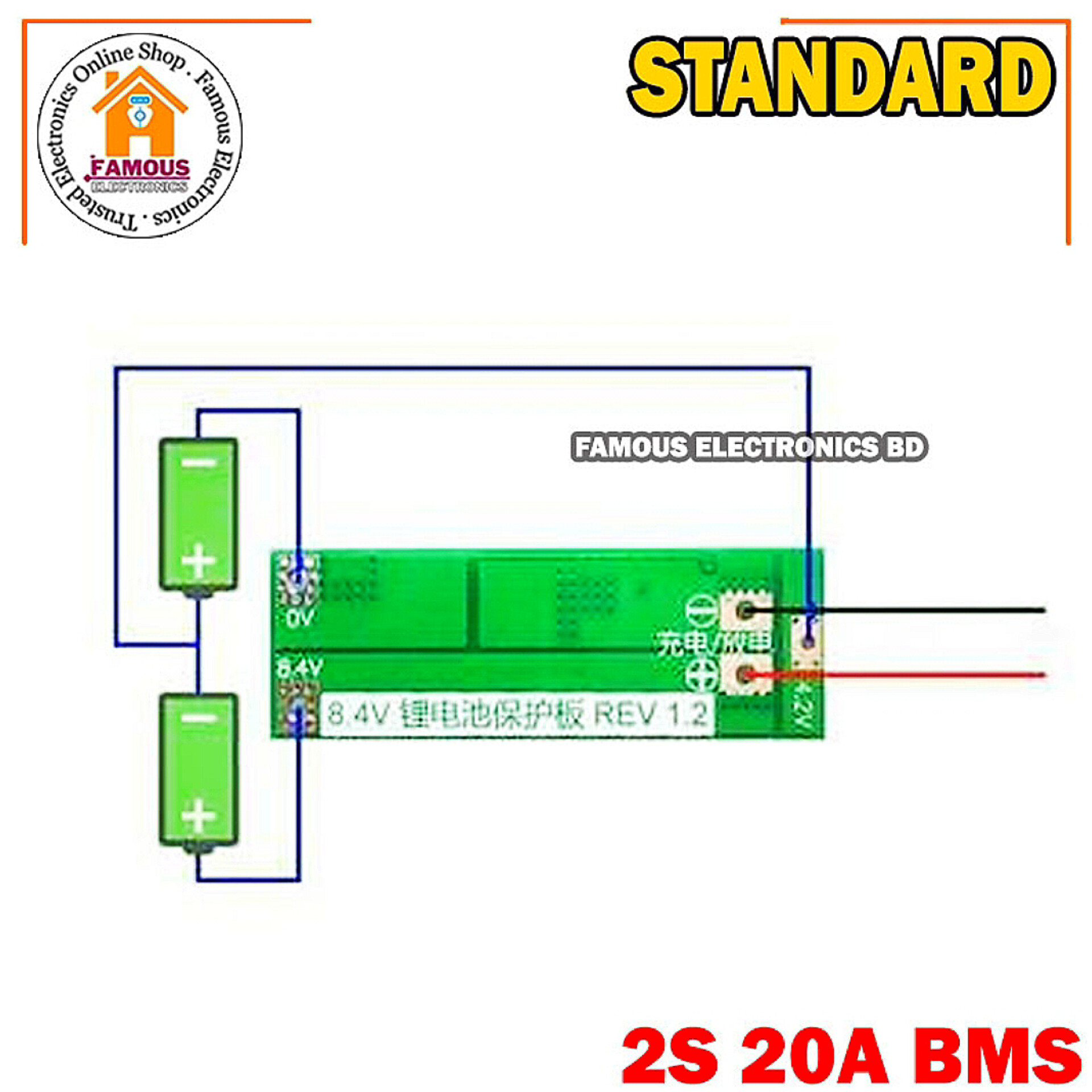

•Note 2: Connect 0V, 4.2V, 8.4V according to the diagram strictly. When connecting the battery for the first time, it needs to be charged before output.
•Applicable scope: Suitable for lithium batteries with nominal voltage of 3.7V and full voltage of 4.2V (including 18650, 26650, polymer lithium batteries, without limitation on the dimensions)
•Product Size: 45*15*3.4mm (Standard), 48*20*3.4mm (Balancing)
•Charging voltage: 8.4V - 9.0V
•Continuous discharge current (upper limit): 20A (If the cooling environment is not good, reduce the load current use)
•Continuous charge current (upper limit): 10A
•Standard Edition: Suitable for starting drills with currents up to 25A below 50W, or resistive loads below 168W.
•Balanced version: Suitable for starting currents below 25A and below 50W power drills, or resistive loads below 168W, with balanced charging function. Note 1: The successful start of power drill requires two 10C-20C power batteries, or four 5C-10C power batteries (ordinary 18650 can not start drill! ! !); 0V and 8.4V cable, use 2 square mm Above copper wire (cannot use nickel plate!!!)
•Note 2: Connect 0V, 4.2V, 8.4V according to the diagram strictly. When connecting the battery for the first time, it needs to be charged before output.

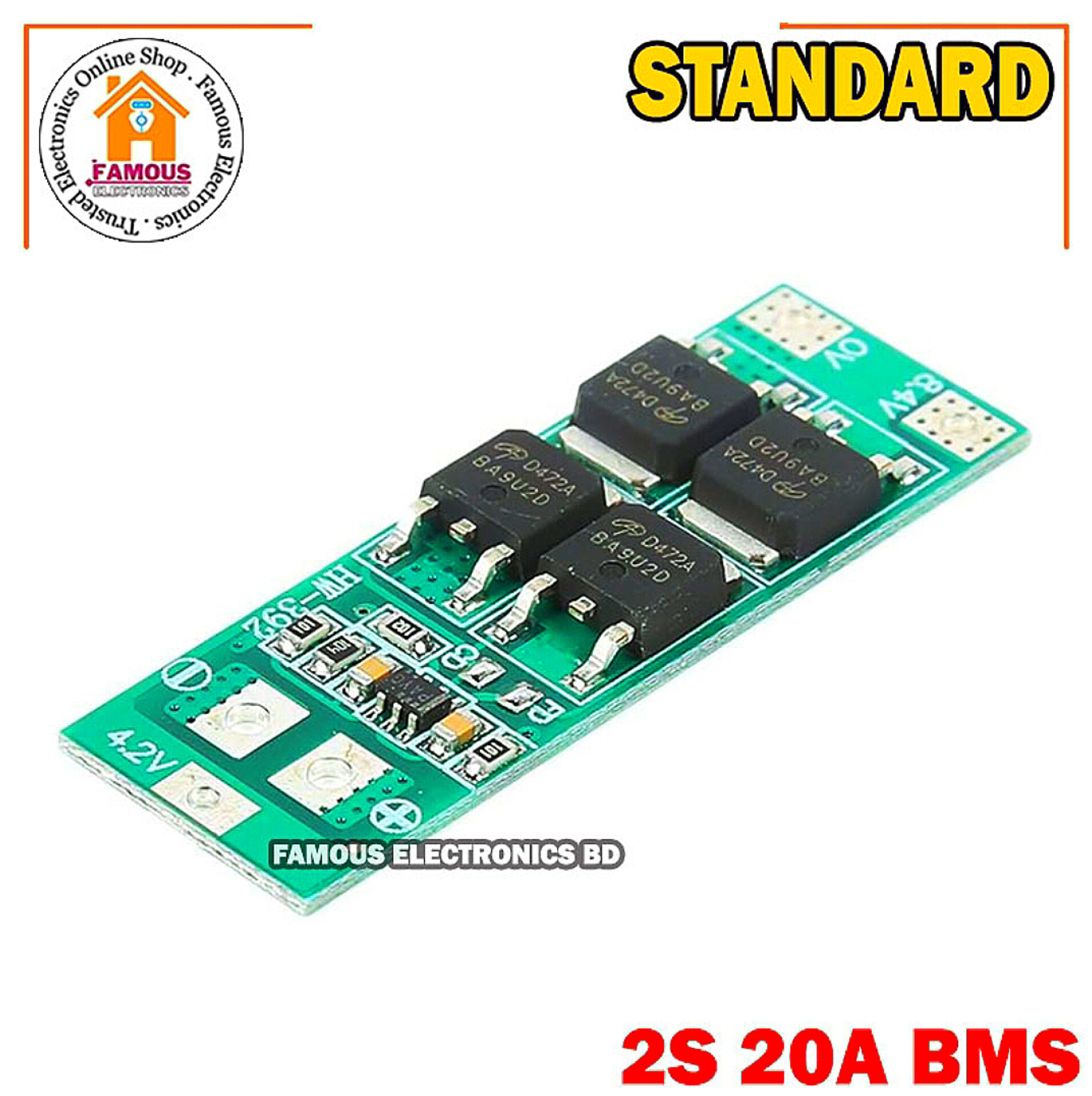

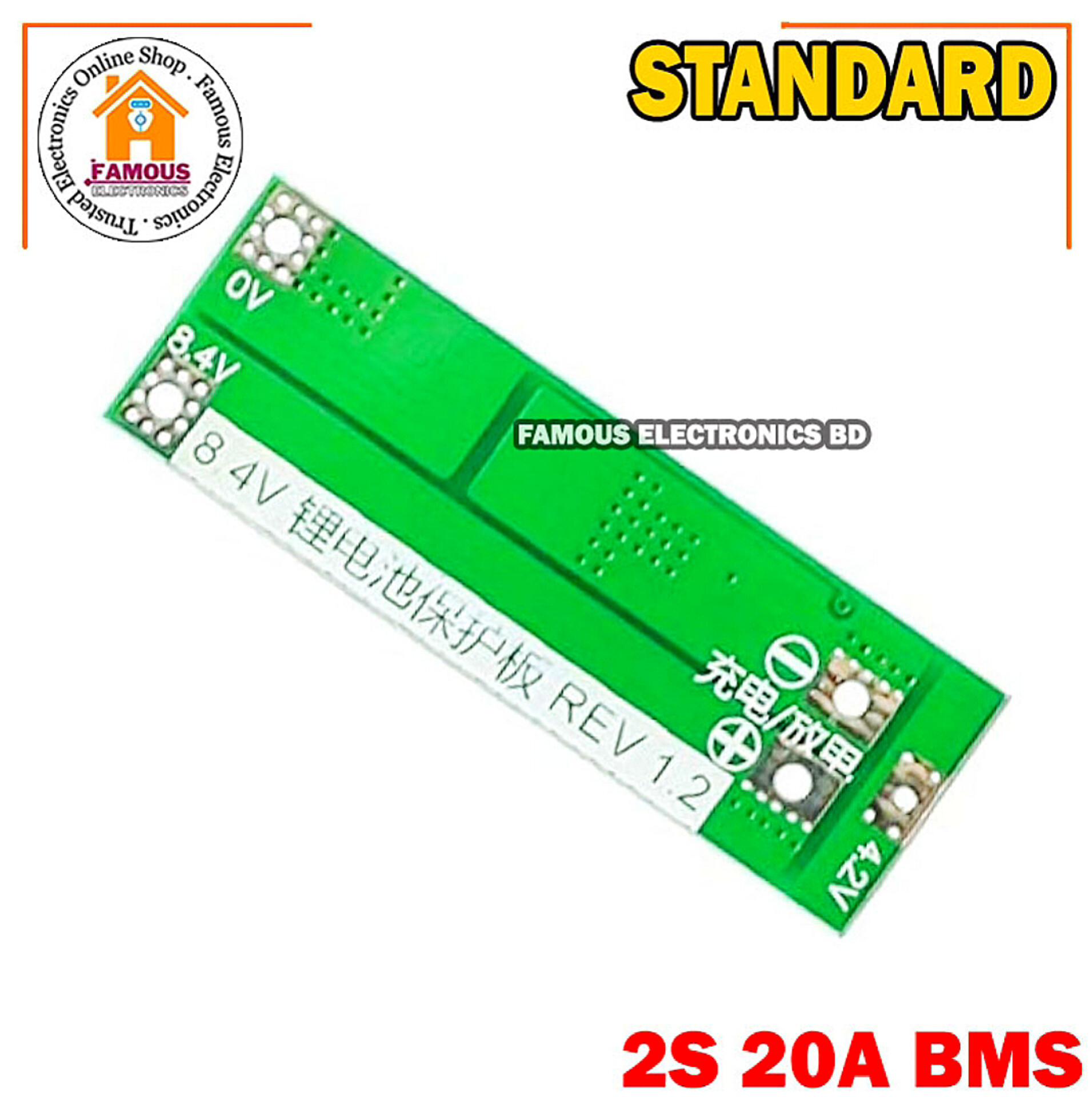

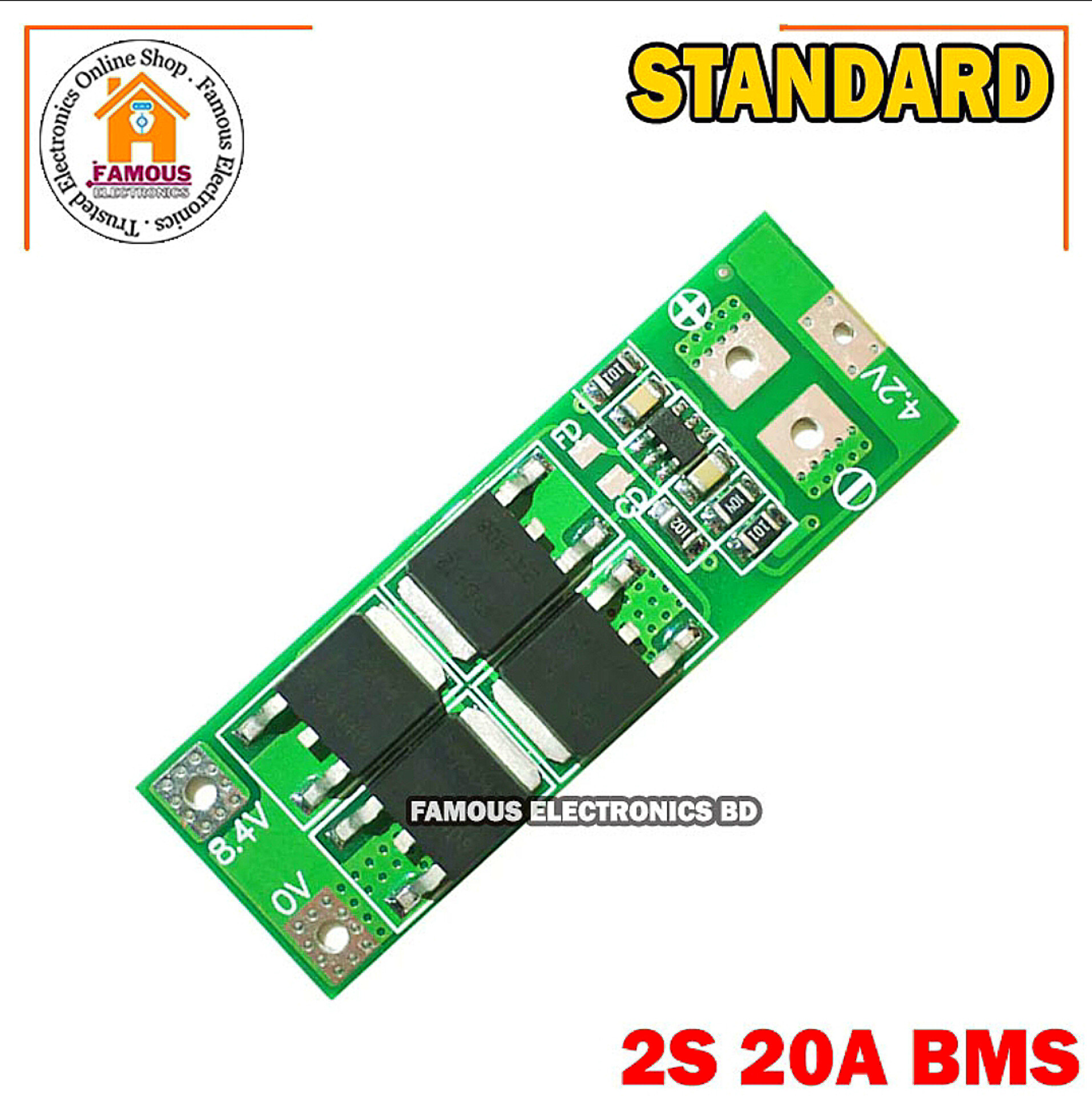

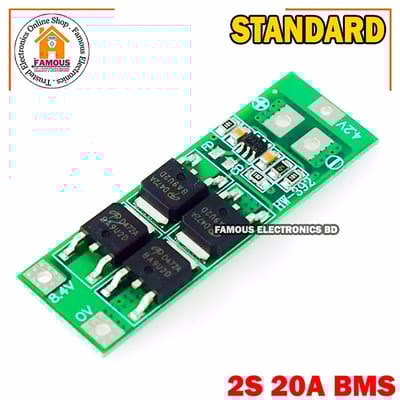

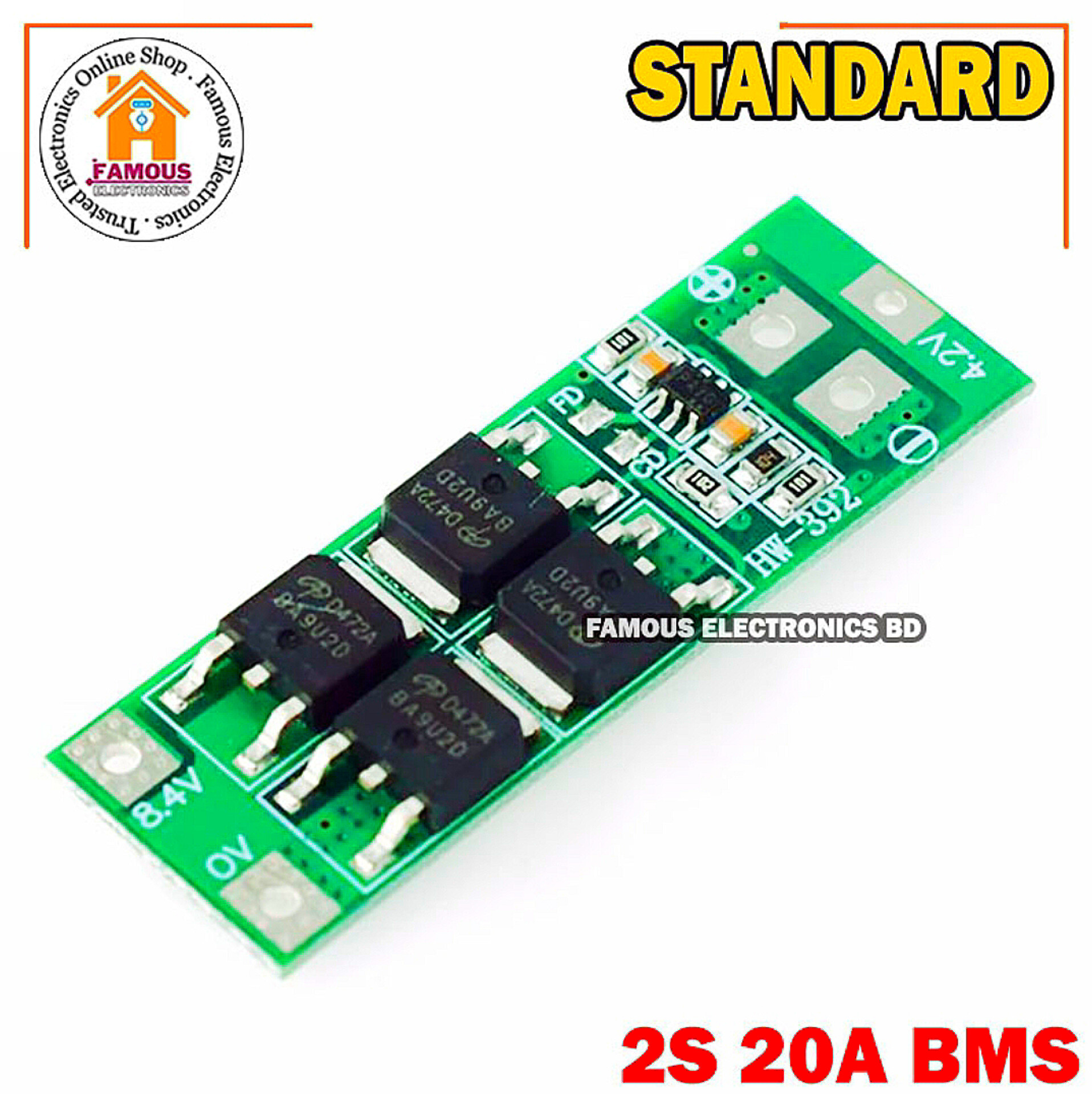

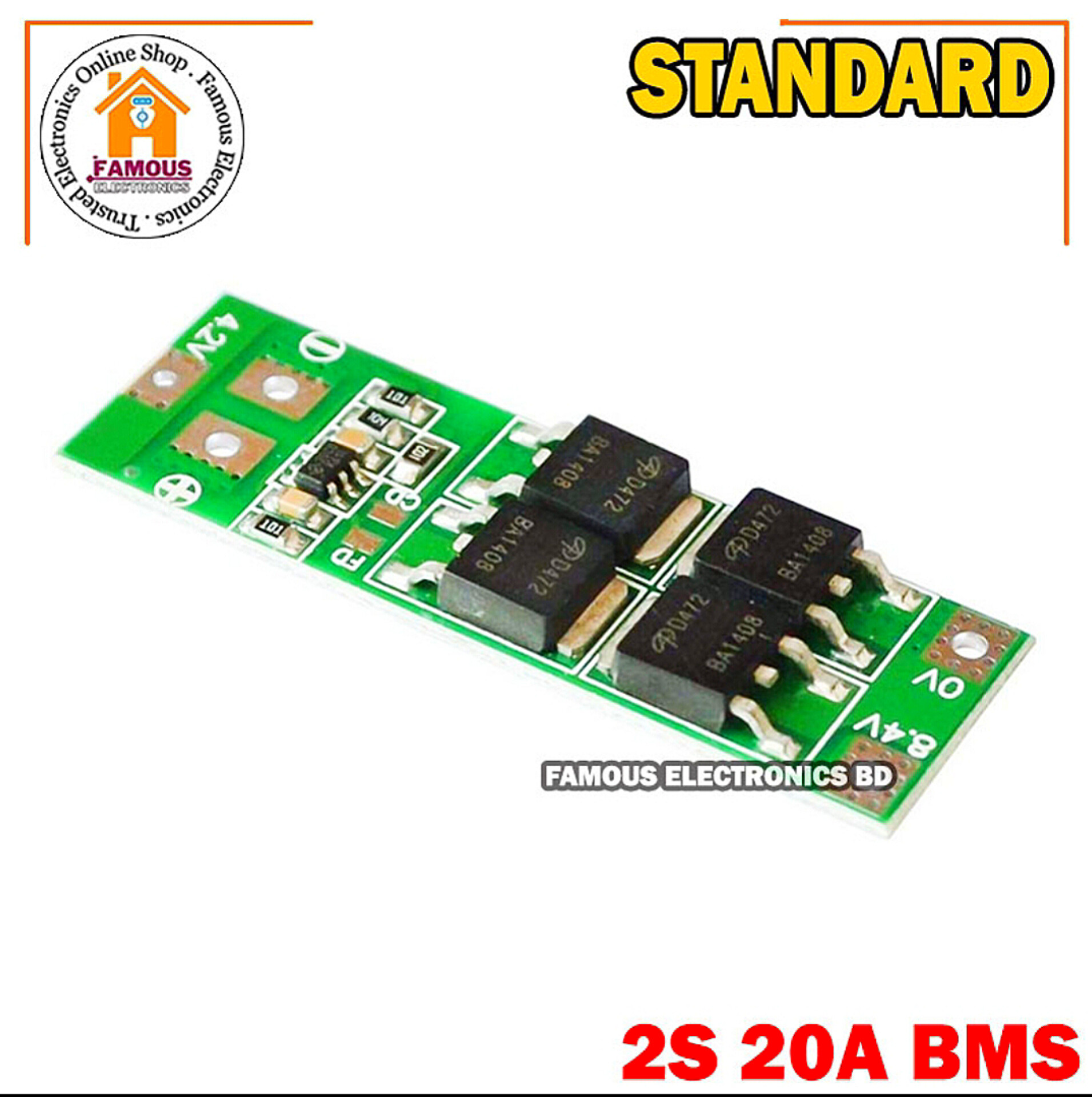

2S BMS 20A Circuit Module 8.4v Li-Ion Battery Protection Board-Standard
105 BDT245 BDTSave 140 BDT
Total sold : 12
•2S 20A 7.4V 8.4V 18650 Lithium battery protection board/BMS board Standard/Balance NOTE: after batteries connected to BMS please connect charging voltage for short time to the BMS to activate it.
•Applicable scope: Suitable for lithium batteries with nominal voltage of 3.7V and full voltage of 4.2V (including 18650, 26650, polymer lithium batteries, without limitation on the dimensions)
•Product Size: 45*15*3.4mm (Standard), 48*20*3.4mm (Balancing)
•Charging voltage: 8.4V - 9.0V
•Continuous discharge current (upper limit): 20A (If the cooling environment is not good, reduce the load current use)
•Continuous charge current (upper limit): 10A
•Standard Edition: Suitable for starting drills with currents up to 25A below 50W, or resistive loads below 168W.
•Balanced version: Suitable for starting currents below 25A and below 50W power drills, or resistive loads below 168W, with balanced charging function. Note 1: The successful start of power drill requires two 10C-20C power batteries, or four 5C-10C power batteries (ordinary 18650 can not start drill! ! !); 0V and 8.4V cable, use 2 square mm Above copper wire (cannot use nickel plate!!!)
•Note 2: Connect 0V, 4.2V, 8.4V according to the diagram strictly. When connecting the battery for the first time, it needs to be charged before output.
•Applicable scope: Suitable for lithium batteries with nominal voltage of 3.7V and full voltage of 4.2V (including 18650, 26650, polymer lithium batteries, without limitation on the dimensions)
•Product Size: 45*15*3.4mm (Standard), 48*20*3.4mm (Balancing)
•Charging voltage: 8.4V - 9.0V
•Continuous discharge current (upper limit): 20A (If the cooling environment is not good, reduce the load current use)
•Continuous charge current (upper limit): 10A
•Standard Edition: Suitable for starting drills with currents up to 25A below 50W, or resistive loads below 168W.
•Balanced version: Suitable for starting currents below 25A and below 50W power drills, or resistive loads below 168W, with balanced charging function. Note 1: The successful start of power drill requires two 10C-20C power batteries, or four 5C-10C power batteries (ordinary 18650 can not start drill! ! !); 0V and 8.4V cable, use 2 square mm Above copper wire (cannot use nickel plate!!!)
•Note 2: Connect 0V, 4.2V, 8.4V according to the diagram strictly. When connecting the battery for the first time, it needs to be charged before output.
