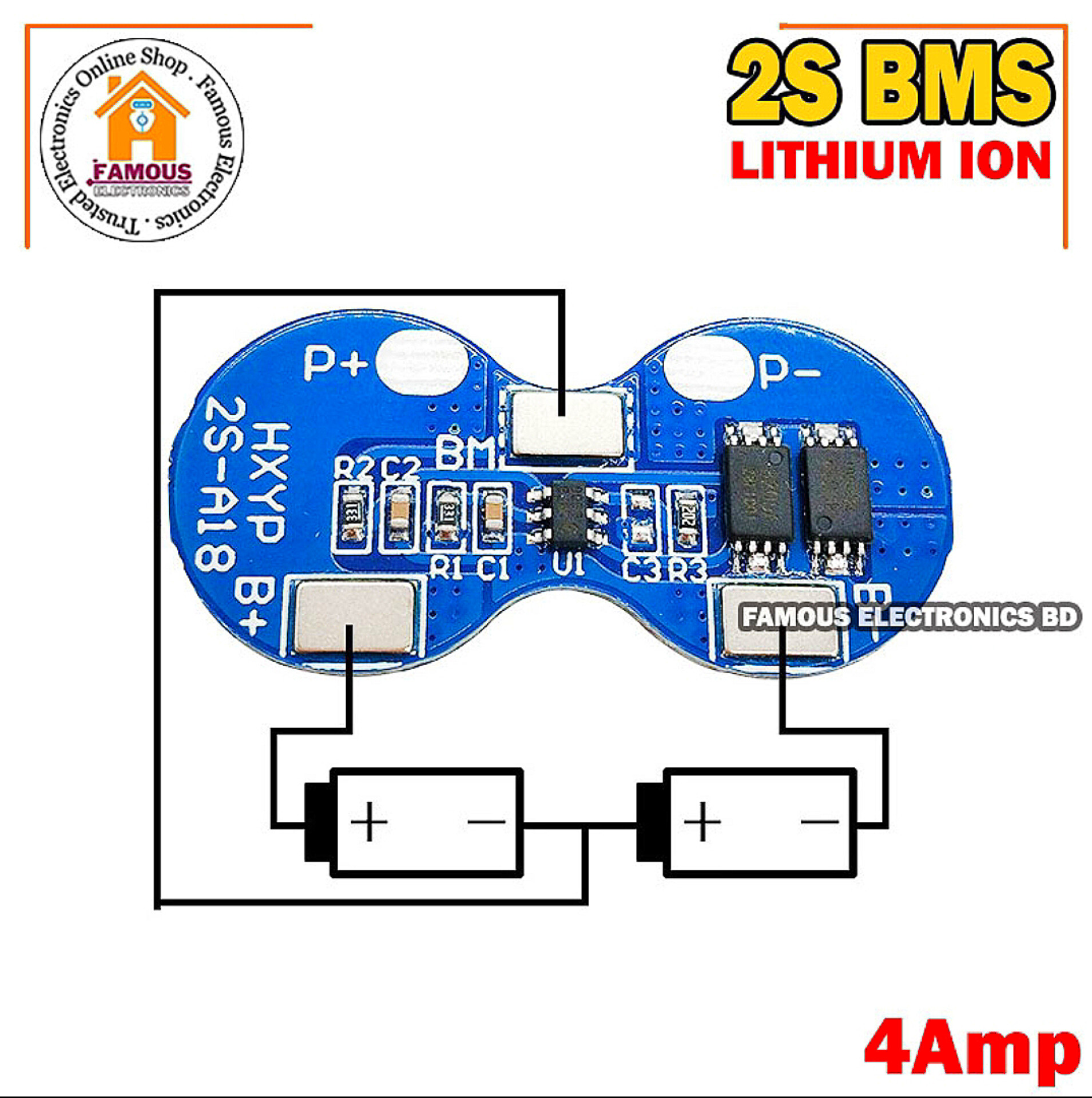

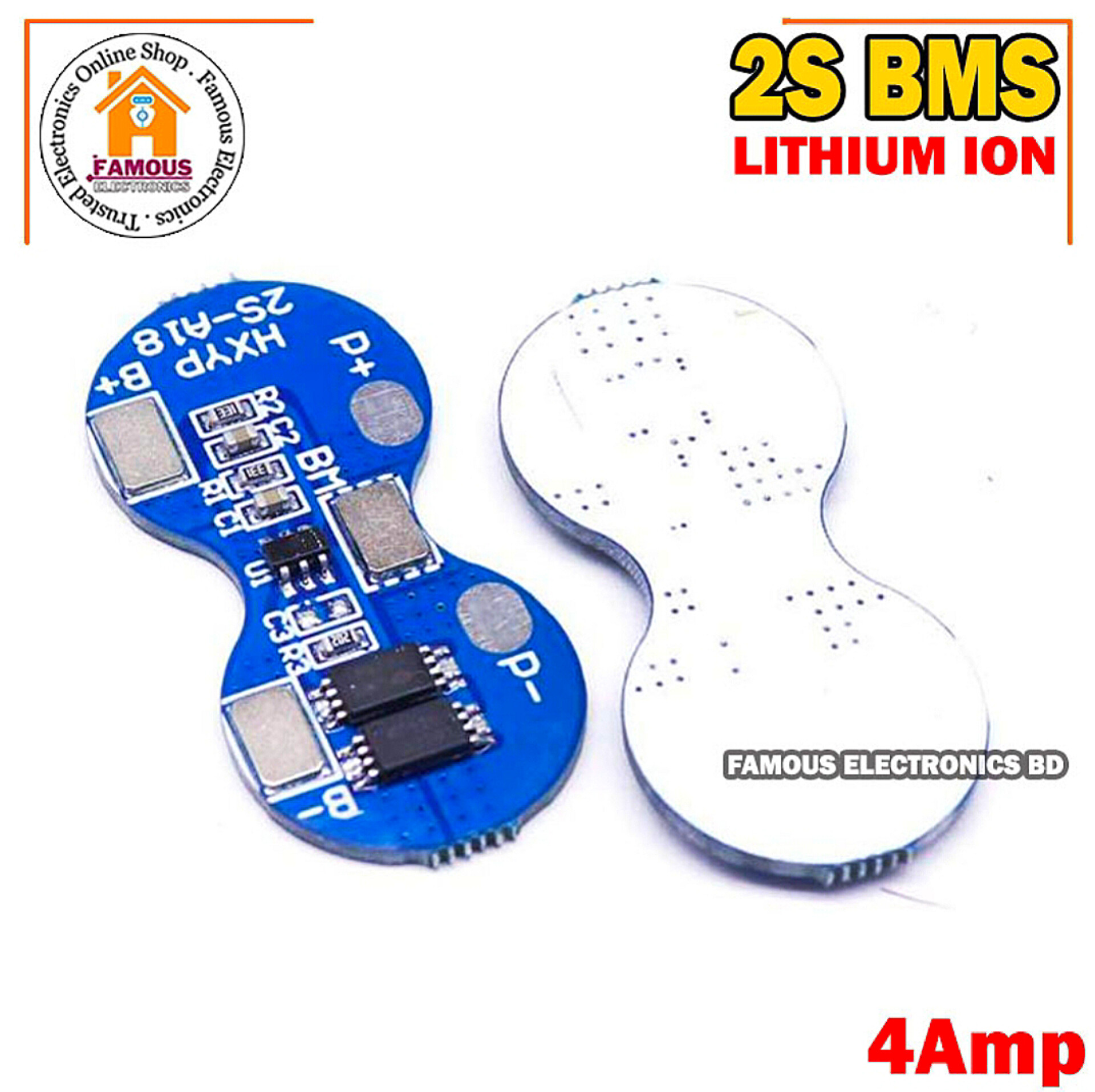

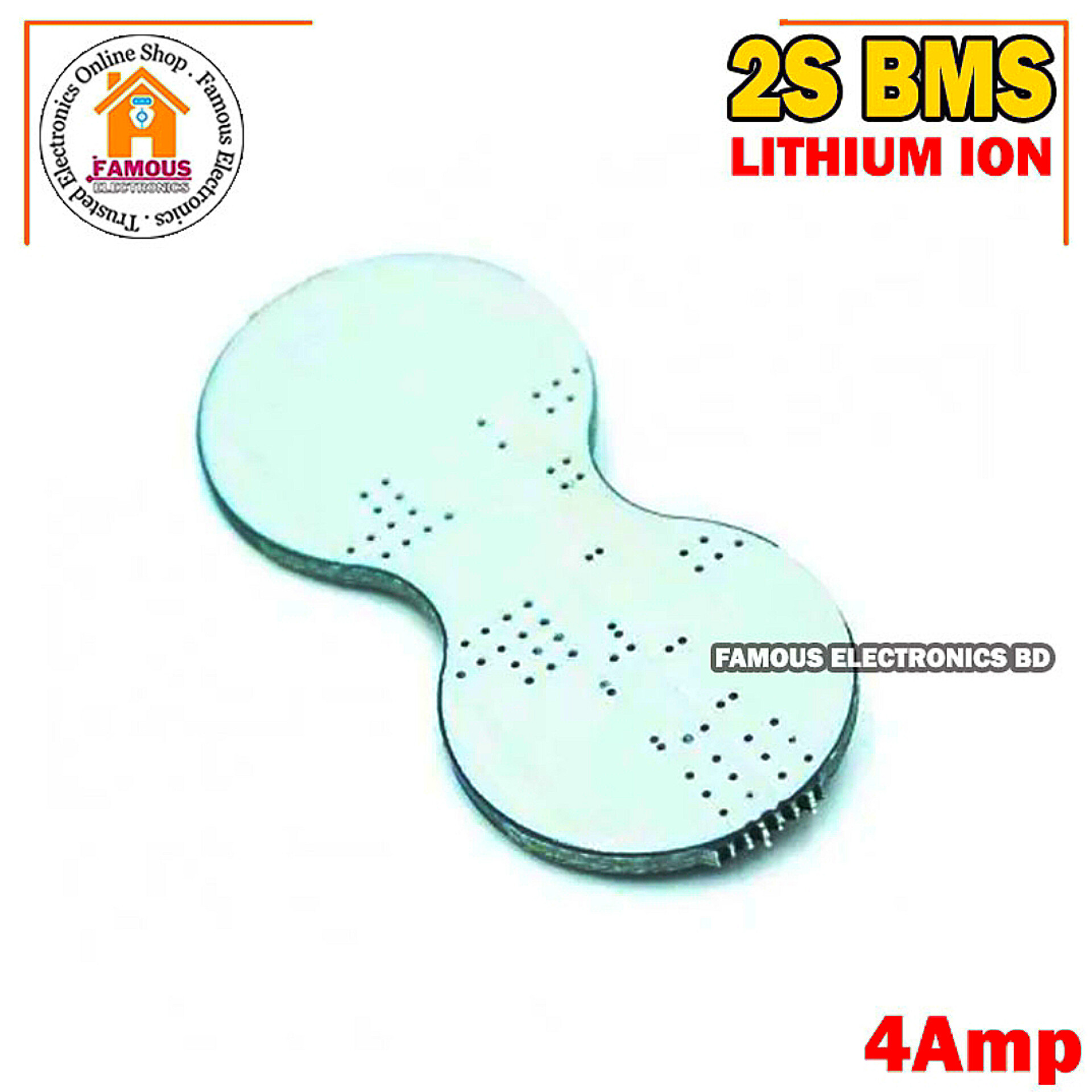

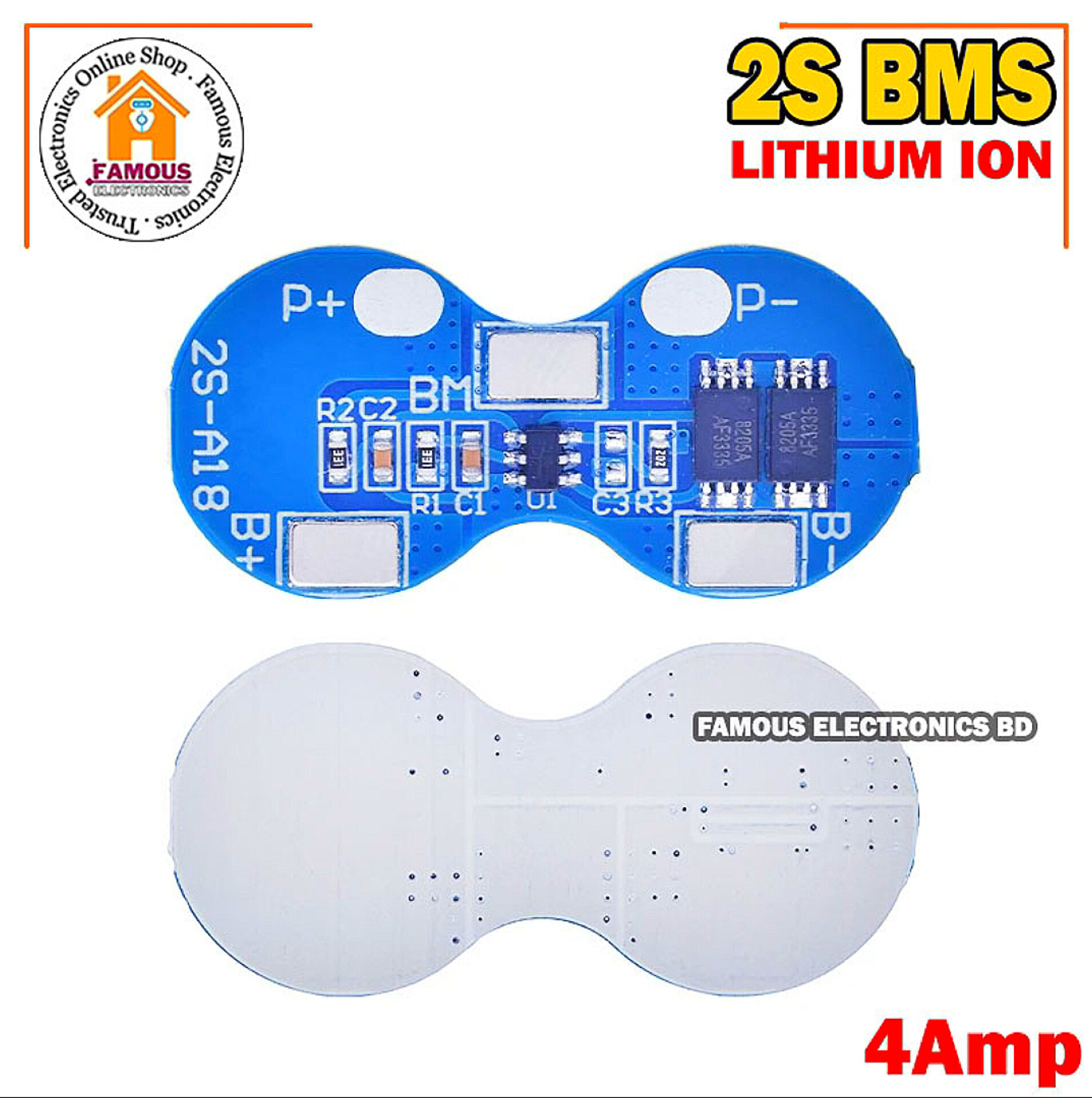

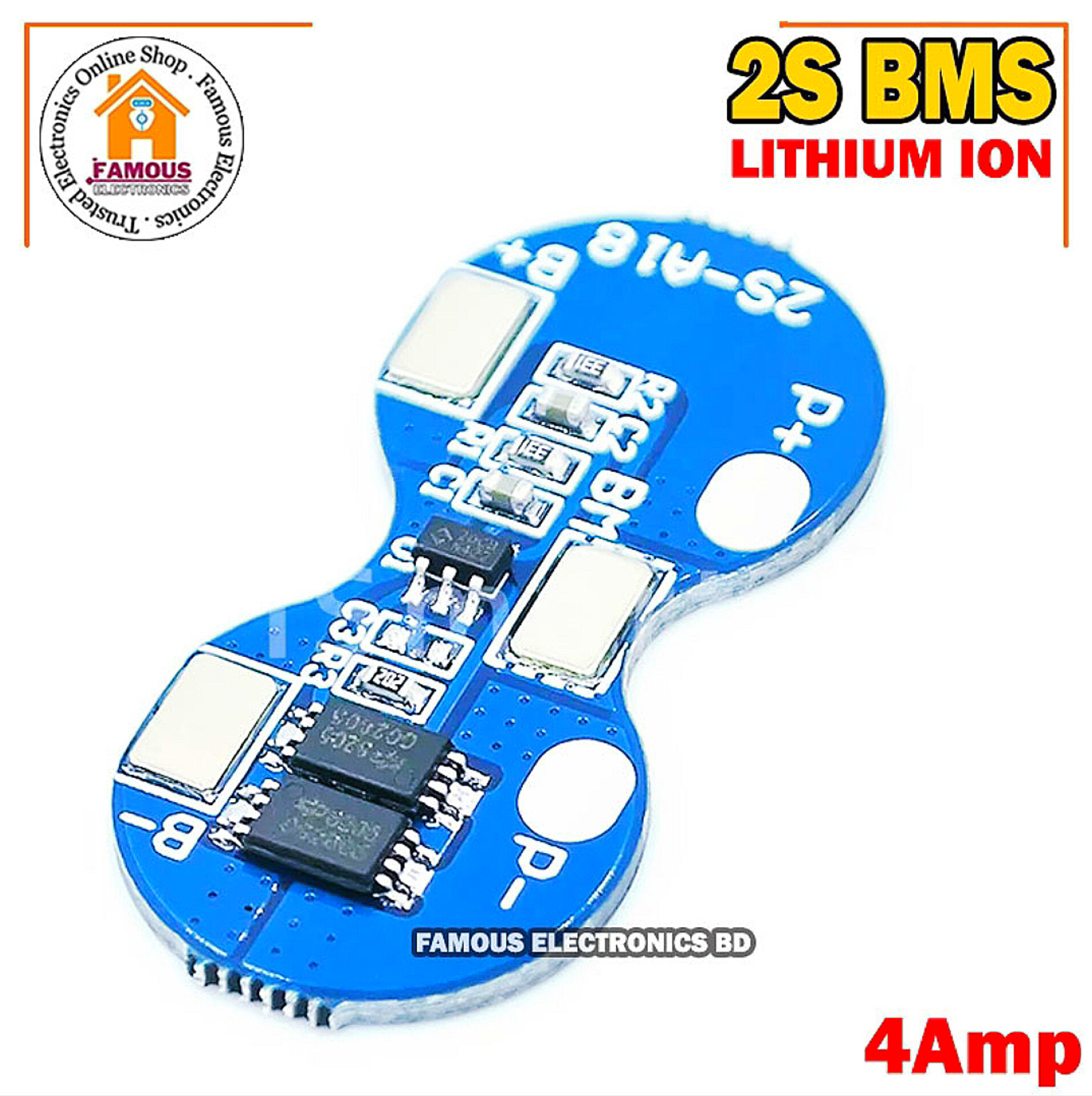

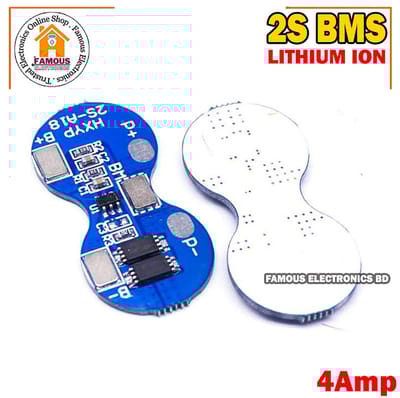

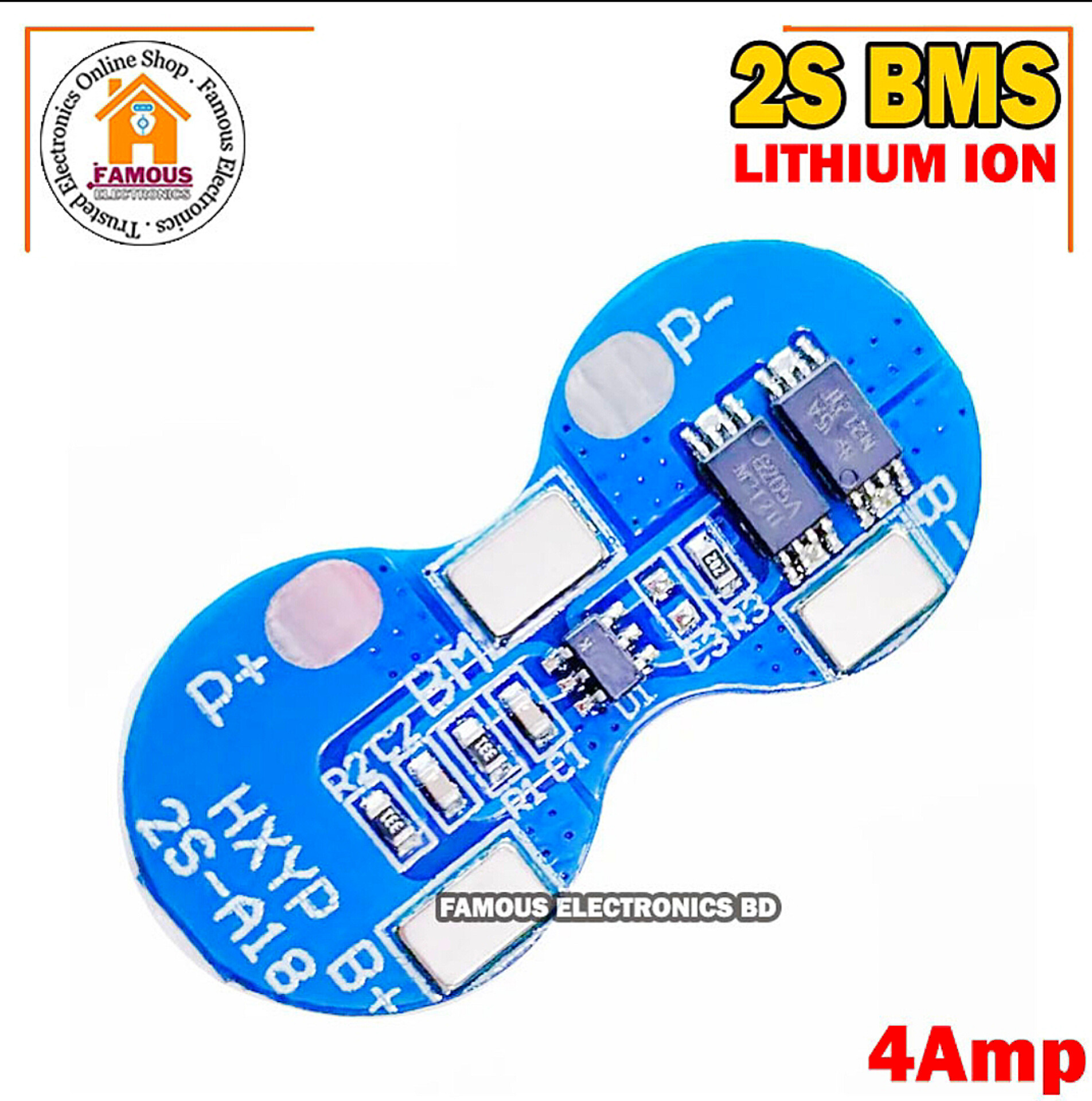

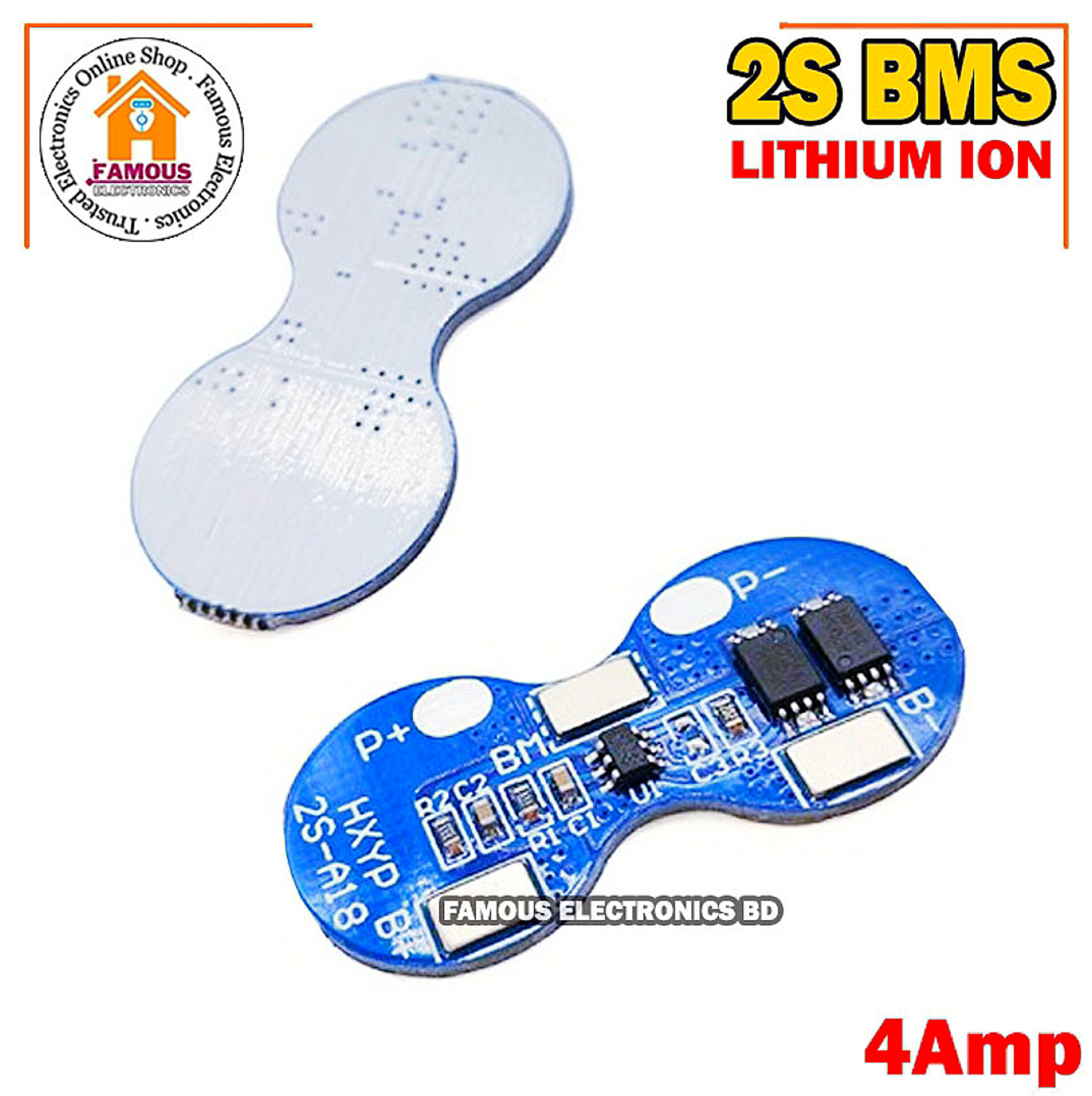

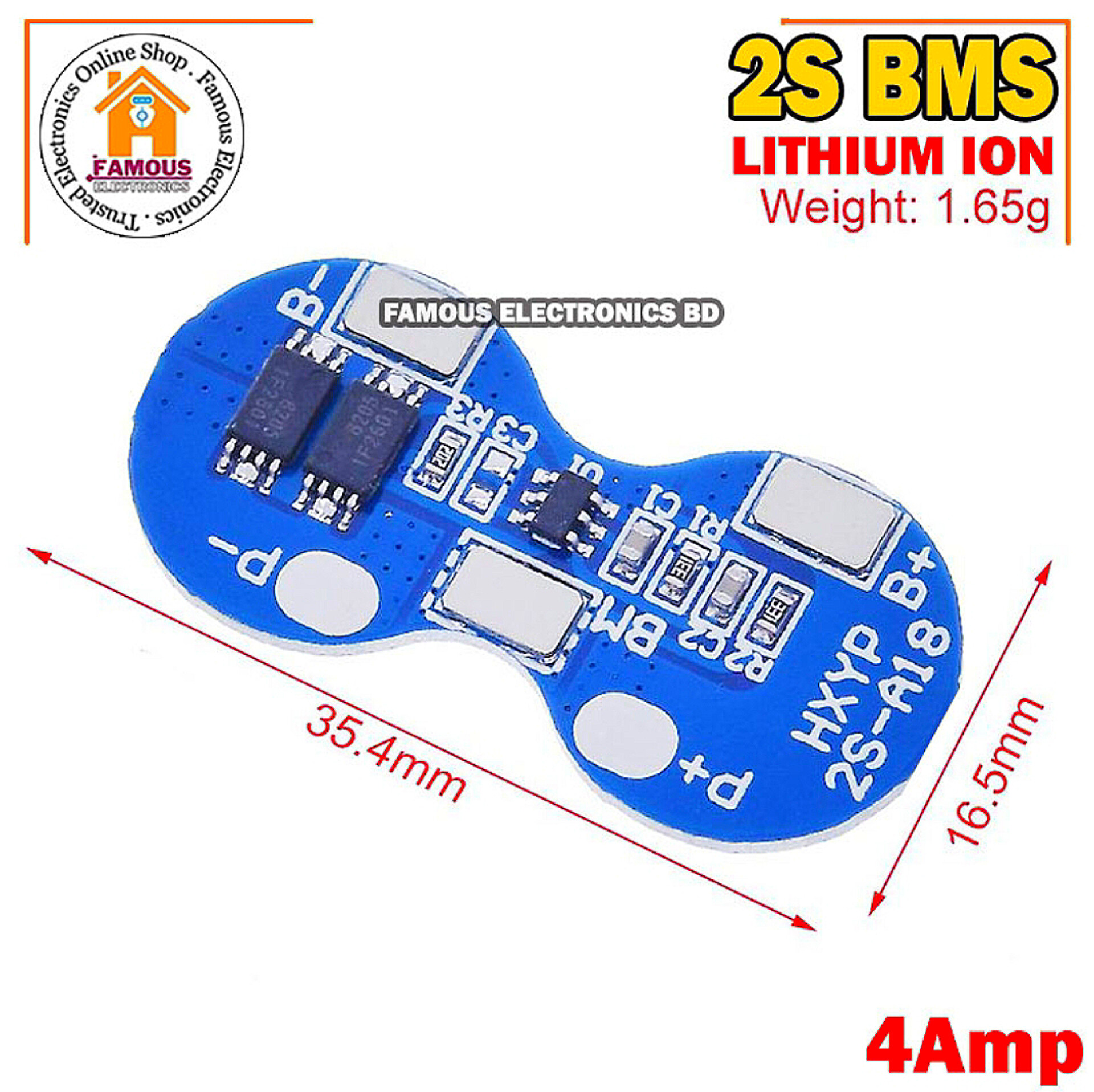

BMS Charger Protection Board for Li-ion 18650 HXYP-2S-A18 2S 4A 7.4V

Charging voltage: DC 9V CC/CV (max: 12V)Current Single current consumption (consumption) ≤ 6uA Maximum sustained discharge current: 4AOverload protection Voltage Overcharge detection voltage: 4.29V Accuracy ≤ ± 0.025V Overcharge detection delay time: 1s Overcharge recovery voltage: 4.05V Accuracy ≤ ± 0.025VOver-discharge protection Over-discharge detection voltage: Accuracy 3V ≤ ± 0.1V Over discharge detection delay time: 128ms Over discharge recovery voltage: 3.2V Accuracy ≤ ± 0.1VTemperature Operating temperature range: -40°C~85°C Storage temperature range: -40°C~125°COvercharge protection, over-discharge protection, short circuit protection, over-current protectionProduct size: about 3.50×1.70cmSupplier: FAMOUS ELECTRONICS BD

Categories

Category List

All products

HandTools

Module

Robotics

Battery

Motor

BatteryPack

Soldering Tools

Amplifier

PowerBank and Accessories

Charger and Adaptor

•
•
•
•
•
•
•
•

1. Charging voltage: DC 9V CC/CV (max: 12V)
2. Current Single current consumption (consumption) ≤ 6uA Maximum sustained discharge current: 4A
3. Overload protection Voltage Overcharge detection voltage: 4.29V Accuracy ≤ ± 0.025V Overcharge detection delay time: 1s Overcharge recovery voltage: 4.05V Accuracy ≤ ± 0.025V
4. Over-discharge protection Over-discharge detection voltage: Accuracy 3V ≤ ± 0.1V Over discharge detection delay time: 128ms Over discharge recovery voltage: 3.2V Accuracy ≤ ± 0.1V
5. Temperature Operating temperature range: -40°C~85°C Storage temperature range: -40°C~125°C
6. Overcharge protection, over-discharge protection, short circuit protection, over-current protection
7. Product size: about 3.50×1.70cm

Supplier: FAMOUS ELECTRONICS BD

BMS Charger Protection Board For Li-Ion 18650 HXYP-2S-A18 2S 4A 7.4V

90 BDT175 BDTSave 85 BDT

Total sold : 4

Add to cartBuy now

1. Charging voltage: DC 9V CC/CV (max: 12V)
2. Current Single current consumption (consumption) ≤ 6uA Maximum sustained discharge current: 4A
3. Overload protection Voltage Overcharge detection voltage: 4.29V Accuracy ≤ ± 0.025V Overcharge detection delay time: 1s Overcharge recovery voltage: 4.05V Accuracy ≤ ± 0.025V
4. Over-discharge protection Over-discharge detection voltage: Accuracy 3V ≤ ± 0.1V Over discharge detection delay time: 128ms Over discharge recovery voltage: 3.2V Accuracy ≤ ± 0.1V
5. Temperature Operating temperature range: -40°C~85°C Storage temperature range: -40°C~125°C
6. Overcharge protection, over-discharge protection, short circuit protection, over-current protection
7. Product size: about 3.50×1.70cm

Supplier: FAMOUS ELECTRONICS BD
