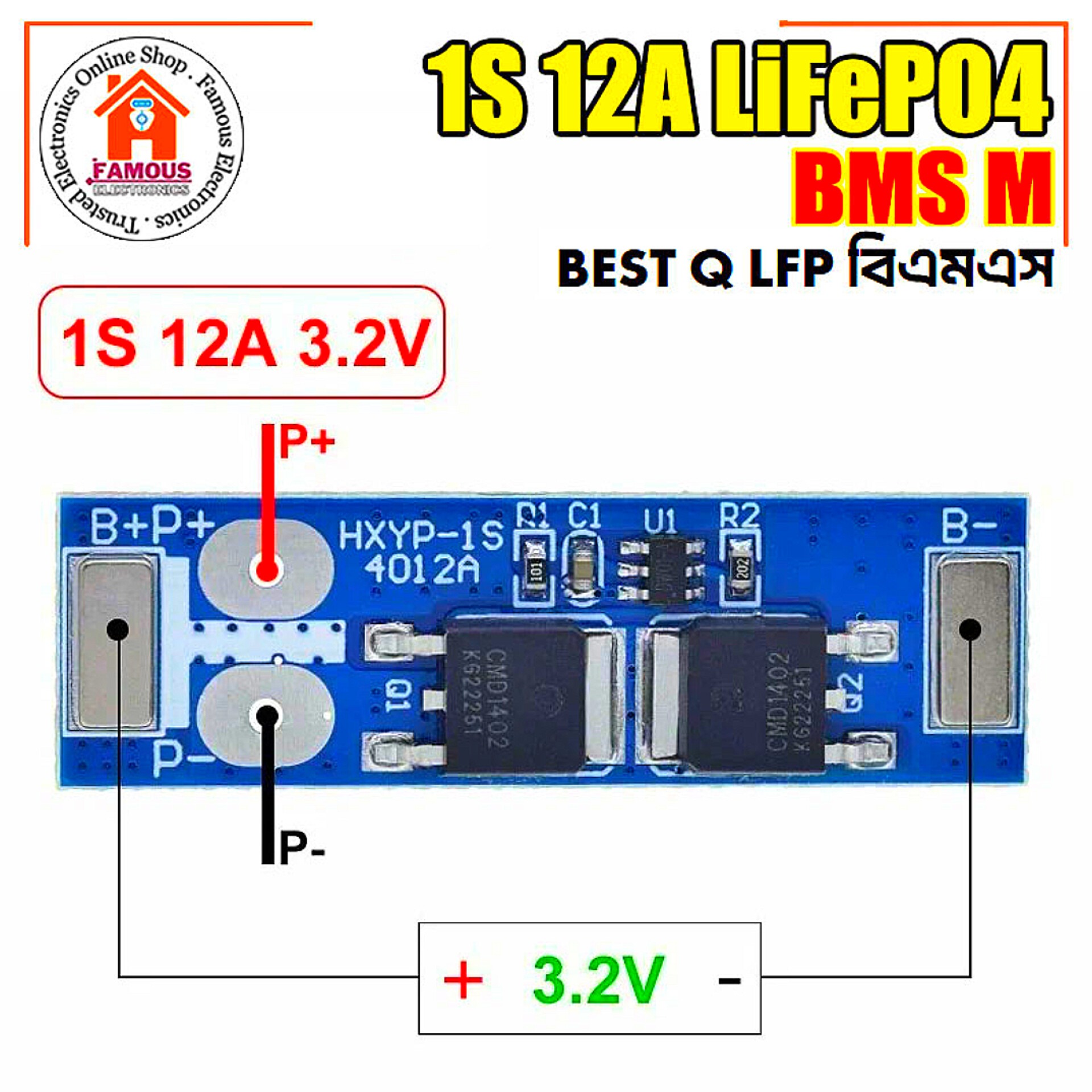

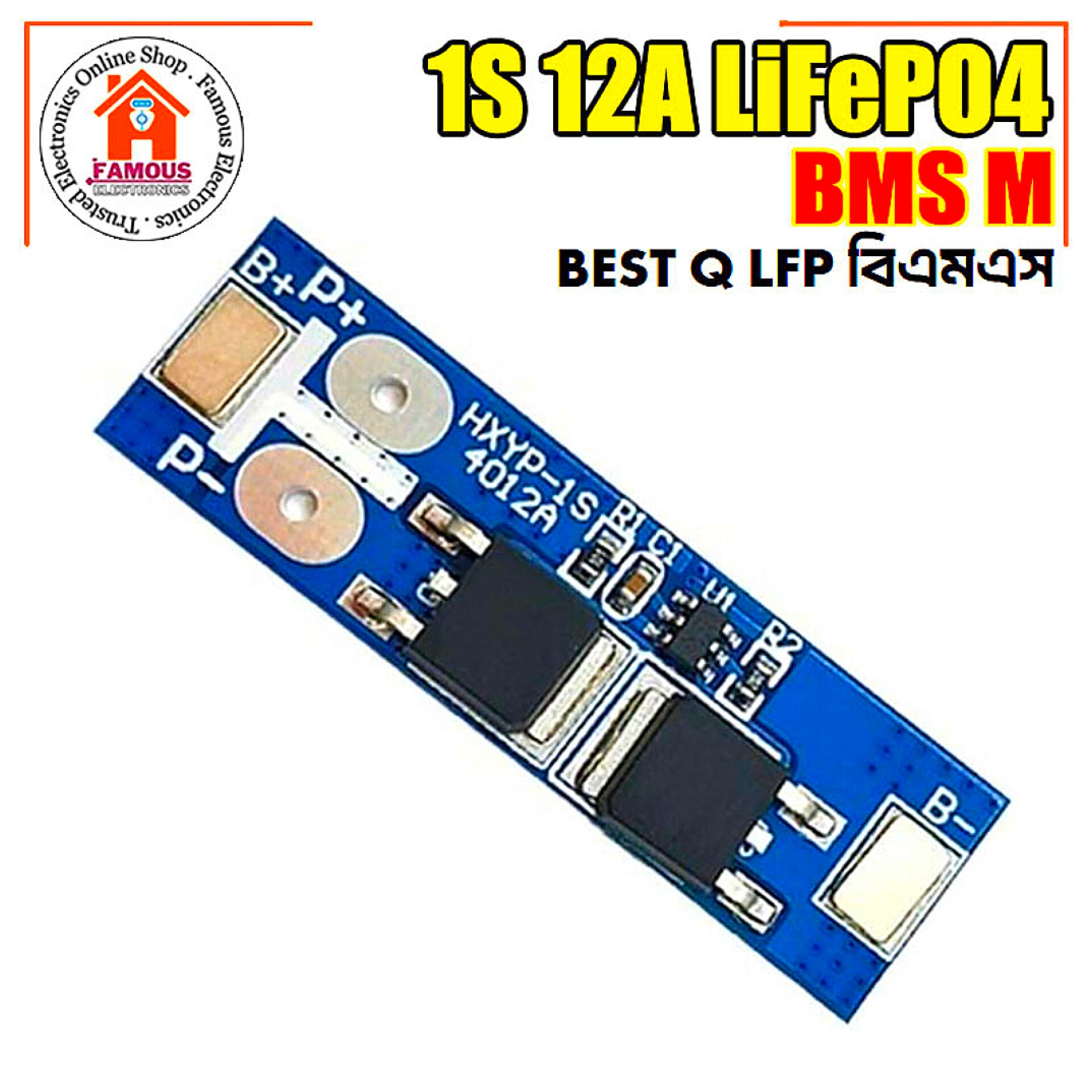

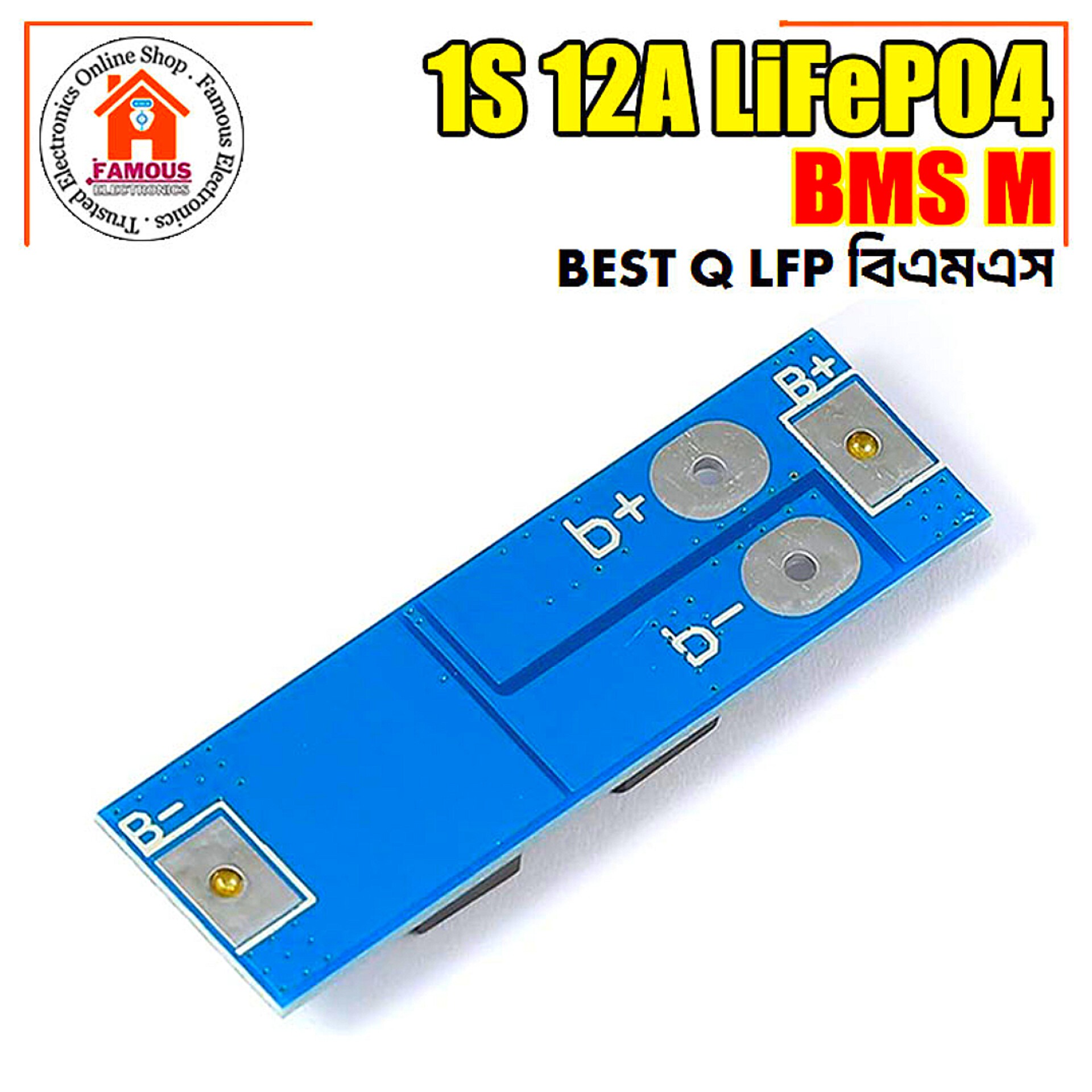

- 1S 12A 3.2V LiFePO4 BMS
বিবরণ
Product Description:
✨ Model Code: HXYP-1S-4012A
⛔ Battery Chemistry: Designed strictly for 3.2V / 3.6V LiFePO4 (LFP) cells (not compatible with standard 3.7V Lithium-ion batteries).
✨ Configuration: 1S (1 Cell in series).
⛔ Upper Limit Continuous Current: 12A
✨ Instantaneous / Peak Current: 17A
⛔ Charging Voltage Range: 3.6V to 3.9V
✨ Overcharge Detection Voltage: 3.75V ± 0.05V
⛔ Over-discharge Detection Voltage: 2.1V ± 0.05V
✨ Core Protection Features: Overcharge protection, Over-discharge protection, Overcurrent protection, and Short-circuit protection.
⛔ Dimensions: Approximately 40mm × 12mm × 3.5mm.
