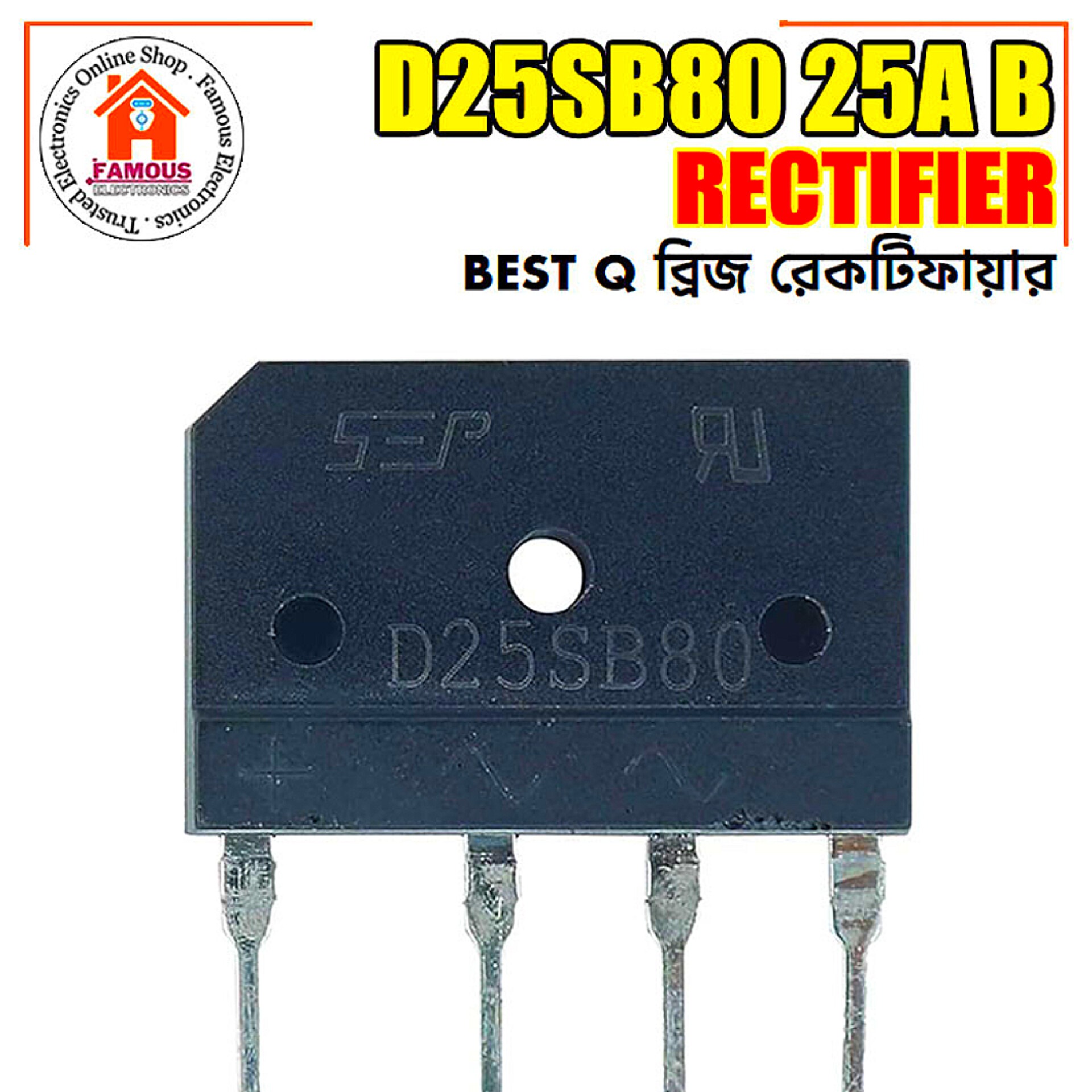

✨ Part Number: D25SB80
⛔ Component Type: Glass Passivated Single-Phase Bridge Rectifier
✨ Maximum Average Forward Rectified Current (\(I_{O}\)): 25 A (when mounted on a proper heat sink)
⛔ Maximum Repetitive Peak Reverse Voltage (\(V_{RRM}\)):
800 V
✨ Maximum RMS Input Voltage (\(V_{RMS}\)): 560 V
⛔ Peak Non-Repetitive Forward Surge Current (\(I_{FSM}\)): 350 A (8.3 ms single half sine-wave)
✨ Forward Voltage Drop (\(V_{F}\)): Approximately 1.05 V per diode at 12.5 A
⛔ Operating Temperature Range: -55°C to +150°C
✨ Package Type: SIP-4 / 4-Pin Single-in-Line Through-Hole Package
✨ Part Number: D25SB80
⛔ Component Type: Glass Passivated Single-Phase Bridge Rectifier
✨ Maximum Average Forward Rectified Current (\(I_{O}\)): 25 A (when mounted on a proper heat sink)
⛔ Maximum Repetitive Peak Reverse Voltage (\(V_{RRM}\)):
800 V
✨ Maximum RMS Input Voltage (\(V_{RMS}\)): 560 V
⛔ Peak Non-Repetitive Forward Surge Current (\(I_{FSM}\)): 350 A (8.3 ms single half sine-wave)
✨ Forward Voltage Drop (\(V_{F}\)): Approximately 1.05 V per diode at 12.5 A
⛔ Operating Temperature Range: -55°C to +150°C
✨ Package Type: SIP-4 / 4-Pin Single-in-Line Through-Hole Package
