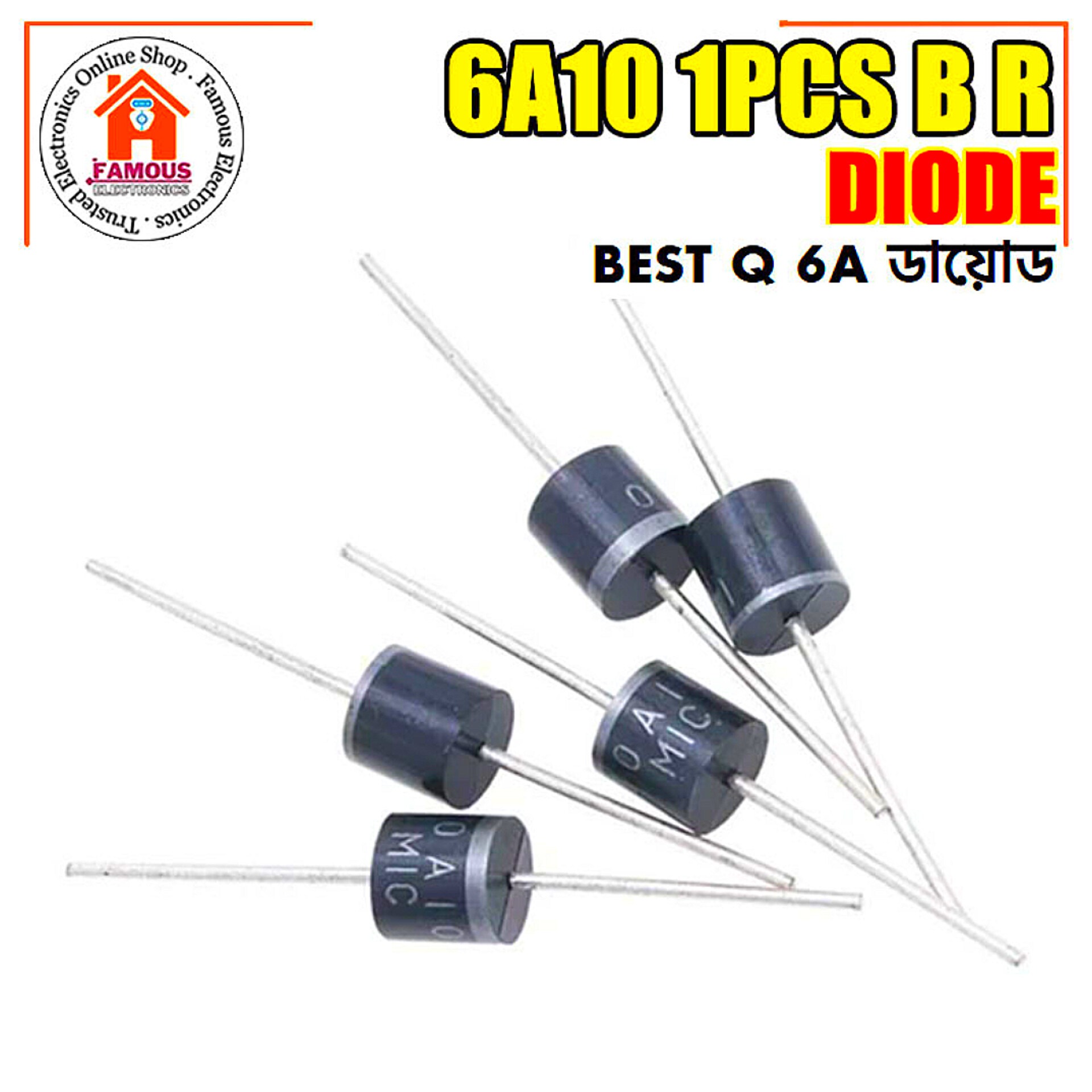

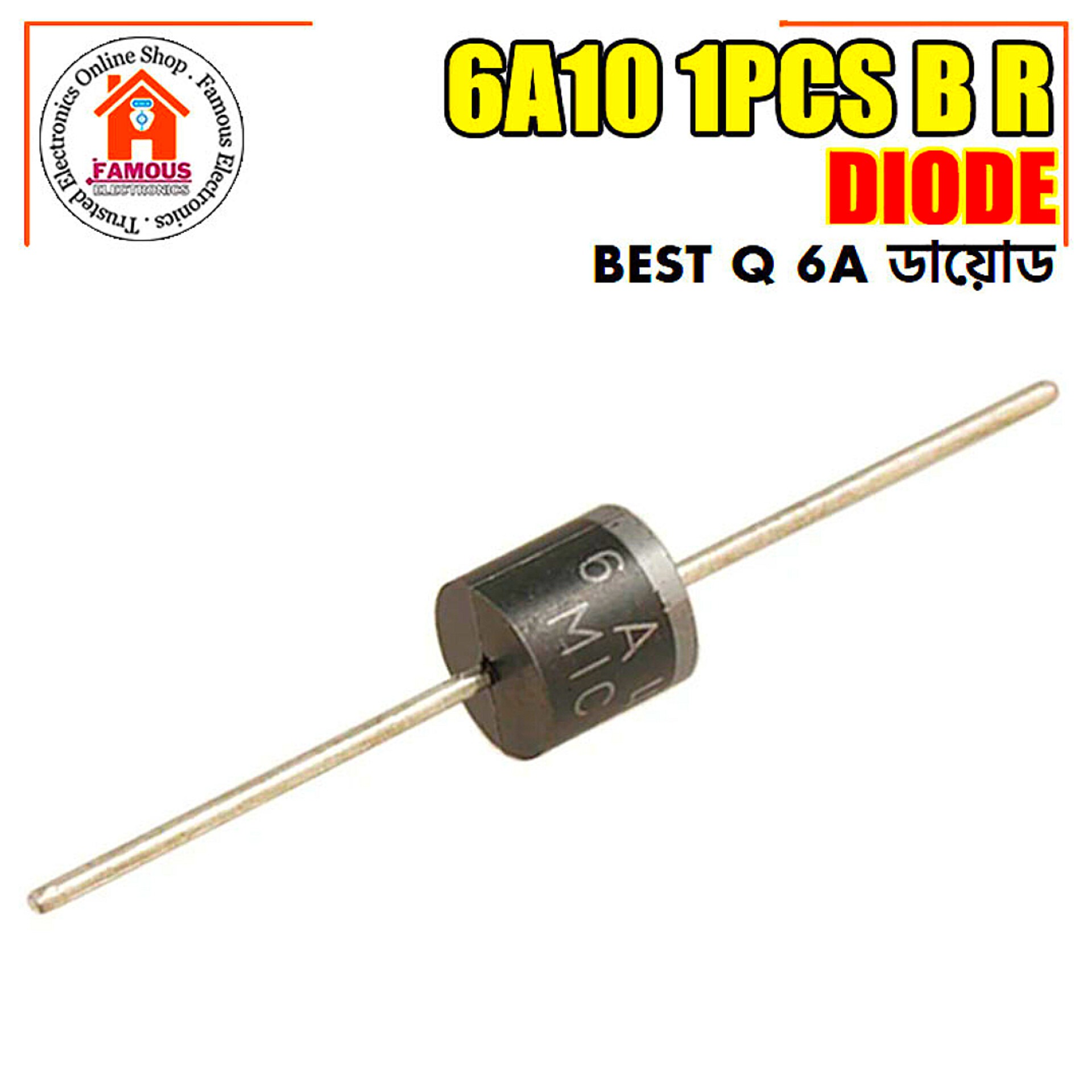

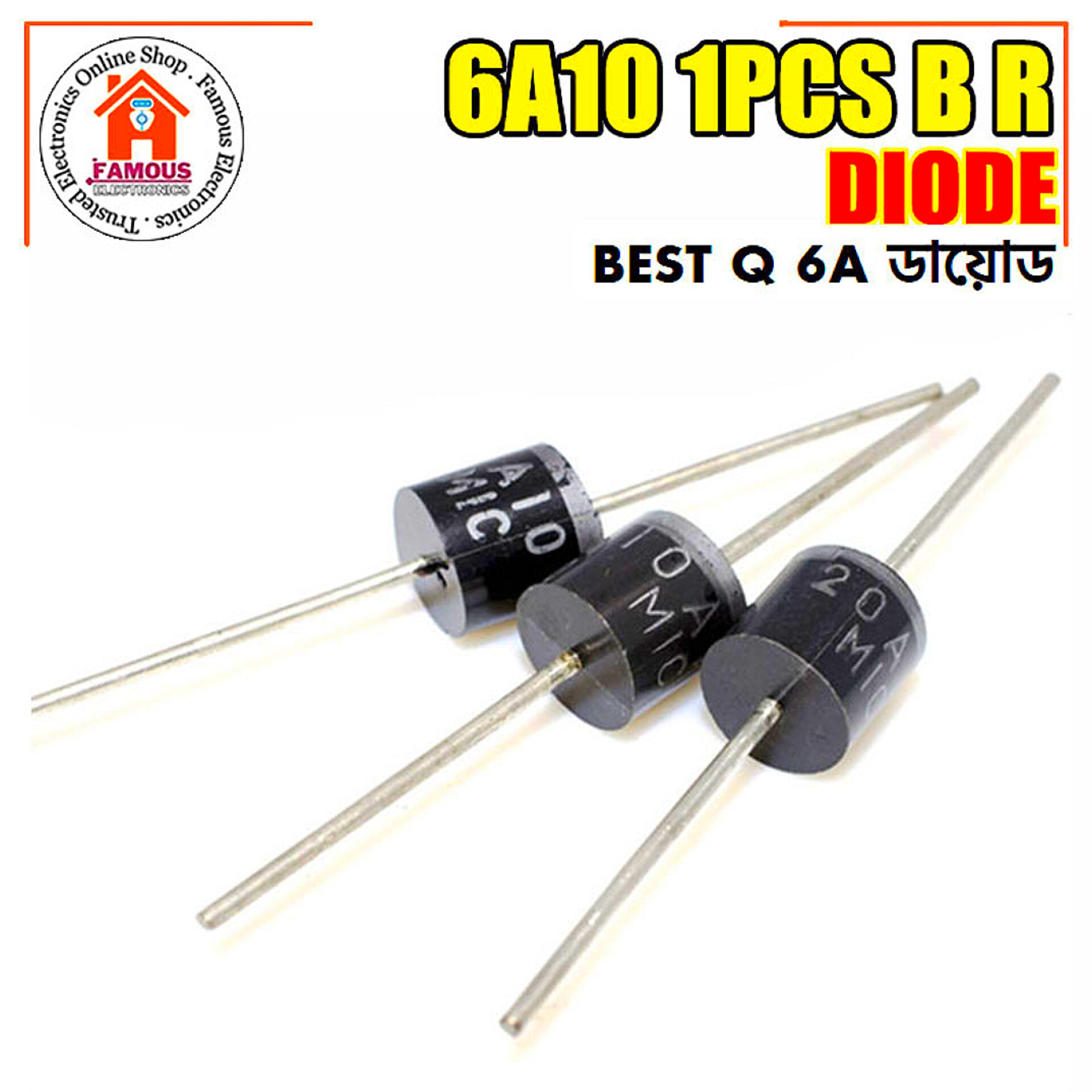

✨ Diode Type: Standard Recovery General Purpose Rectifier
⛔ Maximum Average Forward Current (\(I_{F(AV)}\)): 6 Amperes
✨ Maximum Repetitive Peak Reverse Voltage (\(V_{RRM}\)): 1000 Volts (1 kV)
⛔ Maximum RMS Reverse Voltage (\(V_{RMS}\)): 700 Volts
✨ Maximum Forward Voltage Drop (\(V_{F}\)): Approximately 0.9V to 1.1V at 6A
⛔ Peak Forward Surge Current (\(I_{FSM}\)): Up to 400A (8.3 ms single half sine-wave)
✨ Maximum Reverse Leakage Current (\(I_{R}\)): 10 µA at 25°C
⛔ Package / Case Type: R-6 (or P600) axial leaded molded plastic
✨ Polarity: The silver/gray band on the cylindrical body denotes the Cathode (negative terminal), while the opposite side is the Anode (positive terminal)
✨ Diode Type: Standard Recovery General Purpose Rectifier
⛔ Maximum Average Forward Current (\(I_{F(AV)}\)): 6 Amperes
✨ Maximum Repetitive Peak Reverse Voltage (\(V_{RRM}\)): 1000 Volts (1 kV)
⛔ Maximum RMS Reverse Voltage (\(V_{RMS}\)): 700 Volts
✨ Maximum Forward Voltage Drop (\(V_{F}\)): Approximately 0.9V to 1.1V at 6A
⛔ Peak Forward Surge Current (\(I_{FSM}\)): Up to 400A (8.3 ms single half sine-wave)
✨ Maximum Reverse Leakage Current (\(I_{R}\)): 10 µA at 25°C
⛔ Package / Case Type: R-6 (or P600) axial leaded molded plastic
✨ Polarity: The silver/gray band on the cylindrical body denotes the Cathode (negative terminal), while the opposite side is the Anode (positive terminal)
