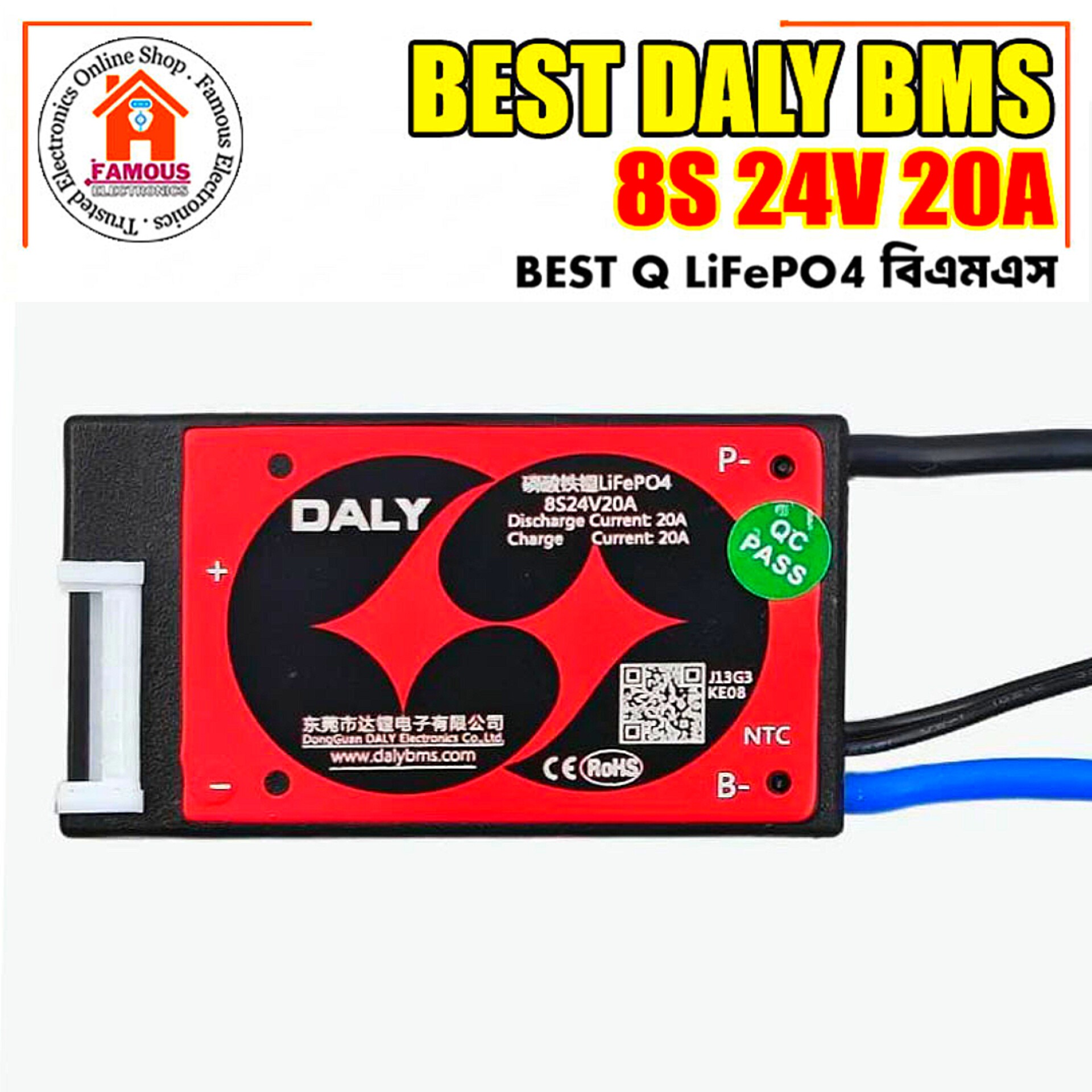

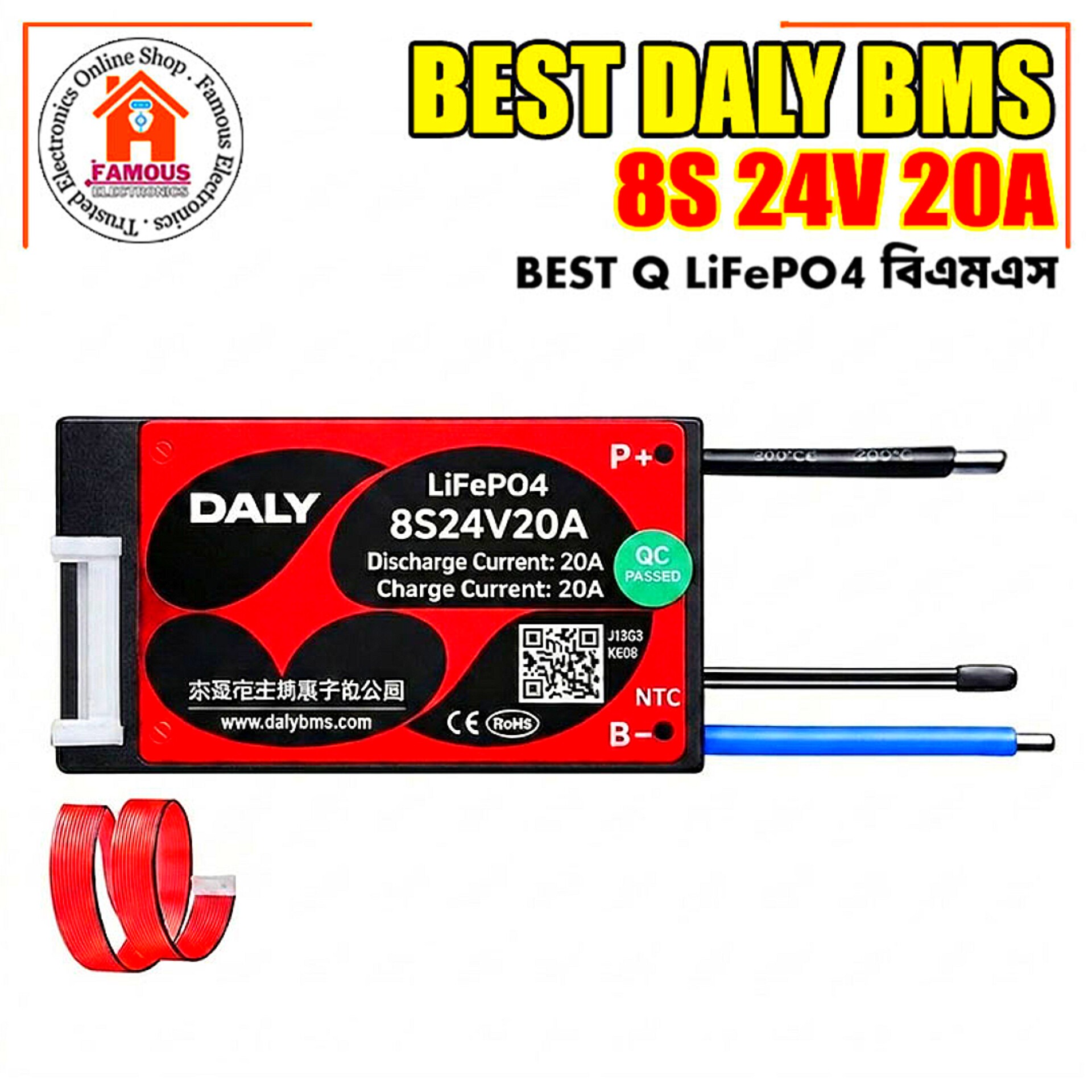

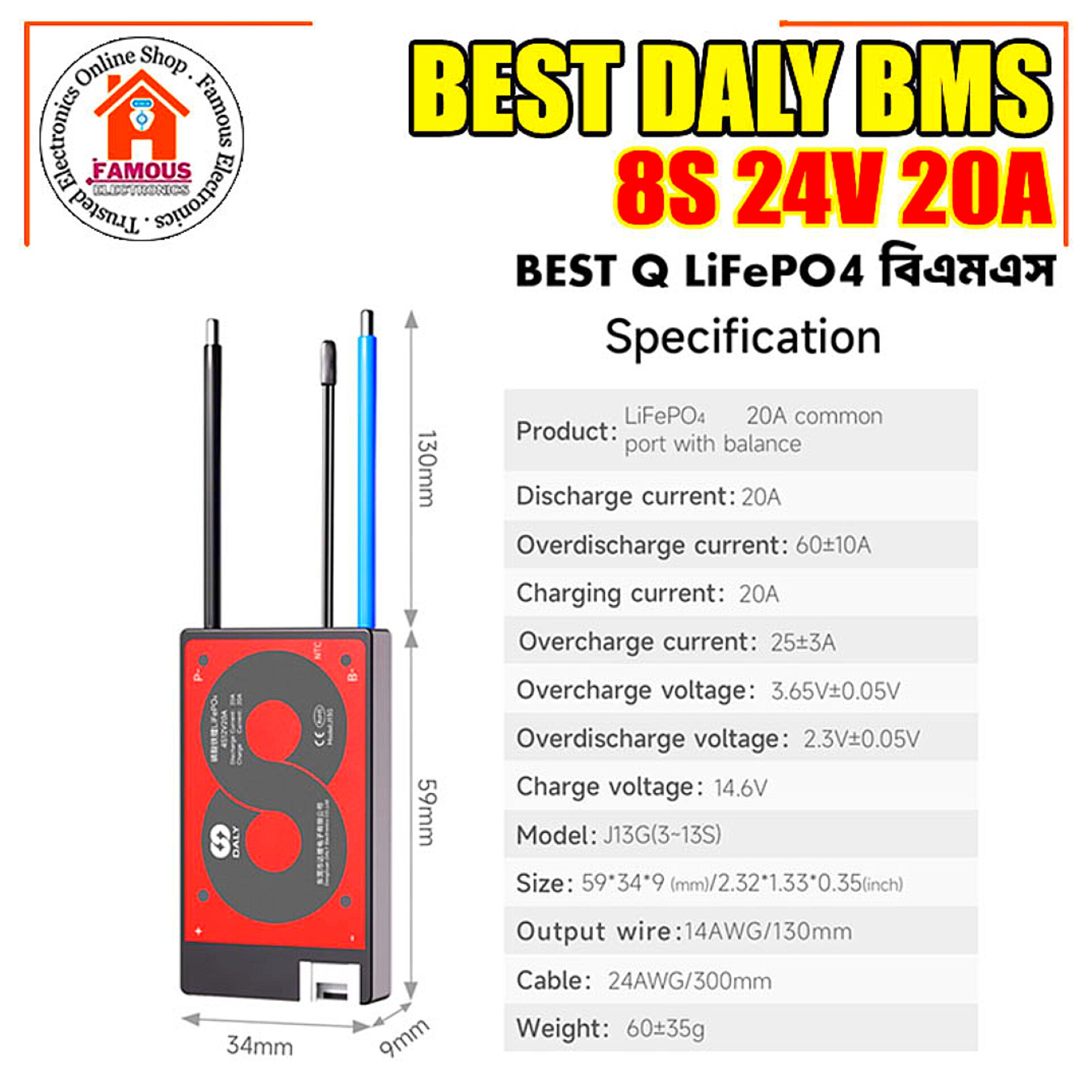

DALY 8S 24V 20A LiFePO4 Battery Management System BMS With NTC Temperature Sensor

Product Description:

✨ Battery Type Compatibility: LiFePO4 only (not compatible with Li-Ion or LTO)

⛔ Series Configuration: 8S (8 cells in series)

✨ Nominal Pack Voltage: 24V (25.6V nominal for LiFePO4)

⛔ Maximum Charging Voltage: 29.2V – 29.4V

✨ Continuous Discharge Current: 20A

⛔ Continuous Charge Current: 20A

✨ Cell Overcharge Protection: Stops charging when any single cell reaches 3.65V – 3.7V

⛔ Cell Over-discharge Protection: Stops discharging when any single cell drops to 2.5V

✨ Passive Cell Balancing: ~30mA to 40mA balance current (activates around 3.6V per cell)

DALY 8S 24V 20A LiFePO4 Battery Management System BMS With NTC Temperature Sensor

945 BDT1,080 BDTSave 135 BDT

Total sold : 112

Product Description:

✨ Battery Type Compatibility: LiFePO4 only (not compatible with Li-Ion or LTO)

⛔ Series Configuration: 8S (8 cells in series)

✨ Nominal Pack Voltage: 24V (25.6V nominal for LiFePO4)

⛔ Maximum Charging Voltage: 29.2V – 29.4V

✨ Continuous Discharge Current: 20A

⛔ Continuous Charge Current: 20A

✨ Cell Overcharge Protection: Stops charging when any single cell reaches 3.65V – 3.7V

⛔ Cell Over-discharge Protection: Stops discharging when any single cell drops to 2.5V

✨ Passive Cell Balancing: ~30mA to 40mA balance current (activates around 3.6V per cell)

Product Description: ✨ Battery Type Compatibility: LiFePO4 only (not compatible with Li-Ion or LTO)⛔ Series Configuration: 8S (8 cells in series)✨ Nominal Pack Voltage: 24V (25.6V nominal for LiFePO4)⛔ Maximum Charging Voltage: 29.2V – 29.4V✨ Continuous Discharge Current: 20A⛔ Continuous Charge Current: 20A✨ Cell Overcharge Protection: Stops charging when any single cell reaches 3.65V – 3.7V⛔ Cell Over-discharge Protection: Stops discharging when any single cell drops to 2.5V✨ Passive Cell Balancing: ~30mA to 40mA balance current (activates around 3.6V per cell)
