FAMOUS ELECTRONICS BD

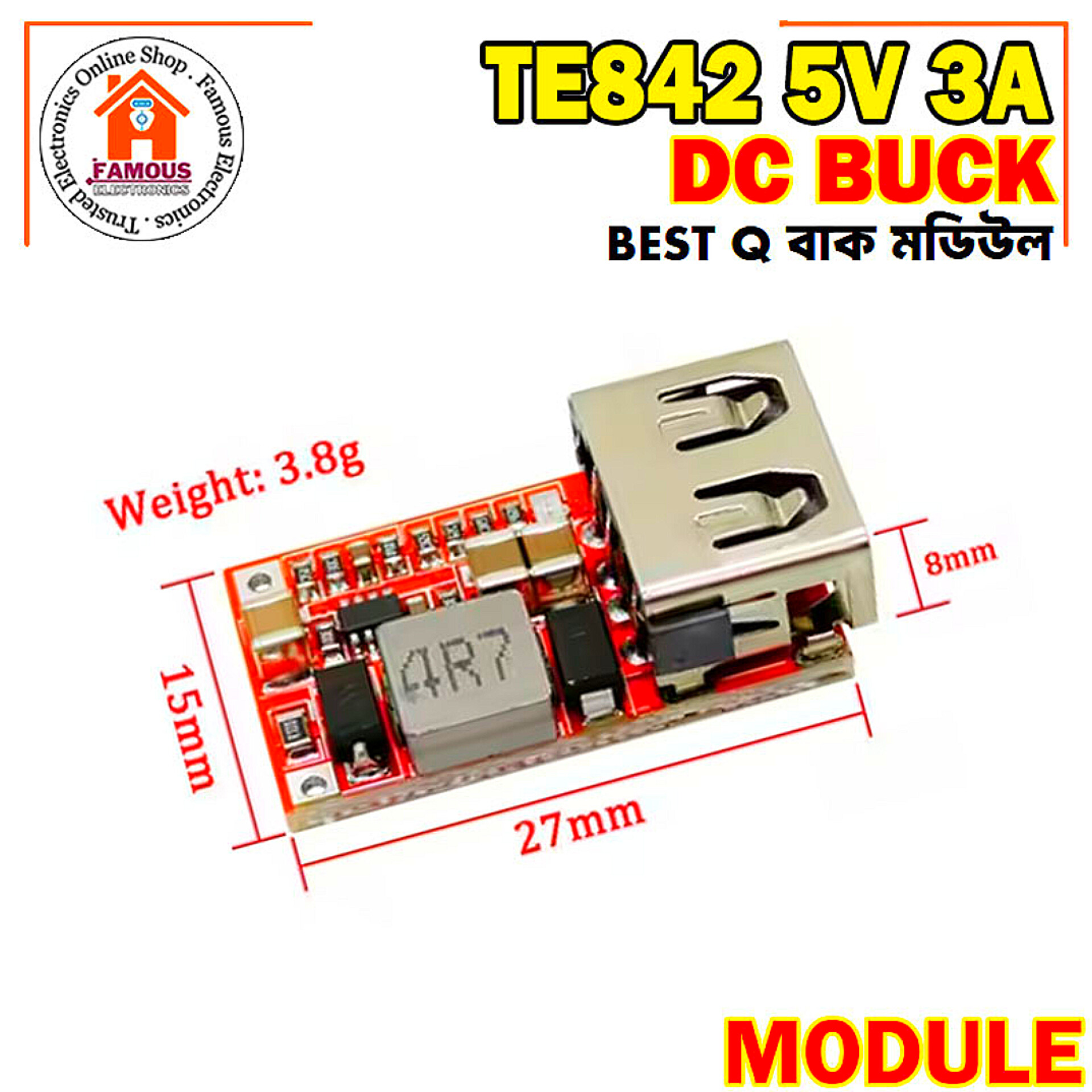

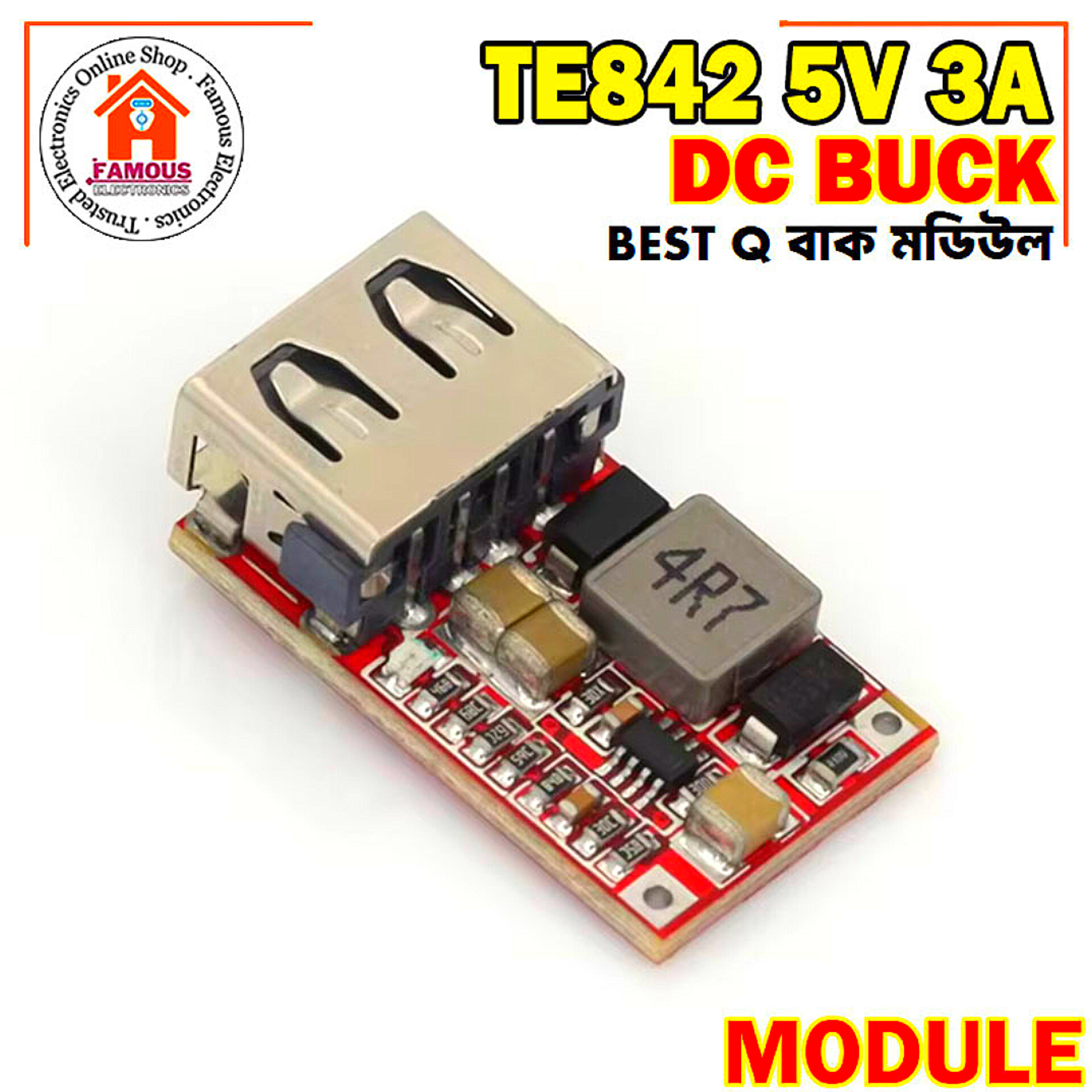

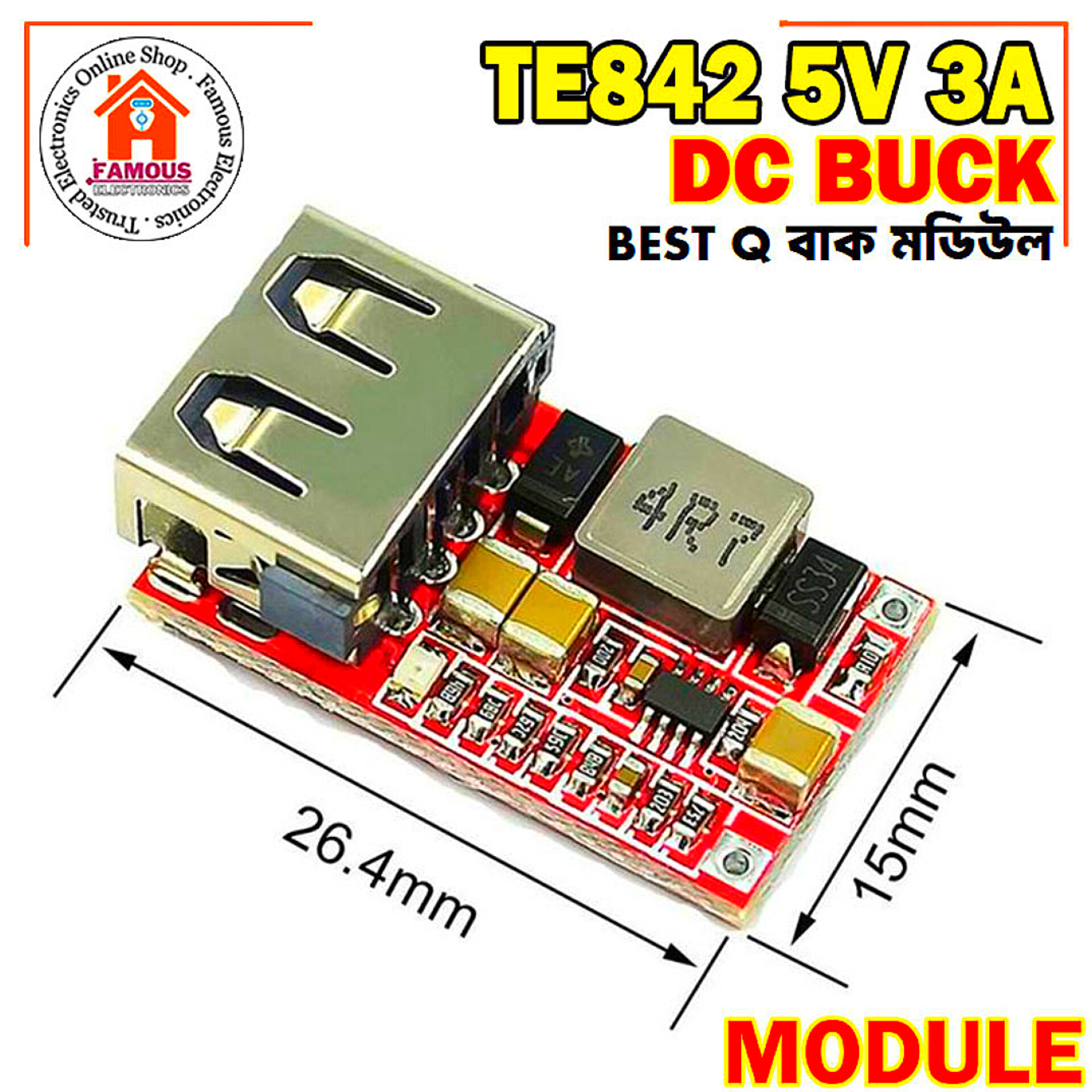

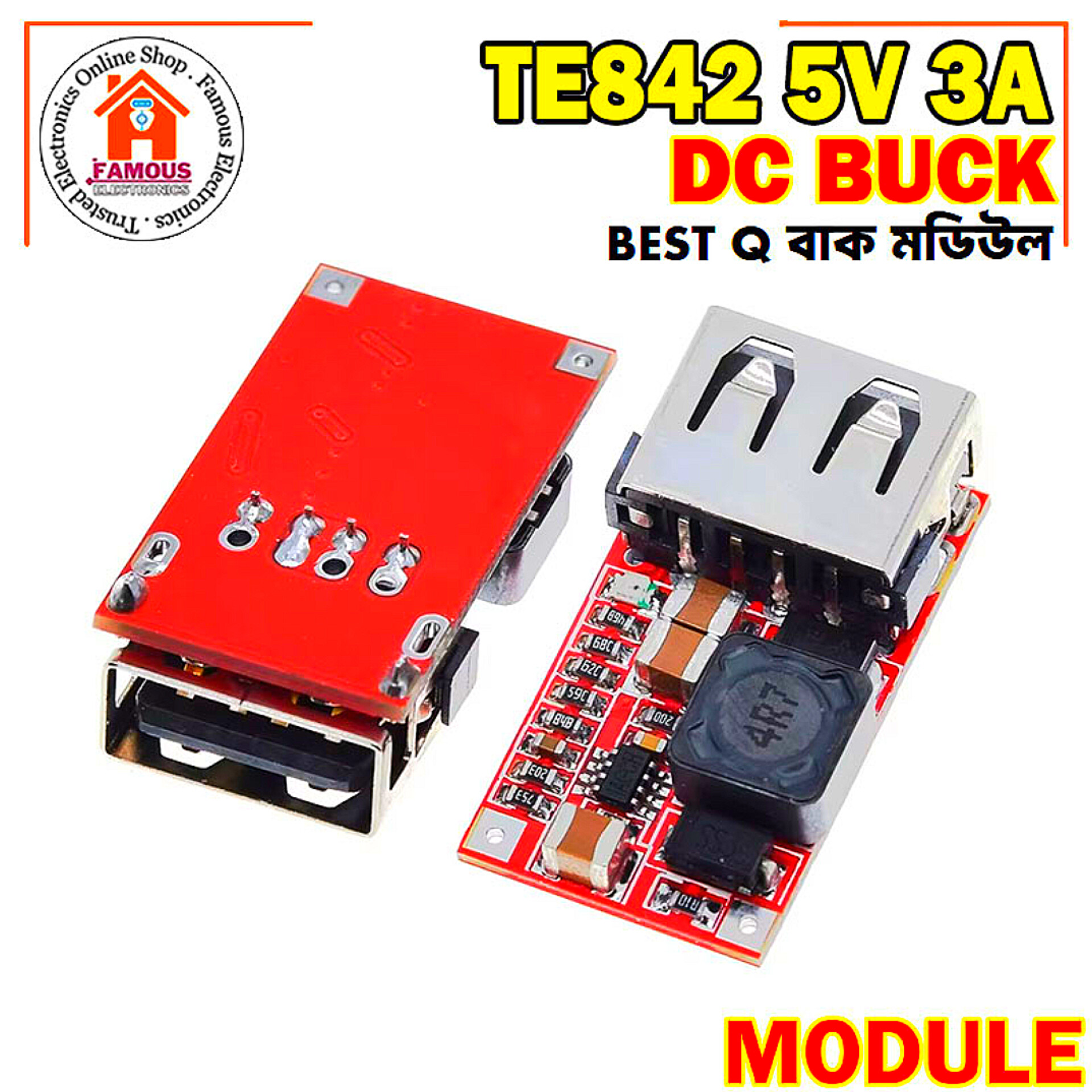

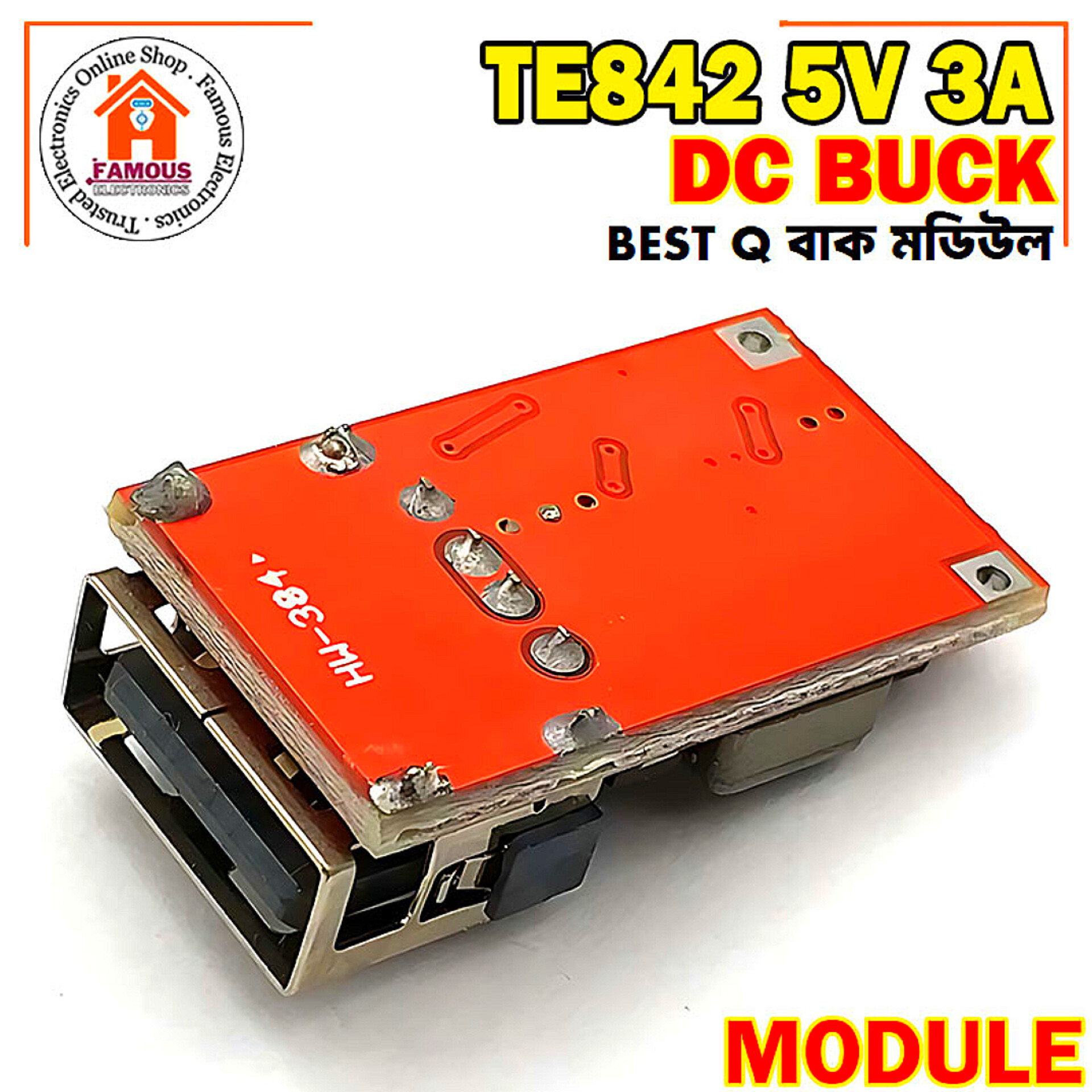

Name: TE842 6-24V to 5V 3A Car, Bike USB Charger Module DC Buck step down Converter
Brand: FAMOUS ELECTRONICS BD
Price: 85 BDT
Availability: InStock

FAMOUS ELECTRONICS BD

Input voltage: DC 6-24VOutput voltage: 5VOutput current: 3A MAXConversion efficiency: can up to 97.5% (6.5V step down to 5V 0.7A) (after short reverse protection and fuses test value)Switch frequency: 500KHzOutput ripple: 10mV around (12V to 5V3A) 20M bandwidthOutput indicator: output voltage indicator is redOperating temperature: industrial grade (-40 Celsius to + 85 Celsius) (the higher the ambient temperature, the lower the output power)Output overvoltage protection: yes, input 1.5A fuse, output 5V with 300W TVS tube clamp protection.Full load temperature: 30 CelsiusStatic current: 0.85 mALoad regulation: ± 1%Voltage Regulation: ± 0.5%Dynamic response speed: 5% 200uSOutput short circuit protection: yes, but please do not short circuit for a long timeInput reverse polarity protection: yes, there is reverse polarity protection diodeInput voltage: DC 6-24VOutput voltage: 5VOutput current: 3A MAXConversion efficiency: can up to 97.5% (6.5V step down to 5V 0.7A) (after short reverse protection and fuses test value)Switch frequency: 500KHzOutput ripple: 10mV around (12V to 5V3A) 20M bandwidthOutput indicator: output voltage indicator is redOperating temperature: industrial grade (-40 Celsius to + 85 Celsius) (the higher the ambient temperature, the lower the output power)Output overvoltage protection: yes, input 1.5A fuse, output 5V with 300W TVS tube clamp protection.Full load temperature: 30 CelsiusStatic current: 0.85 mALoad regulation: ± 1%Voltage Regulation: ± 0.5%Dynamic response speed: 5% 200uSOutput short circuit protection: yes, but please do not short circuit for a long timeInput reverse polarity protection: yes, there is reverse polarity protection diode

FAMOUS ELECTRONICS BD

Categories

Category List

All products

HandTools

Module

Robotics

Battery

Motor & Propeller

BatteryPack

Soldering Tools

Amplifier

Fan

PowerBank and Accessories

Charger and Adaptor

RC Product BD

Humidifier

Switch & Connector

Spot Welder

Buck Boost Module

Light & LED

BMS

Battery Pack Tools

Charging Module

Tape & Glue

BLDC

Meter

Electrical Cable

Smart System

Mini UPS

Active Balancer

PD QC & Trigger

Inverter

Controller

Cutting Kit

Fan Kit

Drill Kit

Pump Kit

Arduino

Components

Level Indicator

Speed Controller

Battery Holder

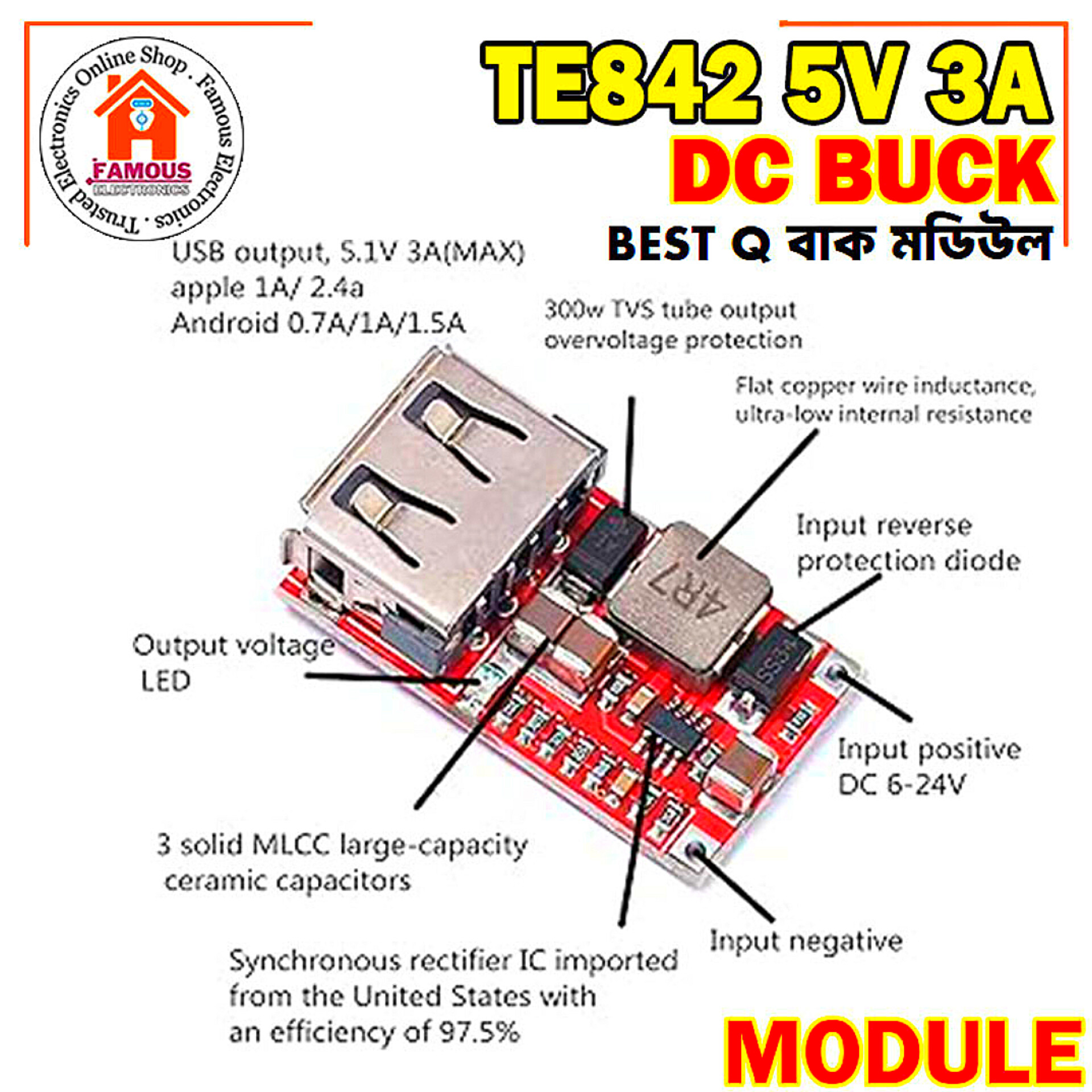

Input voltage: DC 6-24V

Output voltage: 5V

Output current: 3A MAX

Conversion efficiency: can up to 97.5% (6.5V step down to 5V 0.7A) (after short reverse protection and fuses test value)

Switch frequency: 500KHz

Output ripple: 10mV around (12V to 5V3A) 20M bandwidth

Output indicator: output voltage indicator is red

Operating temperature: industrial grade (-40 Celsius to + 85 Celsius) (the higher the ambient temperature, the lower the output power)

Output overvoltage protection: yes, input 1.5A fuse, output 5V with 300W TVS tube clamp protection.

Full load temperature: 30 Celsius

Static current: 0.85 mA

Load regulation: ± 1%

Voltage Regulation: ± 0.5%

Dynamic response speed: 5% 200uS

Output short circuit protection: yes, but please do not short circuit for a long time

Input reverse polarity protection: yes, there is reverse polarity protection diode

Input voltage: DC 6-24V

Output voltage: 5V

Output current: 3A MAX

Conversion efficiency: can up to 97.5% (6.5V step down to 5V 0.7A) (after short reverse protection and fuses test value)

Switch frequency: 500KHz

Output ripple: 10mV around (12V to 5V3A) 20M bandwidth

Output indicator: output voltage indicator is red

Operating temperature: industrial grade (-40 Celsius to + 85 Celsius) (the higher the ambient temperature, the lower the output power)

Output overvoltage protection: yes, input 1.5A fuse, output 5V with 300W TVS tube clamp protection.

Full load temperature: 30 Celsius

Static current: 0.85 mA

Load regulation: ± 1%

Voltage Regulation: ± 0.5%

Dynamic response speed: 5% 200uS

Output short circuit protection: yes, but please do not short circuit for a long time

Input reverse polarity protection: yes, there is reverse polarity protection diode

TE842 6-24V To 5V 3A Car, Bike USB Charger Module DC Buck Step Down Converter

85 BDT120 BDTSave 35 BDT

Total sold : 80

Input voltage: DC 6-24V

Output voltage: 5V

Output current: 3A MAX

Conversion efficiency: can up to 97.5% (6.5V step down to 5V 0.7A) (after short reverse protection and fuses test value)

Switch frequency: 500KHz

Output ripple: 10mV around (12V to 5V3A) 20M bandwidth

Output indicator: output voltage indicator is red

Operating temperature: industrial grade (-40 Celsius to + 85 Celsius) (the higher the ambient temperature, the lower the output power)

Output overvoltage protection: yes, input 1.5A fuse, output 5V with 300W TVS tube clamp protection.

Full load temperature: 30 Celsius

Static current: 0.85 mA

Load regulation: ± 1%

Voltage Regulation: ± 0.5%

Dynamic response speed: 5% 200uS

Output short circuit protection: yes, but please do not short circuit for a long time

Input reverse polarity protection: yes, there is reverse polarity protection diode

Input voltage: DC 6-24V

Output voltage: 5V

Output current: 3A MAX

Conversion efficiency: can up to 97.5% (6.5V step down to 5V 0.7A) (after short reverse protection and fuses test value)

Switch frequency: 500KHz

Output ripple: 10mV around (12V to 5V3A) 20M bandwidth

Output indicator: output voltage indicator is red

Operating temperature: industrial grade (-40 Celsius to + 85 Celsius) (the higher the ambient temperature, the lower the output power)

Output overvoltage protection: yes, input 1.5A fuse, output 5V with 300W TVS tube clamp protection.

Full load temperature: 30 Celsius

Static current: 0.85 mA

Load regulation: ± 1%

Voltage Regulation: ± 0.5%

Dynamic response speed: 5% 200uS

Output short circuit protection: yes, but please do not short circuit for a long time

Input reverse polarity protection: yes, there is reverse polarity protection diode
