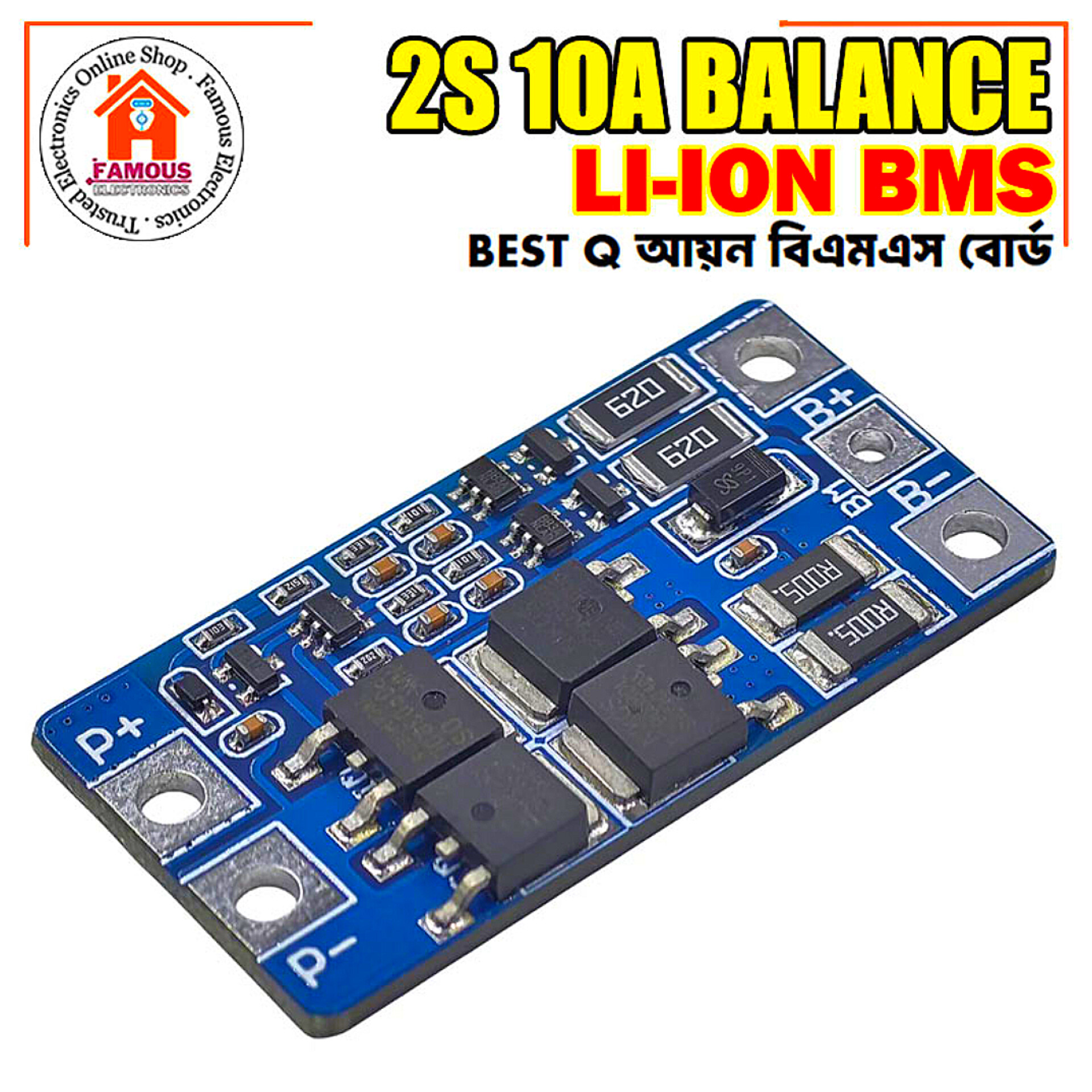

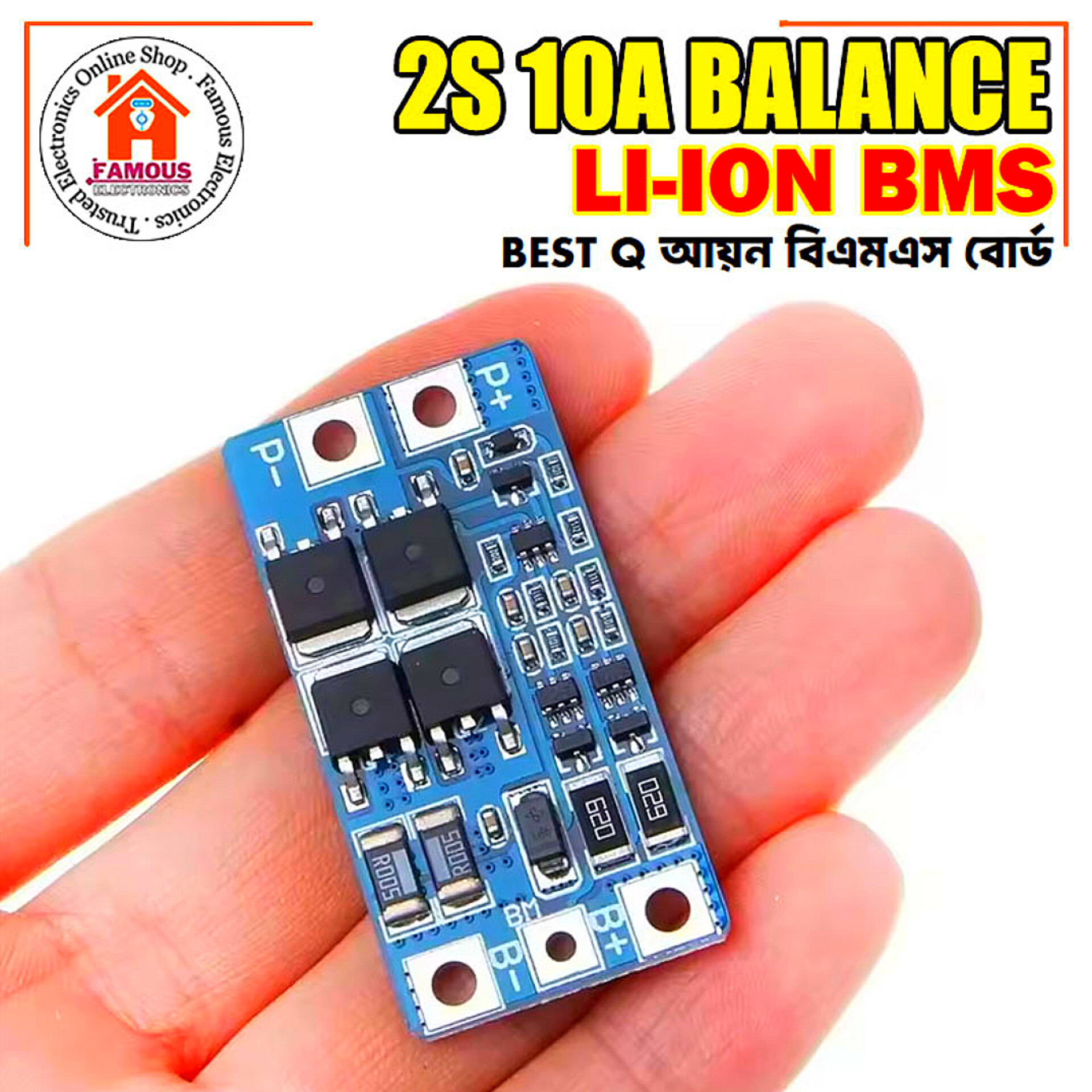

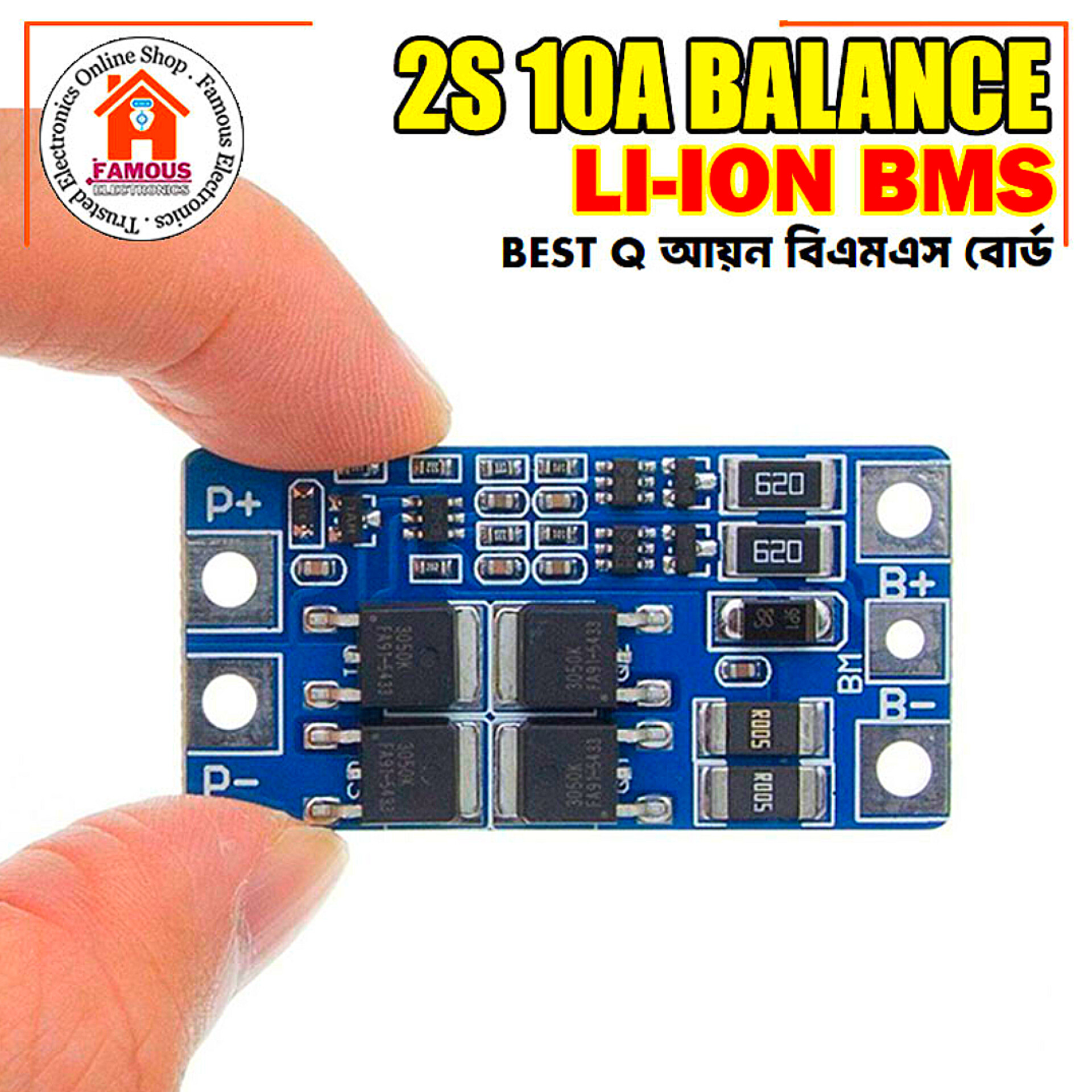

2S 7.4V-8.4V Li-Ion 10A BMS V1.0
Product details: Model: HX-2S-JH20 Overcharge voltage range: 3.65v±0.05vSize: 46.7*23*3.15mm Over-discharge voltage range: 2.0-2.5±0.05vUpper limit working current: 10A Working temperature: -40---+50°CUpper limit instantaneous current: 20A Storage condition: -40-- +80°CQuiescent current: less than 10uA effective life: more than 50,000 hoursInternal resistance: less than 300mΩ Short circuit protection: protection, charge recoveryCharging voltage: 7.2V-8.4VNo ReturnNo Refund.
FAMOUS ELECTRONICS BD
Category List
All products
Product details:
Model: HX-2S-JH20 Overcharge voltage range: 3.65v±0.05v
Size: 46.7*23*3.15mm Over-discharge voltage range: 2.0-2.5±0.05v
Upper limit working current: 10A Working temperature: -40---+50°C
Upper limit instantaneous current: 20A Storage condition: -40-- +80°C
Quiescent current: less than 10uA effective life: more than 50,000 hours
Internal resistance: less than 300mΩ Short circuit protection: protection, charge recovery
Charging voltage: 7.2V-8.4V
No ReturnNo Refund.
Model: HX-2S-JH20 Overcharge voltage range: 3.65v±0.05v
Size: 46.7*23*3.15mm Over-discharge voltage range: 2.0-2.5±0.05v
Upper limit working current: 10A Working temperature: -40---+50°C
Upper limit instantaneous current: 20A Storage condition: -40-- +80°C
Quiescent current: less than 10uA effective life: more than 50,000 hours
Internal resistance: less than 300mΩ Short circuit protection: protection, charge recovery
Charging voltage: 7.2V-8.4V
No ReturnNo Refund.
2S 7.4V-8.4V Li-Ion 10A BMS V1.0
100 BDT135 BDTSave 35 BDT
Total sold : 24
Product details:
Model: HX-2S-JH20 Overcharge voltage range: 3.65v±0.05v
Size: 46.7*23*3.15mm Over-discharge voltage range: 2.0-2.5±0.05v
Upper limit working current: 10A Working temperature: -40---+50°C
Upper limit instantaneous current: 20A Storage condition: -40-- +80°C
Quiescent current: less than 10uA effective life: more than 50,000 hours
Internal resistance: less than 300mΩ Short circuit protection: protection, charge recovery
Charging voltage: 7.2V-8.4V
No ReturnNo Refund.
Model: HX-2S-JH20 Overcharge voltage range: 3.65v±0.05v
Size: 46.7*23*3.15mm Over-discharge voltage range: 2.0-2.5±0.05v
Upper limit working current: 10A Working temperature: -40---+50°C
Upper limit instantaneous current: 20A Storage condition: -40-- +80°C
Quiescent current: less than 10uA effective life: more than 50,000 hours
Internal resistance: less than 300mΩ Short circuit protection: protection, charge recovery
Charging voltage: 7.2V-8.4V
No ReturnNo Refund.
