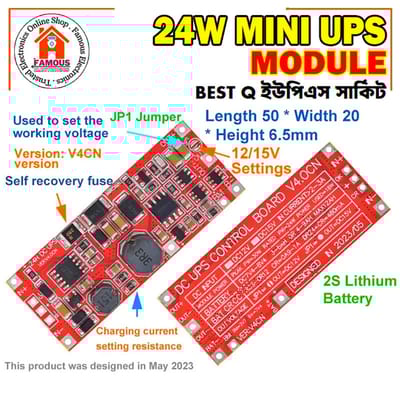

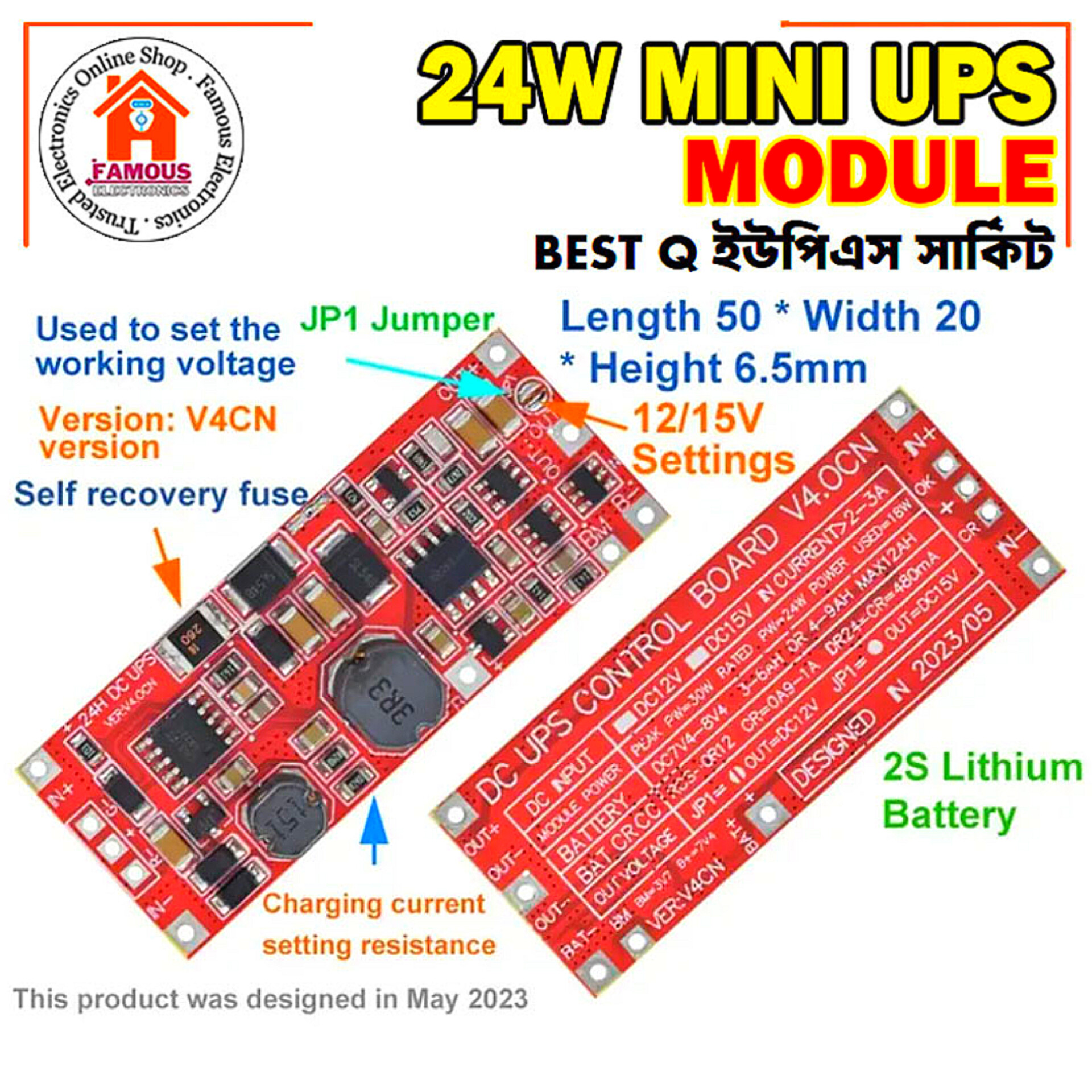

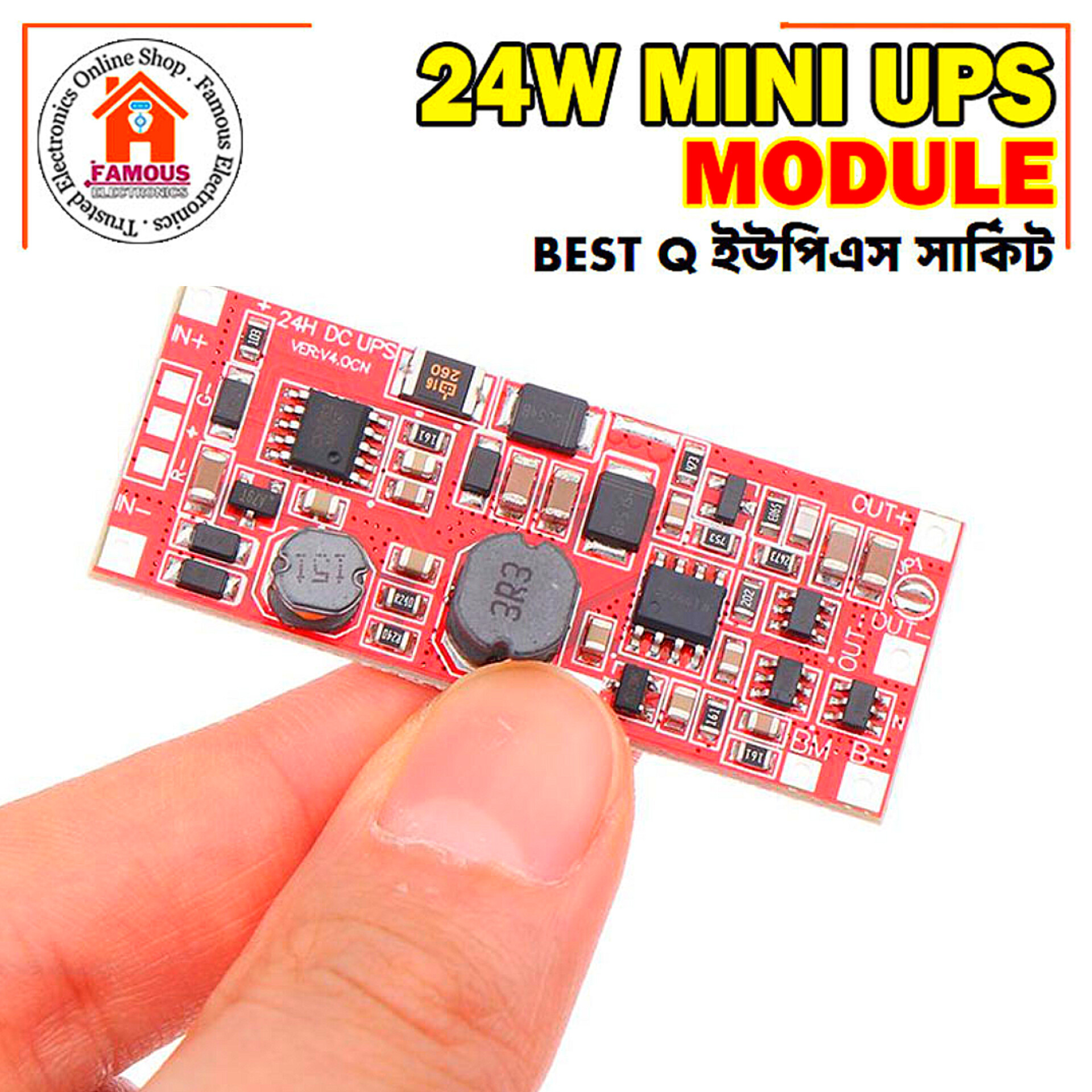

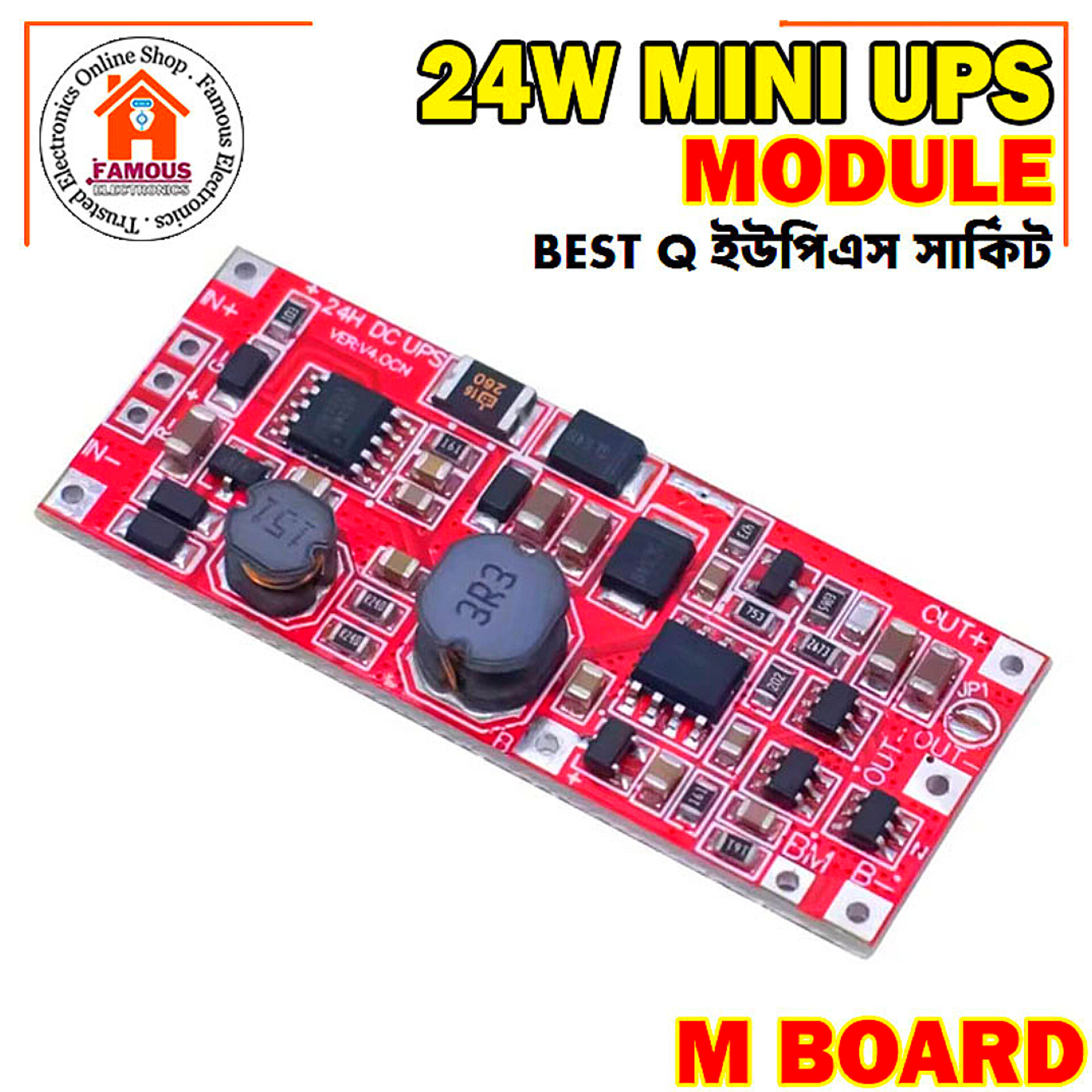

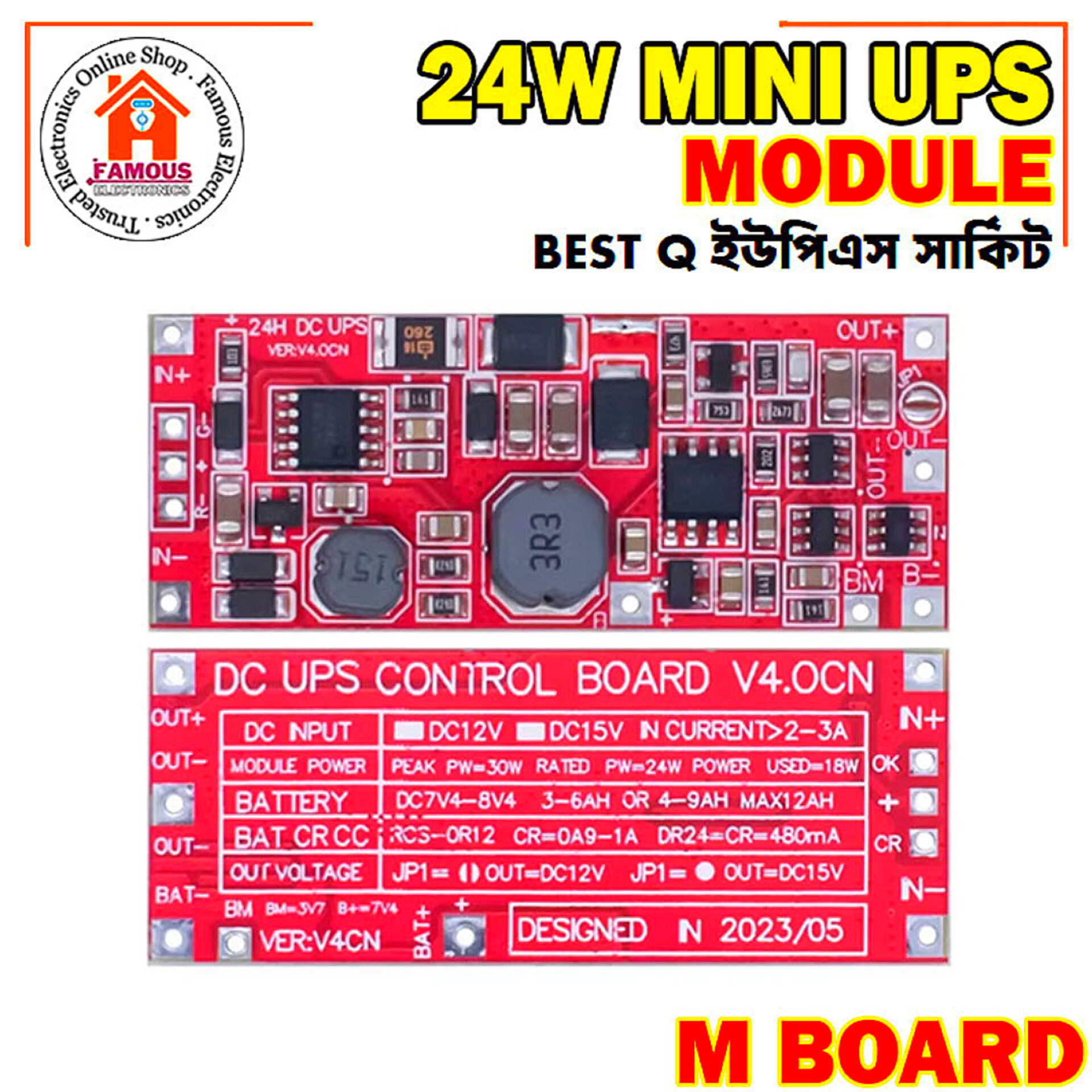

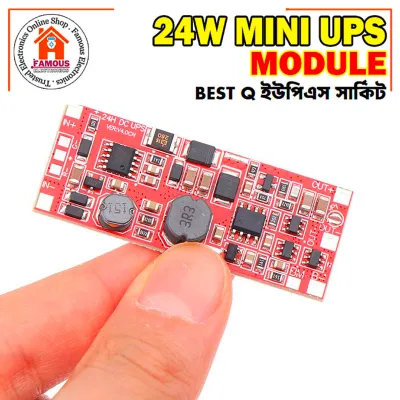

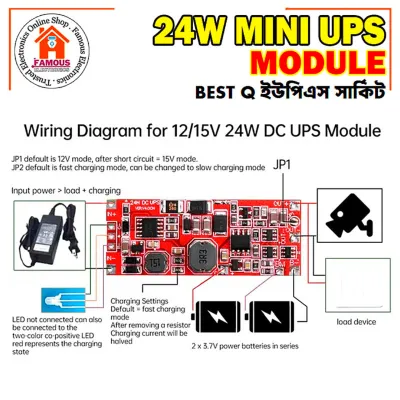

DC 12V/15V 24W 1A UPS Power Supply Module Uninterruptible Power Control Board 2S V4.0CN Charging Step Up Protection Module
Color: Red styleProduct power: rated 18W (usable 12W)Downgraded version charging: about 0.5AInput voltage: DC12V/DC15VOutput voltage: DC12V/DC15VApplicable batteries: 7.4V-8.4V lithium batteriesNo load power consumption: 0.2-0.3mAIndicator light: External dual color LED indicator lightProduct features: charging+batteryboost+switching+over discharge protectionWorking voltage: default 12V mode/input current should be ≥ 3ABattery capacity: slow charging for 4-6 Ah, fast charging for 4-12 AhCharging voltage: Voltage range 8.2-8.4V (average 8.3V)Discharge voltage: When the battery is below 6.0V-6.4V, it will automatically disconnect Path loss: FUSE and SS54 have a loss of approximately 0.4V-0.6VBattery type: 7.4-8.4V lithium battery/supports 18650Charging method: Trickle current/constant cu constant voltage three-stage charging Charging current: Fast charging mode approximately 0.9A-1A Charging current
FAMOUS ELECTRONICS BD
Category List
All products
- Color: Red style
- Product power: rated 18W (usable 12W)
- Downgraded version charging: about 0.5A
- Input voltage: DC12V/DC15V
- Output voltage: DC12V/DC15V
- Applicable batteries: 7.4V-8.4V lithium batteries
- No load power consumption: 0.2-0.3mA<0.5mA
- Indicator light: External dual color LED indicator light
- Product features: charging+battery
- boost+switching+over discharge protection

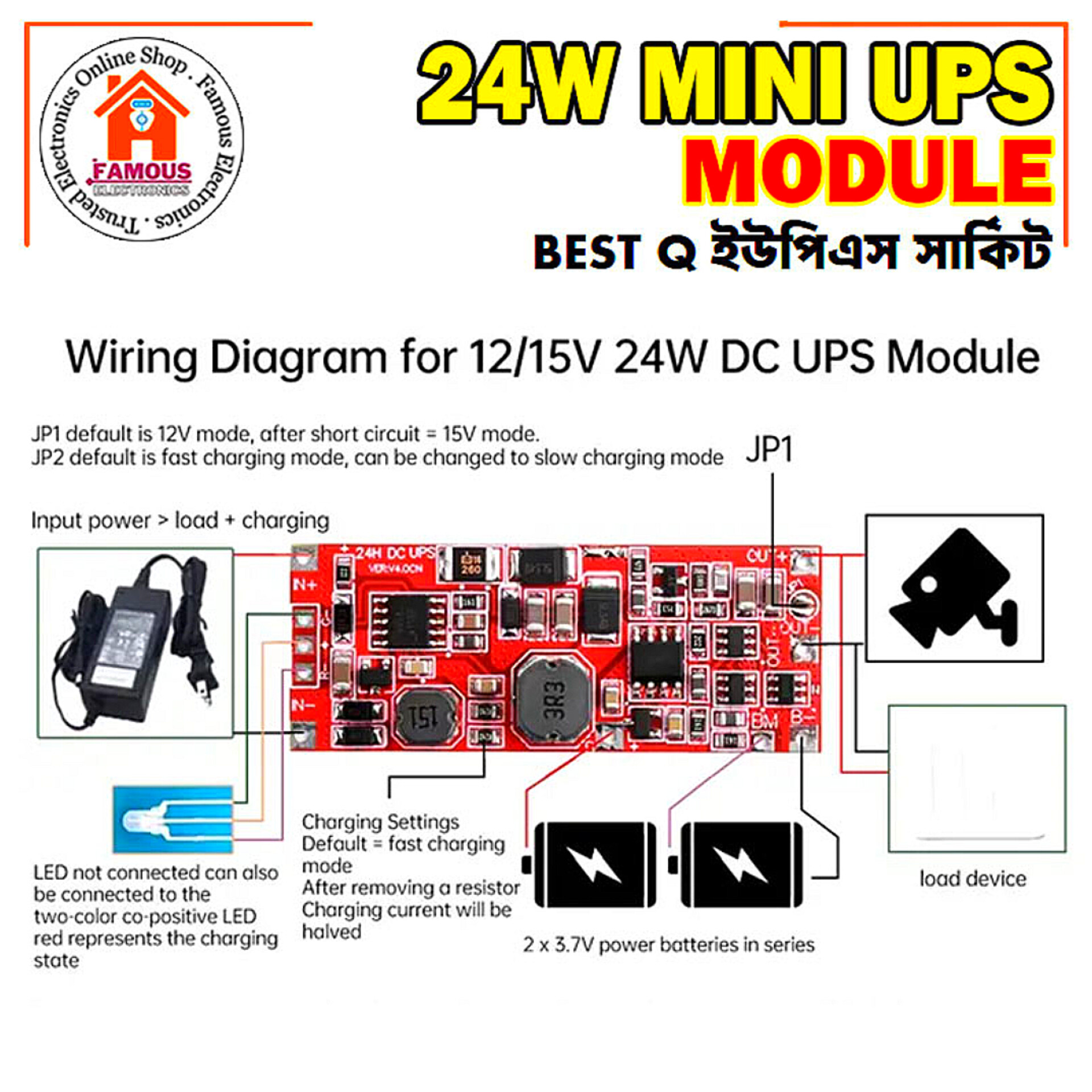

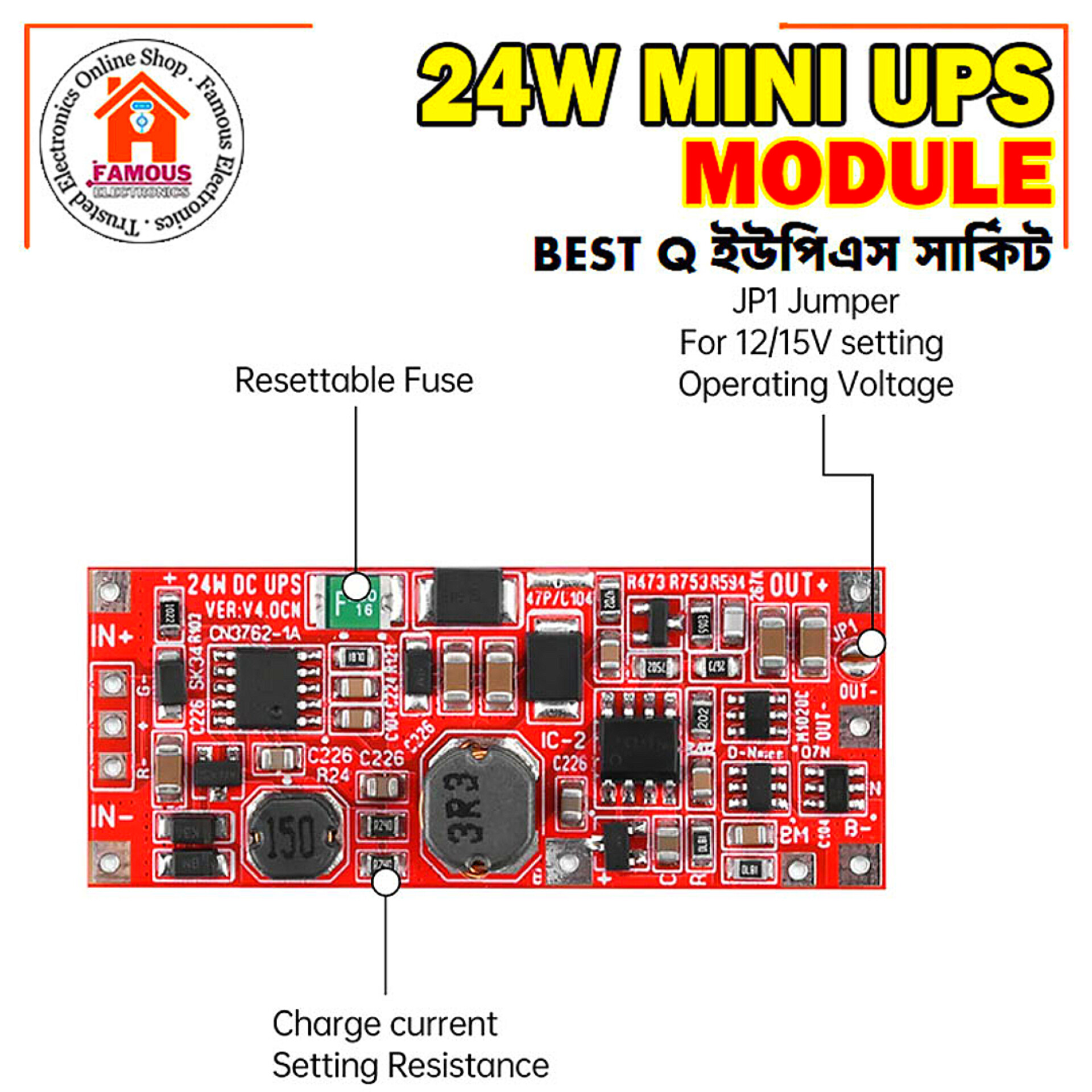

- Working voltage: default 12V mode/input current should be ≥ 3A
- Battery capacity: slow charging for 4-6 Ah, fast charging for 4-12 Ah
- Charging voltage: Voltage range 8.2-8.4V (average 8.3V)
- Discharge voltage: When the battery is below 6.0V-6.4V, it will automatically disconnect Path loss: FUSE and SS54 have a loss of approximately 0.4V-0.6V
- Battery type: 7.4-8.4V lithium battery/supports 18650
- Charging method: Trickle current/constant cu constant voltage three-stage charging Charging current: Fast charging mode approximately 0.9A-1A Charging current
DC 12V/15V 24W 1A UPS Power Supply Module Uninterruptible Power Control Board 2S V4.0CN Charging Step Up Protection Module
290 BDT345 BDTSave 55 BDT
Total sold : 15
- Color: Red style
- Product power: rated 18W (usable 12W)
- Downgraded version charging: about 0.5A
- Input voltage: DC12V/DC15V
- Output voltage: DC12V/DC15V
- Applicable batteries: 7.4V-8.4V lithium batteries
- No load power consumption: 0.2-0.3mA<0.5mA
- Indicator light: External dual color LED indicator light
- Product features: charging+battery
- boost+switching+over discharge protection
- Working voltage: default 12V mode/input current should be ≥ 3A
- Battery capacity: slow charging for 4-6 Ah, fast charging for 4-12 Ah
- Charging voltage: Voltage range 8.2-8.4V (average 8.3V)
- Discharge voltage: When the battery is below 6.0V-6.4V, it will automatically disconnect Path loss: FUSE and SS54 have a loss of approximately 0.4V-0.6V
- Battery type: 7.4-8.4V lithium battery/supports 18650
- Charging method: Trickle current/constant cu constant voltage three-stage charging Charging current: Fast charging mode approximately 0.9A-1A Charging current
