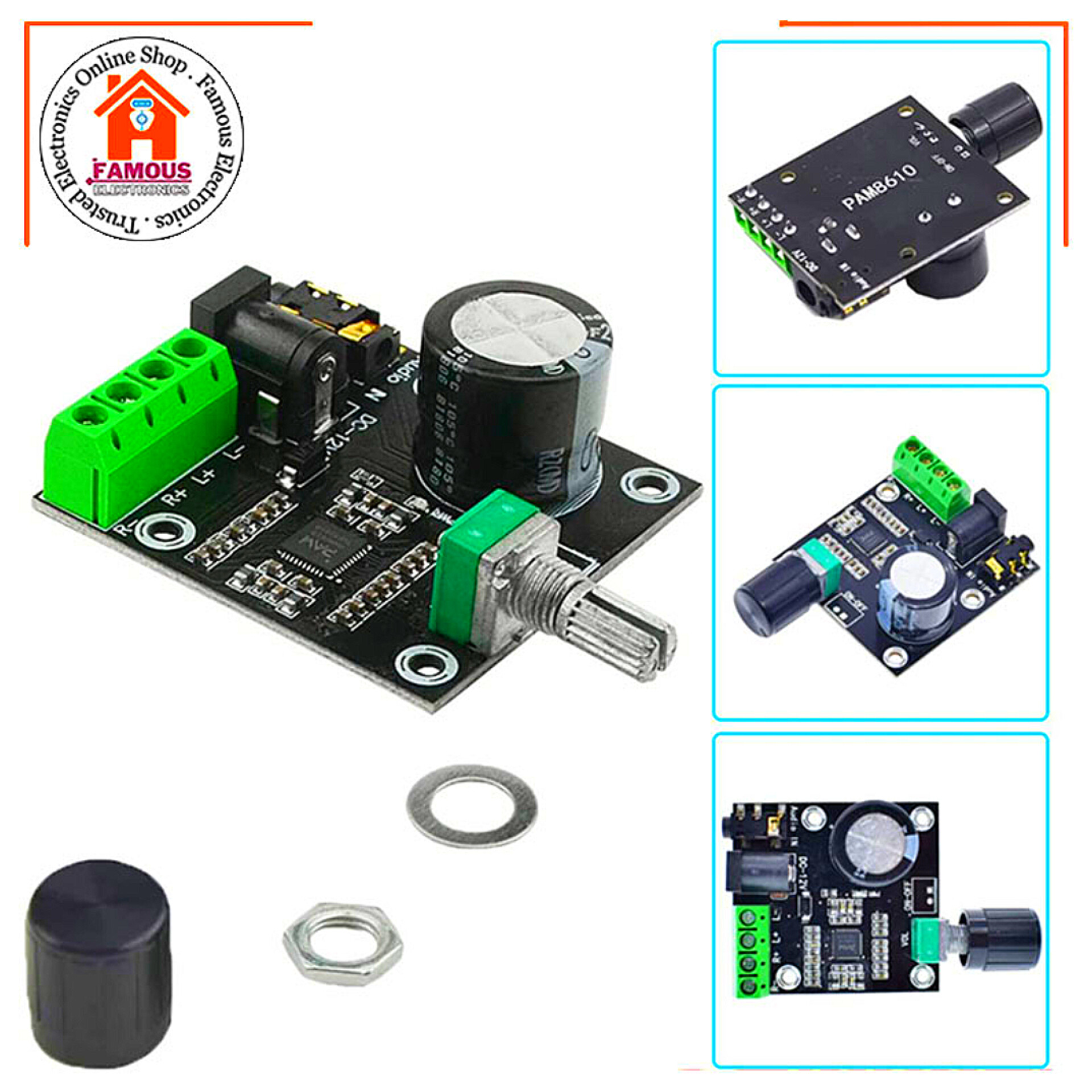

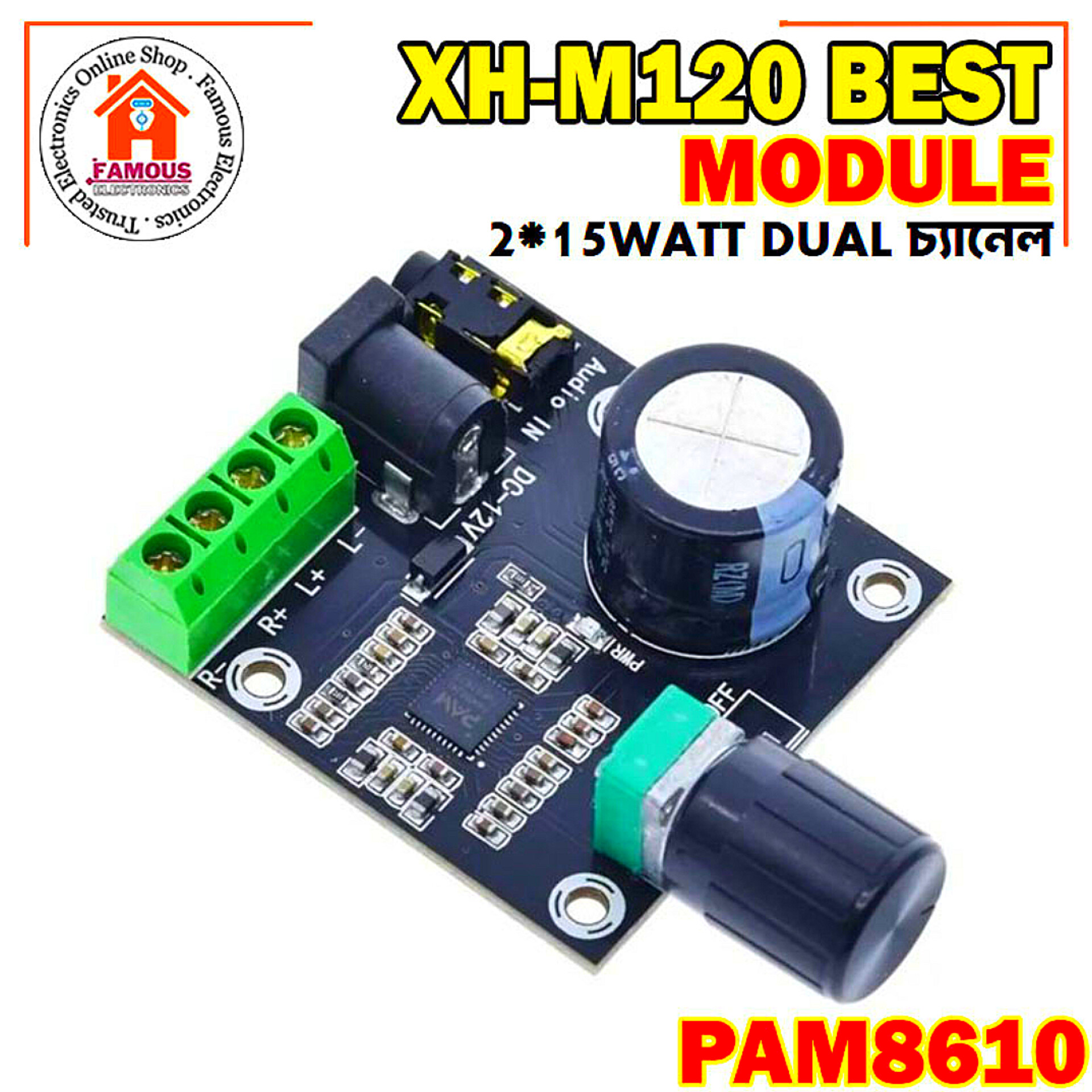

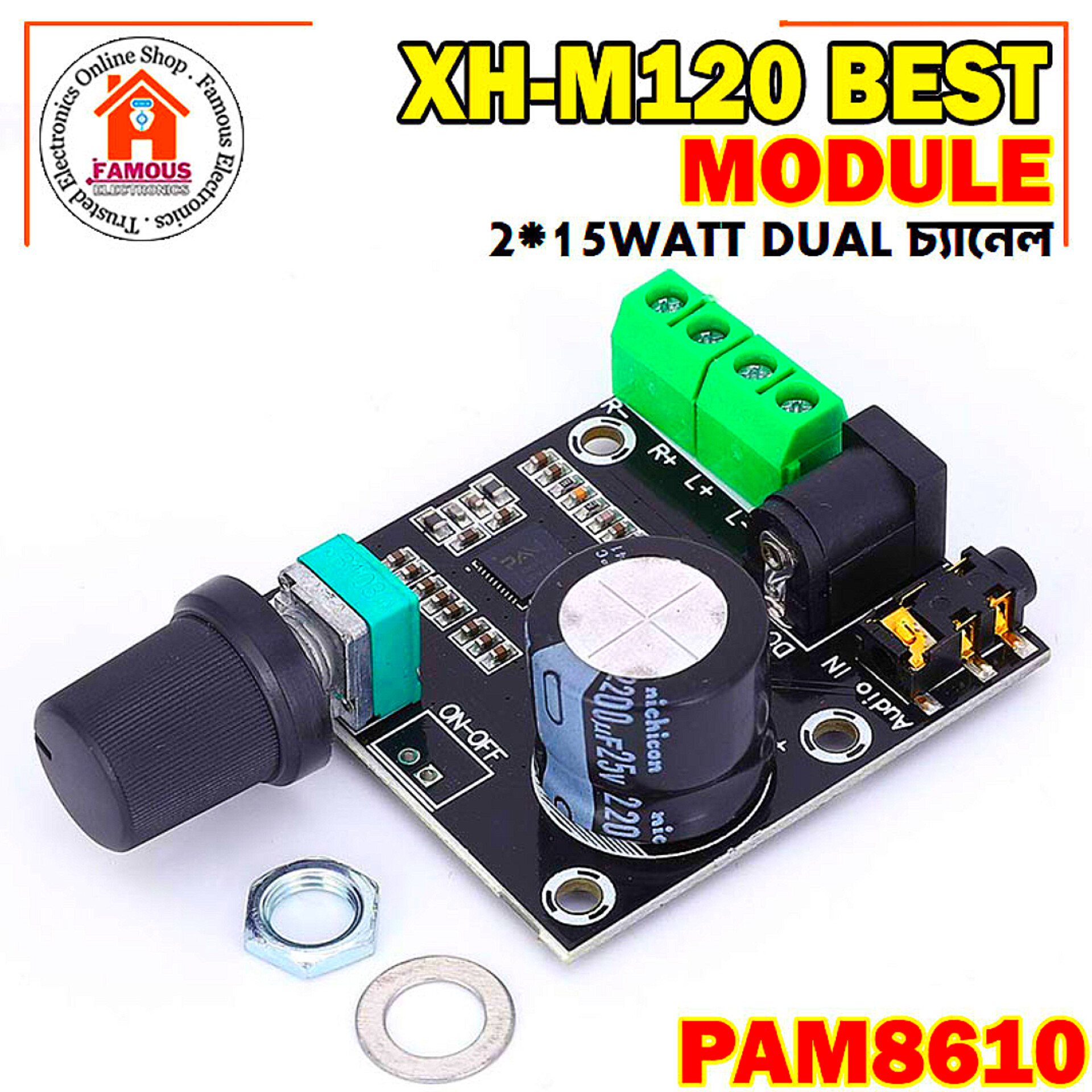

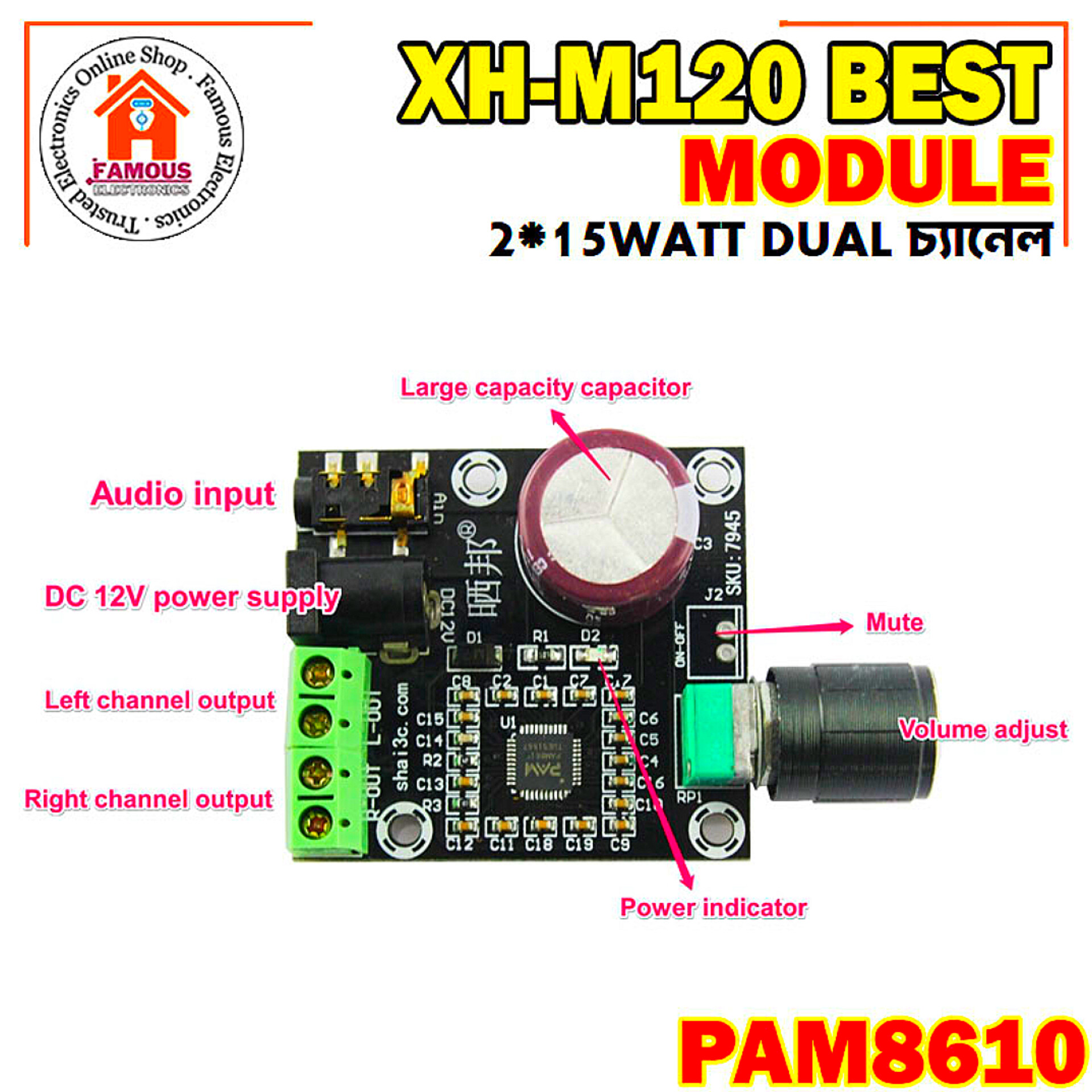

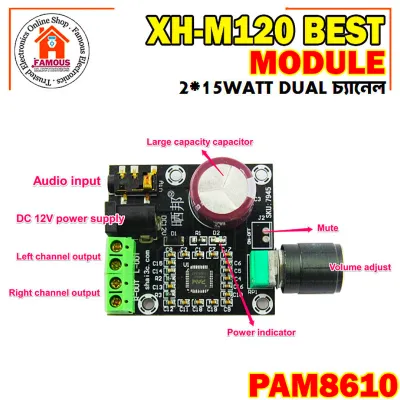

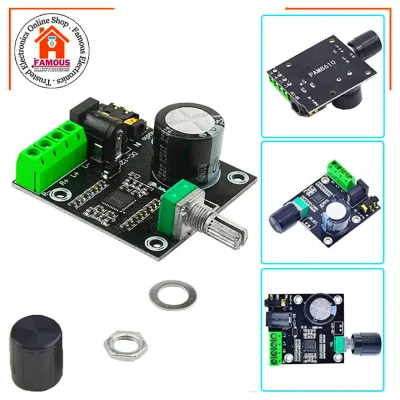

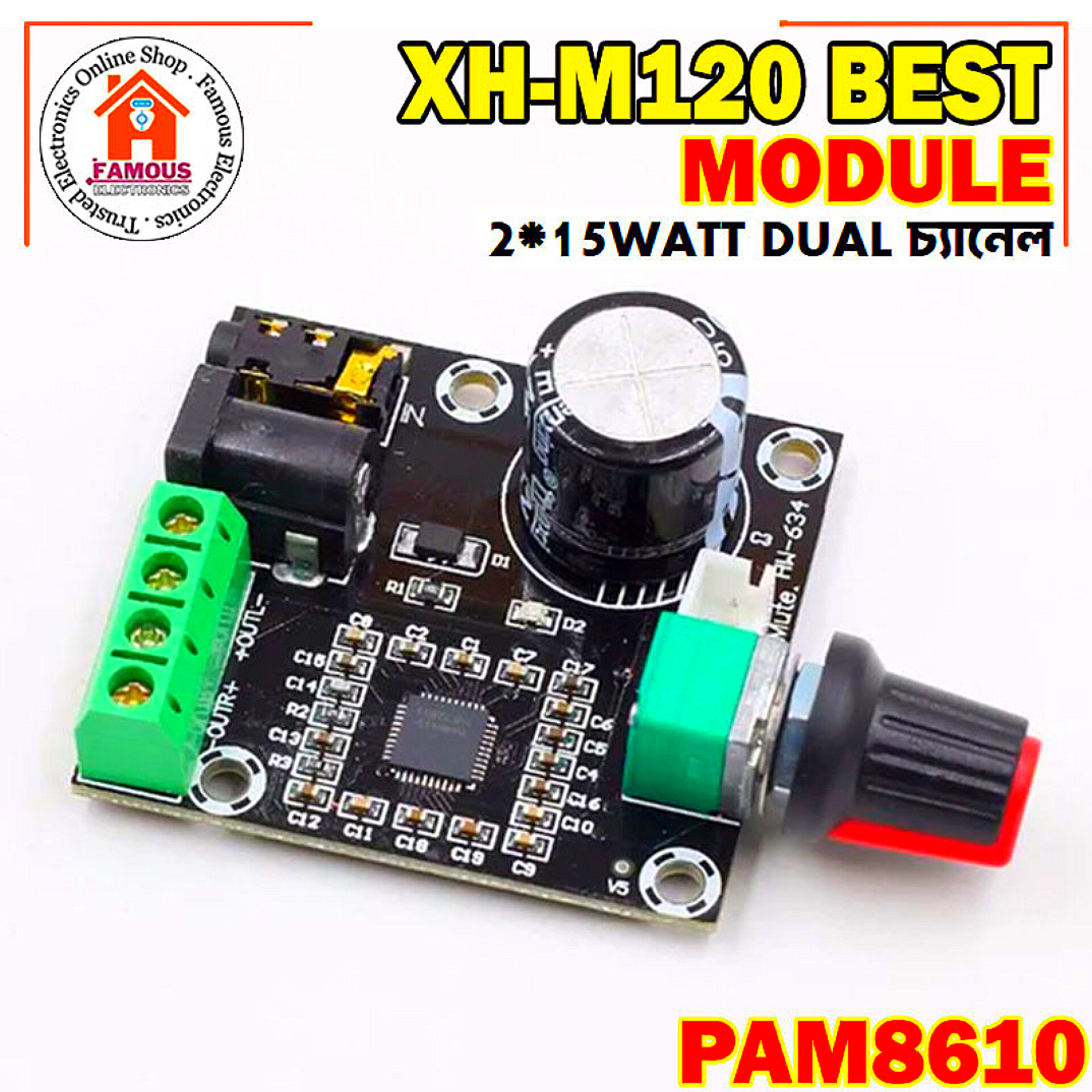

XH-M120 PAM8610 Best Q Amplifier Board
XH-M120 PAM8610 Amplifier BoardThe PAM8610 amplifier board is an all-new efficient amplifier board equipped with a 15W dual channel class D audio amplifier. This XH-M120 PAM8610 amplifier board is much more efficient and performs better than the Class AB amplifier boards.This Pam8610 audio amplifier board helps save cost and PCB area by eliminating the need for a low-pass output filter. It also can extend the battery life and is ideal for portable applications.Features:Output Power: 2x15W (at 4Ω load), 2x10W (at 8Ω load)Power Supply: Operates on a 7V to 15V DC power supply (12V recommended)Efficiency: High efficiency (up to 90%)Volume Control: 32 steps DC volume control with a range from +32dB to -75dBProtection: Includes short-circuit, overheating, and over-current protectionFrequency Response: 20Hz to 15kHzSize: 45mm x 48mm x 18mmLow THD+N: Total Harmonic Distortion plus Noise (THD+N) of 0.1% for high-quality sound reproductionCompact Design: Saves cost and board space by eliminating the need for a low-pass output filter
FAMOUS ELECTRONICS BD
Category List
All products
HandTools
Module
Robotics
Battery
Motor
BatteryPack
Soldering Tools
Amplifier
PowerBank and Accessories
Charger and Adaptor
- XH-M120 PAM8610 Amplifier Board
- The PAM8610 amplifier board is an all-new efficient amplifier board equipped with a 15W dual channel class D audio amplifier. This XH-M120 PAM8610 amplifier board is much more efficient and performs better than the Class AB amplifier boards.
- This Pam8610 audio amplifier board helps save cost and PCB area by eliminating the need for a low-pass output filter. It also can extend the battery life and is ideal for portable applications.
- Features:
- Output Power: 2x15W (at 4Ω load), 2x10W (at 8Ω load)
- Power Supply: Operates on a 7V to 15V DC power supply (12V recommended)
- Efficiency: High efficiency (up to 90%)
- Volume Control: 32 steps DC volume control with a range from +32dB to -75dB
- Protection: Includes short-circuit, overheating, and over-current protection
- Frequency Response: 20Hz to 15kHz
- Size: 45mm x 48mm x 18mm
- Low THD+N: Total Harmonic Distortion plus Noise (THD+N) of 0.1% for high-quality sound reproduction
- Compact Design: Saves cost and board space by eliminating the need for a low-pass output filter
XH-M120 PAM8610 Best Q Amplifier Board
175 BDT220 BDTSave 45 BDT
Total sold : 6
- XH-M120 PAM8610 Amplifier Board
- The PAM8610 amplifier board is an all-new efficient amplifier board equipped with a 15W dual channel class D audio amplifier. This XH-M120 PAM8610 amplifier board is much more efficient and performs better than the Class AB amplifier boards.
- This Pam8610 audio amplifier board helps save cost and PCB area by eliminating the need for a low-pass output filter. It also can extend the battery life and is ideal for portable applications.
- Features:
- Output Power: 2x15W (at 4Ω load), 2x10W (at 8Ω load)
- Power Supply: Operates on a 7V to 15V DC power supply (12V recommended)
- Efficiency: High efficiency (up to 90%)
- Volume Control: 32 steps DC volume control with a range from +32dB to -75dB
- Protection: Includes short-circuit, overheating, and over-current protection
- Frequency Response: 20Hz to 15kHz
- Size: 45mm x 48mm x 18mm
- Low THD+N: Total Harmonic Distortion plus Noise (THD+N) of 0.1% for high-quality sound reproduction
- Compact Design: Saves cost and board space by eliminating the need for a low-pass output filter
