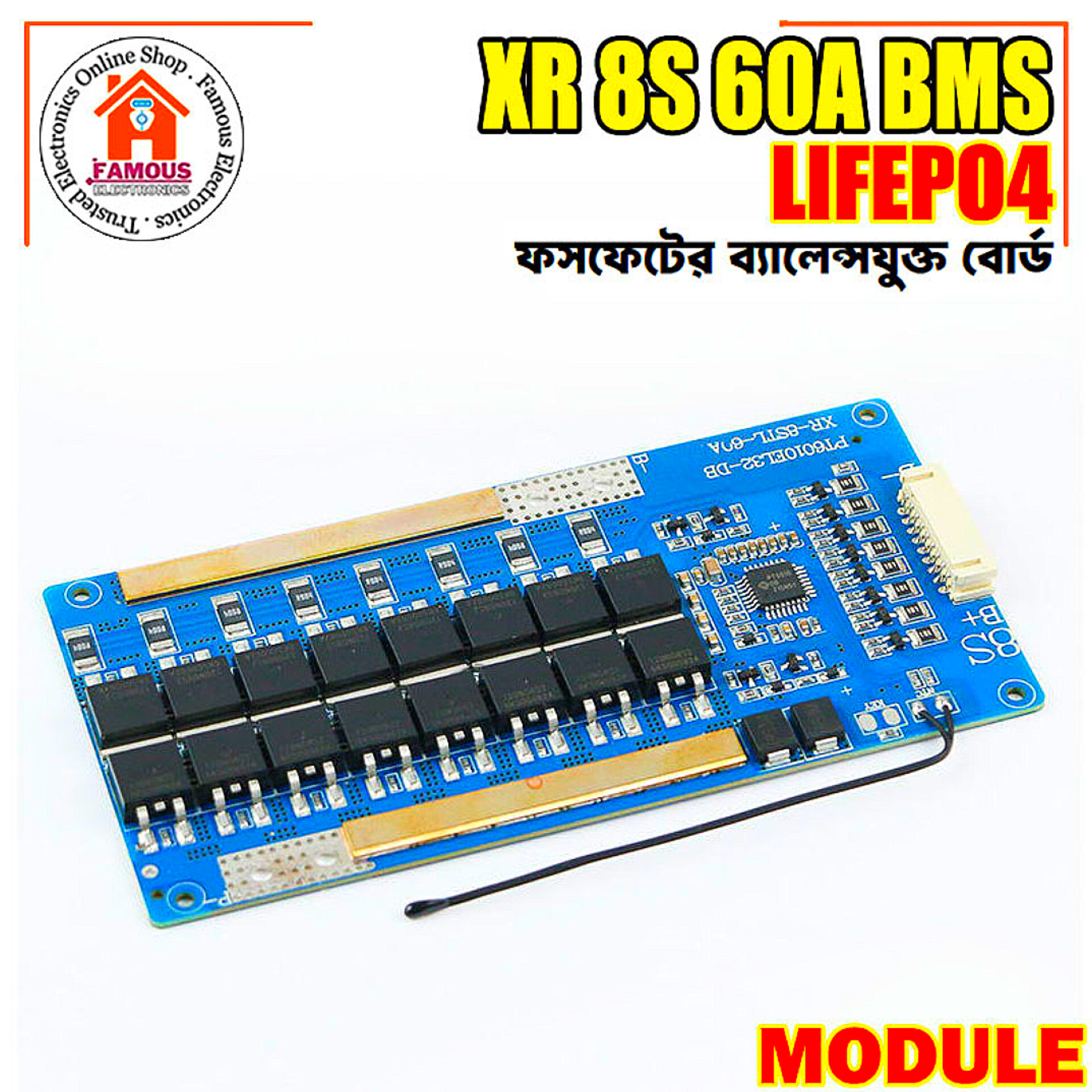

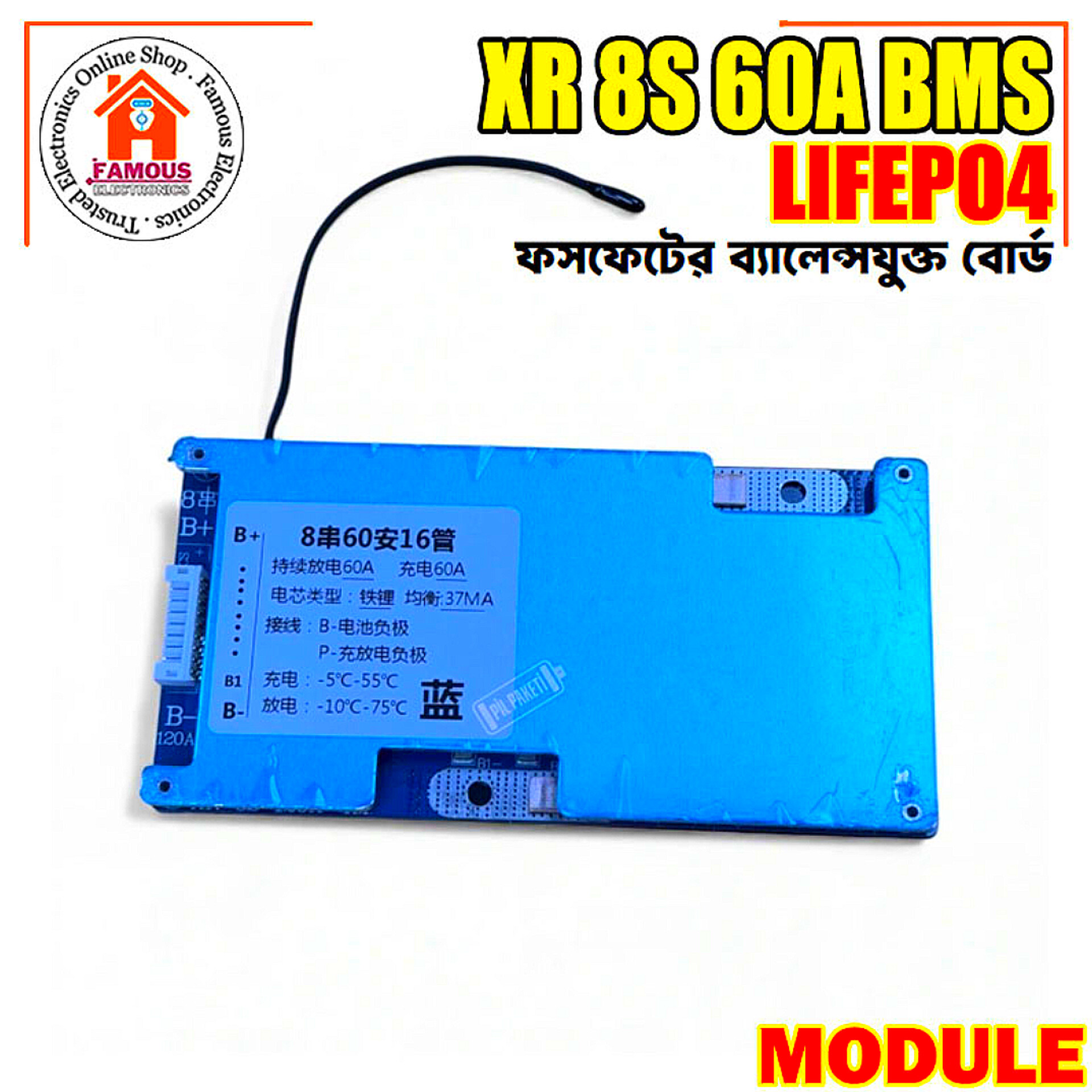

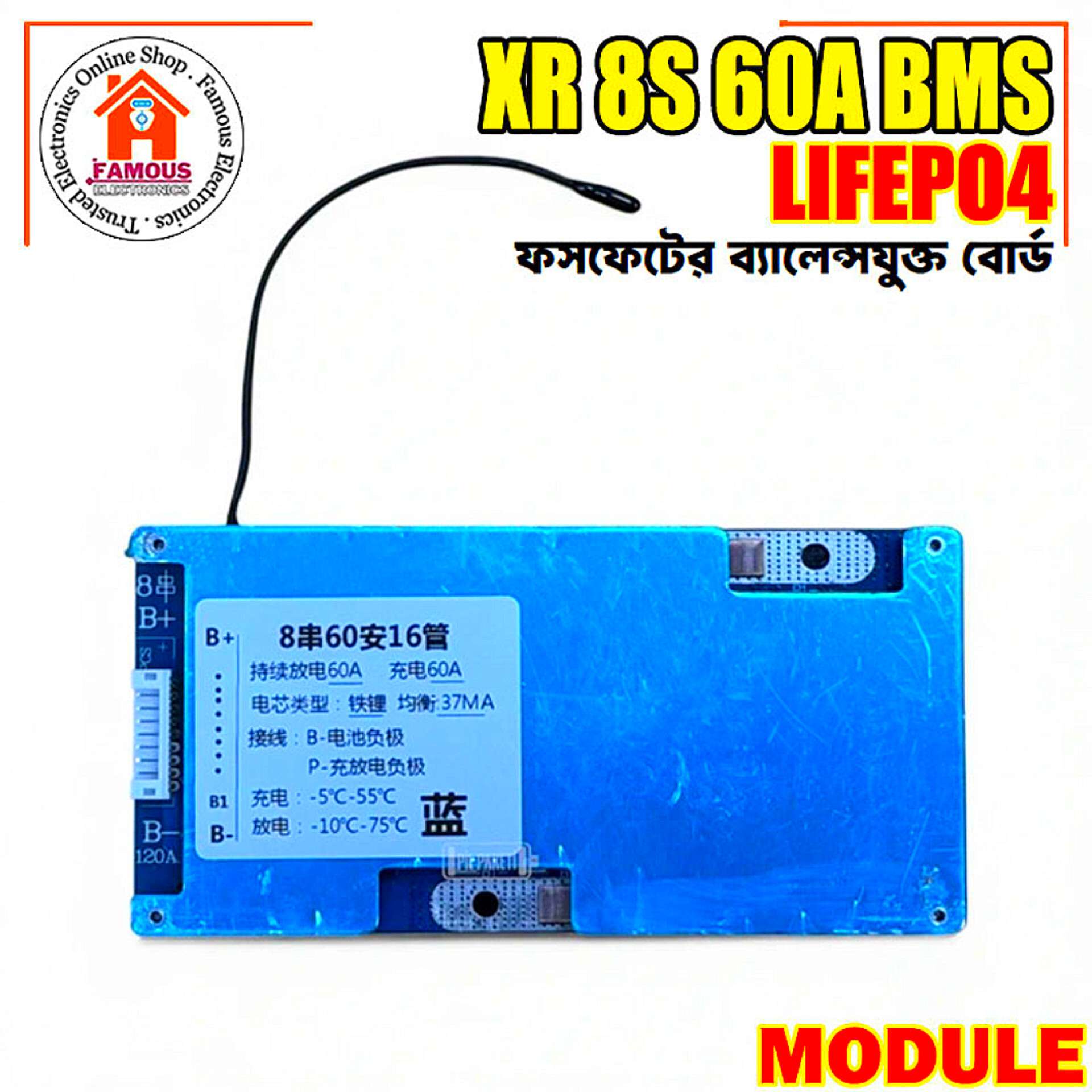

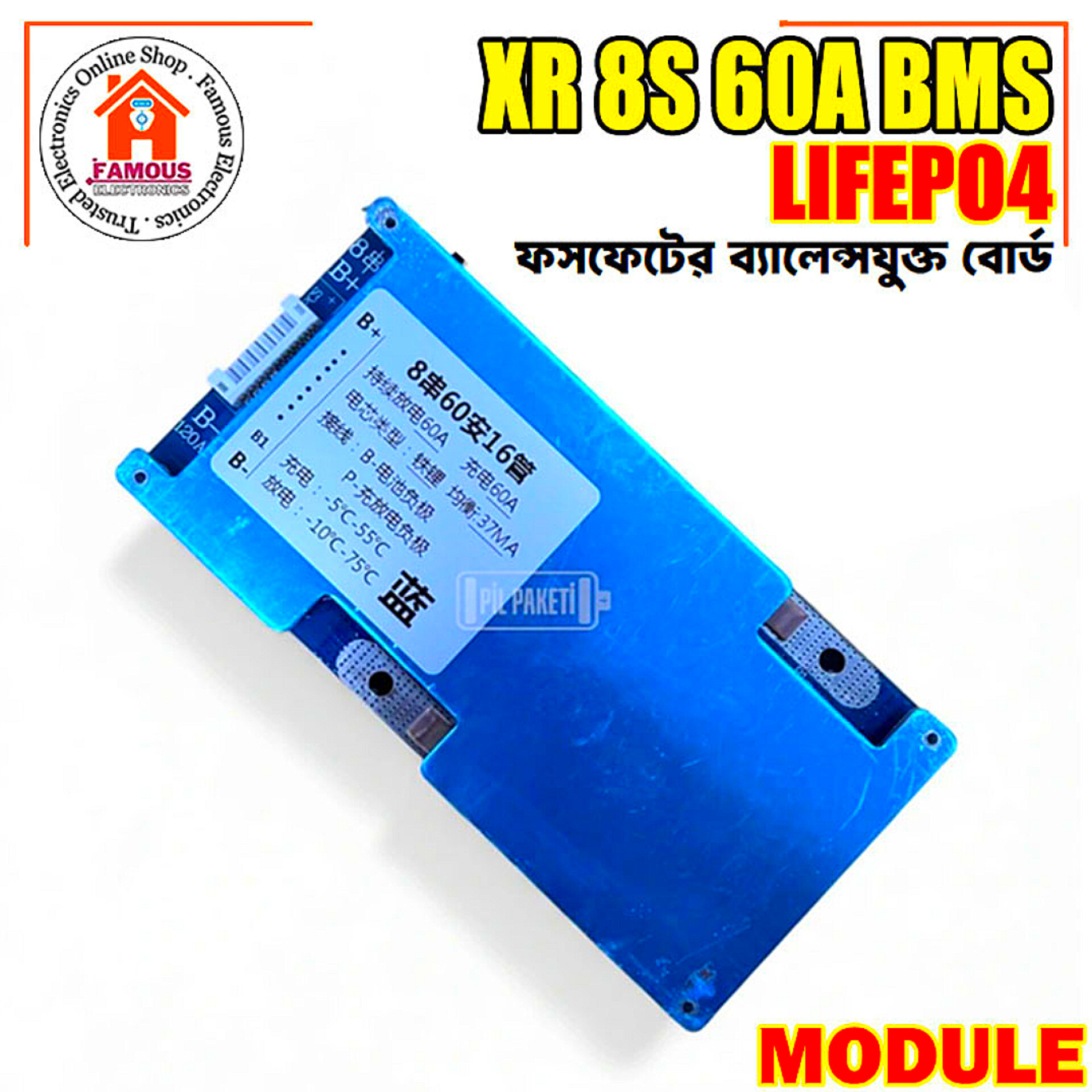

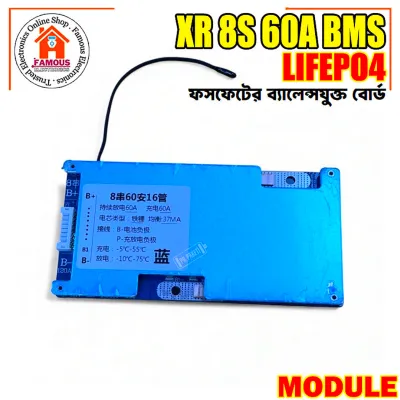

XR 8S 24V 60A LiFePO4 Best Q BMS Board

1,700 BDT1,950 BDTSave 250 BDT

Total sold : 6

Product Specificatons:

Product Name

BMS 8S 60A with Balance and NTC

Model BMS074-XR-8STL-60A

Battery Type Lifepo4 8S 24V 40A/50A/60A

Continuous Working Current 40A/50A/60A

Instant Protection Current 40A version=160A, 50A version=200A, 60A version=220A

Overdischarge Delay

Short-circuit Delay

Connection wire Common port

Single Cell Over Discharge Voltage 2.3V+/-0.08V

Single Cell Over Discharge Restore 2.5V+/-0.08V

Over Discharge Voltage Delay

Overcurrent Delay

Short Circuit Delay

Overcurrent Restore Conditions Charging restore or cutoff load

Short Circuit Restore Conditions Charging restore or cutoff load

Single Cell Over Charge Voltage 3.75V+/-0.025V

Single Cell Over Charge Restore 3.55V+/-0.025V

Over Charge Voltage Delay

Over Temperature Protection (charge) -2°C to 55°C

Over Temperature Protection (discharge) -30°C to 70°C

Continuous Charging Current 40A/50A/60A

Charging Overcurrent Protection

Charging Balancing Voltage 3.55V+/-0.025V

Charging Balancing Current 40mA

Charger Voltage LFP 8S: 30V (Recommended)

How to Activate

Working Power Consumption ≤40uA

Main Circuit Conduction internal resistance ≤15mΩ

Temperature Range -40°C to +80°C

Wire Break Protection Yes

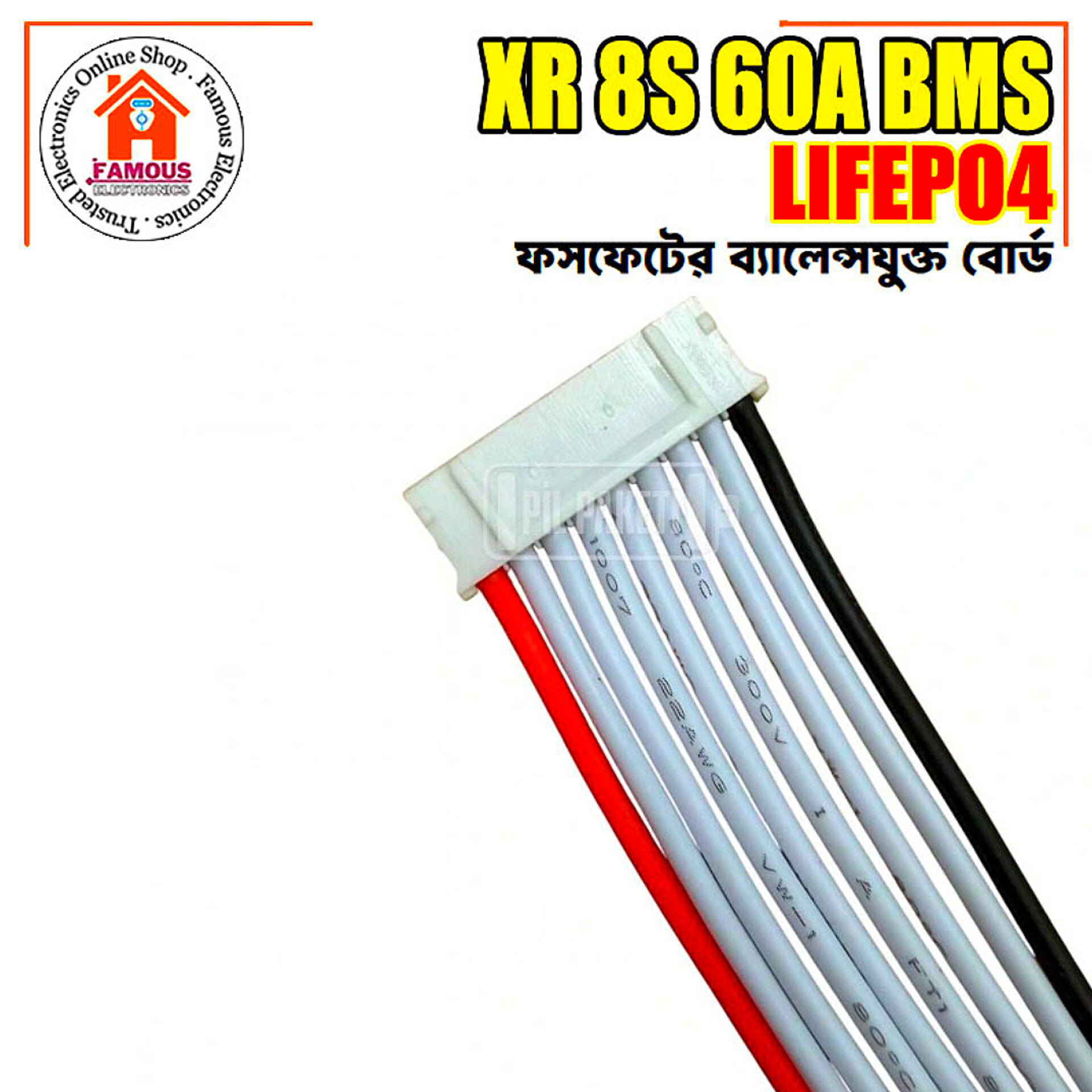

Socket Wire 2.0mm spacing/8 wires/length 400mm

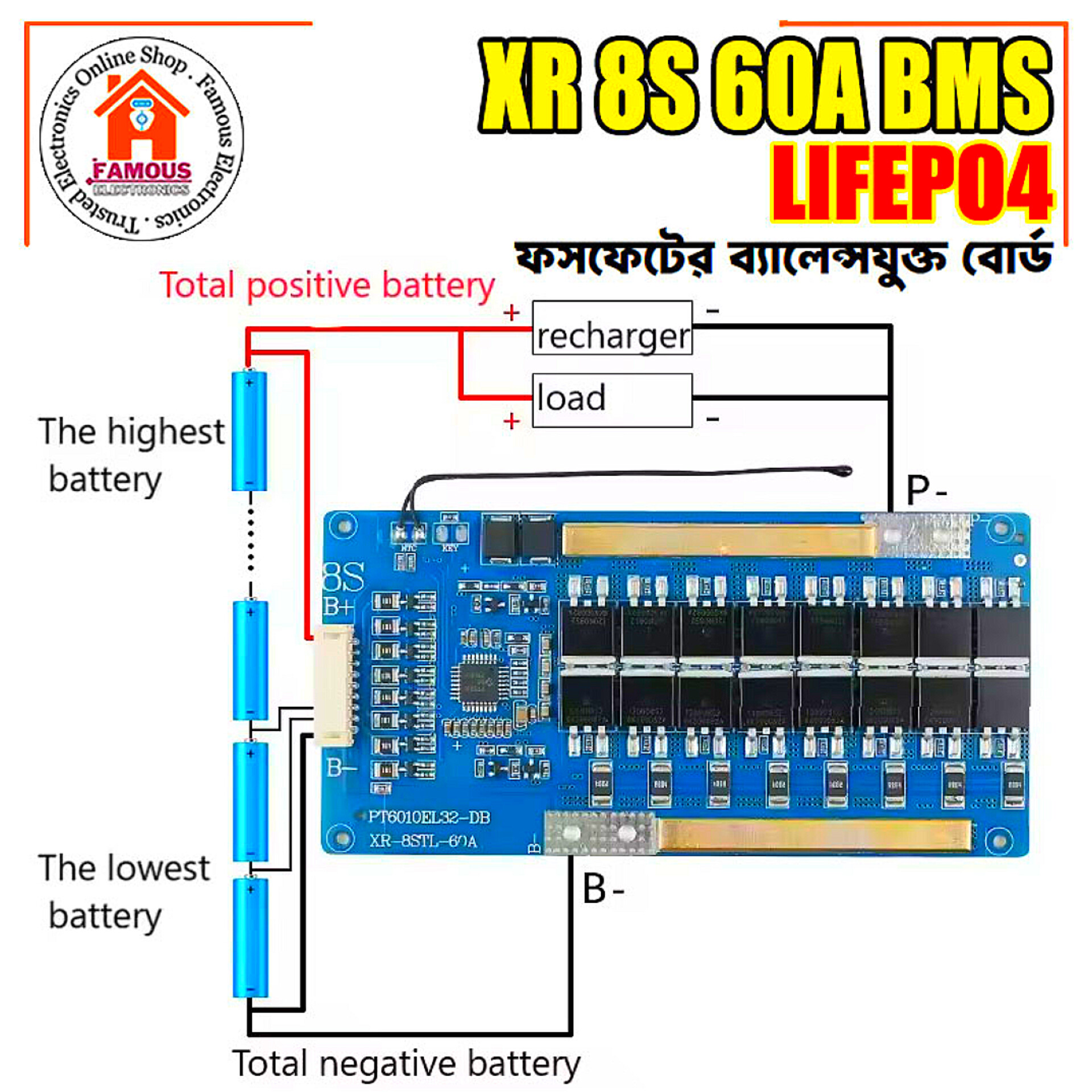

How to Connect

PCB size 128*63*10mm

Application E-vehicle, E-scooter, Muscle gun, Electric driller, Vacuum cleaner battery, inverter, relay, e-bike, etc.
